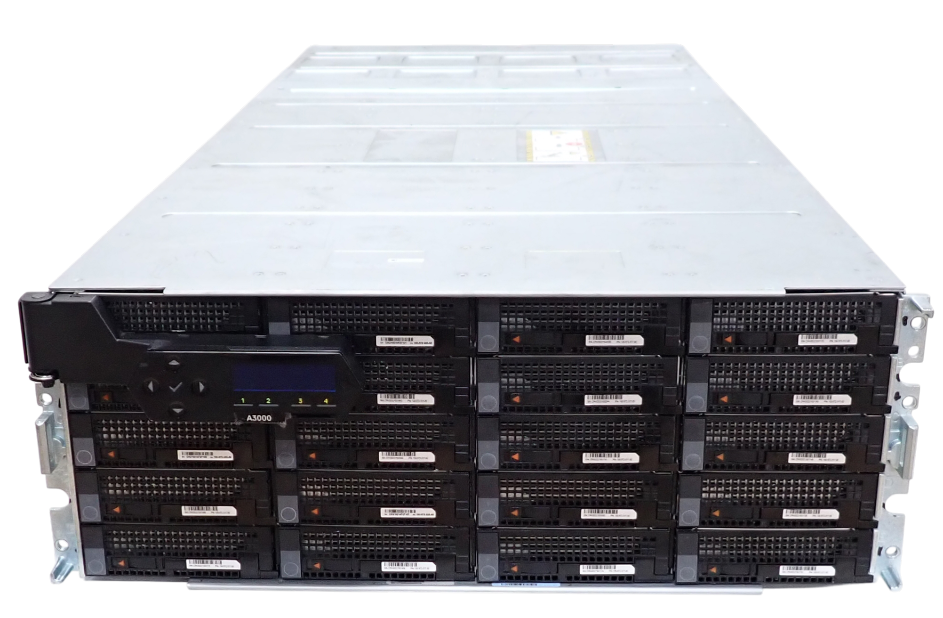

Dell EMC PowerScale Archive A3000 80Bay 4-Node 4U NAS Storage +20x 4-Bay Caddies

Condition : Refurbished – tested and working grade A refurbished part

Dell EMC PowerScale Archive A3000 80-Bay 4-Node 4U NAS Storage with 20x 4-Bay Drive Caddies

Includes:
- Dell EMC PowerScale Archive A3000 80-Bay 4-Node 4U NAS Storage chassis
- 20 x 4-Bay 3.5" Drive Caddies

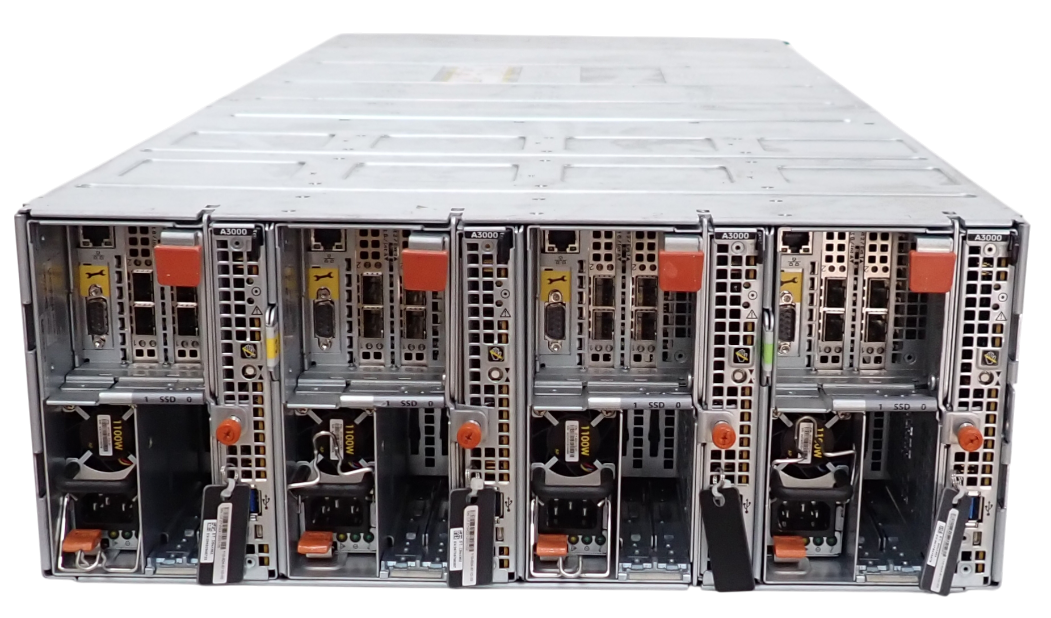

- 4 x Dell EMC PowerScale A3000 Archive Nodes

Node Specifications:
- Processor: Intel Xeon Six-Core Bronze 3204 1.90GHz
- Memory: 96GB DDR4 (6 x 16GB)
- Drive Bays: 2 x 2.5" SAS/SATA per node
- Network: 2 x Mellanox ConnectX-4 Dual Port 10/25GbE SFP28
- Storage: 128GB SATA 6G M.2 SSD
- Power Supply: 1100W

Chassis Capacity:
- 80 HDD drives (3.5")
- Raw capacity options from 960 TB up to 1.9 PB

Features:
- Compatible with PowerScale OneFS 9.2.1 or later (software not included)
- Single global namespace and fully distributed journaled file system
- Supports non-disruptive software upgrades
- Front-end networking options: 2 x 100 GbE or 2 x 25 GbE per node
- Infrastructure networking options include InfiniBand QDR, 100 GbE, or 25 GbE
- Supports HDD media sizes from 12 TB to 24 TB

Physical:
- 4U form factor
- Dimensions: Height 17.8 cm (7 in), Width 44.8 cm (17.6 in), Depth 102.6 cm (40.4 in)
- Max weight per chassis/node: 137.4 kg (303 lbs)
- Artesyn Gen2 Optimus 1100W power supply

Custom configurations available. Contact us to discuss your requirements.
