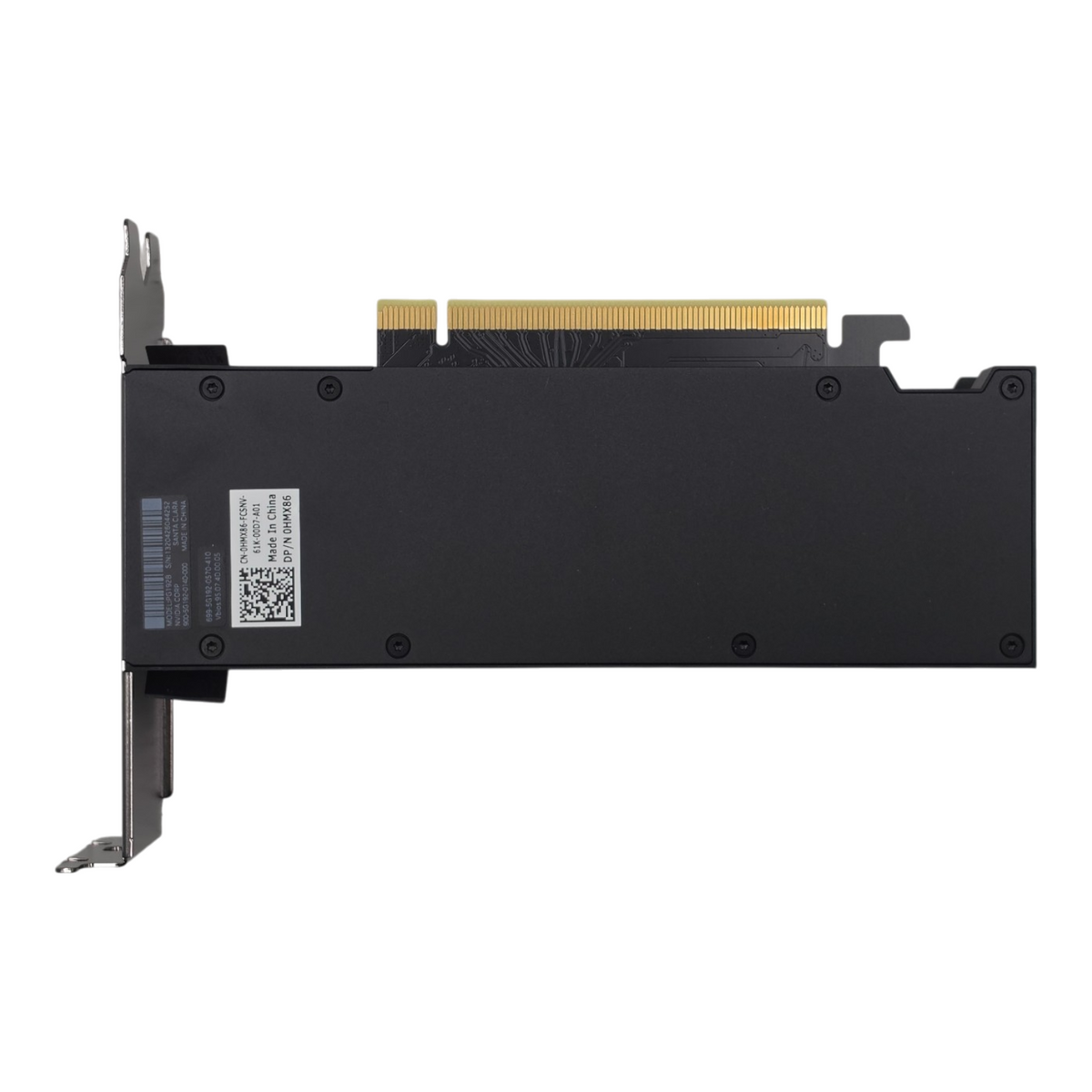

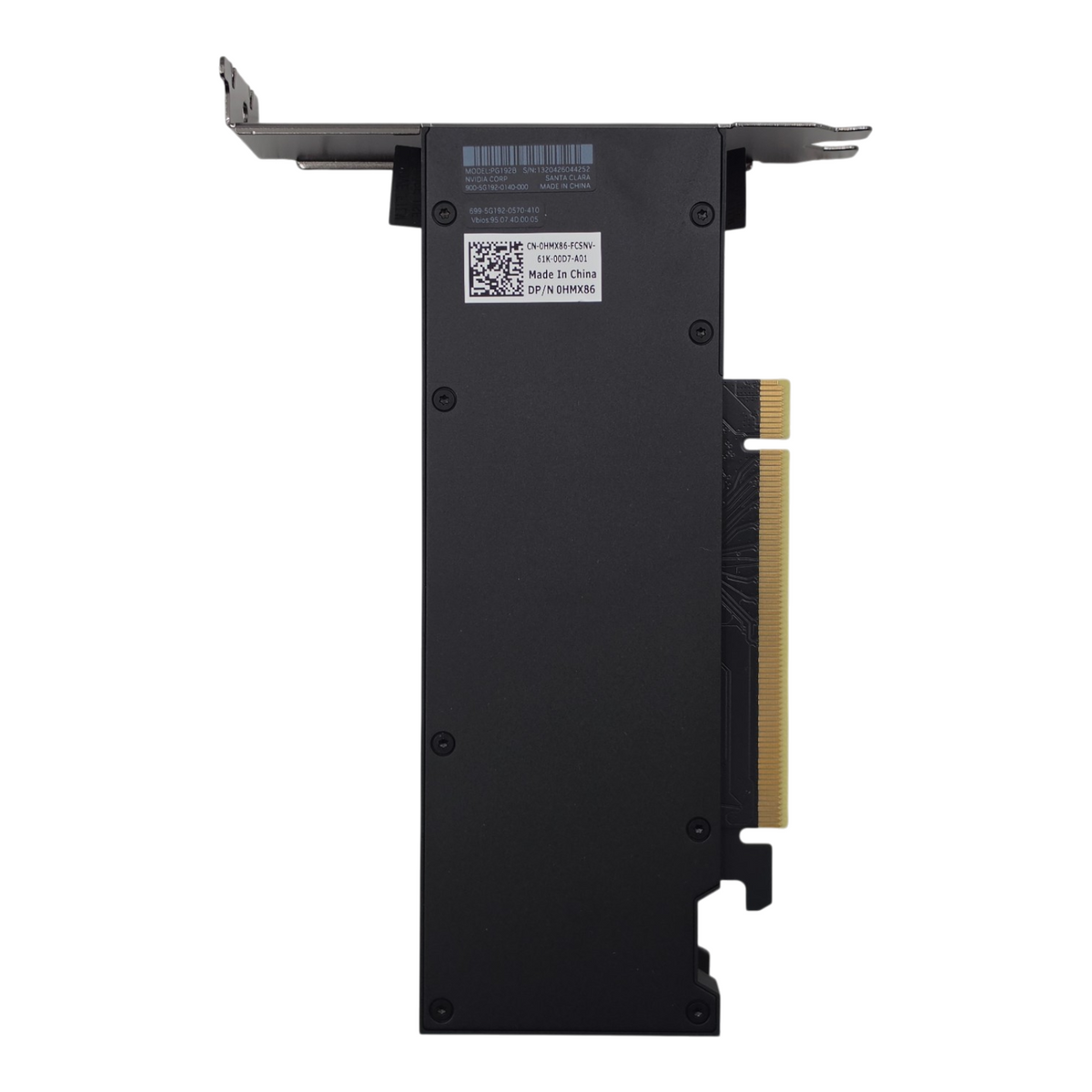

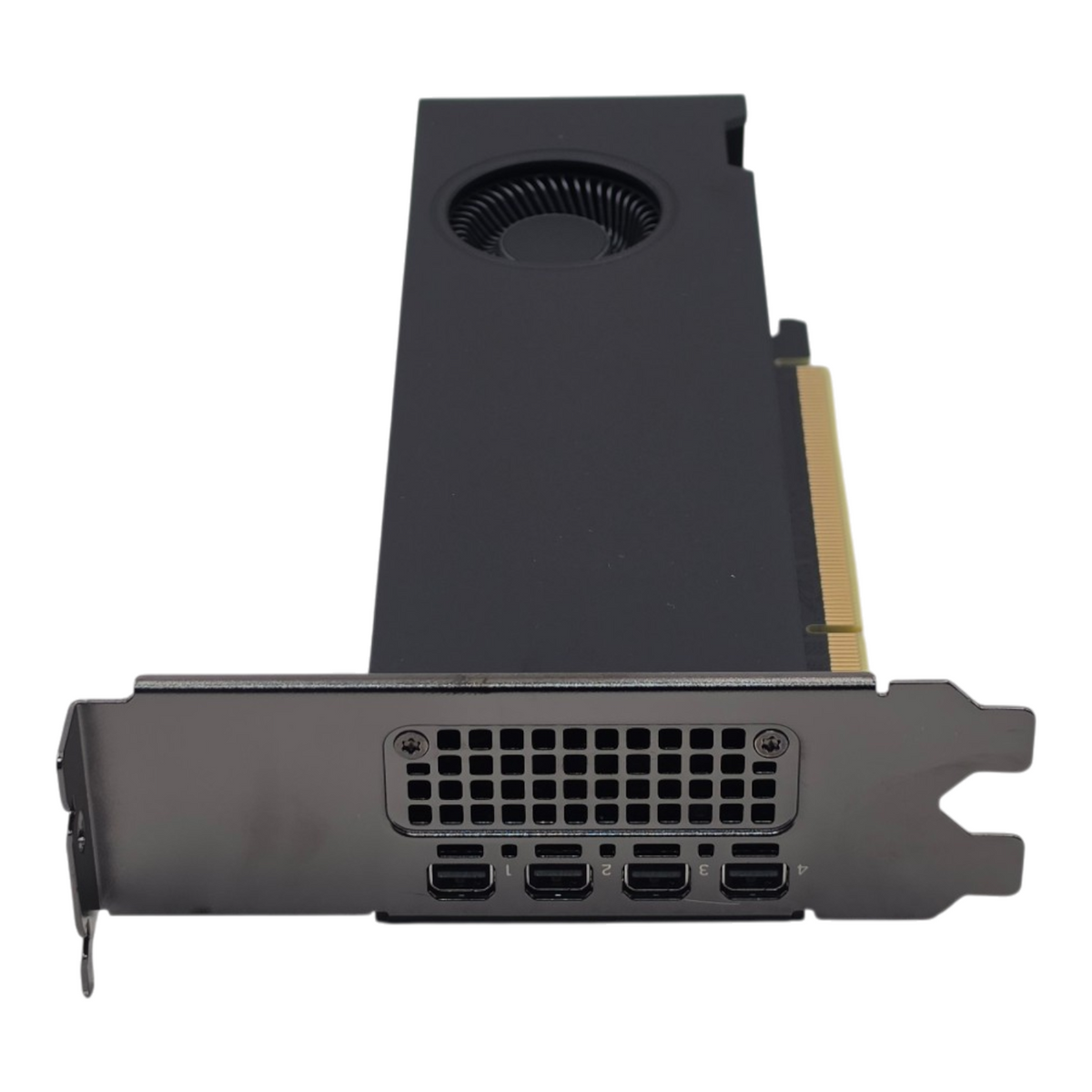

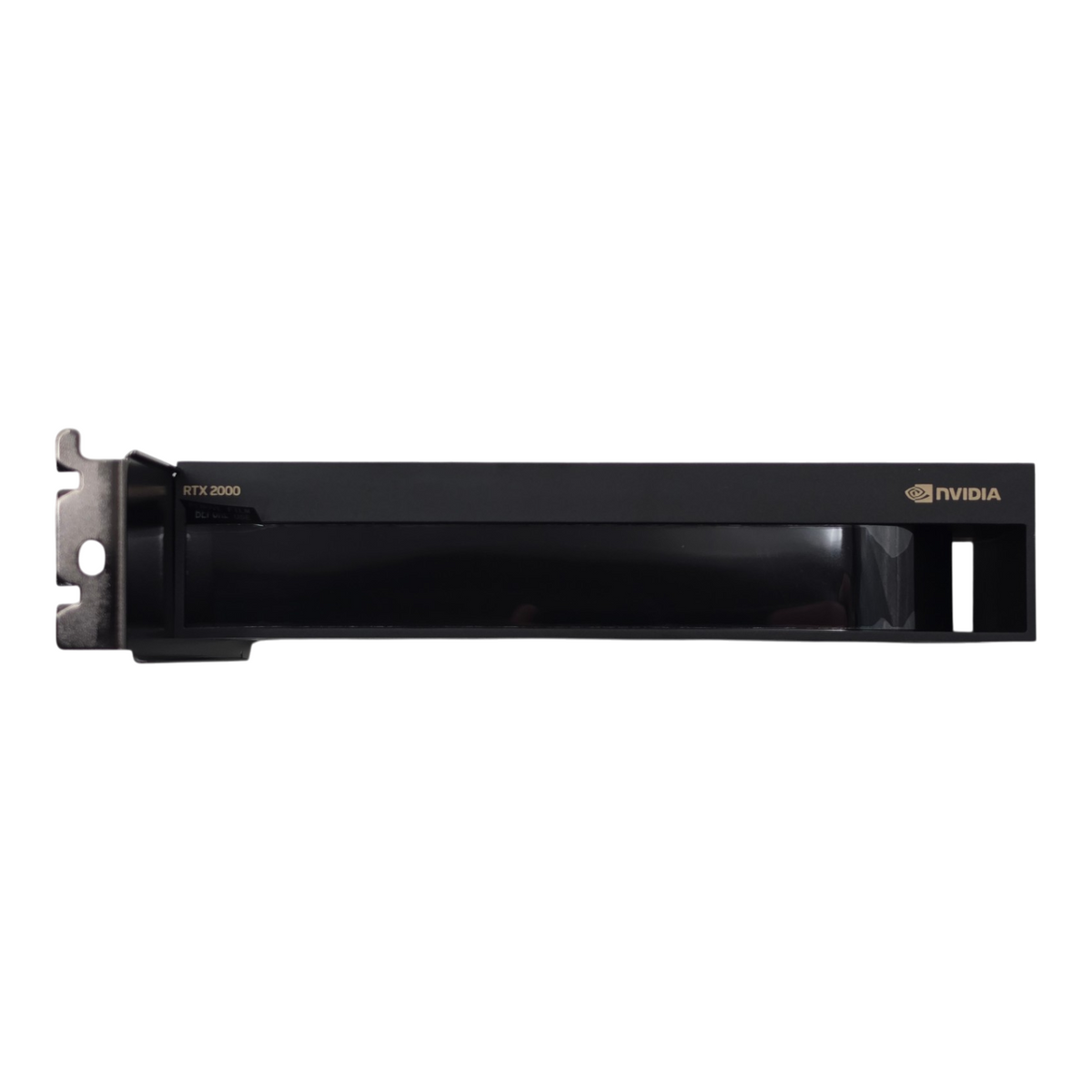

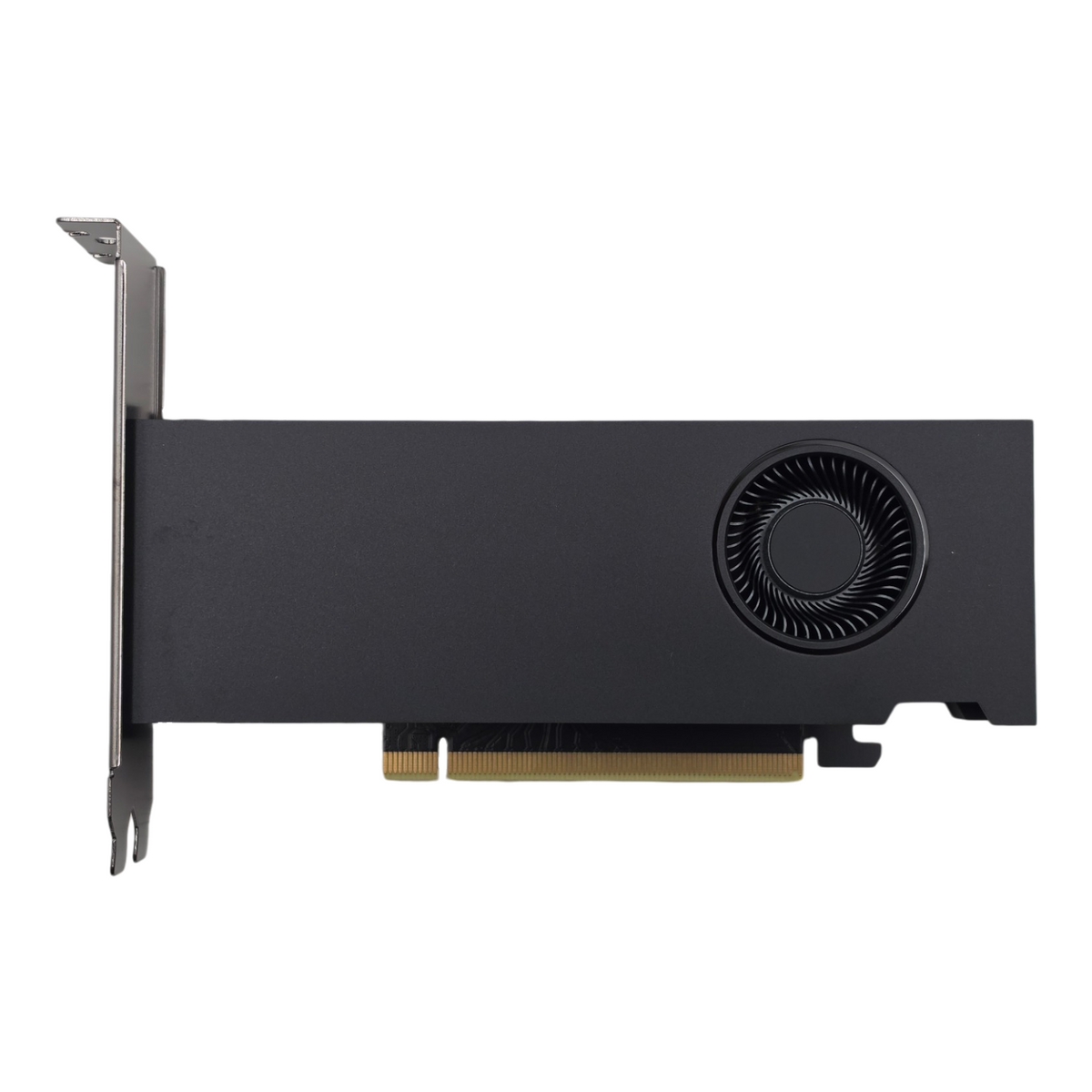

Dell HMX86 NVIDIA RTX 2000 Ada Generation 16GB GDDR6 4x Mini DisplayPort GPU

Condition : Refurbished – tested and working grade A refurbished part

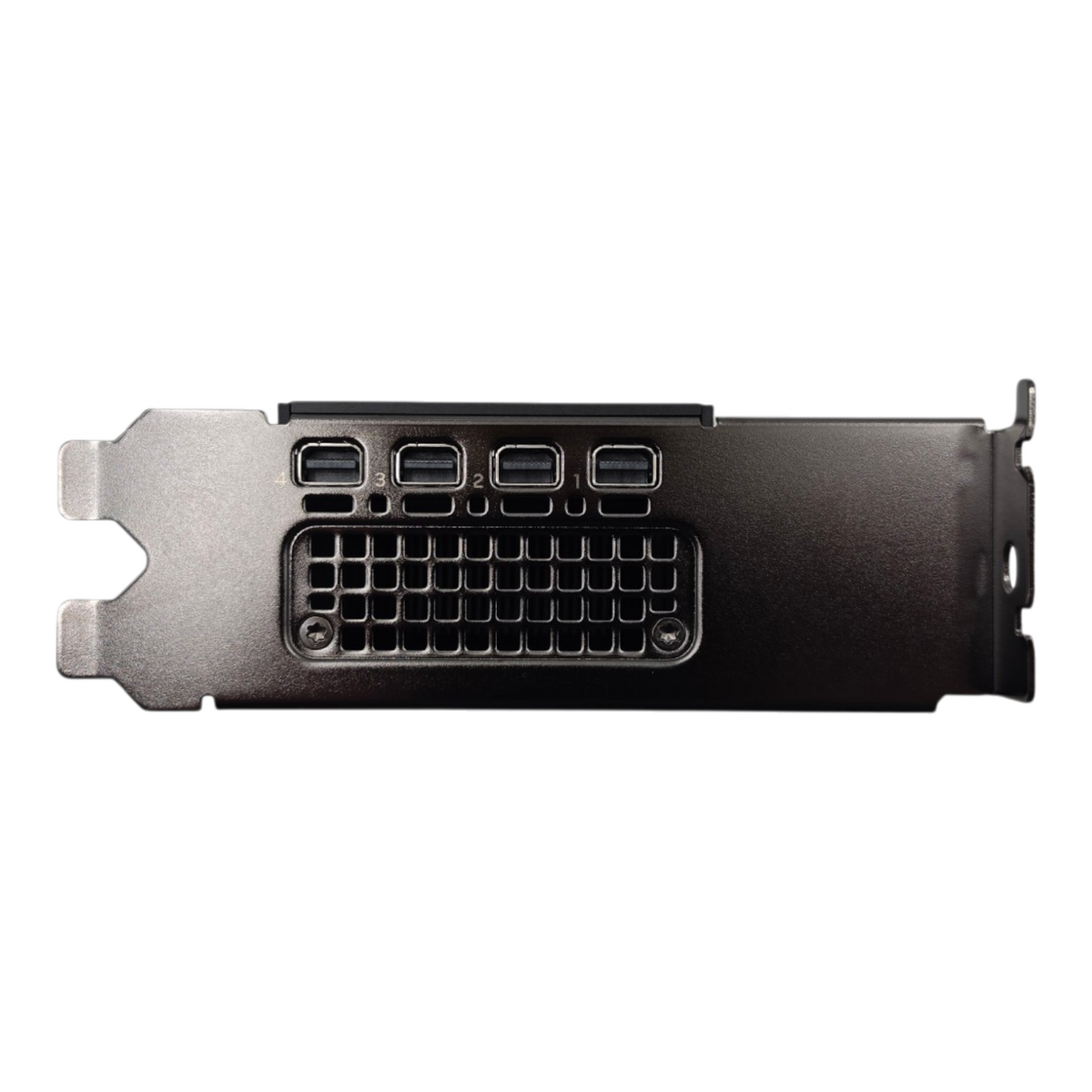

Dell HMX86 NVIDIA RTX 2000 Ada Generation 16GB GDDR6 GPU with 4x Mini DisplayPort outputs. Features the AD107 GPU with Ada Lovelace architecture, PCIe 4.0 x8 interface, and dual-slot design. Dimensions are 168mm length and 69mm height. TDP is 70W with a suggested 250W PSU. Clock speeds include a base of 1620 MHz, boost of 2130 MHz, and memory clock of 2000 MHz (16 Gbps effective). Memory specifications: 16 GB GDDR6, 128-bit bus, 256 GB/s bandwidth. Render configuration includes 2816 shading units, 88 TMUs, 48 ROPs, 22 SMs, 88 tensor cores, 22 RT cores, 128 KB L1 cache per SM, and 12MB L2 cache. Supports DirectX 12 Ultimate, OpenGL 4.6, OpenCL 3.0, Vulkan 1.4, CUDA 8.9, and Shader Model 6.9. Theoretical performance: 102.2 GPixel/s pixel rate, 187.4 GTexel/s texture rate, 12 TFLOPS FP16 and FP32, and 187.4 GFLOPS FP64. Includes matrix and numeric format support for INT4, INT8, FP8, BF16, TF32, and sparse matrix throughput. Outputs include 4x mini-DisplayPort 1.4a connections. Ideal for advanced graphics and compute workloads.
