Dell Networking C9010 Modular 10-Slot Switch Chassis + RPM-2.56T Module + 1x PSU

Condition : Refurbished – tested and working grade A refurbished part

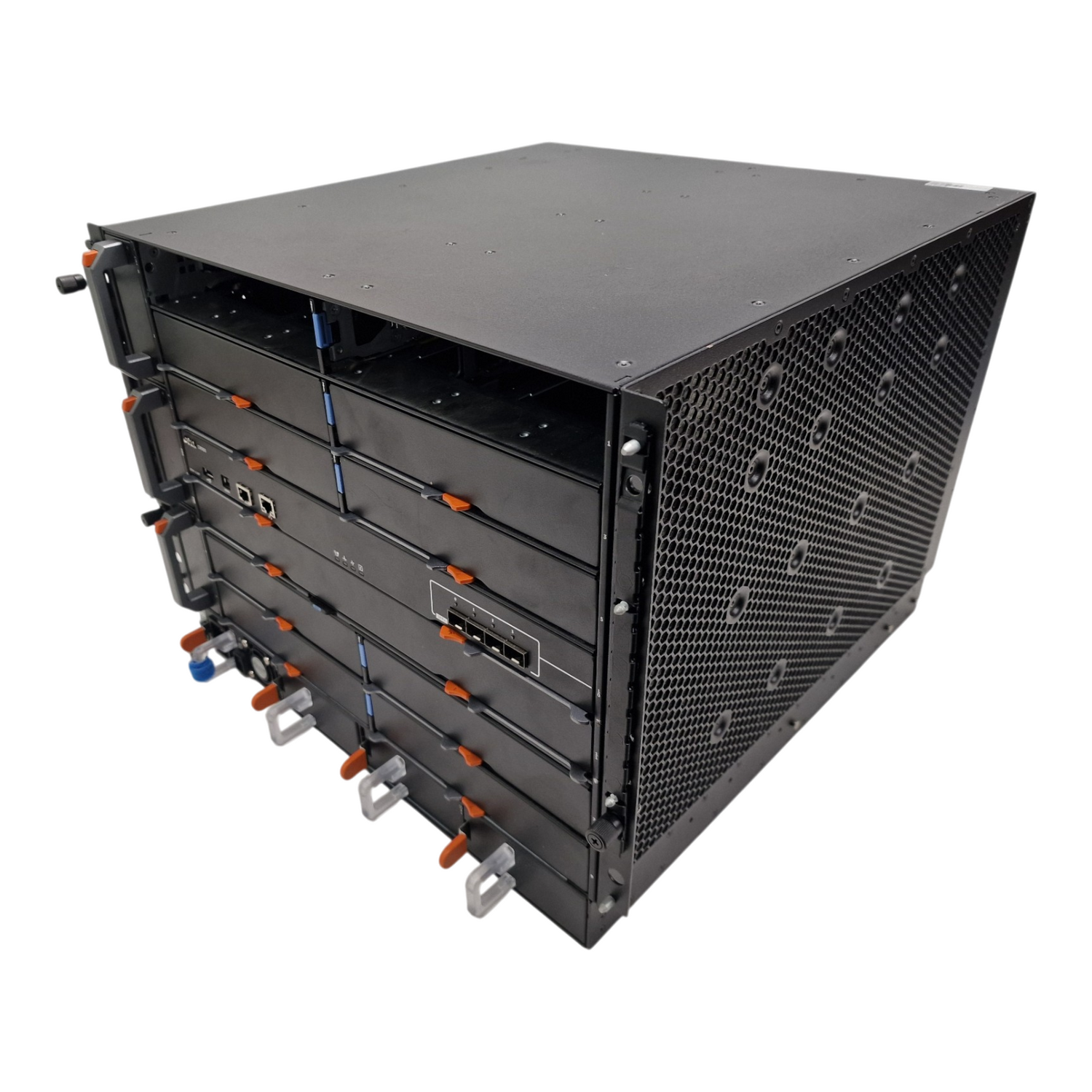

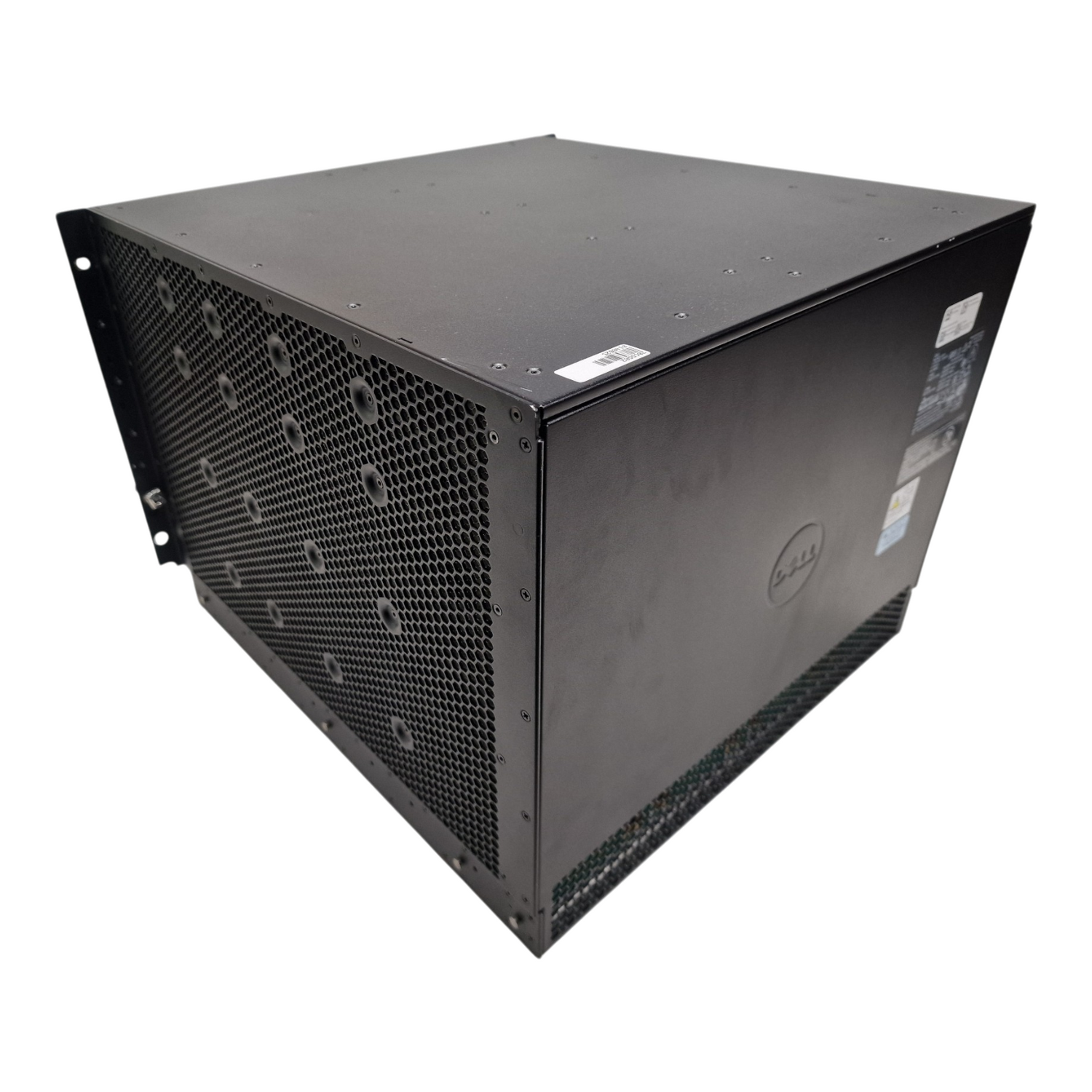

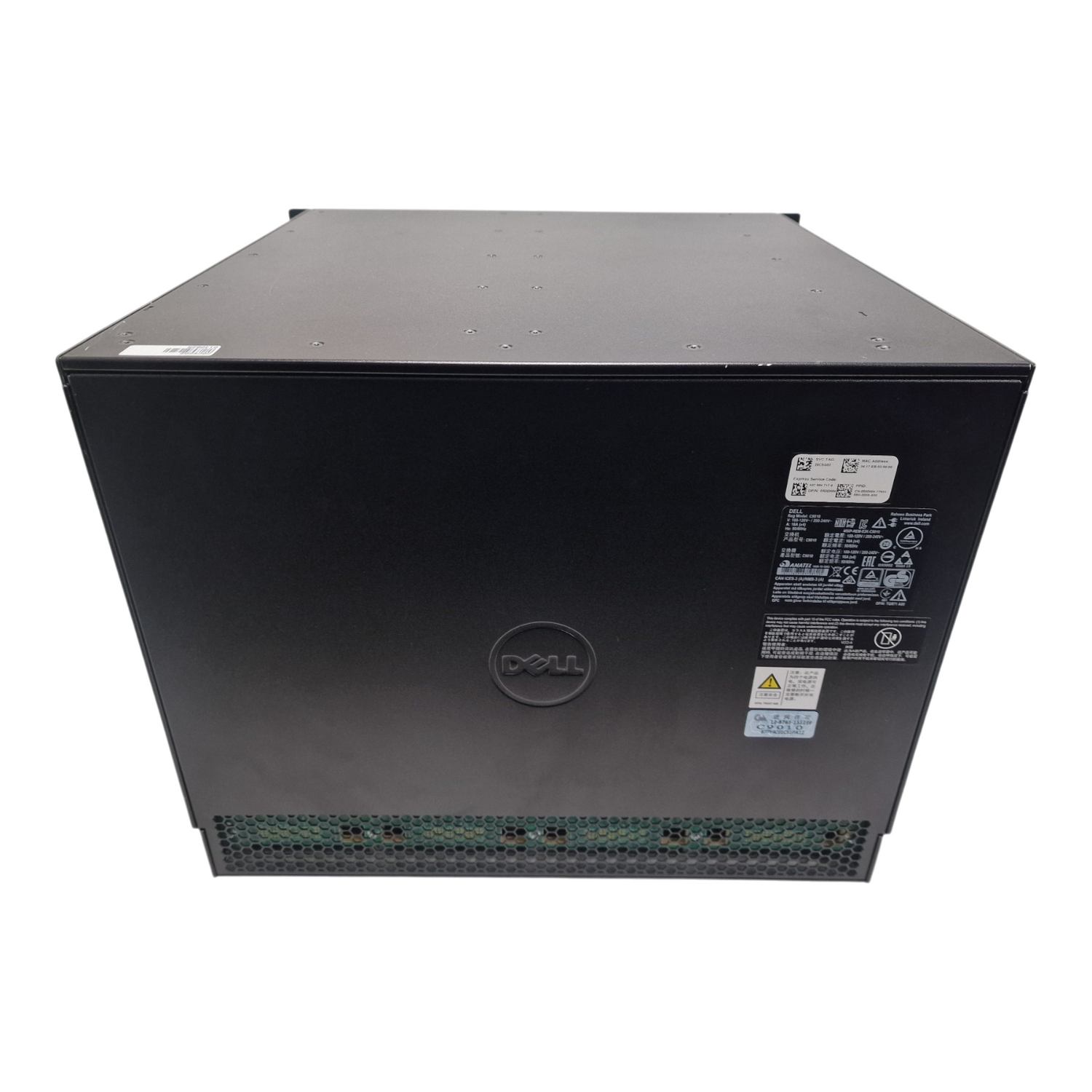

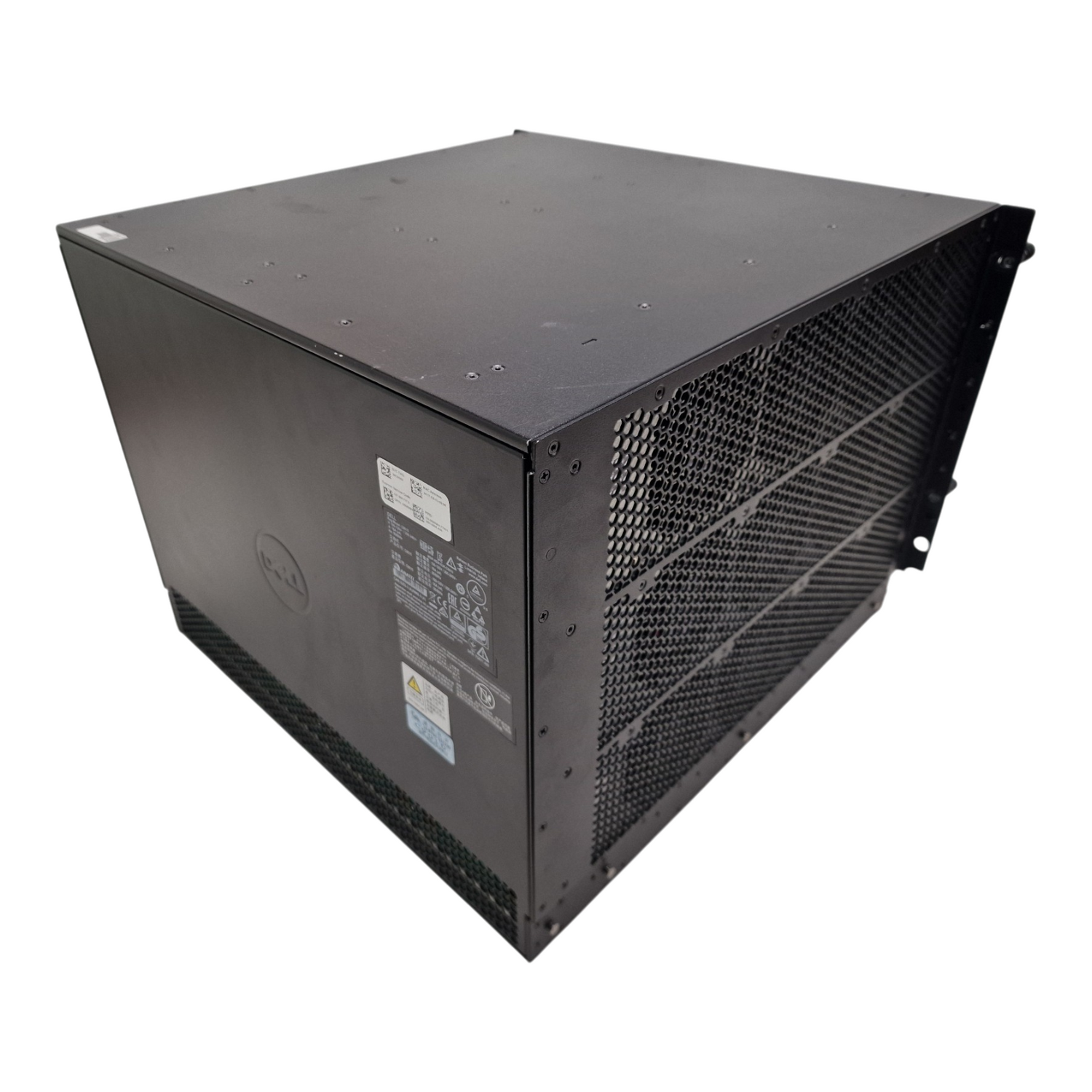

Dell Networking C9010 Modular 10-Slot Switch Chassis with RPM-2.56T Module and 1x Power Supply

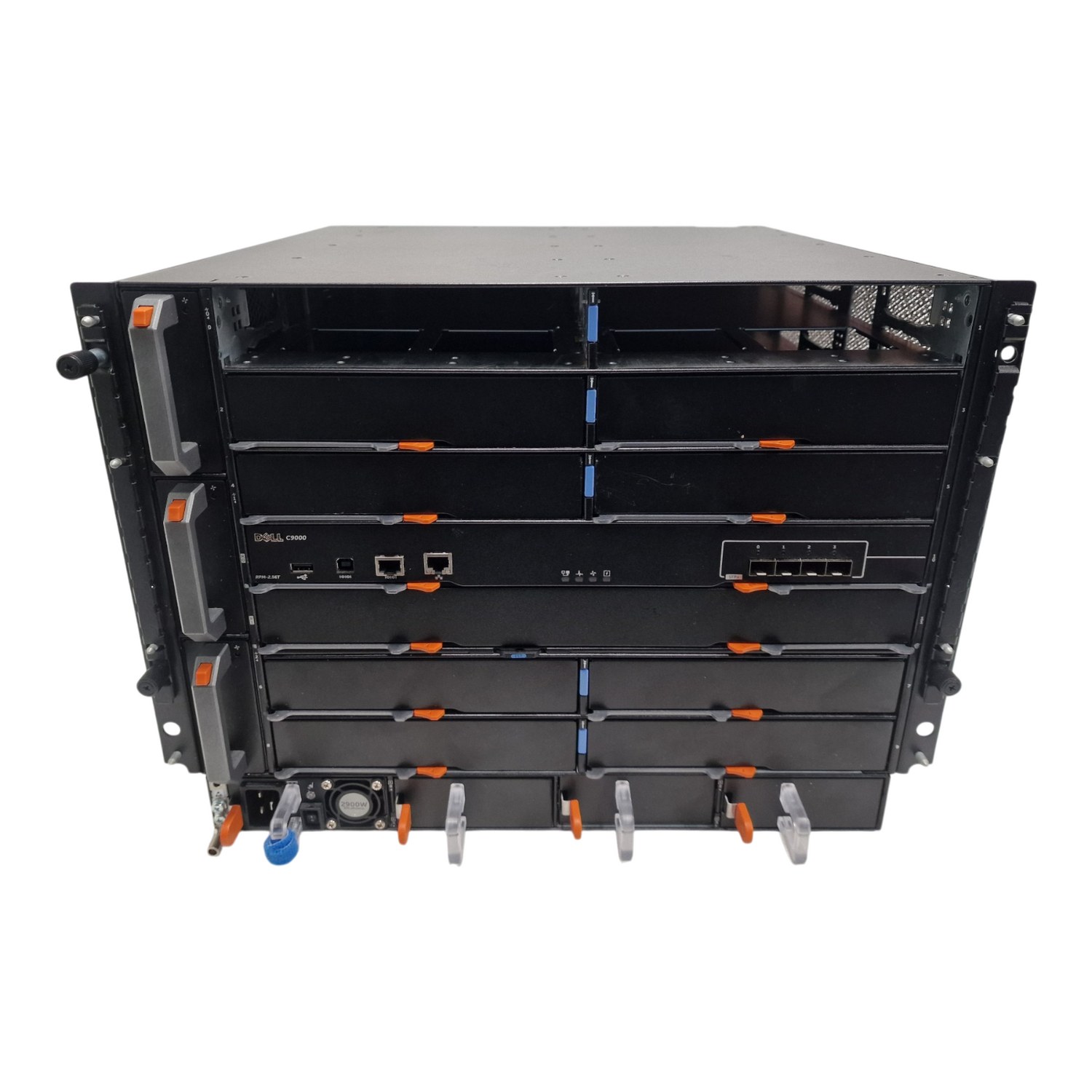

This modular switch chassis supports high-density networking with flexible configuration options. It includes one installed C9000 RPM 2.56T routing processor module featuring four 10Gb/s SFP+ ports, one 2900W 80 PLUS power supply, and three hot-swappable fan modules.

Key Features:
- 10-slot modular chassis supporting up to 2 RPMs and up to 4 power supplies
- Compatible with 24-port 10GbE 10GBASE-T, 24-port 10GbE SFP+, and 6-port 40GbE QSFP+ line cards
- Fully loaded capacity up to 240x 1/10GBASE-T ports, 248x 1/10GbE SFP+ ports, and 60x 40GbE QSFP+ ports
- Redundant power supply support for high availability
- Hot-swappable fan modules for efficient cooling
- Management interfaces include RJ45 console port and USB-B port per RPM

Physical Specifications:
- Form factor: 8U rackmount
- Dimensions: 35.26 cm x 44.20 cm x 45.70 cm
- Weight: 25.2 kg (empty), up to 75.1 kg fully loaded

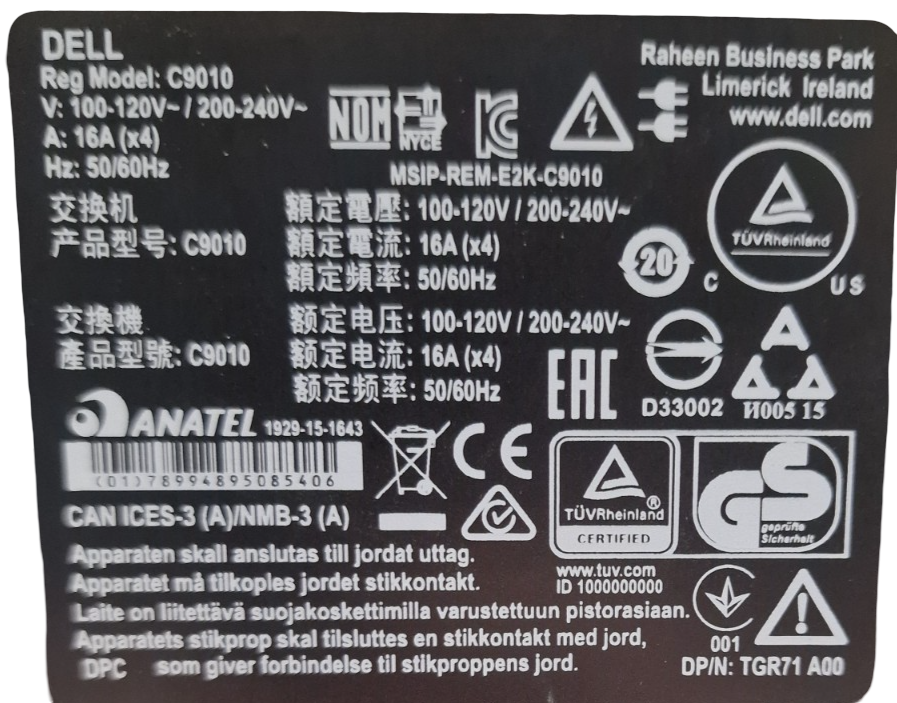

- Power input: 100-120VAC / 200-240VAC, 50/60 Hz
- Max power consumption: 2950W
- Operating temperature: 0 to 45°C
- Operating humidity: 5% to 85% RH (non-condensing)

Designed for enterprise and data centre environments, the C9010 chassis provides scalable, high-performance switching with flexible modular expansion.
