Dell Networking S6100-ON RA Modular Switch 4x 16x 40G QSFP+ Modules OS9

Condition : Refurbished – tested and working grade A refurbished part

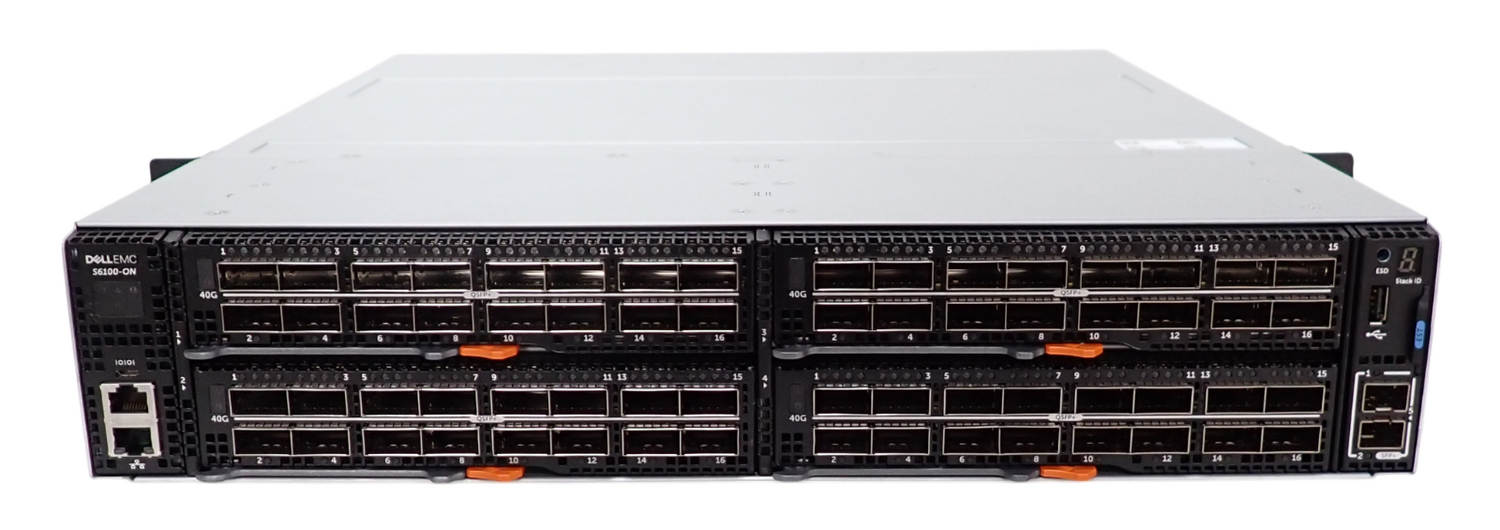

**Dell Networking S6100-ON RA Modular Switch with 4x 16x 40G QSFP+ Modules – Model 6N1J1-RA/REF (Refurbished)**

The Dell Networking S6100-ON RA Modular Switch is a high-performance, scalable solution designed for demanding data centre environments. Equipped with four 16-port 40G QSFP+ I/O modules and two SFP+ ports, it supports flexible connectivity options including breakout to 10GbE. This 2RU chassis features reverse airflow cooling and redundant hot-swappable power supplies and fan modules to ensure continuous operation and easy maintenance.

**Key Features:**

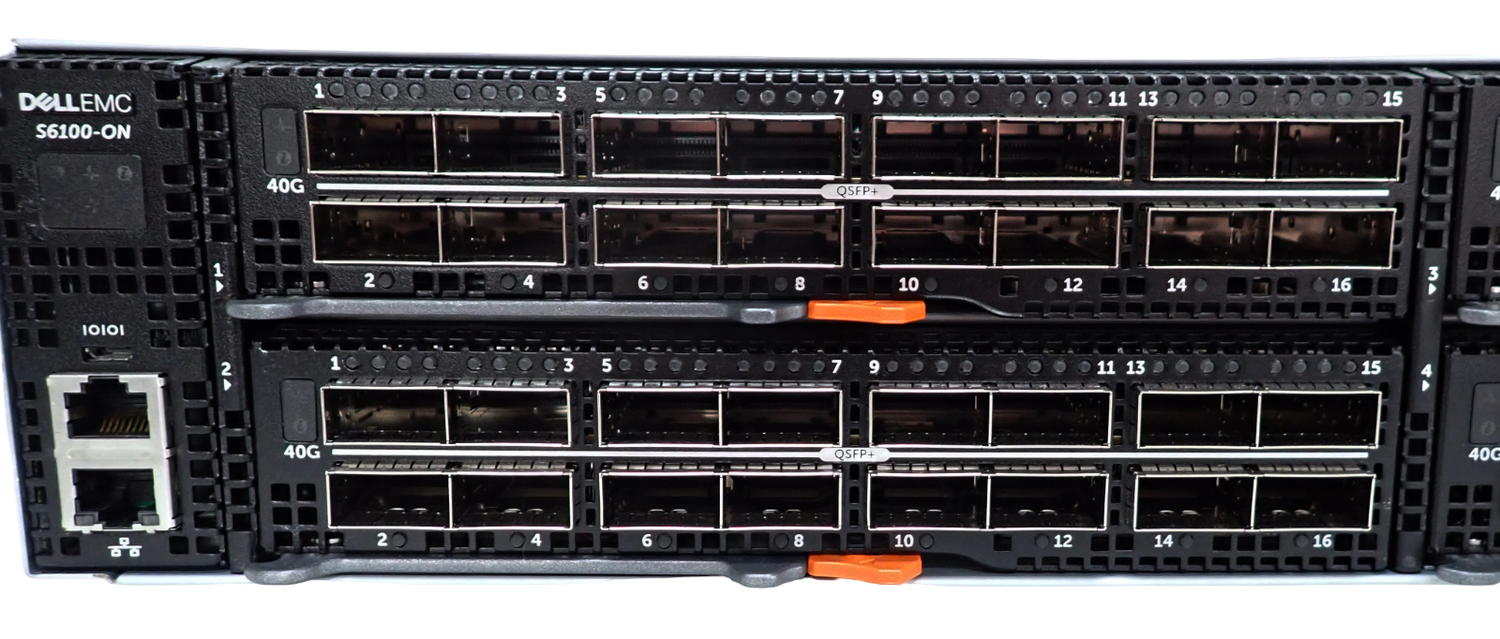

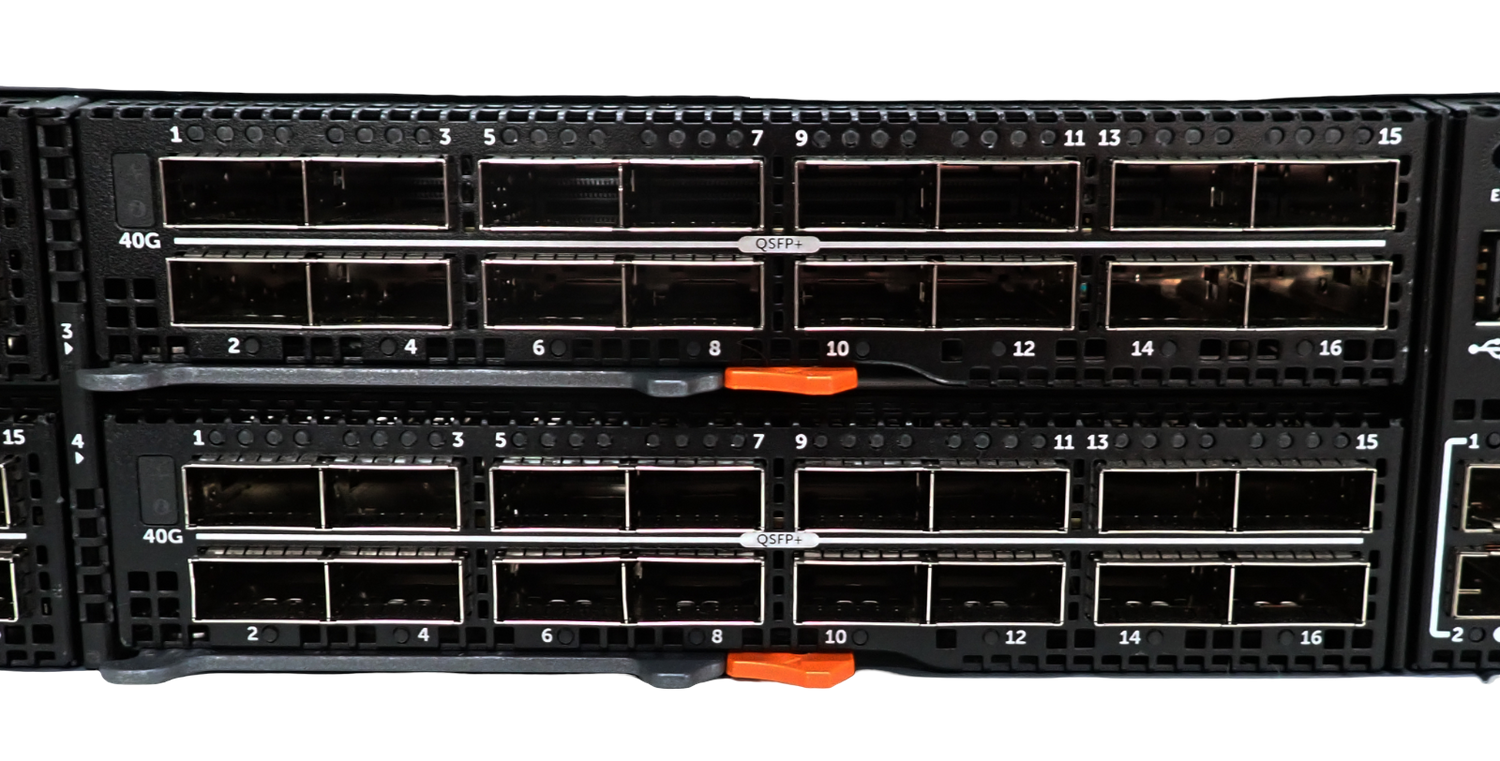

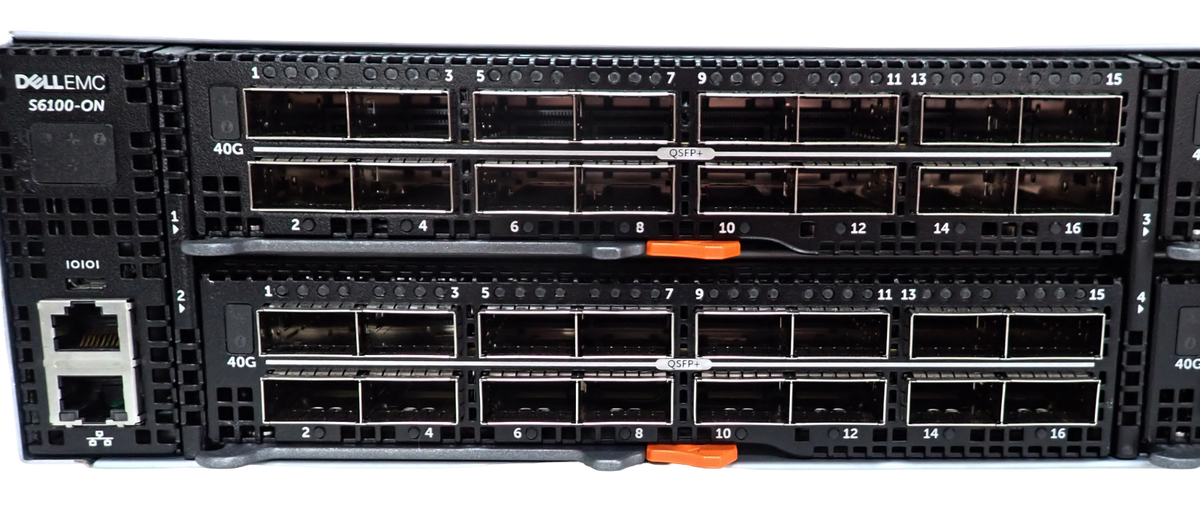

- **High-density modular design:** Four I/O module slots supporting 16x 40GbE QSFP+ modules, enabling up to 64 ports of 40GbE.
- **Flexible port configurations:** Each QSFP+ port can operate at 40GbE or break out into four 10GbE ports.
- **Powerful performance:** Non-blocking switching fabric with up to 6.4Tbps bandwidth and 4400 Mpps forwarding capacity.
- **Advanced networking protocols:** Supports L2/L3 switching, OSPF, BGP, VRF-lite, VXLAN gateway, and multiple link aggregation groups (up to 128 LAGs).
- **Dell EMC OS9 installed:** Provides robust, scalable, and secure network operating system with automation and virtualisation capabilities.

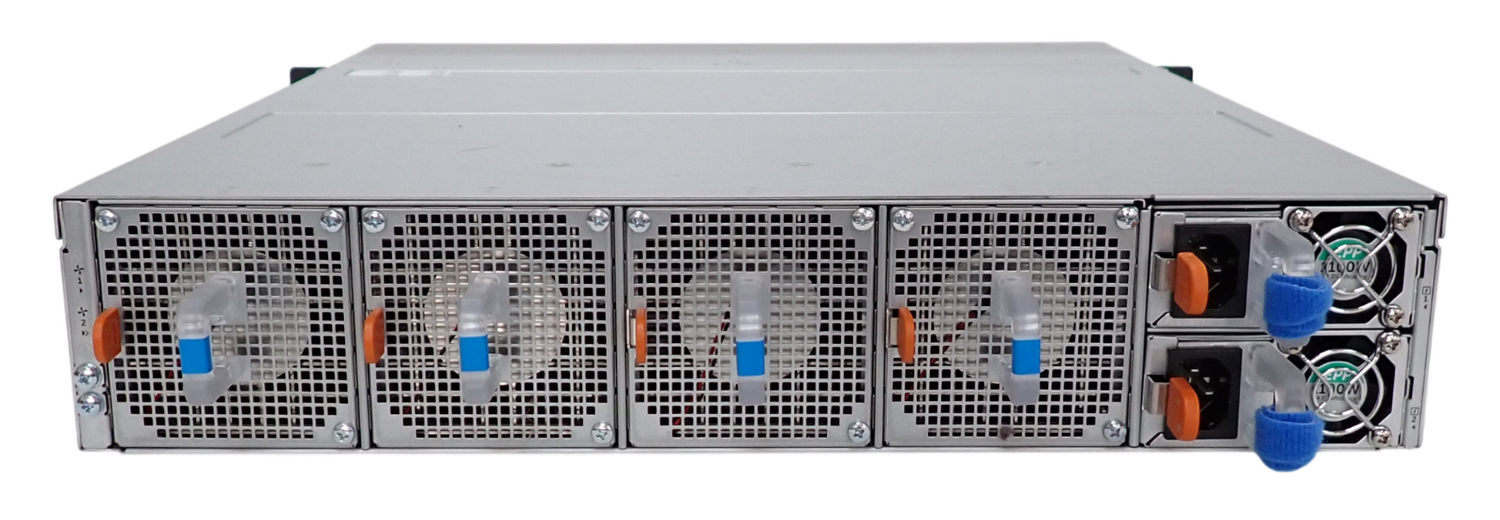

- **Redundancy and reliability:** Two hot-swappable 1100W AC power supplies and four redundant fan modules.
- **Compact 2RU form factor:** Saves rack space while delivering enterprise-grade data centre connectivity.

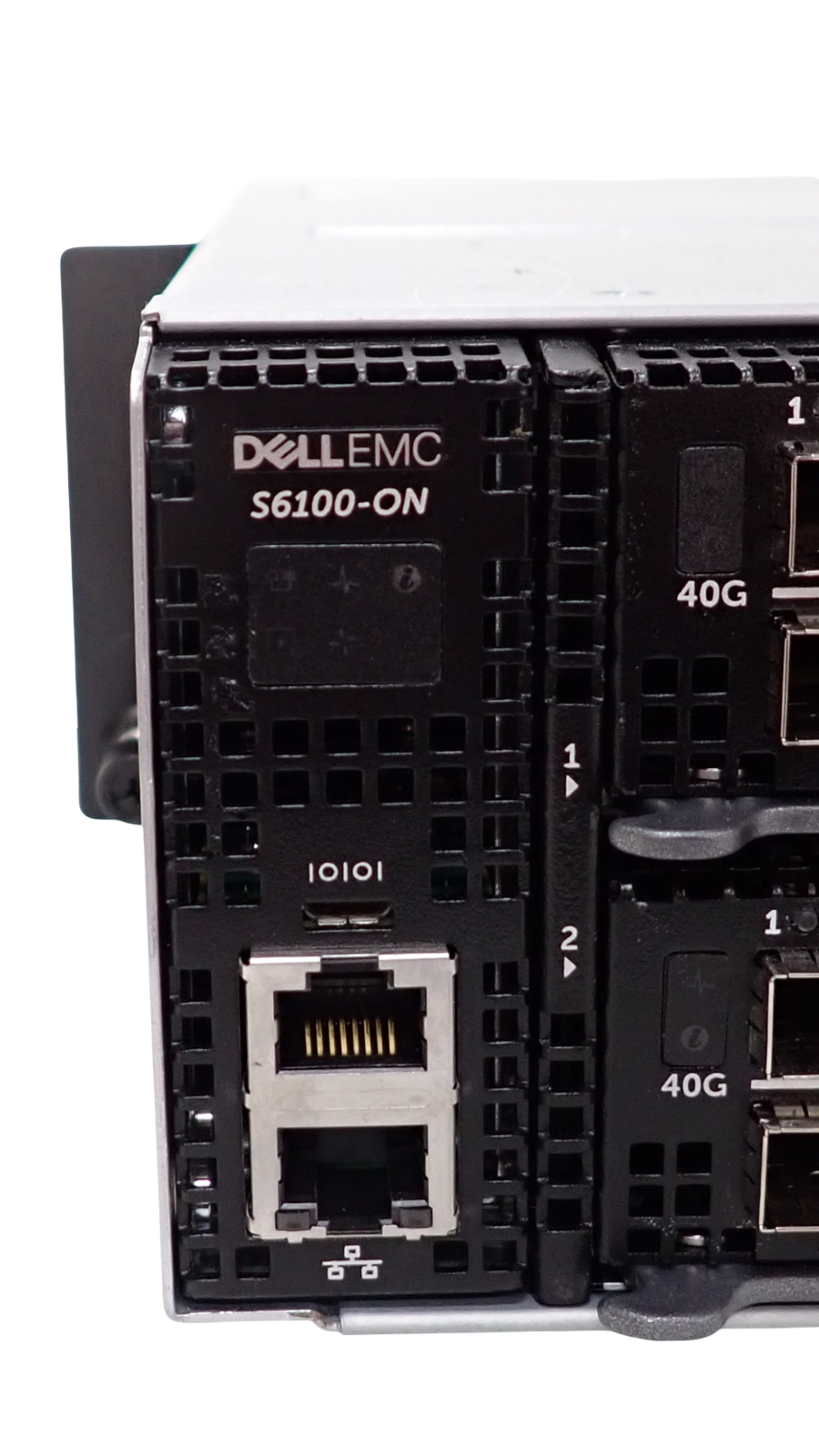

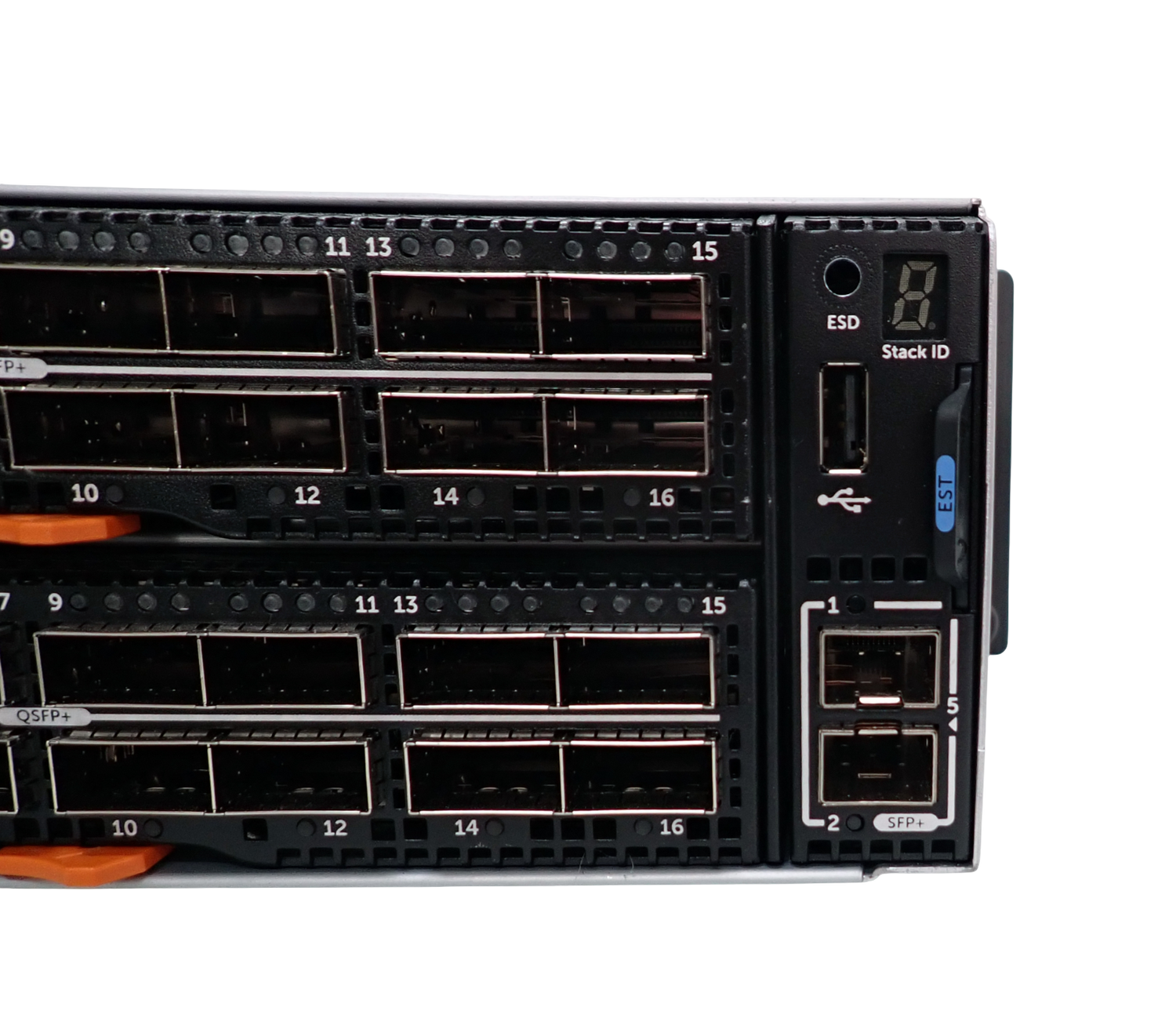

- **Management and expansion:** Includes RJ45 console port, USB 2.0 storage port, micro USB console access, and dual 10GbE SFP+ ports.

**Technical Specifications:**

- **Chassis size:** 2RU (17.08” W x 18” D x 3.5” H)
- **Weight:** Approx. 20kg with modules installed
- **Power supply:** 100–240 VAC, 50/60 Hz
- **Operating temperature:** 0°C to 45°C
- **Switching capacity:** 6.4Tbps full duplex
- **MAC addresses:** 160K
- **IPv4 routes:** 128K unicast
- **IPv6 routes:** 64K
