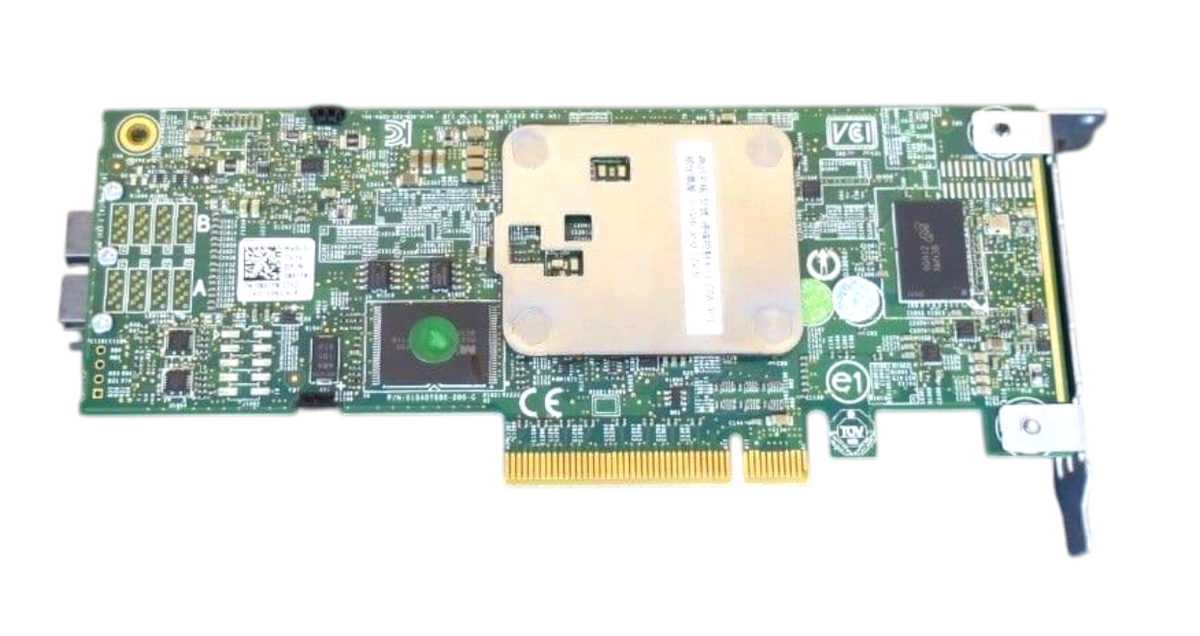

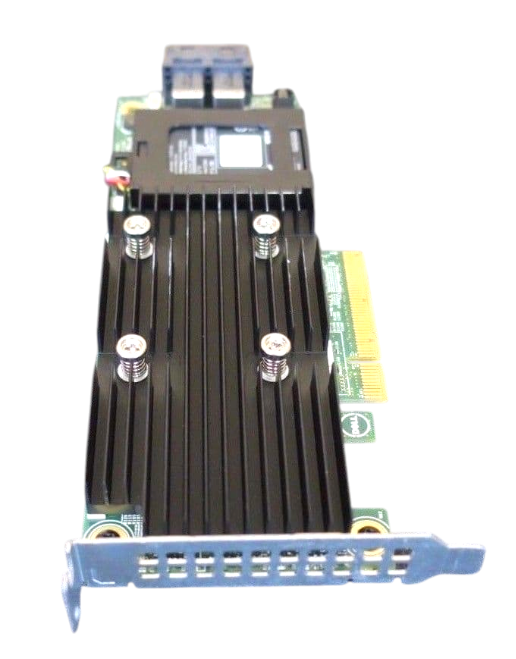

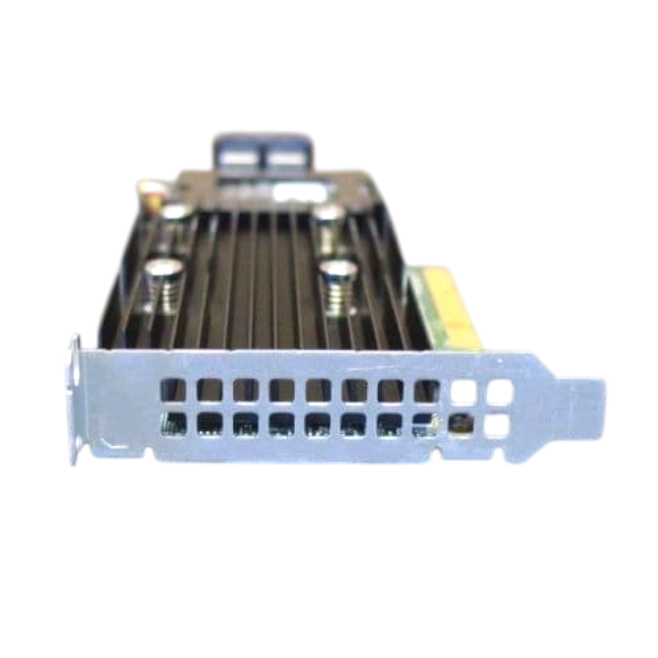

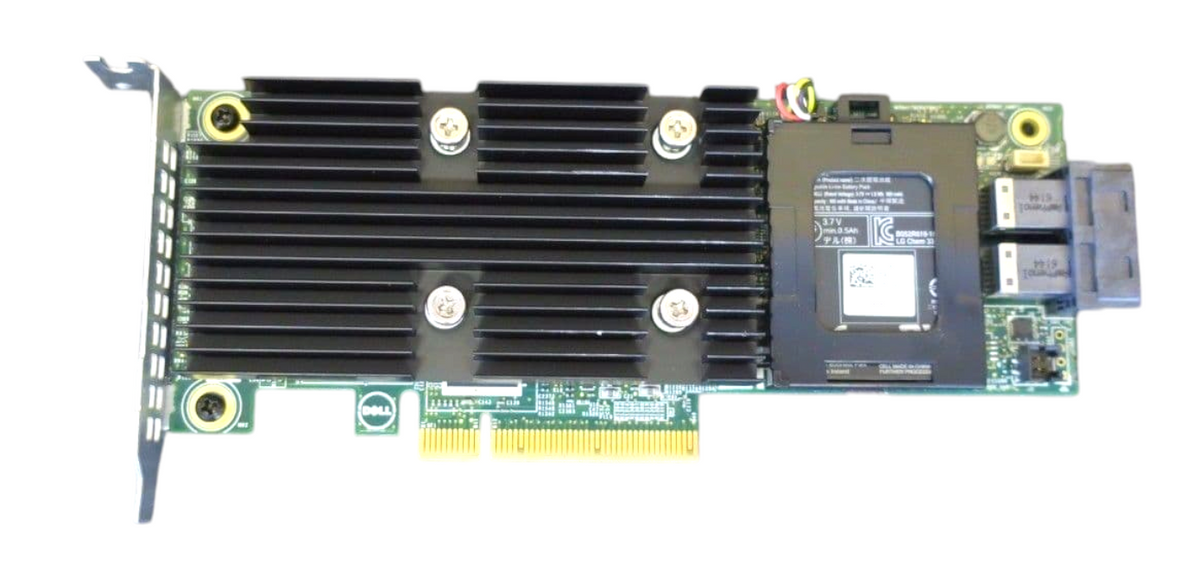

Dell PERC H730P 12Gbps SAS PCI-E RAID Controller Adapter with 2GB NV Cache X4TTX

Condition : Refurbished – tested and working grade A refurbished part

Dell PERC H730P 12Gbps SAS PCI-E RAID Controller Adapter with 2GB Non-Volatile Cache (Part Number: X4TTX).

Key Features:
- SAS Transfer Rate: 12Gb/s
- SATA Transfer Rate: 6Gb/s
- Cache: 2GB NV cache
- Interface: PCI-E 3.0 x8 lanes, half-height bracket

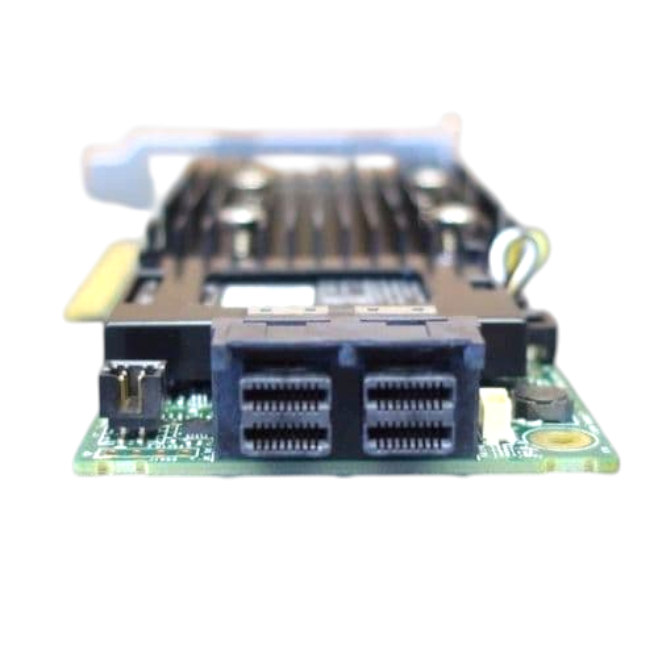

- Connectors: 2 internal HD mini-SAS SFF8643
- Device Support: Up to 255 SAS/SATA devices
- SAS Controller: LSI SAS3108 1.2GHz PowerPC 476 Dual Core

RAID Capabilities:
- Supported RAID Levels: 0, 1, 5, 6, 10, 50, 60
- Features: Online Capacity Expansion, RAID Level Migration, Auto resume after power loss, Check Consistency, Physical disk power management, 4K native sector support

Additional Features:
- Support for SSD TRIM/UNMAP commands
- T10-DIF data integrity support
- End Device Frame Buffering technology
- Self-Encrypting Drive support
- Load balancing and fast array initialisation
- Up to 64 logical drives and 64TB LUN support
- Compatible with Dell PowerEdge R730xd, R920, R930, and T630 servers

Includes 1 x Dell PERC H730P RAID controller adapter.
