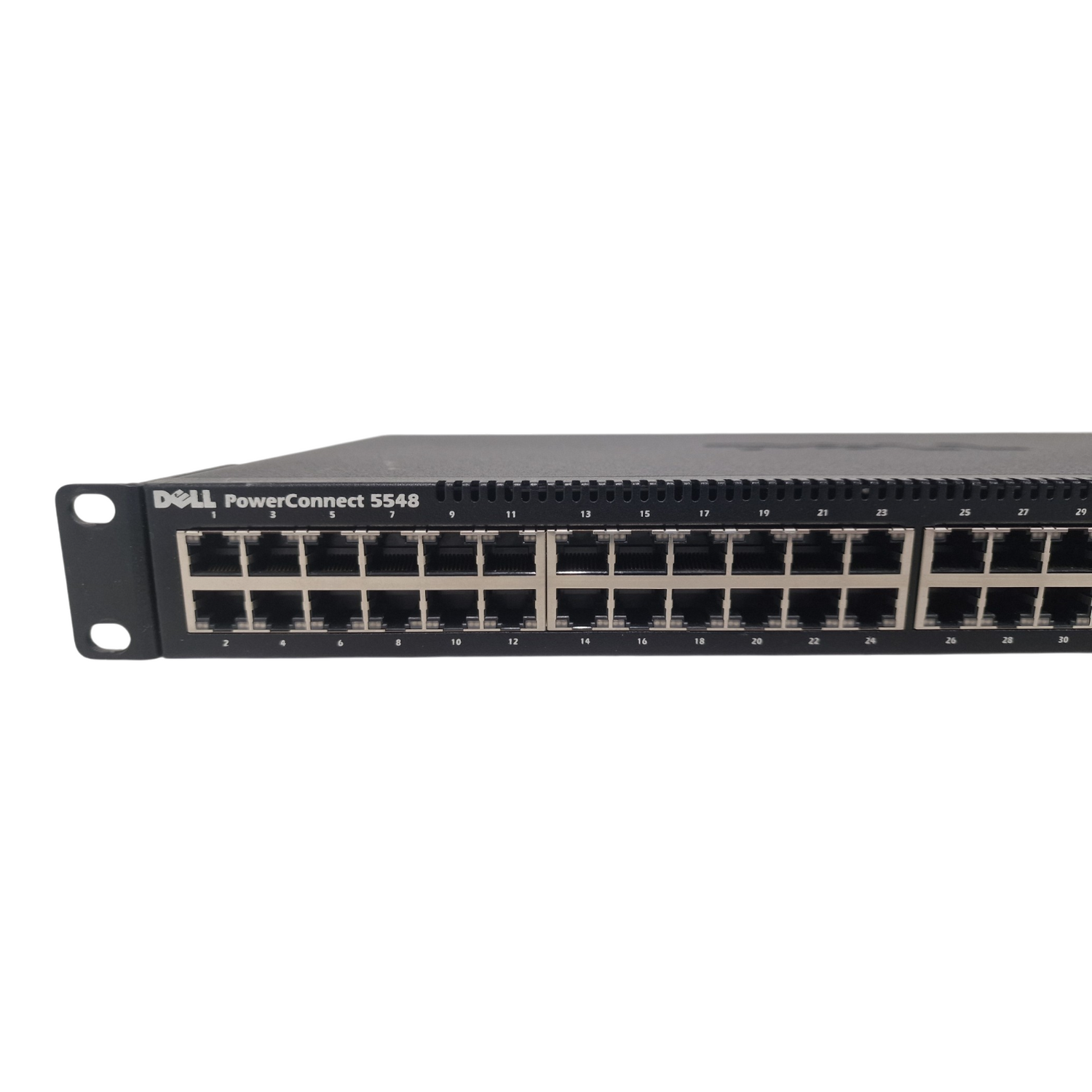

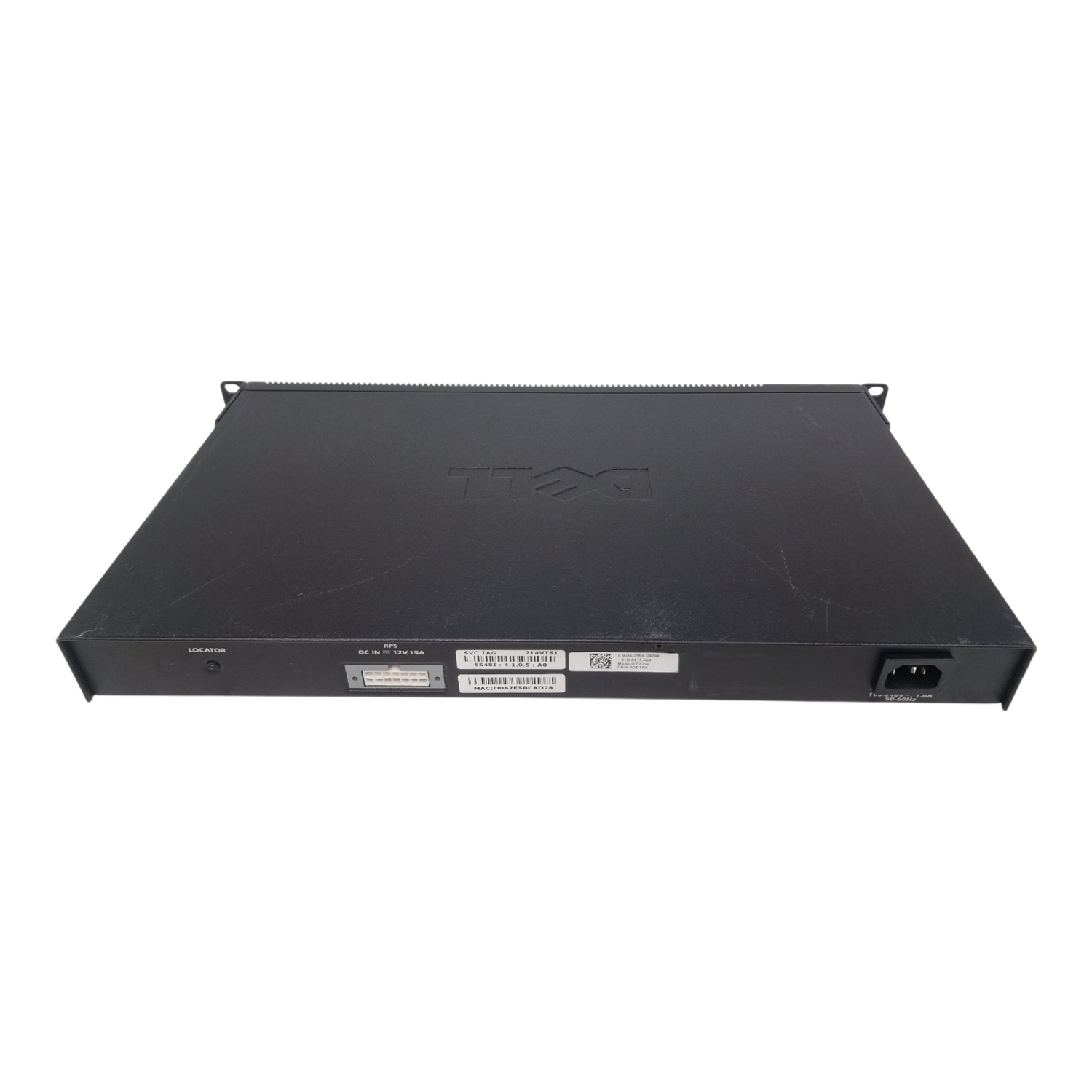

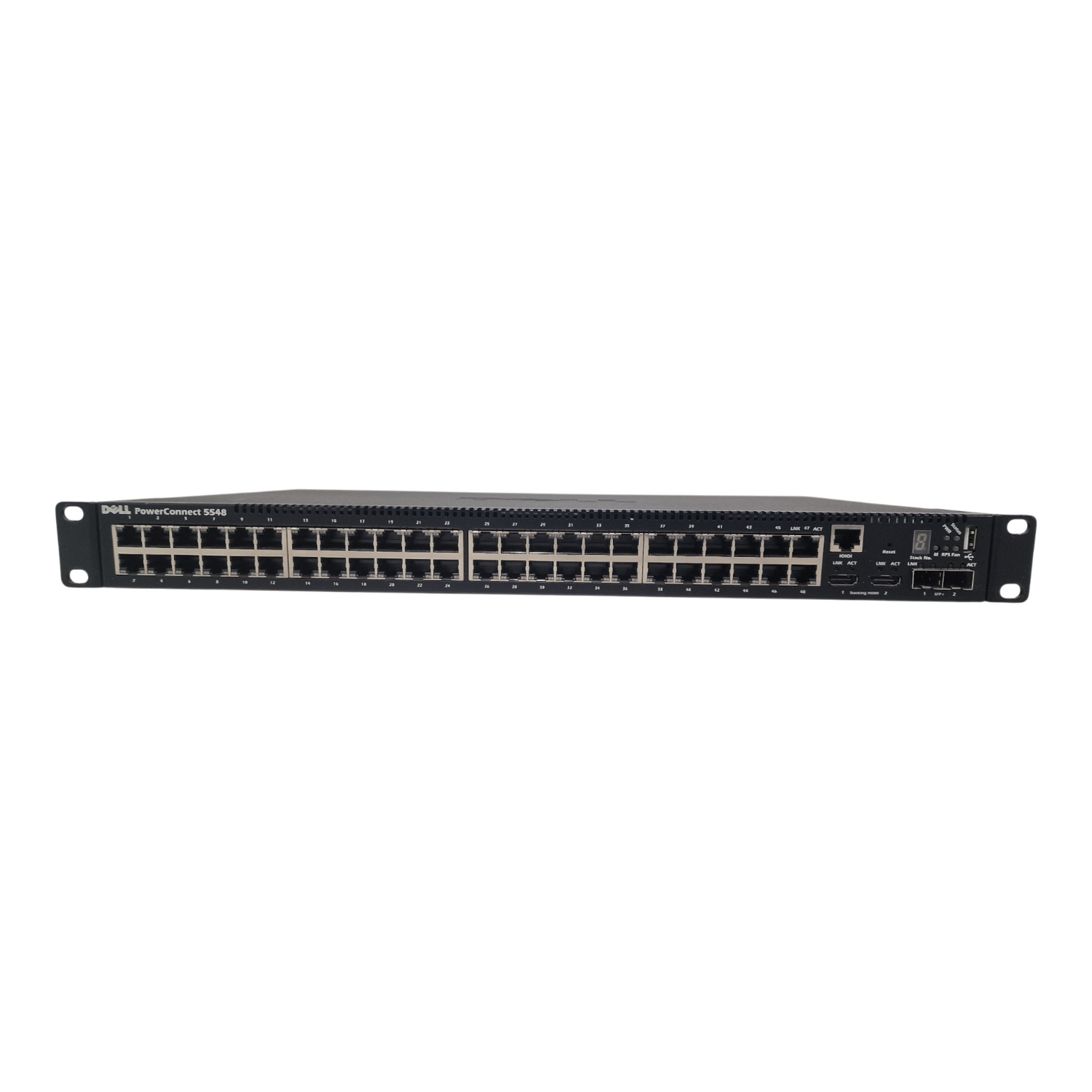

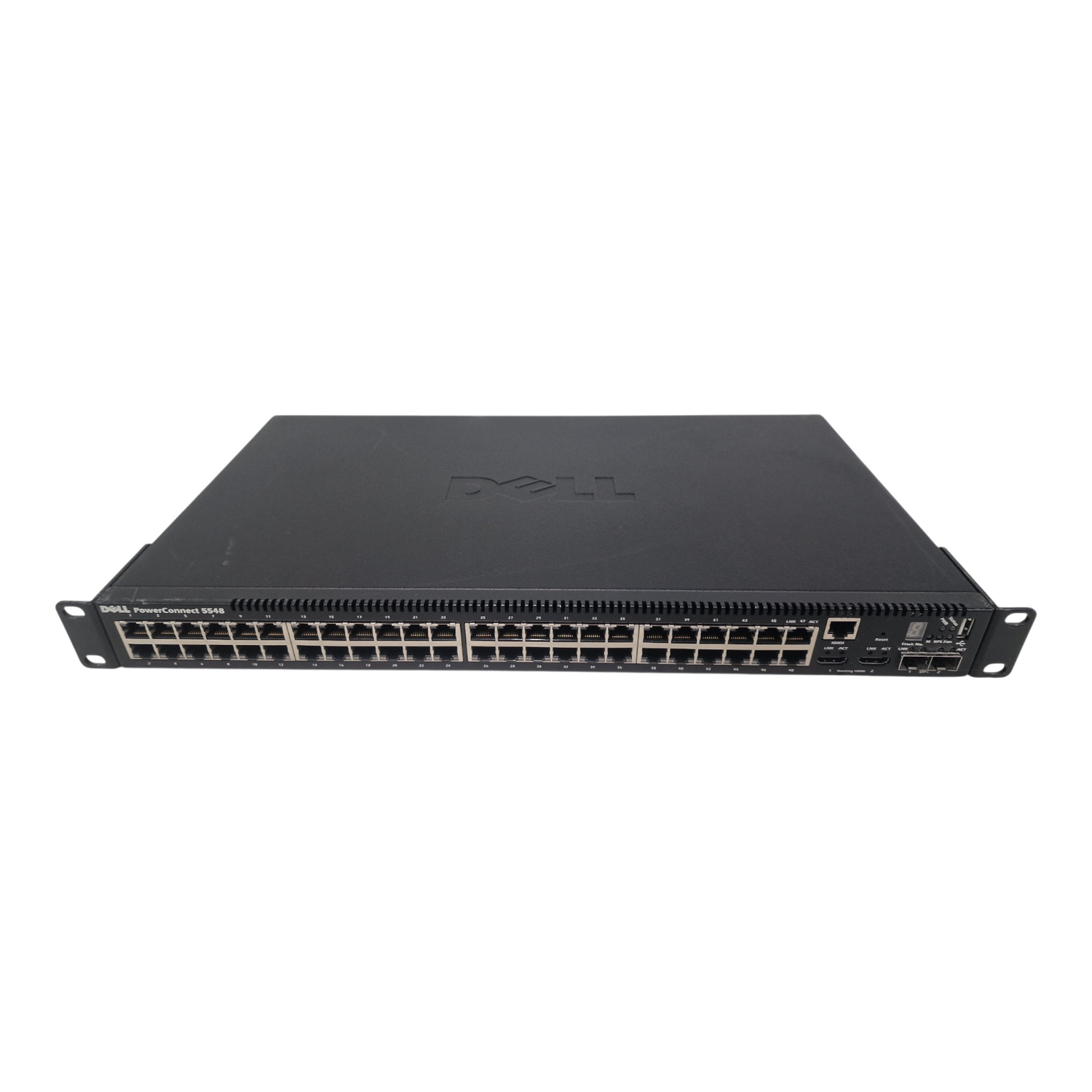

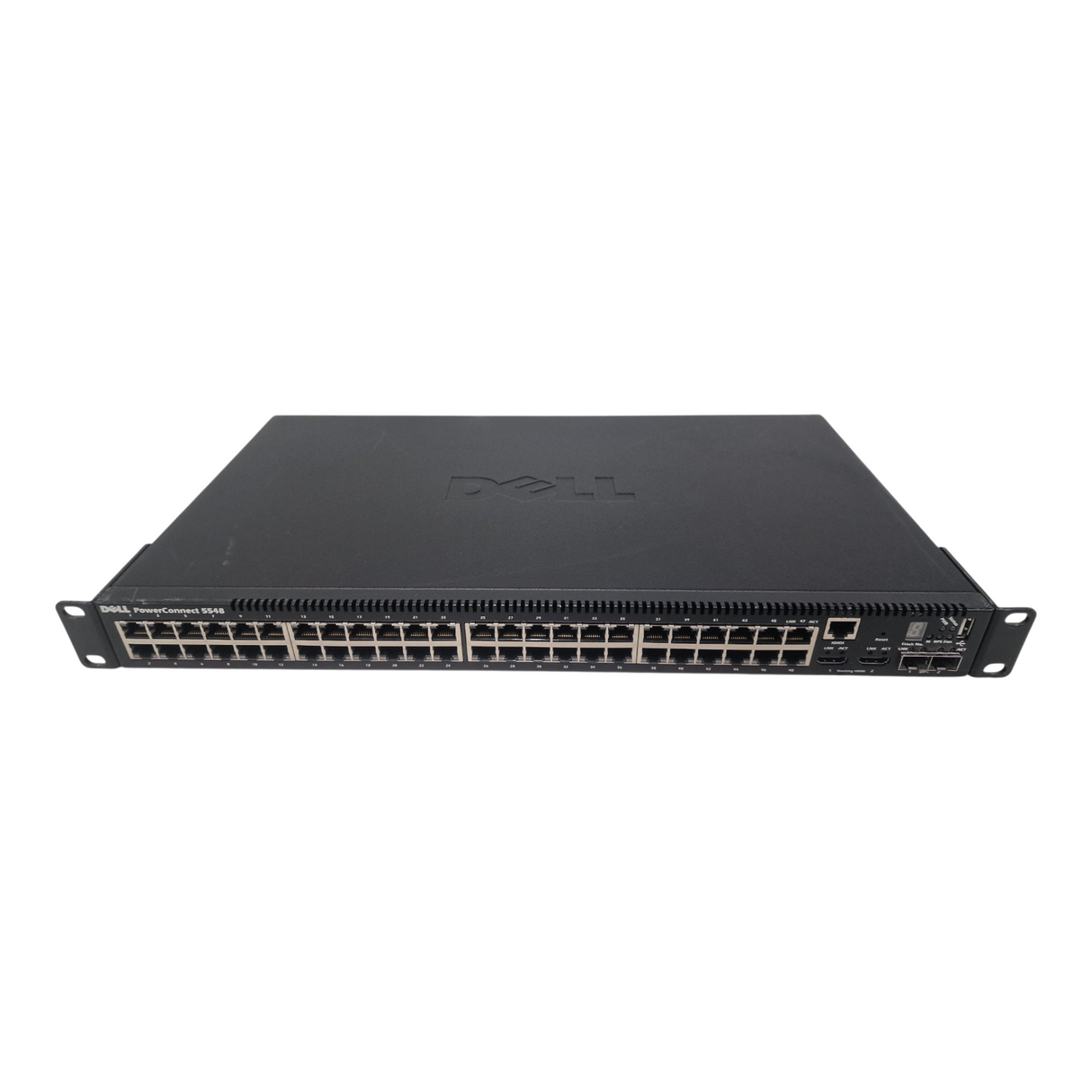

Dell PowerConnect 5548 48x 1GbE RJ45 + 2x 10Gb SFP+ Managed Switch GDTPK

Condition : Refurbished – tested and working grade A refurbished part

Dell PowerConnect 5548 Managed Network Switch

Manufacturer: Dell
Series: PowerConnect 5500 Series
Model: PowerConnect 5548
Type: Layer 3 Managed Network Switch
Form Factor: 1U Rack Mount

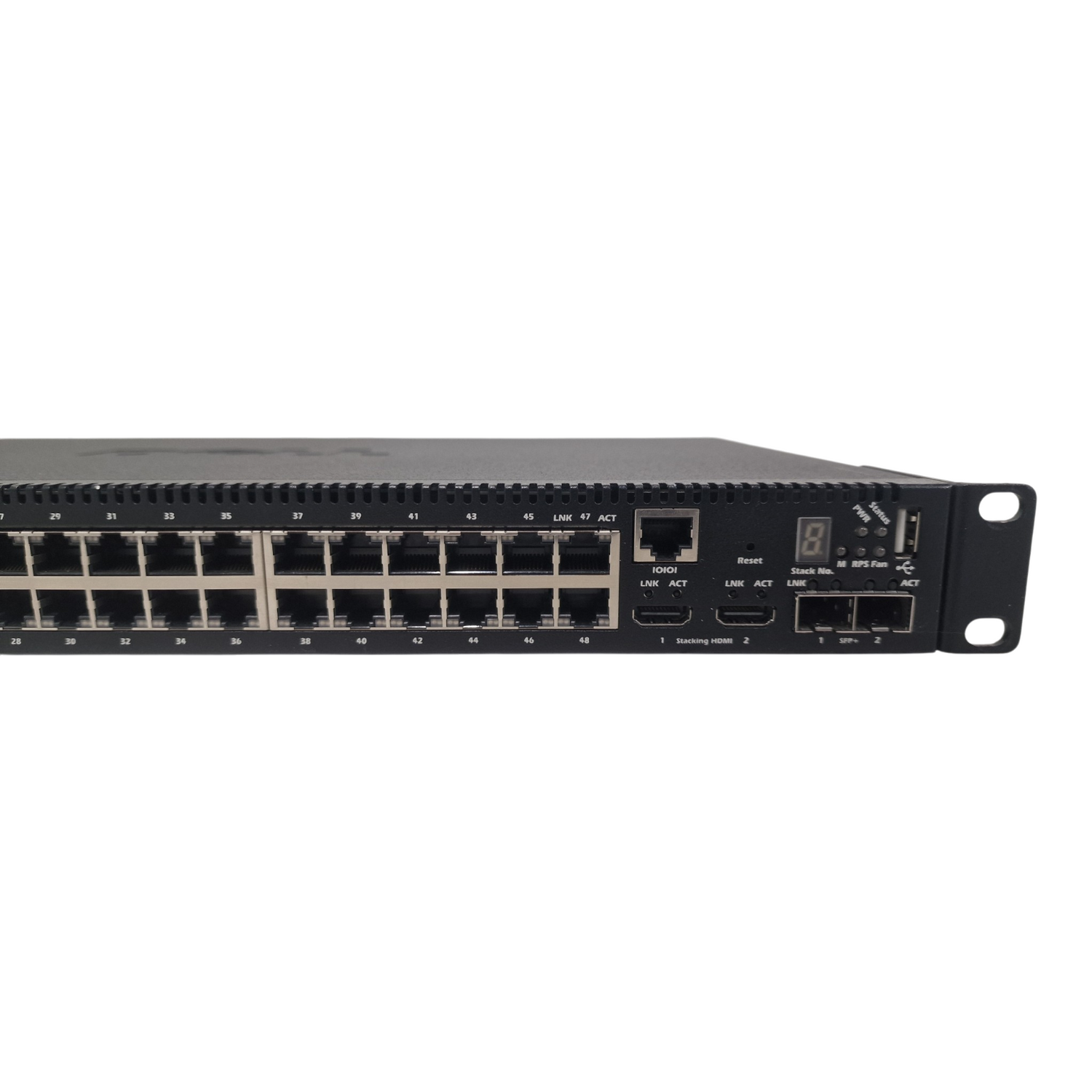

Ports & Connectivity:
- 48 x 10/100/1000 RJ45 Gigabit Ethernet Ports
- 2 x 10Gb SFP+ Uplink Ports
- 2 x HDMI Stacking Ports
- 1 x RJ45 Console Port
- 1 x USB Type-A Management Port

Performance:
- Switching Capacity: Up to 176 Gbps
- Forwarding Rate: Up to 100.2 Mpps
- MAC Address Table: Up to 16,000 Entries
- Jumbo Frame Support: Up to 10,000 Bytes
- VLAN Support: Up to 4,000 VLANs

Layer 3 Features:
- Static Routing
- RIP v1/v2
- IPv4 Routing
- IPv6 Support
- DHCP Relay
- IGMP Snooping
- Multicast Support

Management & Security:
- Web-Based Management Interface
- CLI Management
- SNMP v1/v2c/v3
- SSH and Telnet Management
- RADIUS and TACACS+ Authentication
- Access Control Lists (ACLs)
- 802.1X Port Authentication
- Port Security
- DHCP Snooping
- Dynamic ARP Inspection
- Management Access Filtering

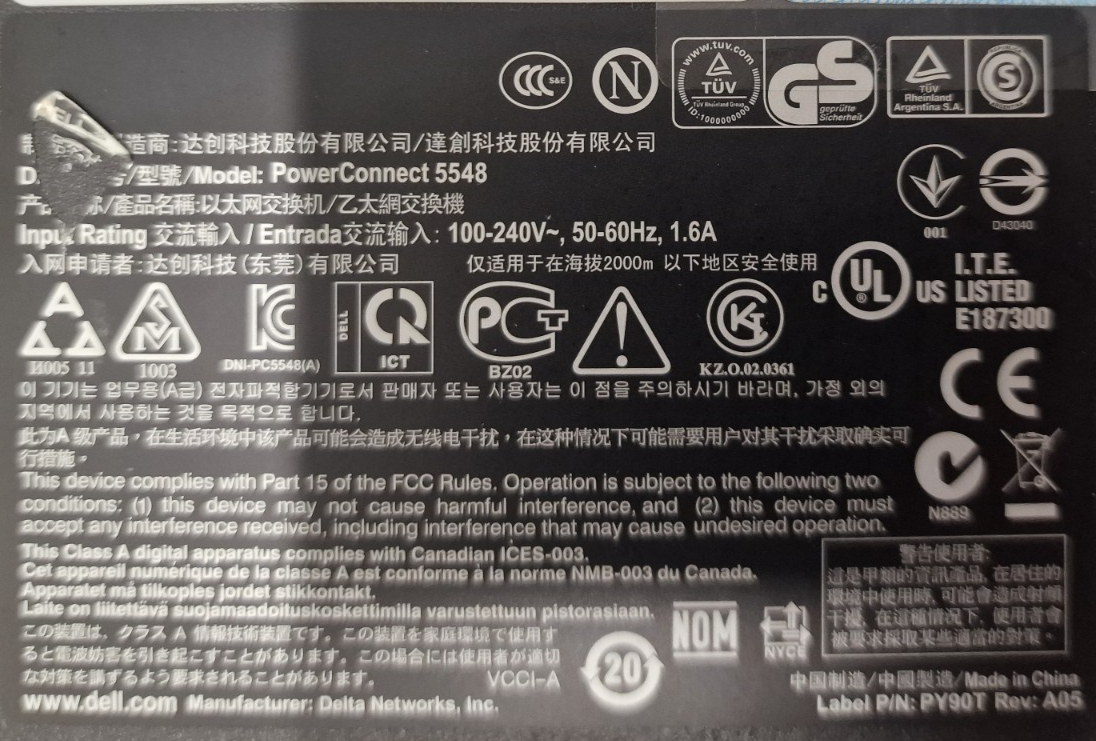

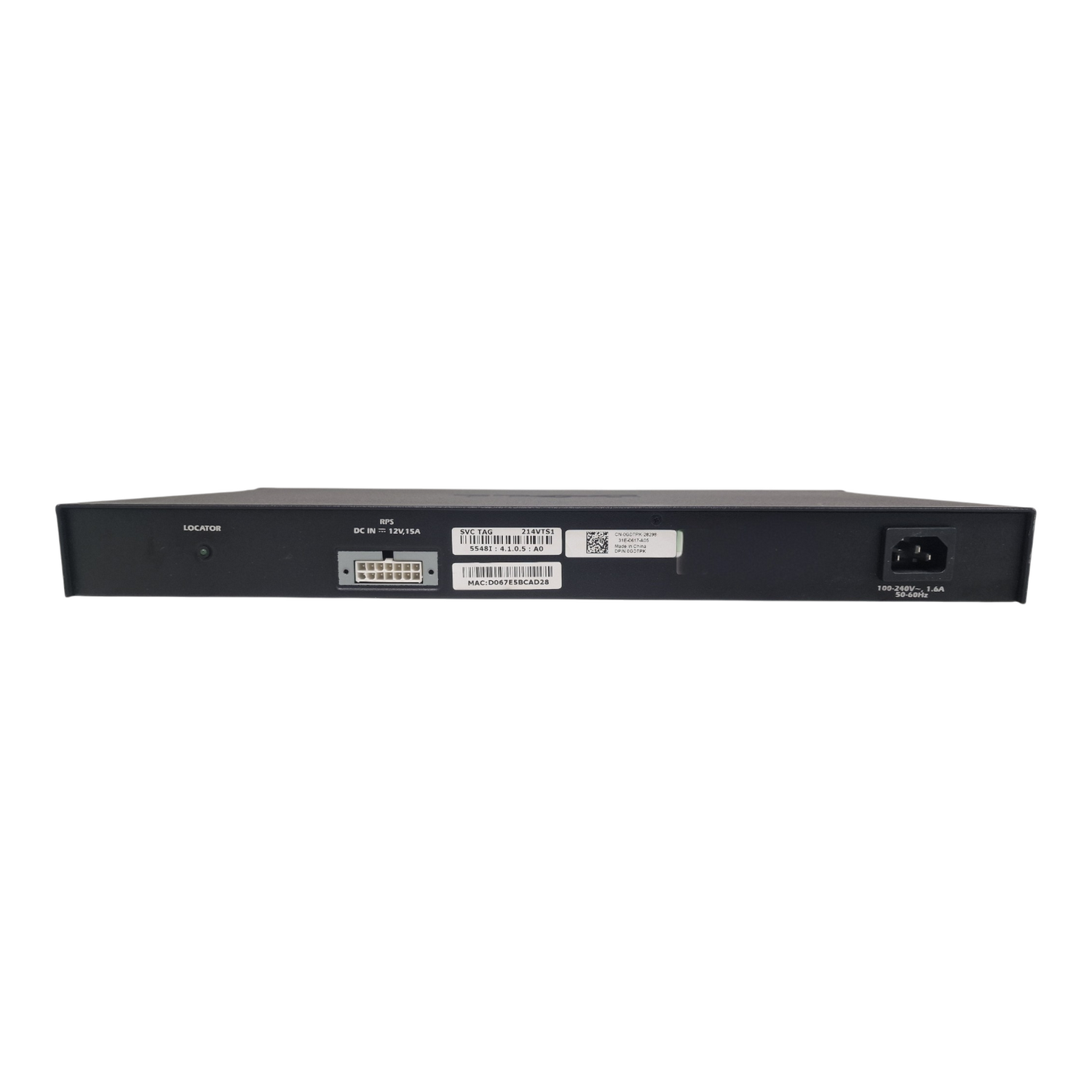

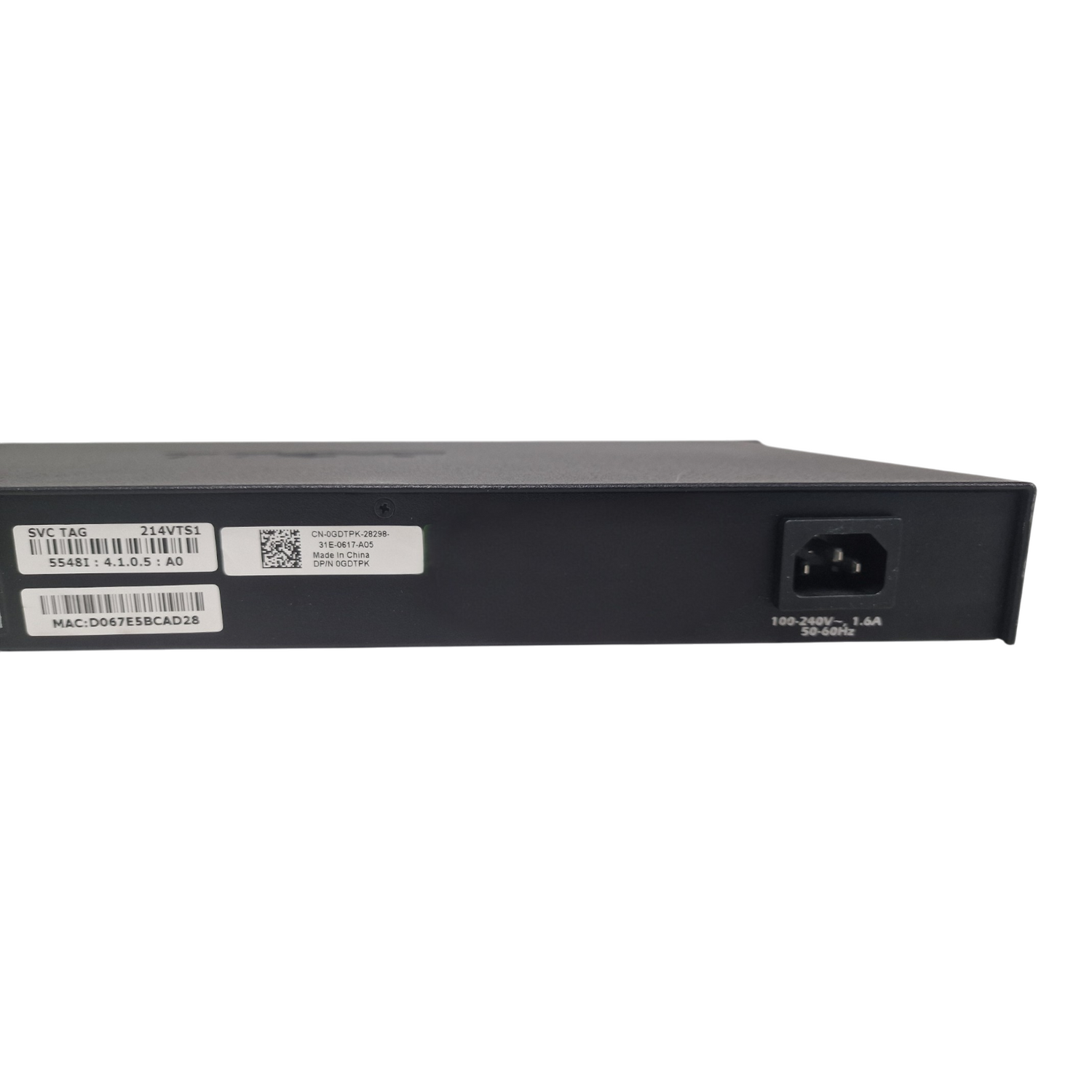

Power:
- Internal AC Power Supply

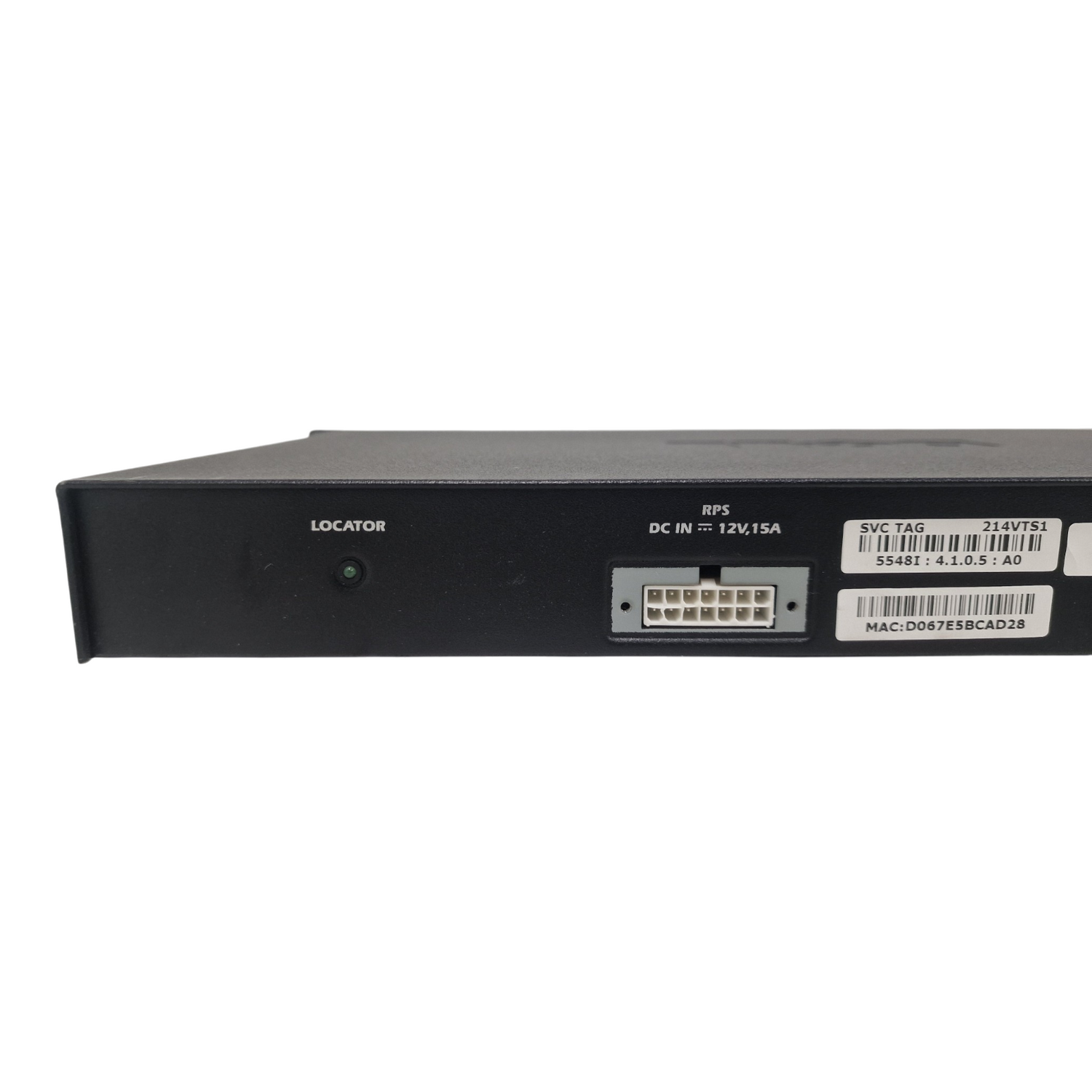

- Optional External Redundant Power Supply Support
- Power Consumption: Approx. 48.8W

Physical:
- Dimensions (W x D x H): 440 x 255 x 43.2 mm
- Weight: Approx. 3.33 kg
- Rack Mountable 1U form factor

This managed switch delivers robust Layer 3 networking capabilities for enterprise environments, supporting high port density and advanced security and management features for reliable network performance.
