Dell PowerEdge FX2S Chassis FC630 Blade Node CTO Server + 3x FD332 92.16TB SSD

Condition : Refurbished – tested and working grade A refurbished part

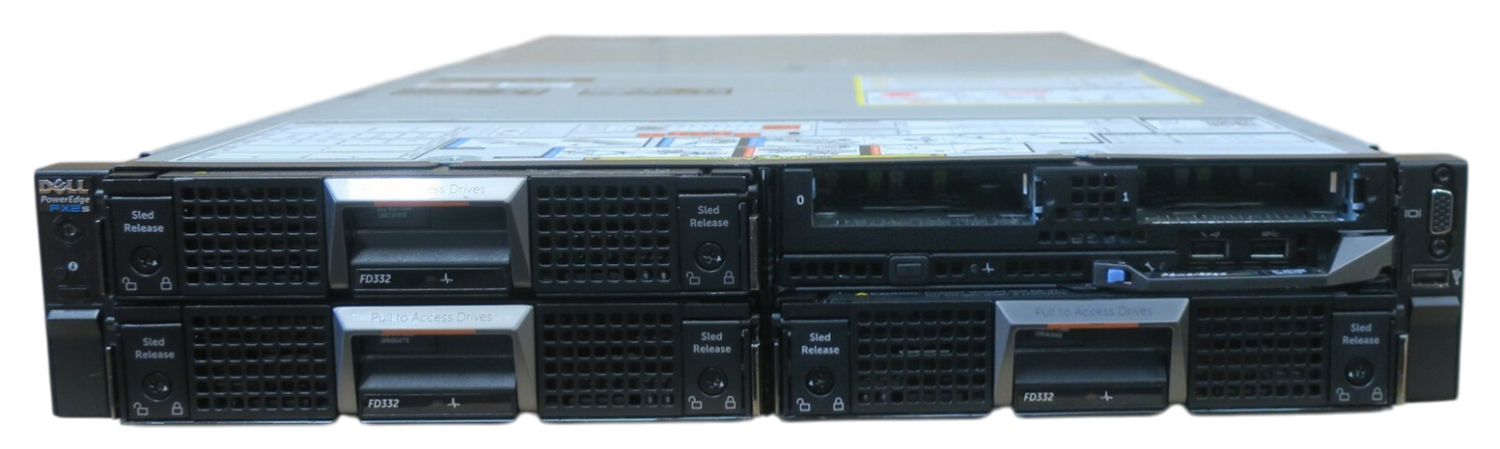

Dell PowerEdge FX2S Chassis with FC630 Blade Node and 3x FD332 92.16TB SSD Storage

Includes:

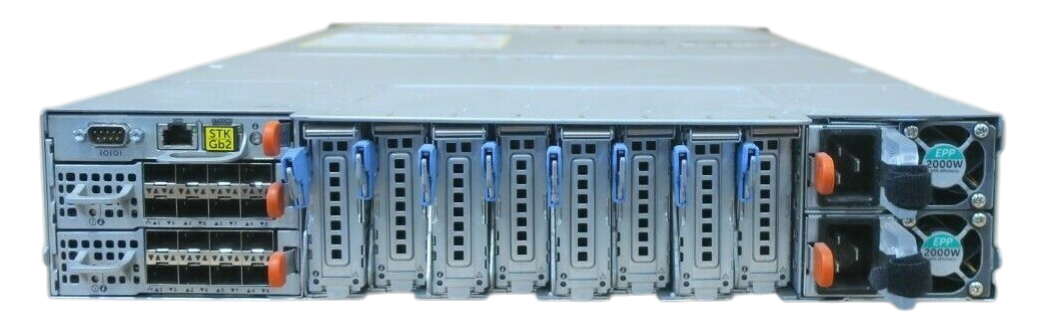

- Dell PowerEdge FX2S 4-bay rackmount blade server enclosure
- 2 x Dell 2000W hot-plug power supplies
- 8 x PCI-E x8 riser modules
- Chassis Management Module with 8GB SD card
- 2 x 8-Port 10GbE SFP+ pass-through I/O modules
- Dell PowerEdge FC630 half-width compute nodes (each with 2 x 2.5" SAS bays, PCI-E pass-through mezzanine card, and dual-port 10Gb blade network card)
- 3 x Dell PowerEdge FD332 storage arrays with RAID controllers and 16 x 1.92TB SATA 2.5" SSDs each

Overview:
The FX2S chassis offers a modular, switched architecture supporting a mix of compute and storage modules with shared power, cooling, and networking in a dense 2U form factor. It supports Intel Xeon E5-2600 v3/v4 processors and DDR4 memory.

Features:
- Up to 16 processors supported in a single chassis
- Eight PCIe 3.0 expansion slots
- High network connectivity with dual 10GbE ports per compute node
- Flexible management via Dell Chassis Management Controller and OpenManage suite
- Ideal for data centres, virtualisation, and dense storage requirements

The FC630 node supports dual CPUs and up to 1.5TB RAM per node, suitable for large databases and virtualised workloads.

The FD332 storage module provides hot-plug SAS/SATA SSD storage expandable up to 16 drives per module.
