Dell PowerEdge R740XD 2x Scalable CPU 24-DIMM 12x 3.5" SAS Bay CTO 2U Server

Condition : Refurbished – tested and working grade A refurbished part

Dell PowerEdge R740XD 2x Scalable CPU 24-DIMM 12x 3.5" SAS Bay CTO 2U Server

The Dell PowerEdge R740XD is a high-performance 2U rack server designed for demanding workloads. It supports up to 2 Intel Xeon Scalable processors (1st or 2nd generation) and features 24 DIMM slots for DDR4 ECC RDIMM/LRDIMM memory, with a maximum capacity of up to 3TB.

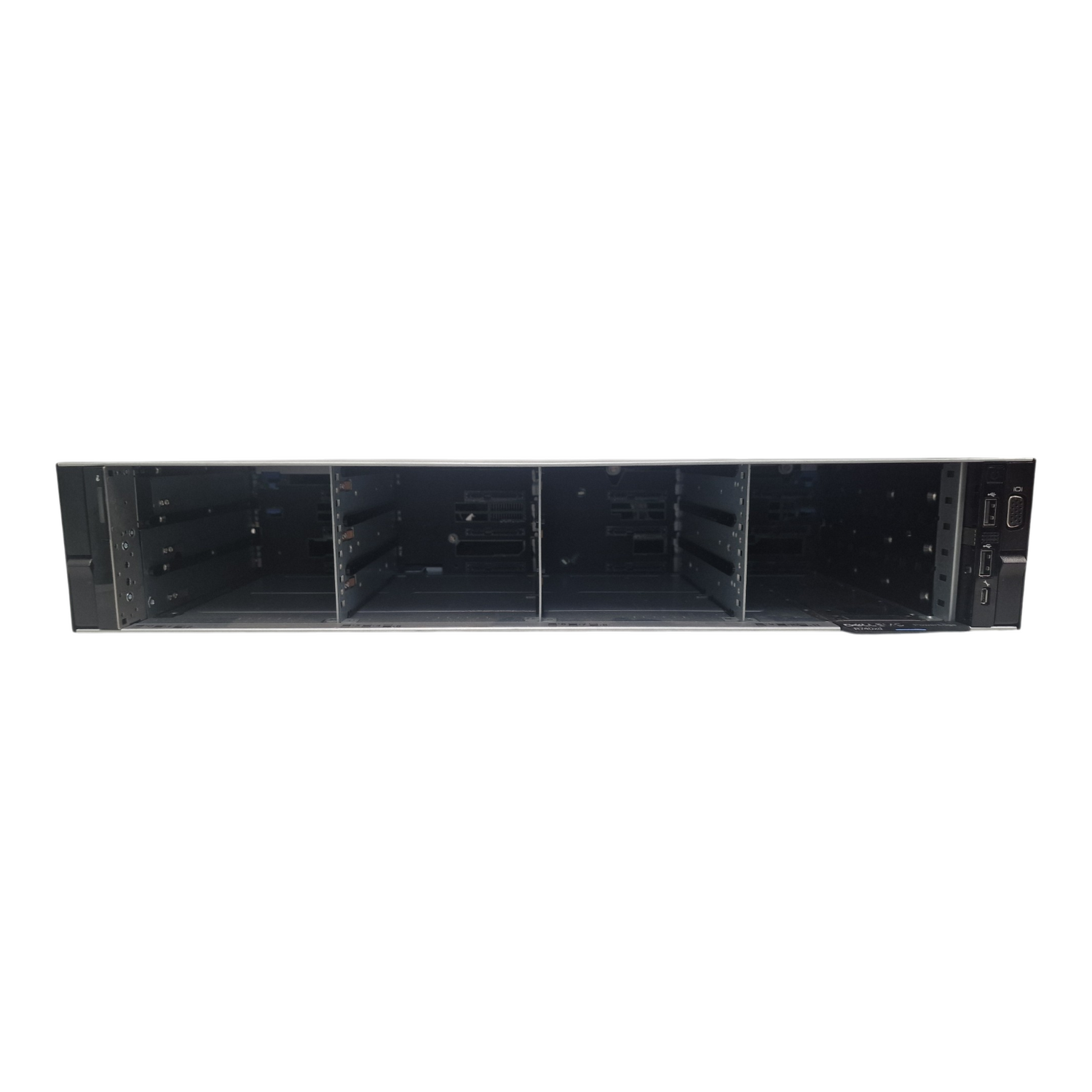

Storage capabilities include 12 hot-plug 3.5" SAS/SATA front drive bays and 4 hot-plug 2.5" SAS/SATA rear flex bays, enabling versatile storage configurations. The server comes without a PERC RAID controller installed, allowing customisation to specific needs.

Management is facilitated by the iDRAC9 Enterprise interface, with networking options including an OCP 3.0 Network Daughter Card slot and a dedicated 1GbE iDRAC management port.

Key Interfaces:
- Front: VGA, 2 x USB 2.0, iDRAC Direct Micro-USB

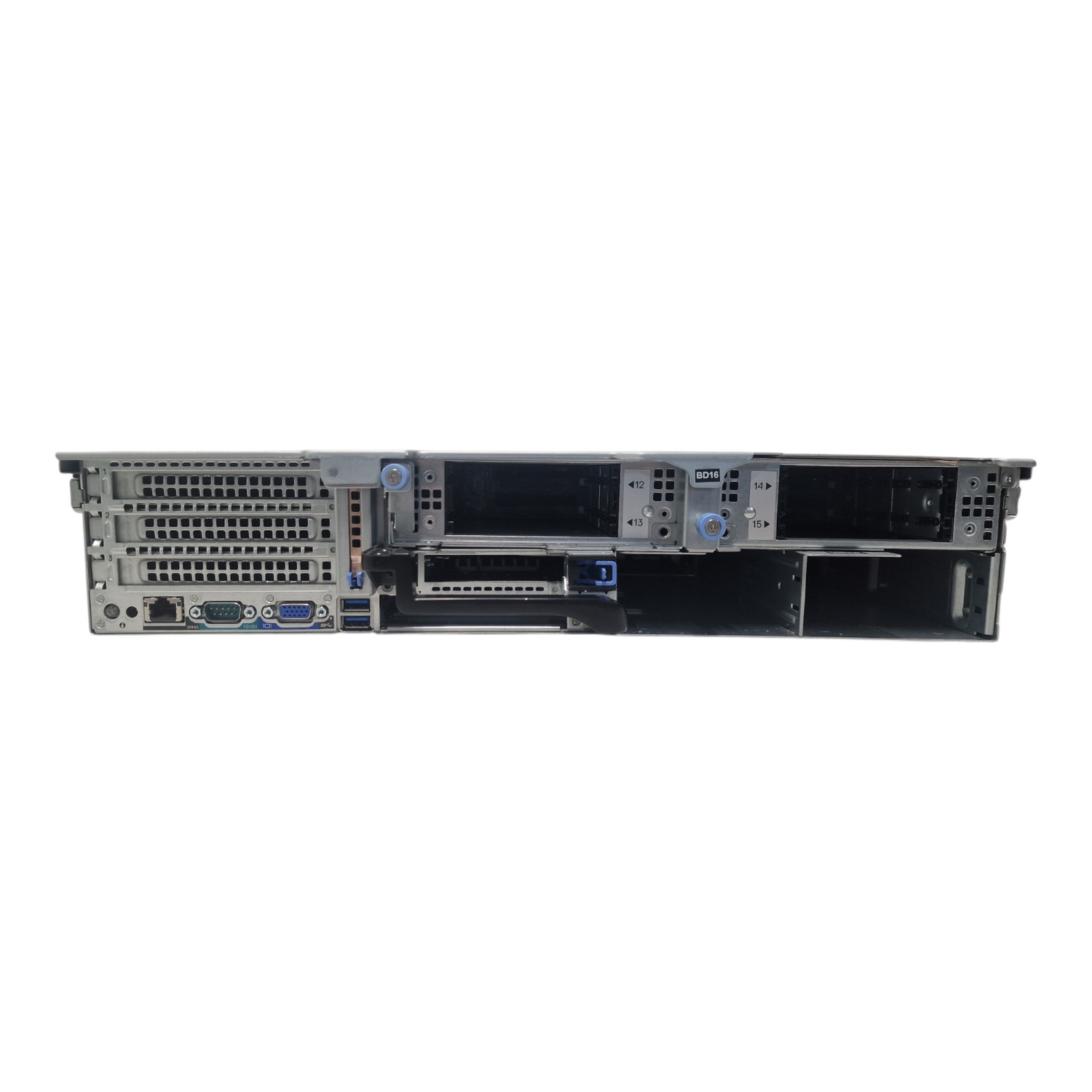

- Rear: VGA, 2 x USB 3.0, Serial Port, Dedicated iDRAC RJ-45
- Internal: USB 3.0

Expansion options include multiple PCIe Gen3 slots via risers. Cooling is provided by up to six hot-plug fans. The chassis supports two hot-plug redundant PSU bays (power supplies not included).

Ideal for enterprise environments requiring scalable compute and storage solutions with flexible customisation options.
