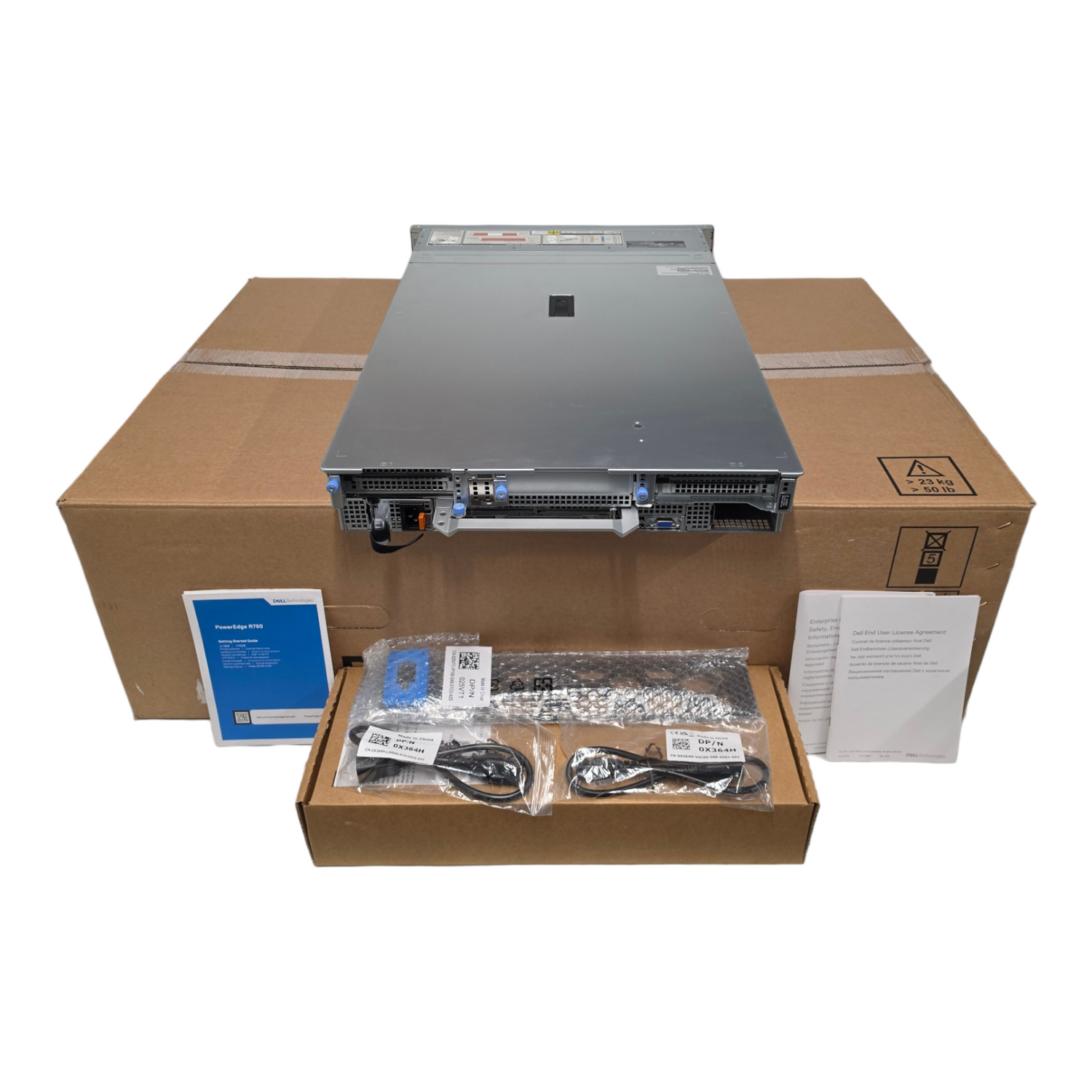

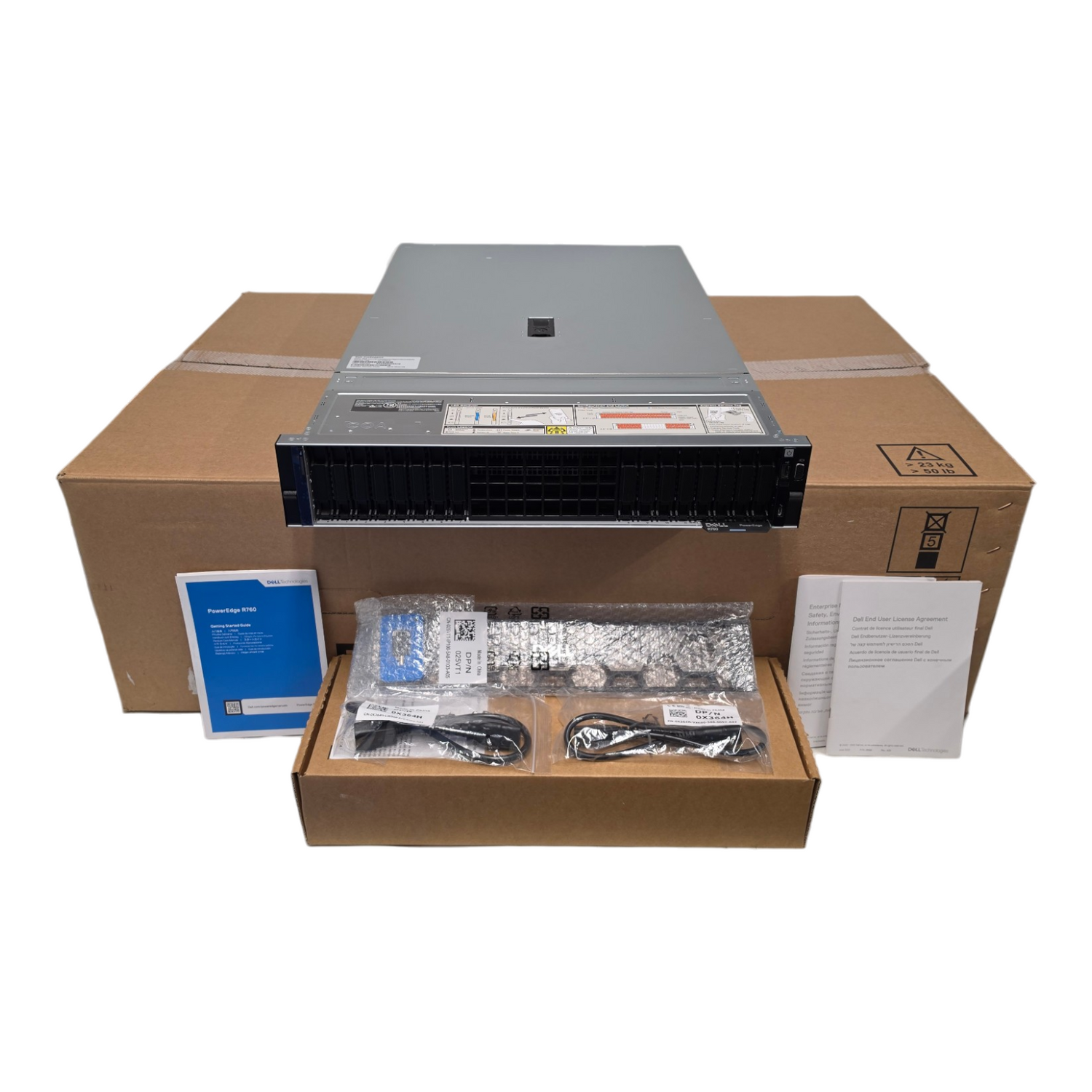

Dell PowerEdge R760 2x Gen4/5 Scalable CPU 32DIMM 16x 2.5" Bay CTO 2U Server

Condition : Refurbished – tested and working grade A refurbished part

Dell PowerEdge R760 2x Gen4/5 Scalable CPU 32DIMM 16x 2.5" Bay CTO 2U Server

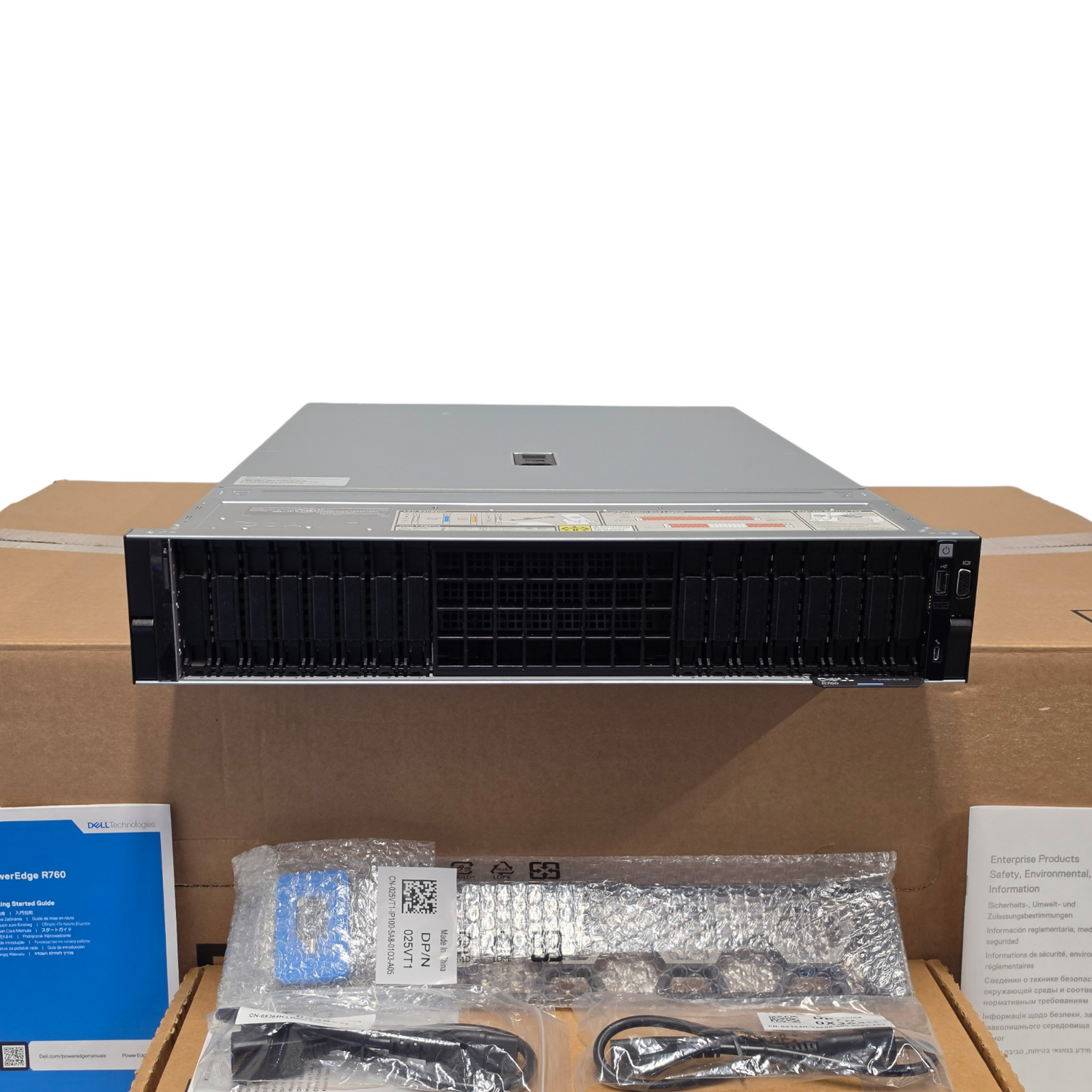

This Dell PowerEdge R760 server supports up to two 5th Generation Intel Xeon Scalable processors, offering up to 64 cores per processor. It features 32 DDR5 DIMM slots for Registered ECC memory with a maximum capacity of 8 TB and supports memory speeds up to 5600 MT/s. The 2U chassis includes up to 16 front-accessible 2.5-inch SAS/SATA drive bays, supporting a maximum storage capacity of 245.76 TB.

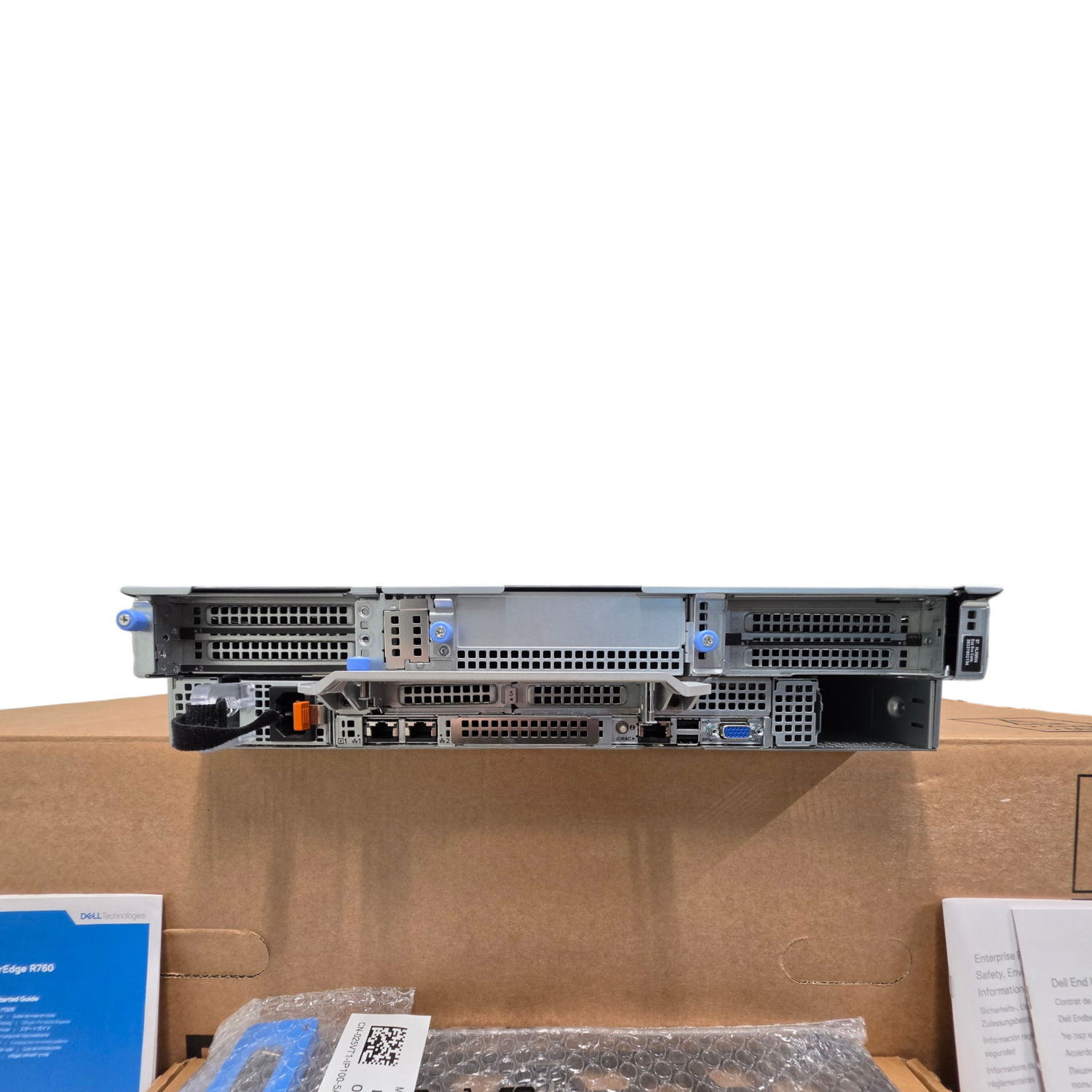

Connectivity options include front ports with iDRAC Direct (Micro-AB USB), USB 2.0, and VGA, as well as rear ports featuring dedicated iDRAC Ethernet, USB 2.0 and 3.0, VGA, and optional serial ports. Network interfaces include dual 1 GbE LOM cards with optional OCP 3.0 and Management Interface Cards for Dell Data Processing Unit support.

Storage controllers offered are PERC H965i, H755, H755N, H355 for internal RAID, and PERC H965e for external RAID, alongside software RAID S160 support. Internal boot options include BOSS-N1 with dual M.2 NVMe SSDs or USB.

The server supports up to eight PCIe slots with Gen4 and Gen5 riser configurations and offers hot-swap redundant power supply options ranging from 700 W to 3200 W with Titanium and Platinum efficiency ratings.

This server is highly configurable to suit various CPU, memory, storage, and networking requirements. Please contact us for a bespoke configuration quote.
