Dell PowerSwitch Z9264F-ON RA 64x 100G QSFP28 + 2x 10G SFP+ Port 2U Switch OPX

Condition : Refurbished – tested and working grade A refurbished part

Dell PowerSwitch Z9264F-ON RA 64x 100G QSFP28 + 2x 10G SFP+ Port 2U Switch OPX

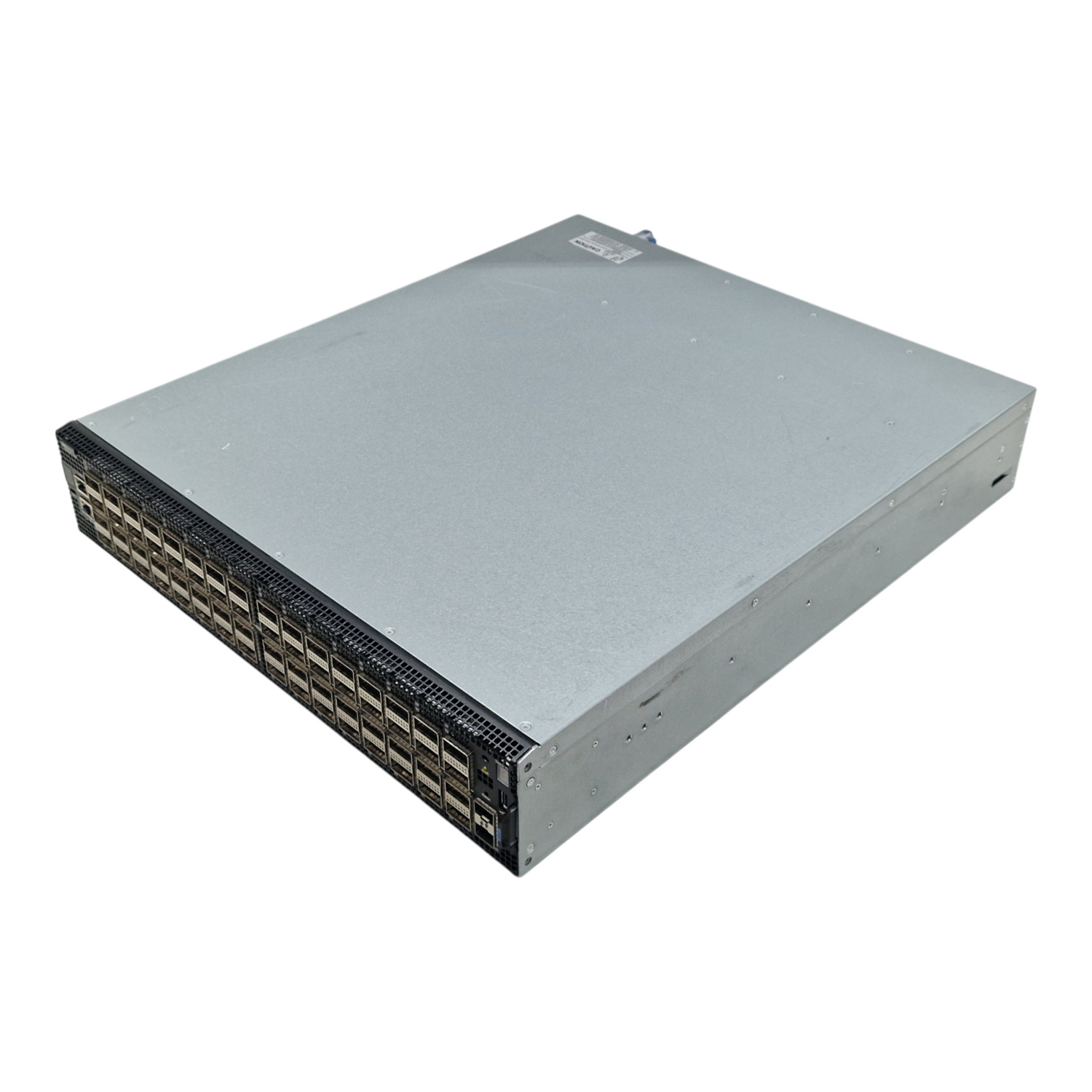

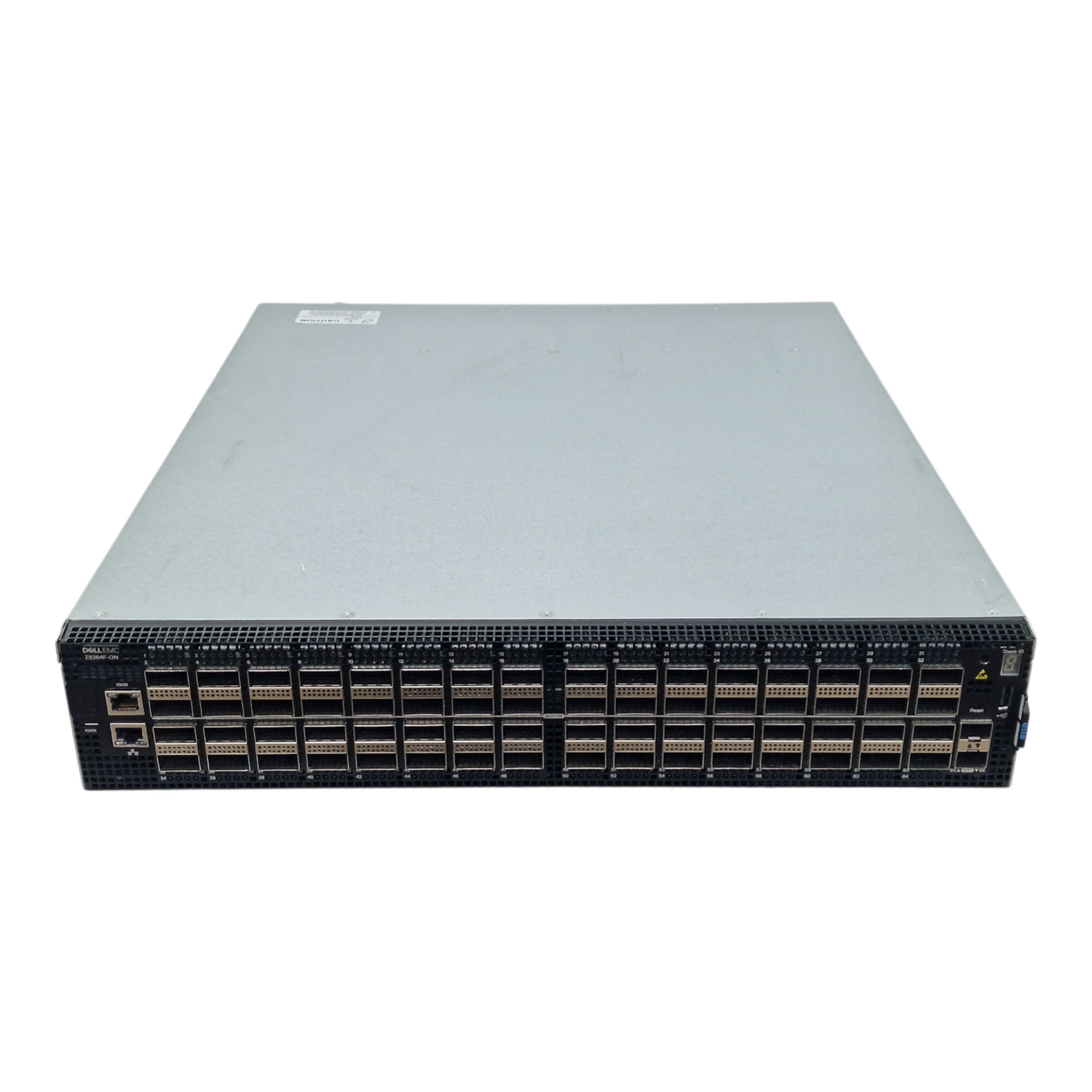

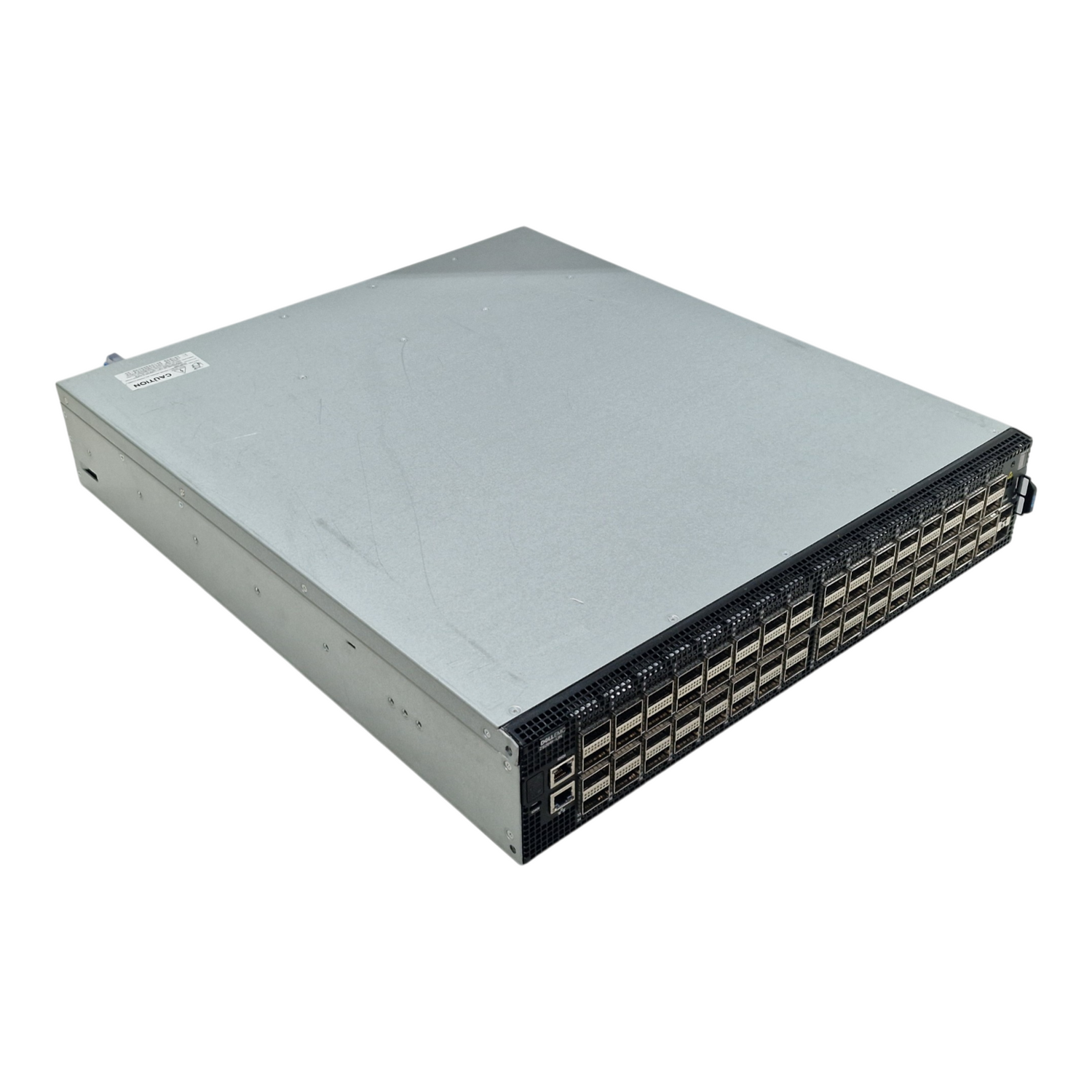

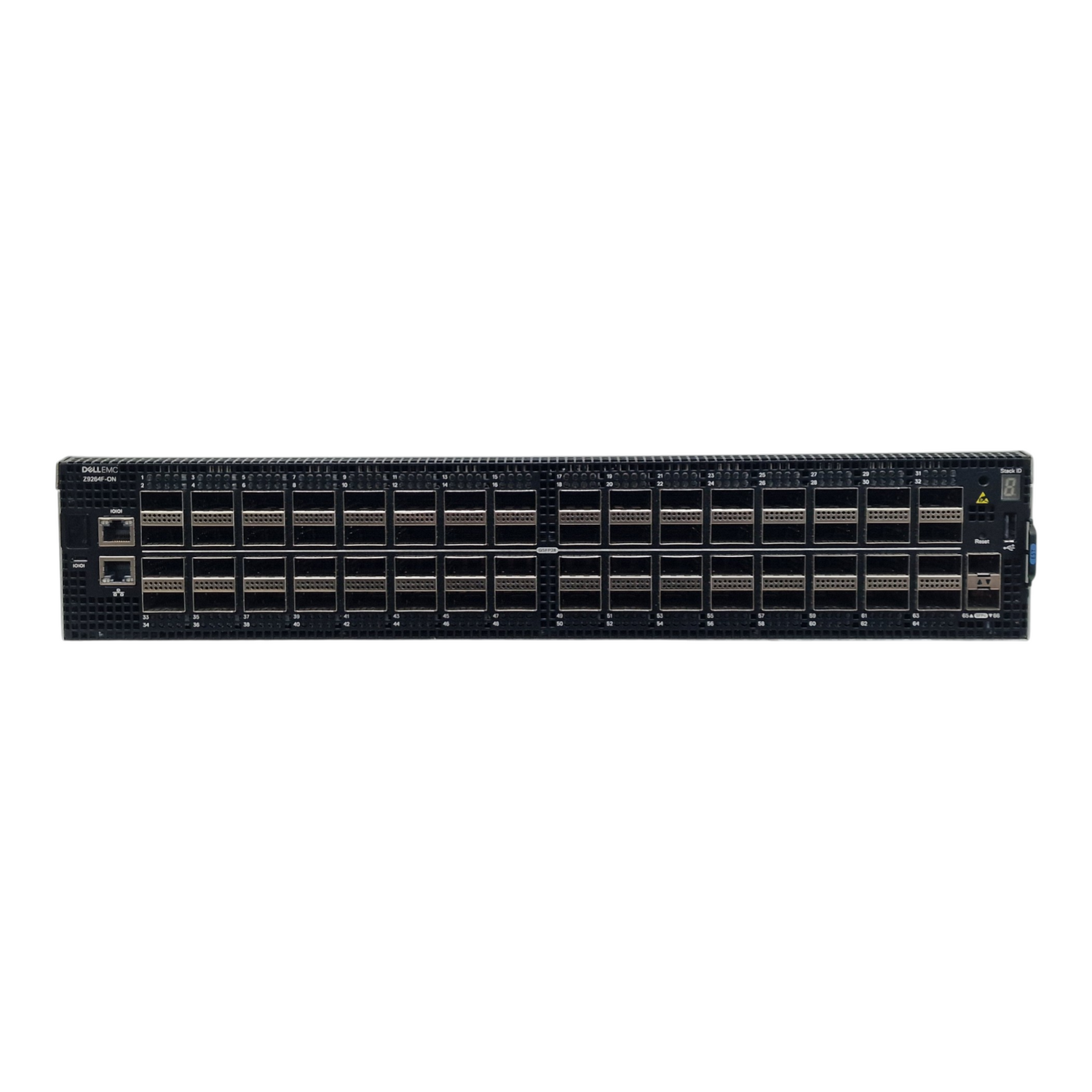

High-performance Dell PowerSwitch Z9264F-ON featuring 64 100G QSFP28 ports and 2 10G SFP+ ports in a 2U rackmount chassis.

Key Features:

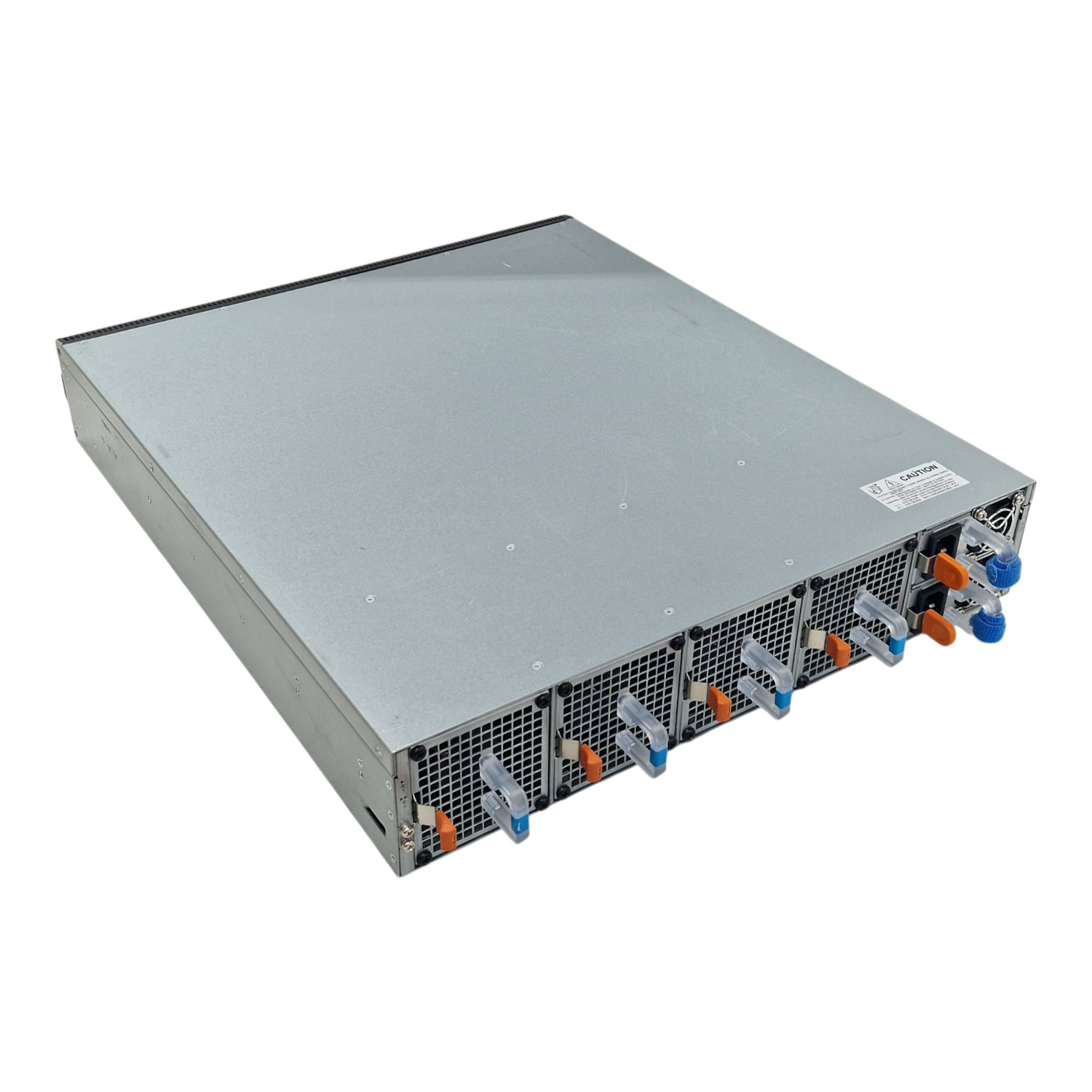

- Reverse airflow (back to front) cooling design

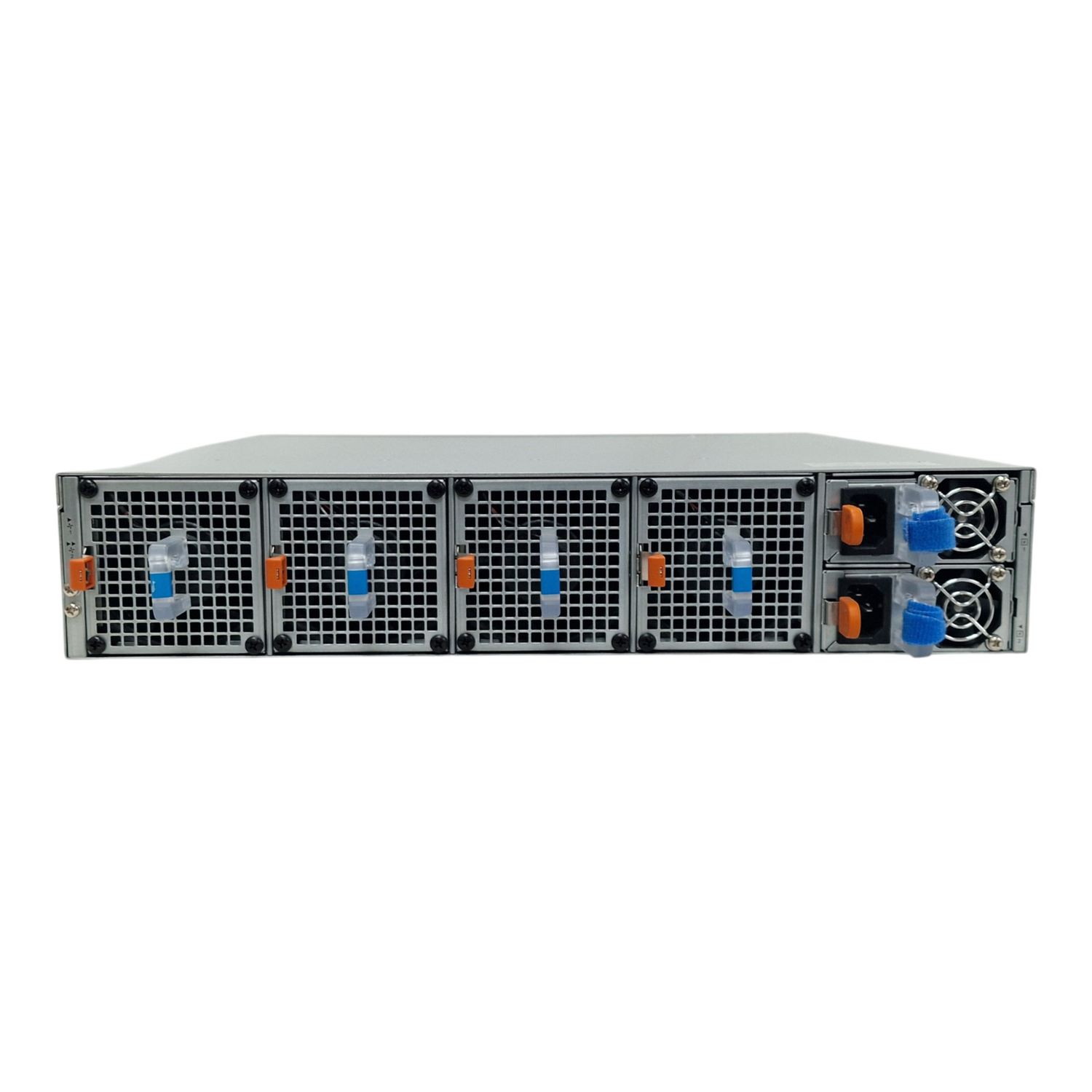

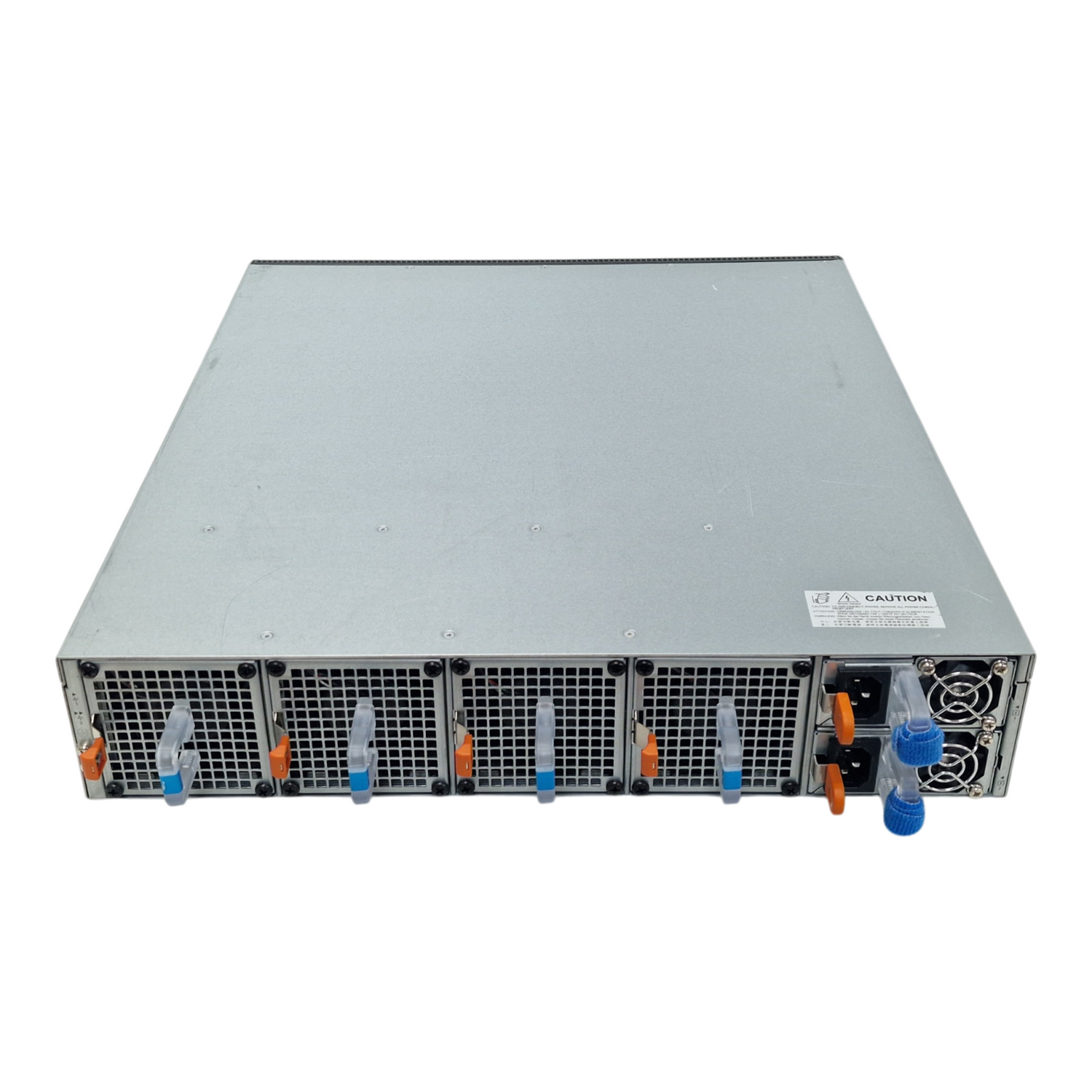

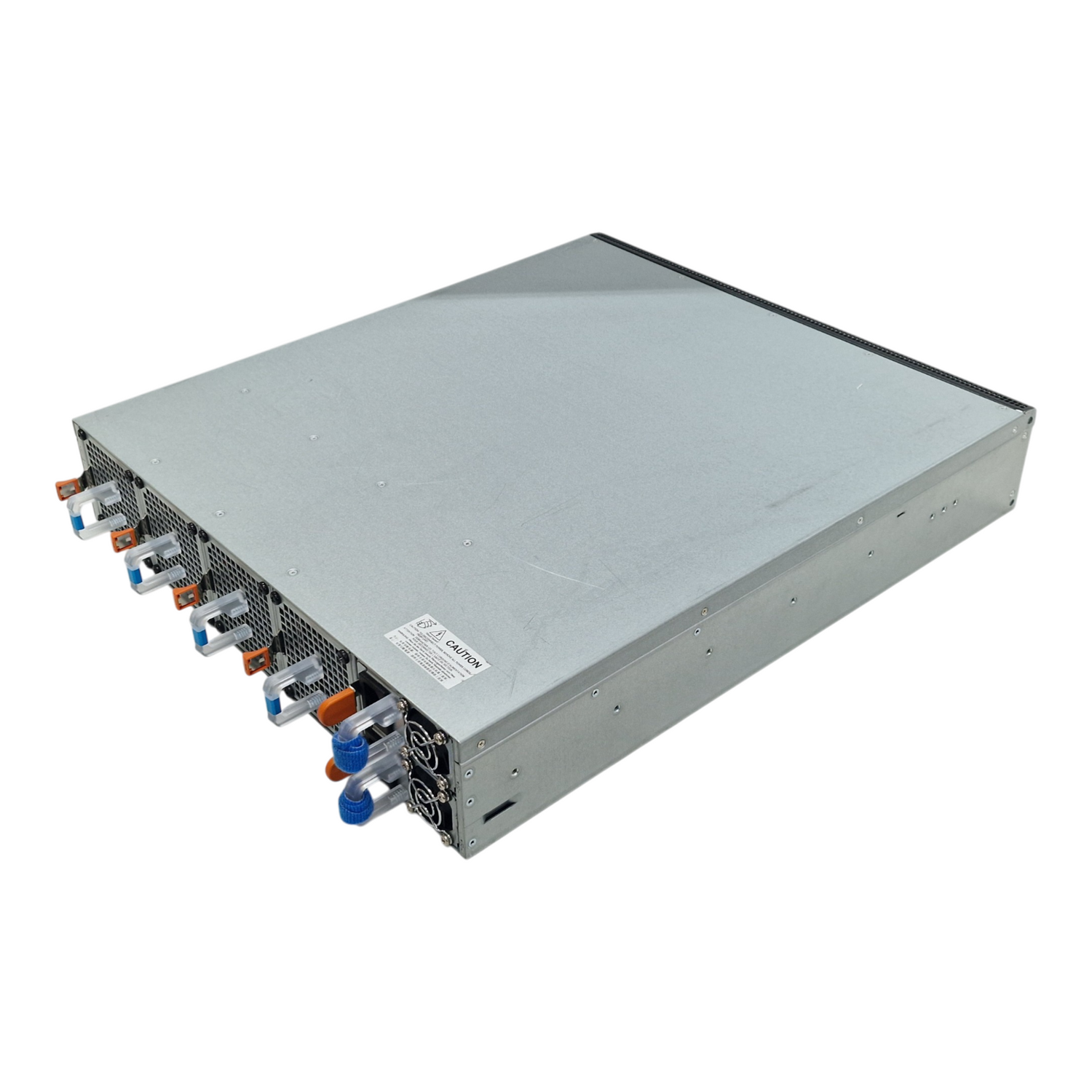

- Includes 2 x 1600W redundant power supplies and 4 fan modules
- OPX 3.2.0 operating system installed
- 12.8 Tbps full-duplex switch fabric capacity
- Forwarding capacity up to 4200 Mpps depending on packet size
- 16GB CPU memory and 42MB packet buffer memory
- Supports 160K MAC addresses, 128K ARP entries, and robust IPv4/IPv6 routing
- Layer 2 and Layer 3 protocols support including MSTP, VRRP, BGP, OSPF, and more
- Extensive IEEE compliance for networking standards
- Linux-based Debian OS with advanced network management and automation tools

Physical Specifications:
- Dimensions: 8.56 cm (H) x 44.2 cm (W) x 51.0 cm (D)
- Weight: 20 kg
- Power supply: 100-240 VAC, 50/60 Hz
- Operating temperature: 0°C to 45°C
- Operating humidity: 10 to 90% RH (non-condensing)

Ideal for data centre and enterprise network environments requiring high throughput and advanced protocol support.
