Dell PowerVault ME4024 24-Bay 2.5" SFF 2 x Quad Port 12G SAS Storage Controller

Condition : Refurbished – tested and working grade A refurbished part

Dell PowerVault ME4024 24-Bay 2.5" SFF Storage Controller with Dual Quad Port 12G SAS

Key Features:

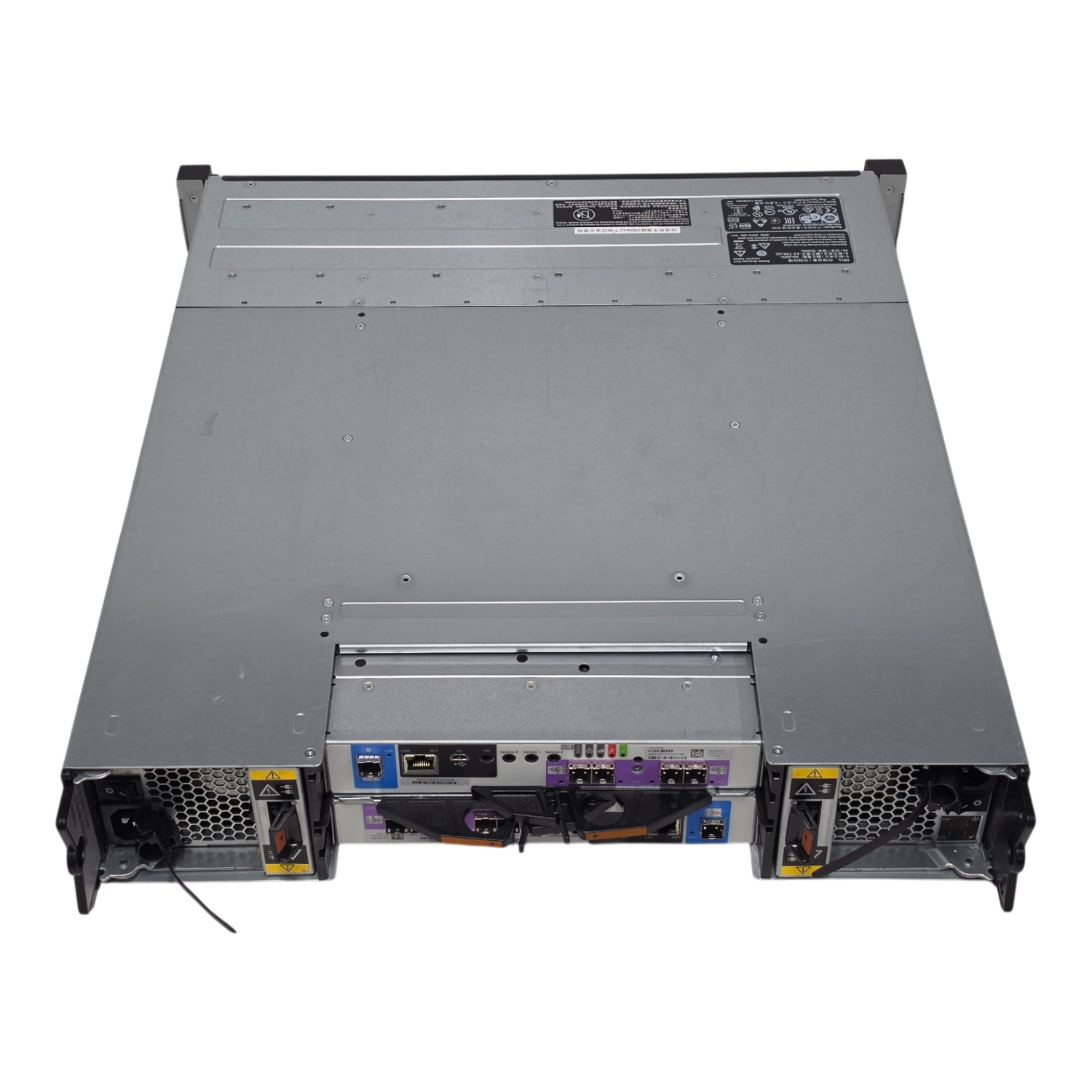

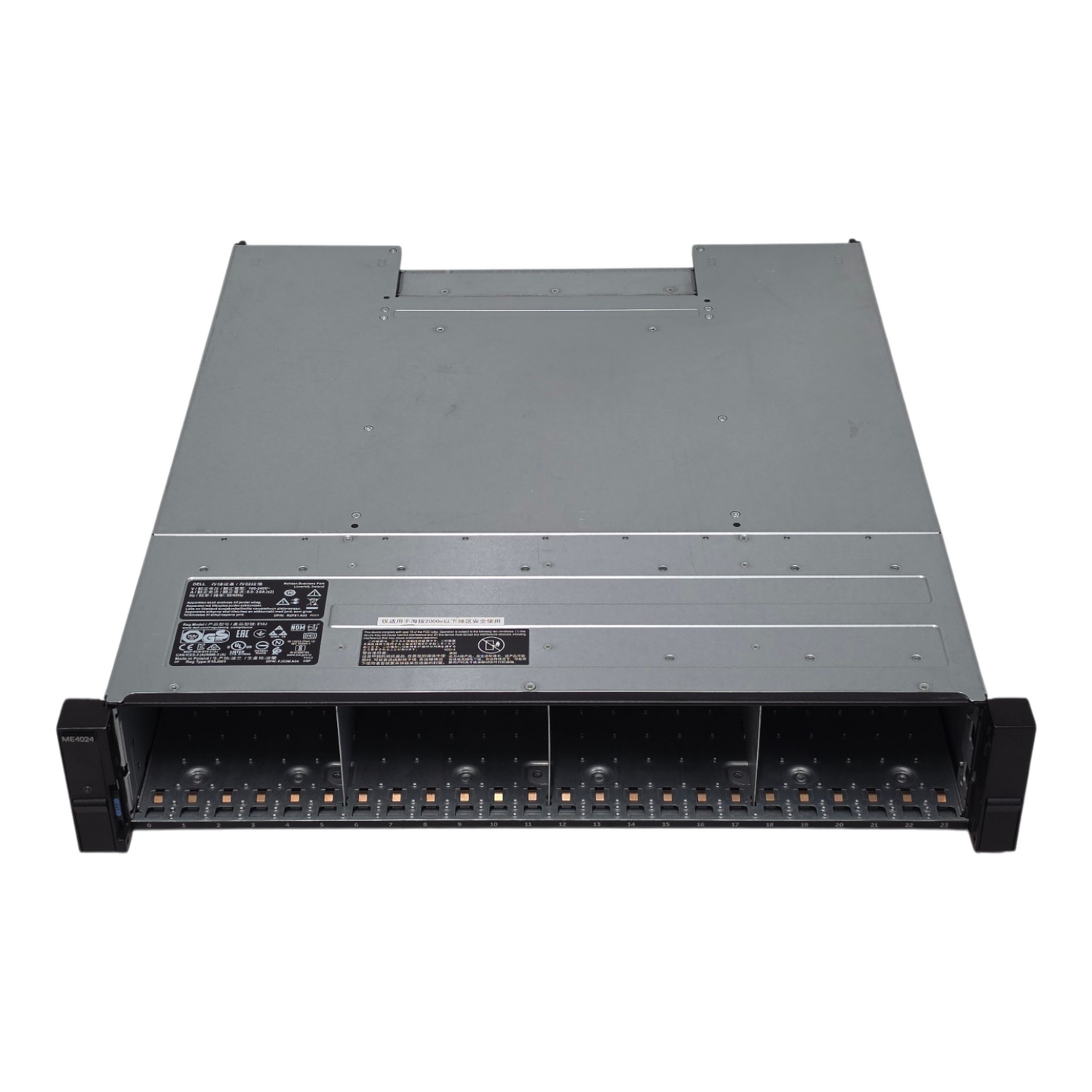

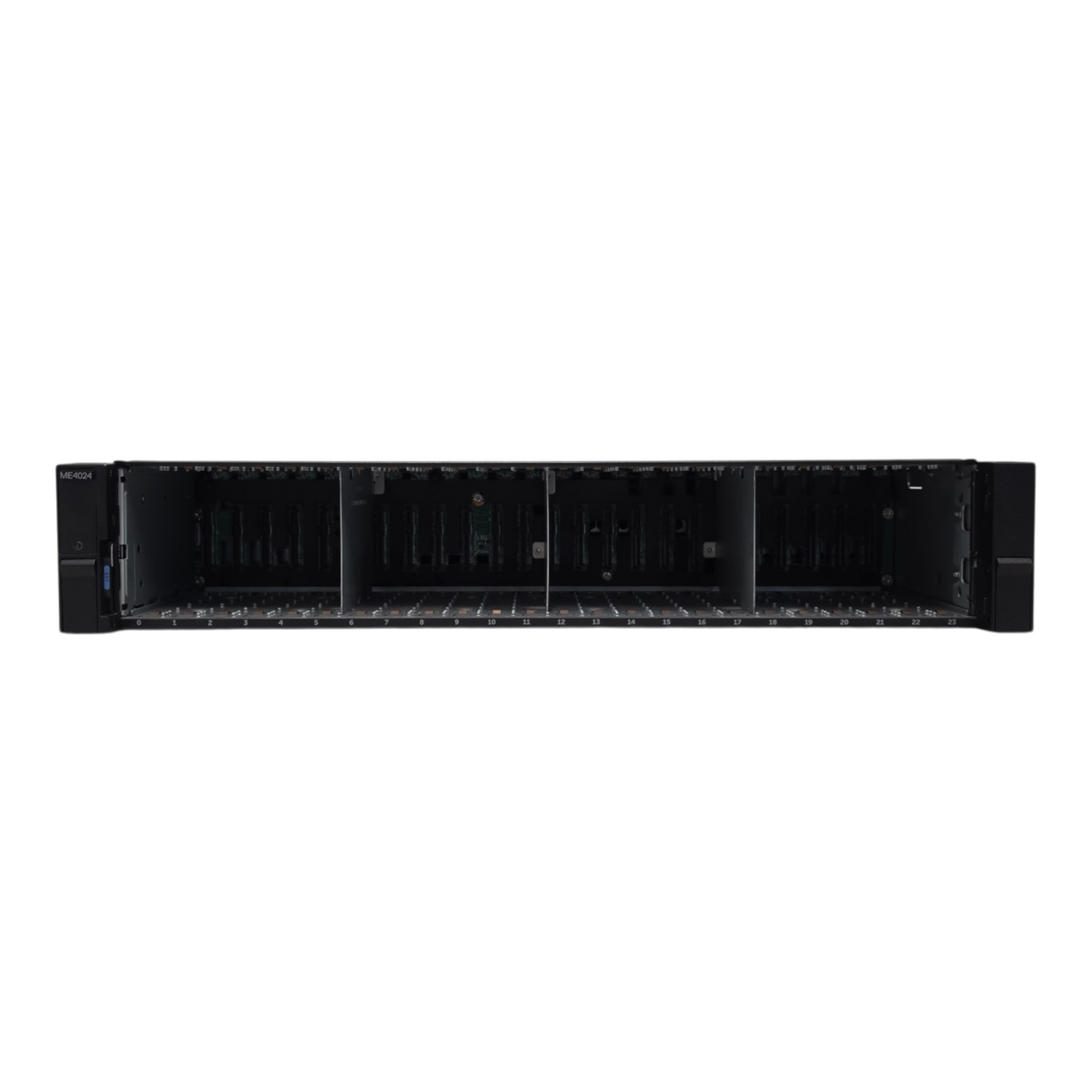

- 2U Rackmount chassis with 24 x 2.5" Small Form Factor (SFF) hot-plug drive bays

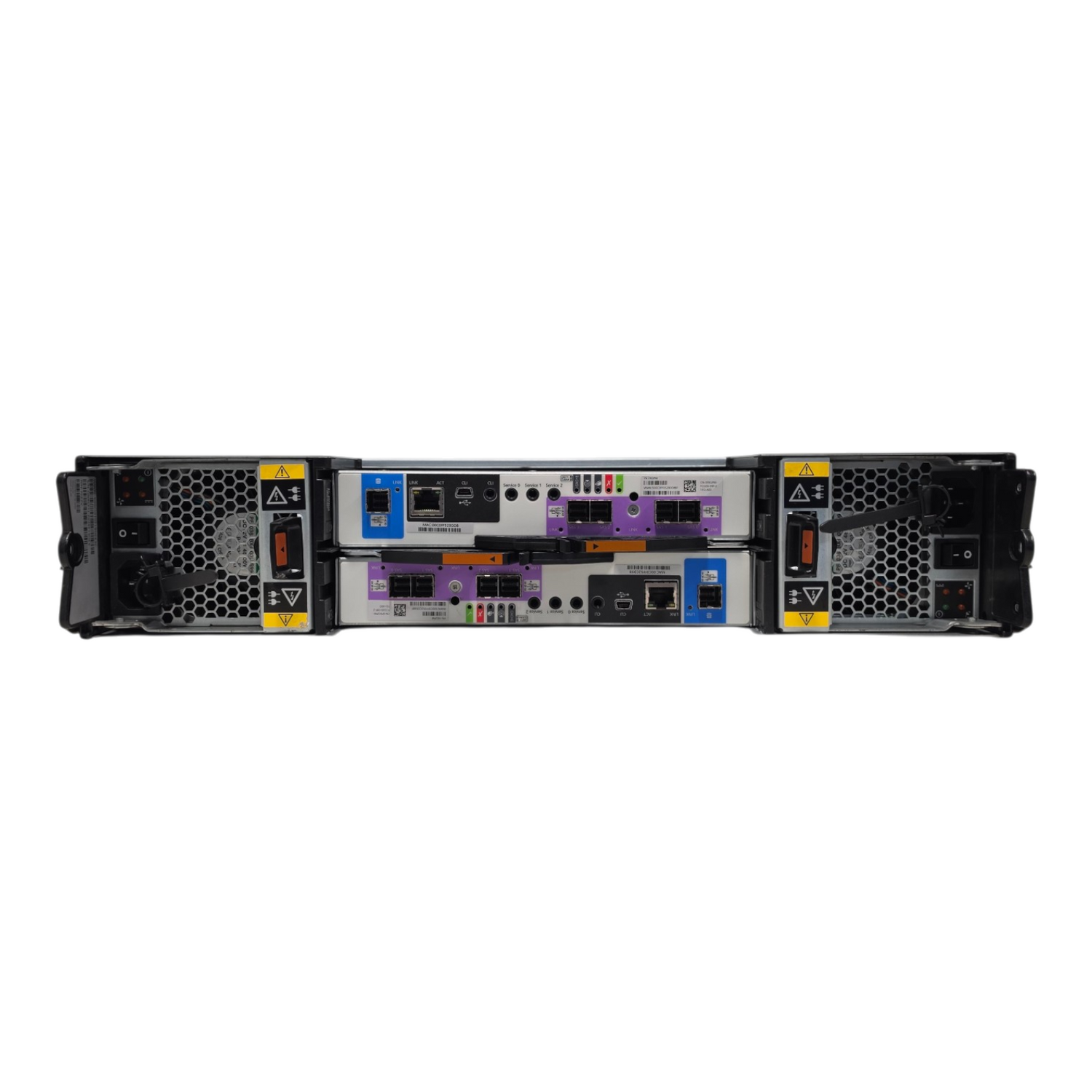

- Dual redundant 12G SAS controllers for high availability

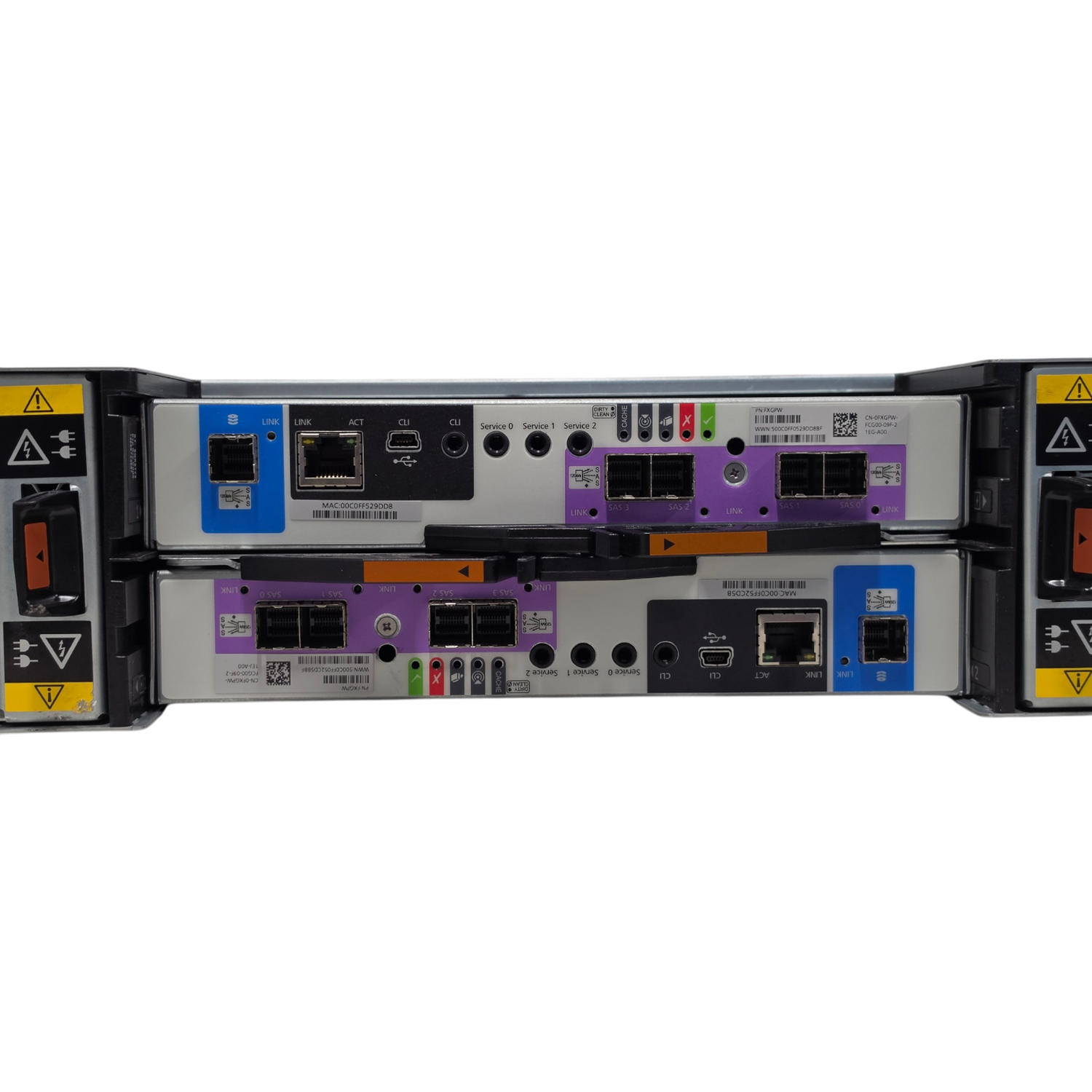

- 8 x 12Gb/s Mini-SAS HD host ports (4 direct-attach ports per controller)
- 2 x dedicated 12Gb/s SAS expansion out ports
- 16GB total cache memory (8GB DDR4 per controller) with onboard supercapacitor for cache data protection
- Supports RAID levels 0, 1, 5, 6, 10, and ADAPT

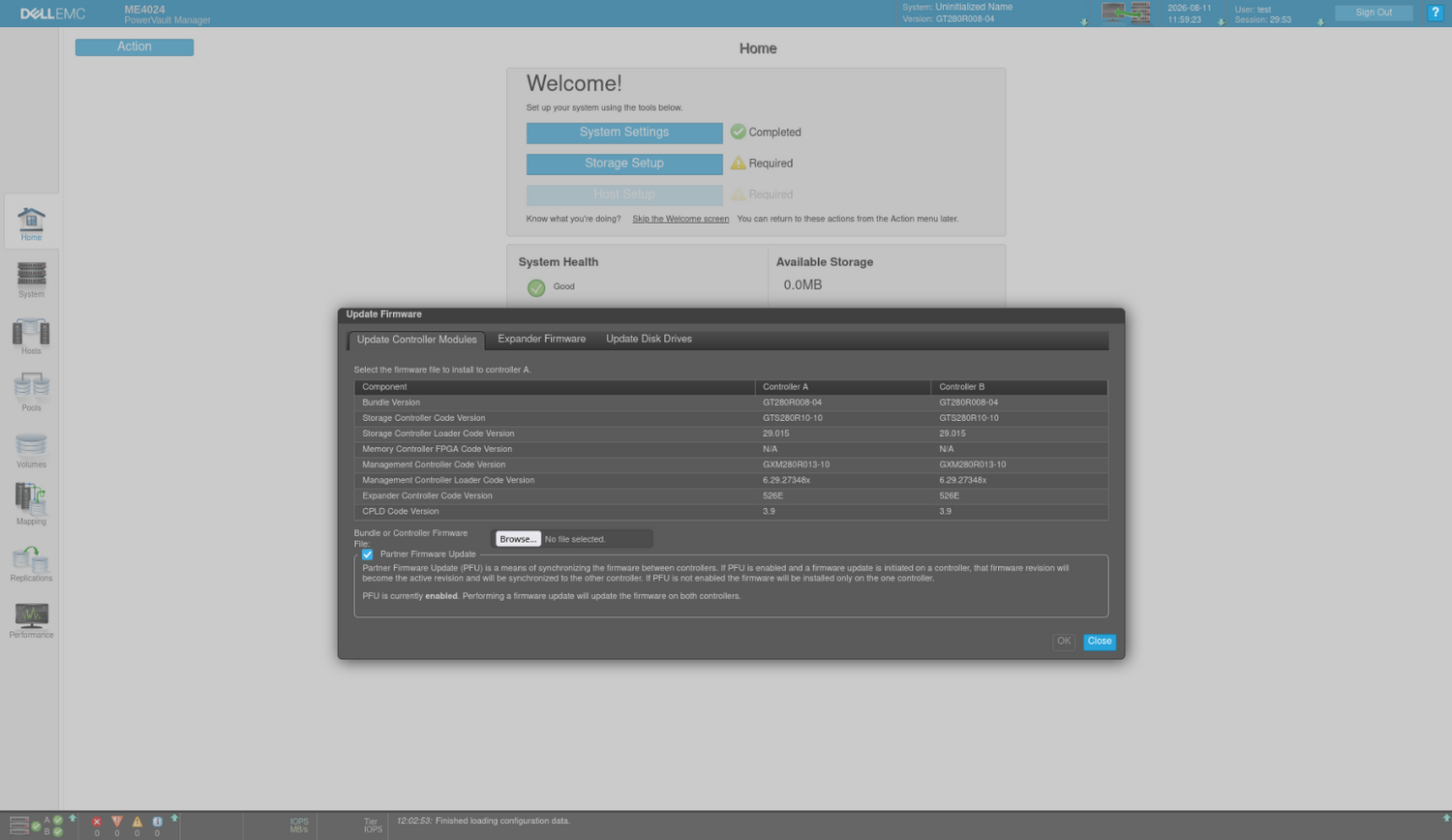

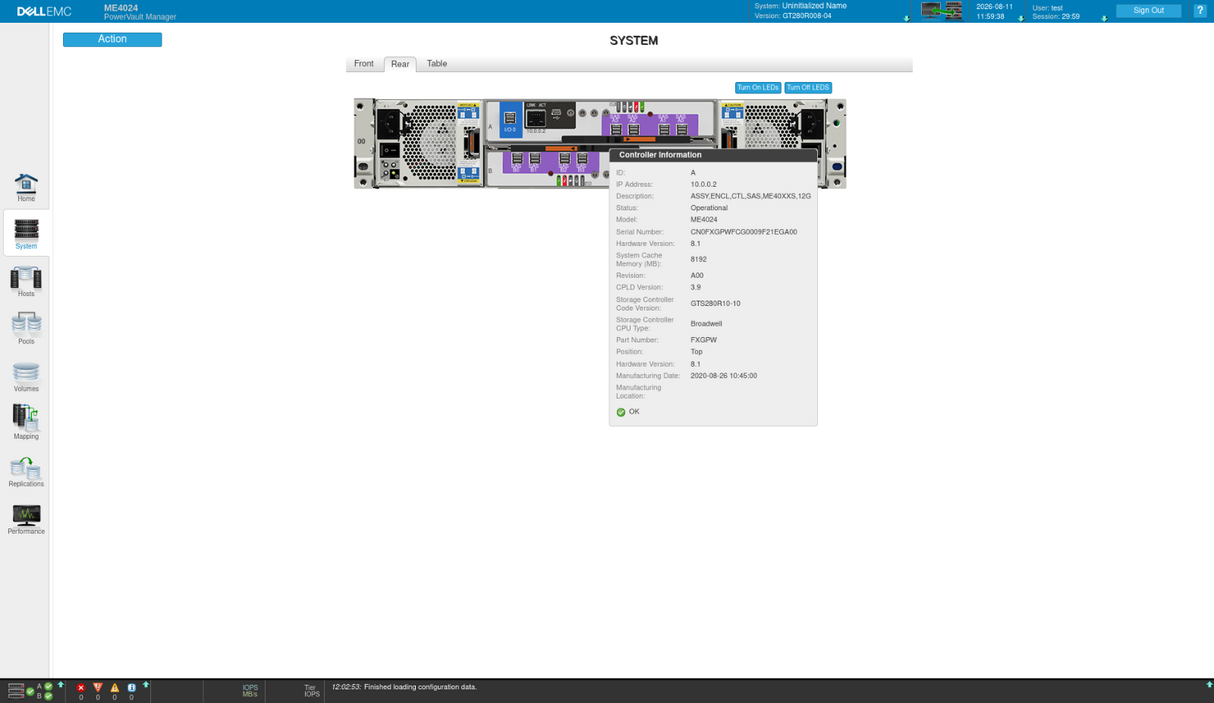

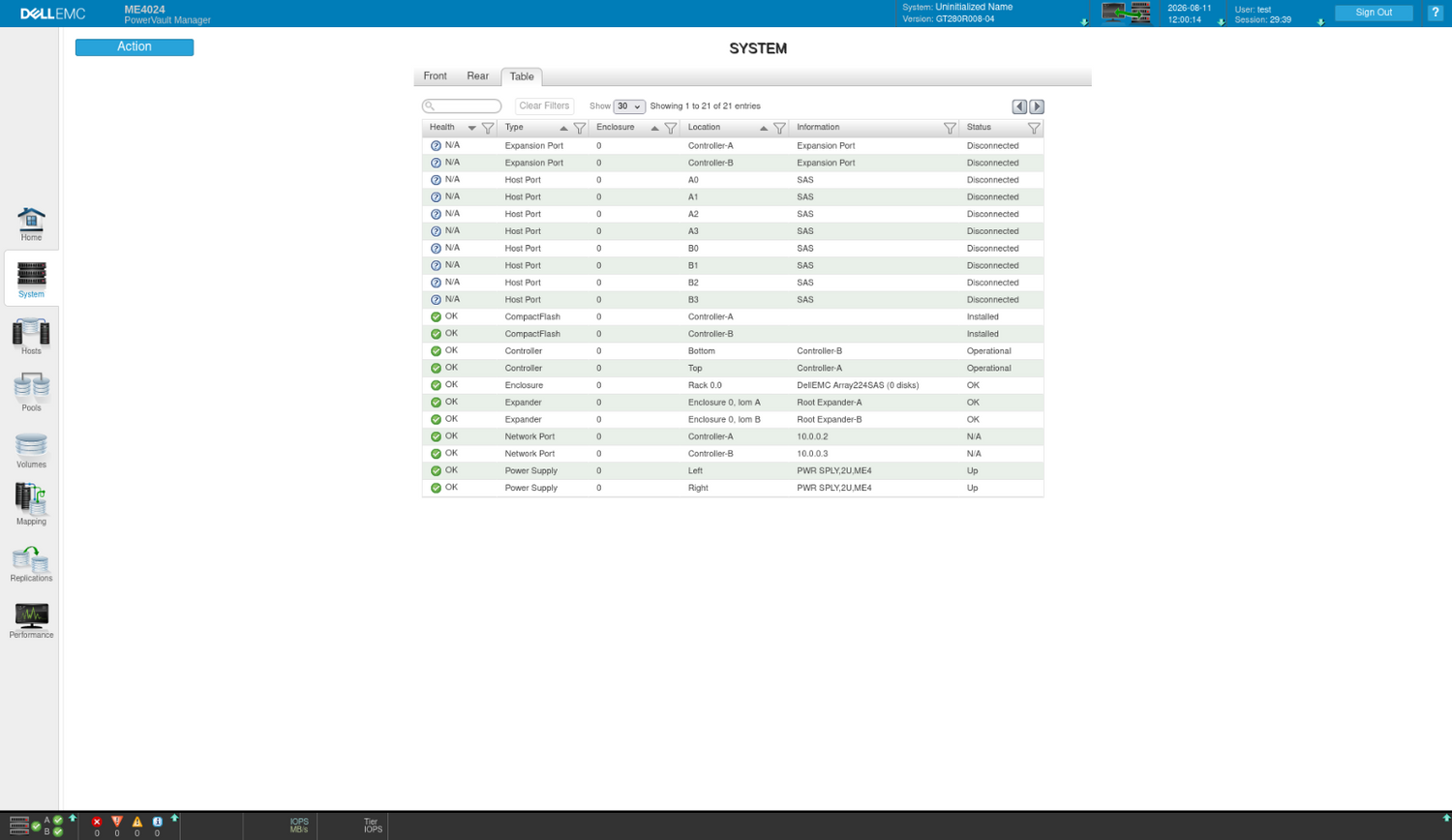

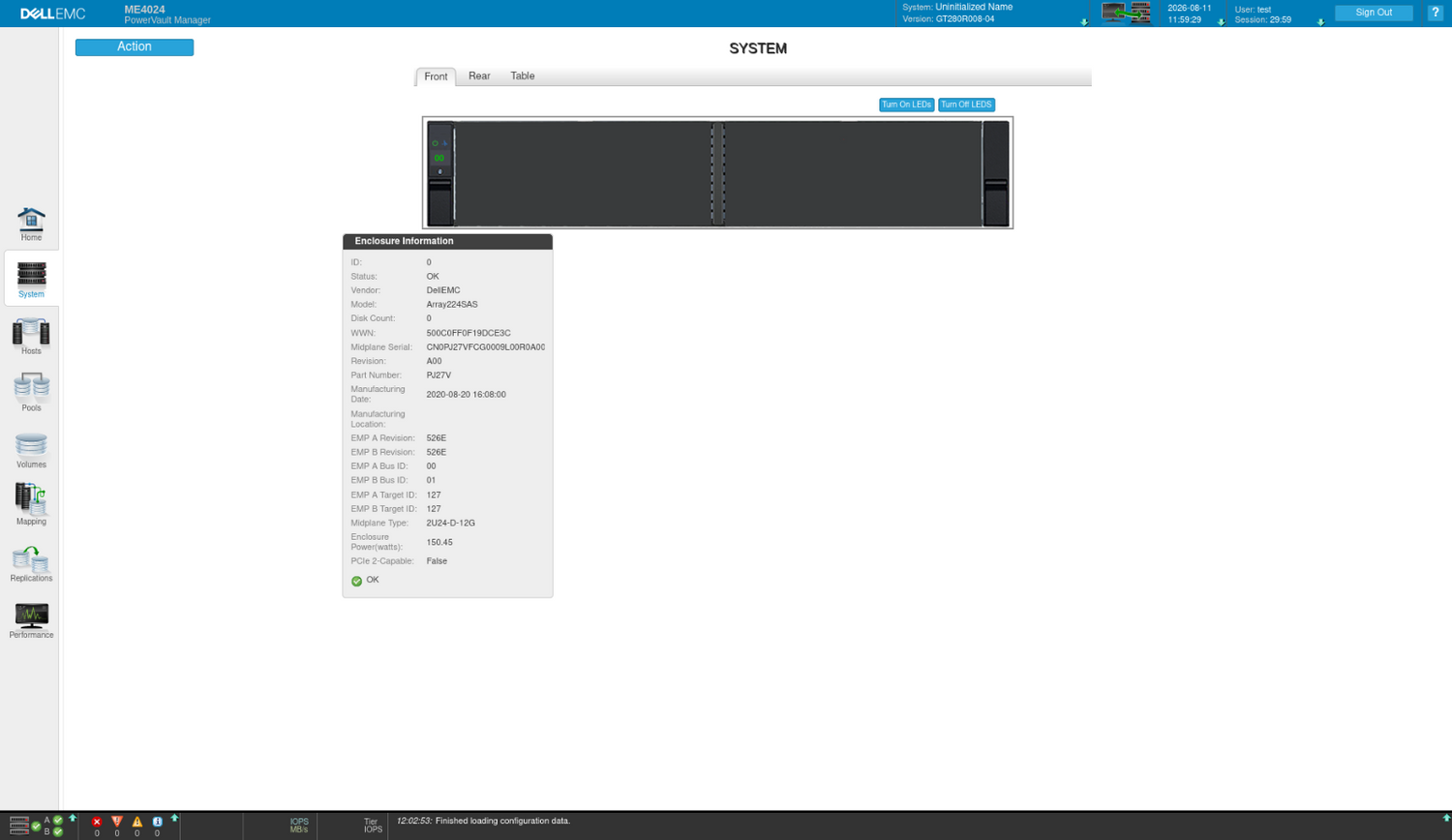

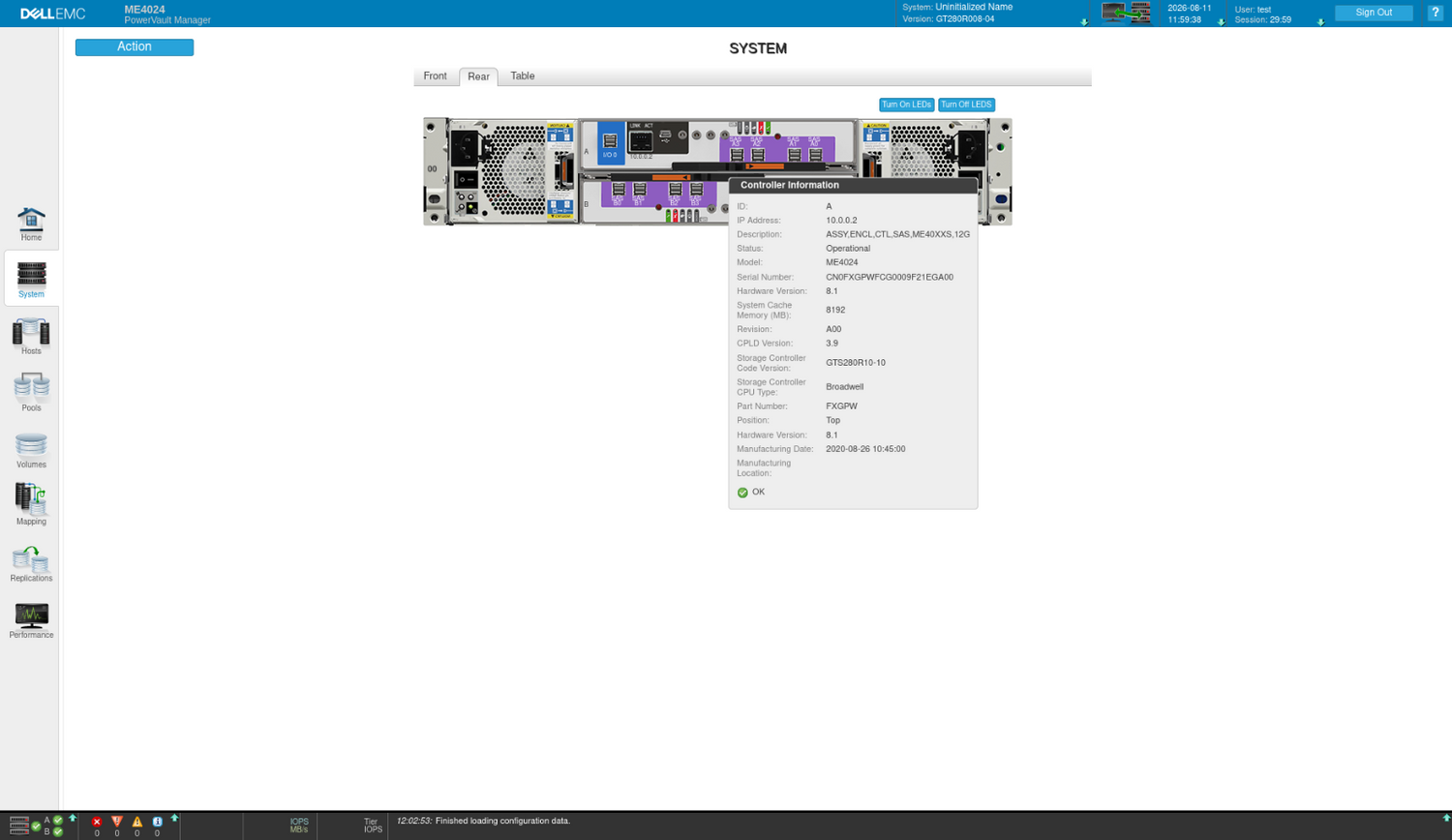

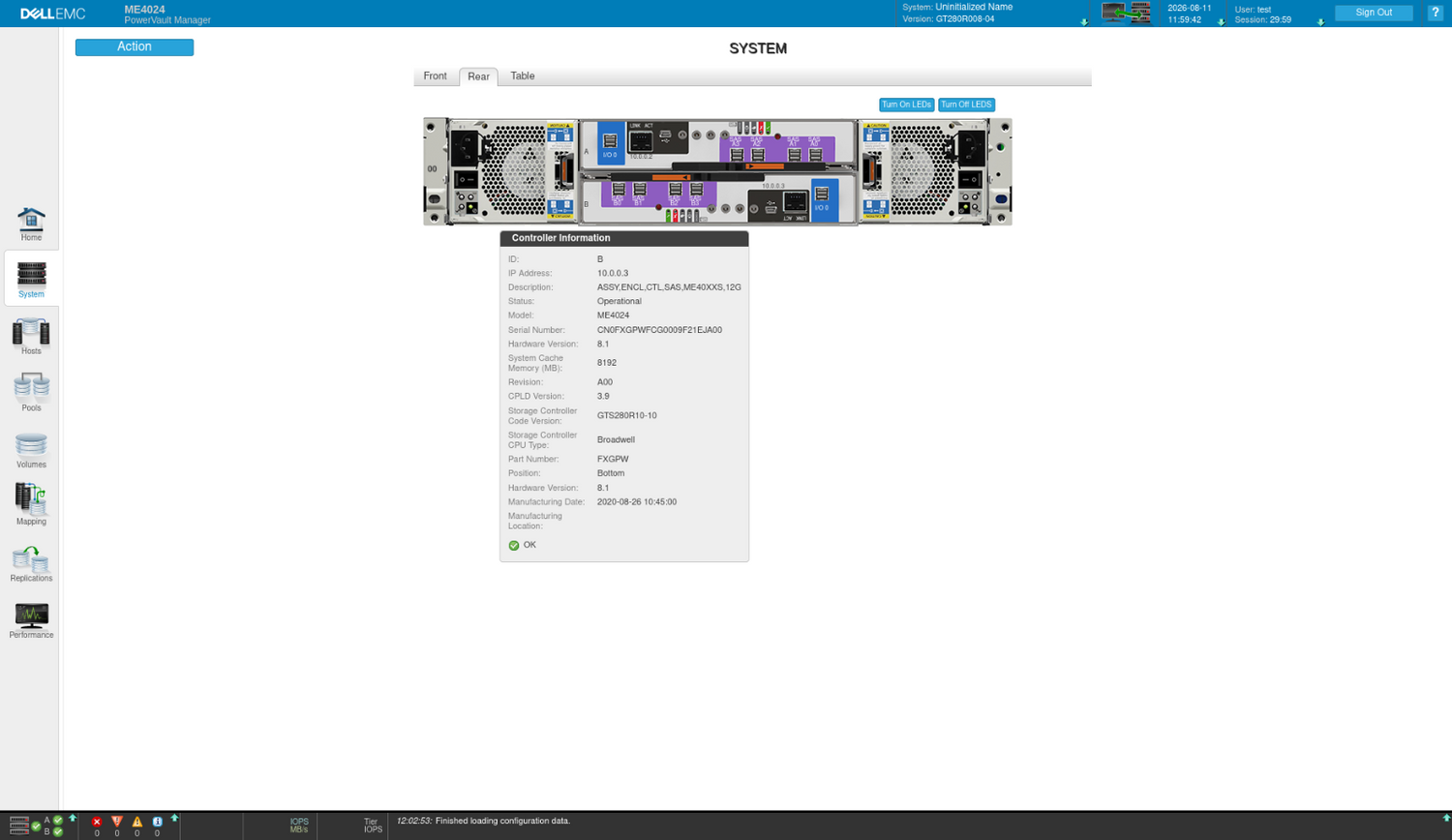

- Management via dedicated 10/100/1000Mb RJ-45 Ethernet port using Dell ME Storage Manager (HTML5 Web GUI and CLI)

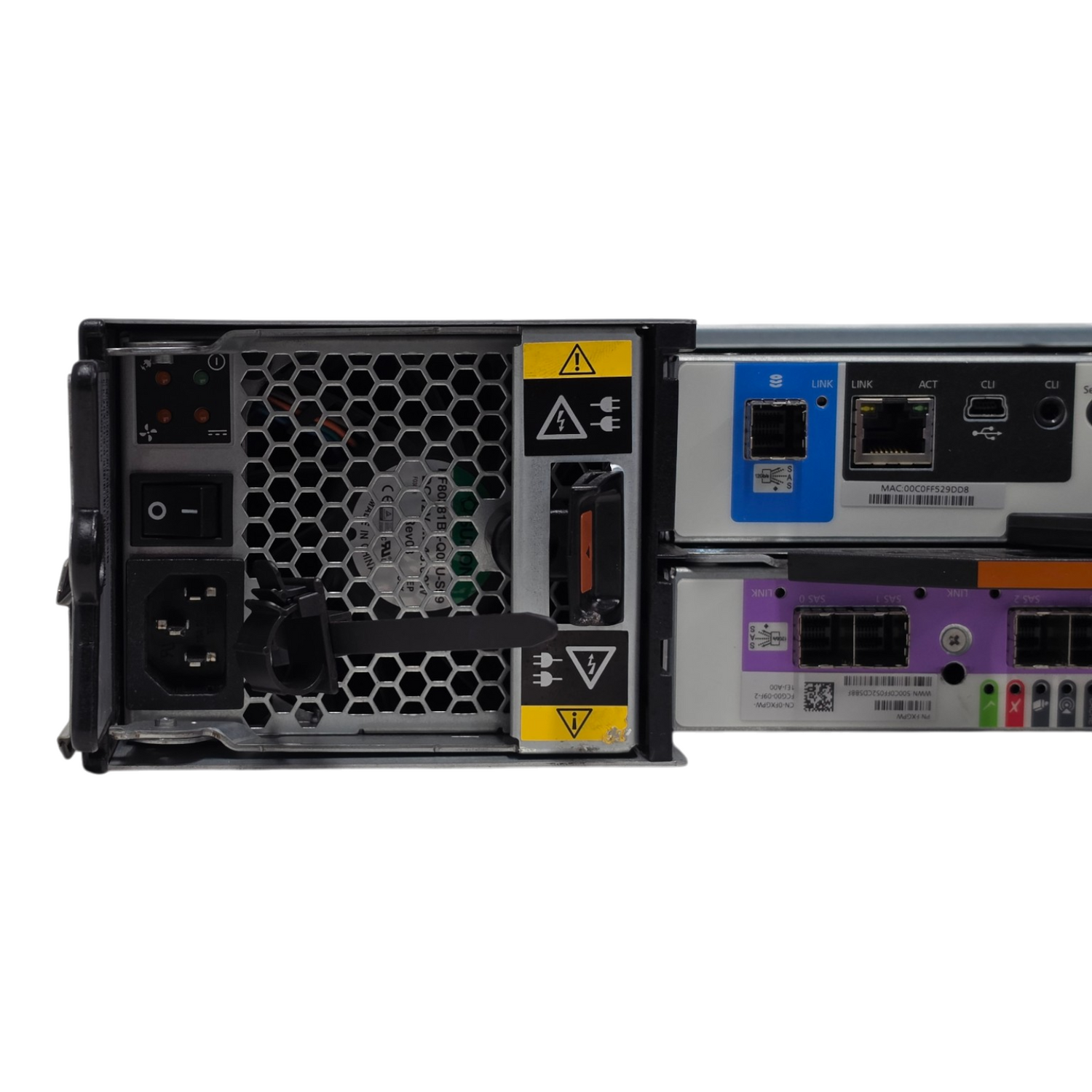

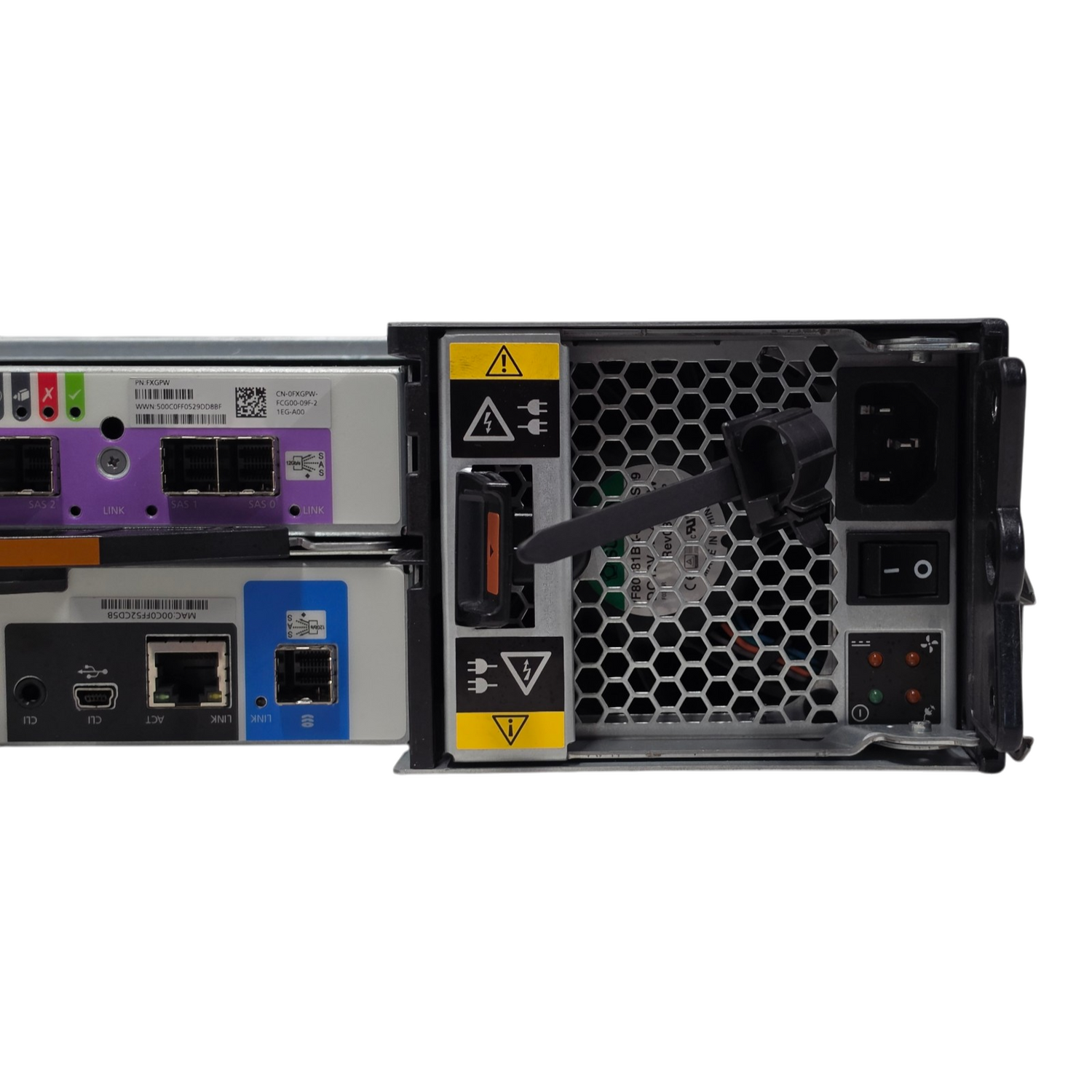

- 2 x hot-swappable 580W AC power supplies (80-PLUS Gold certified)

Supported Media:
- 12Gb/s SAS Solid State Drives (SSD), Enterprise SAS Hard Disk Drives (HDD), Nearline-SAS (NL-SAS) HDDs
- Supports up to 24 separate 2.5" SFF drives
- Self-Encrypting Drives (SED) supported
- Hot-swappable backplane allows drive replacement without shutdown

Ideal for enterprise storage environments requiring high performance and scalability.
