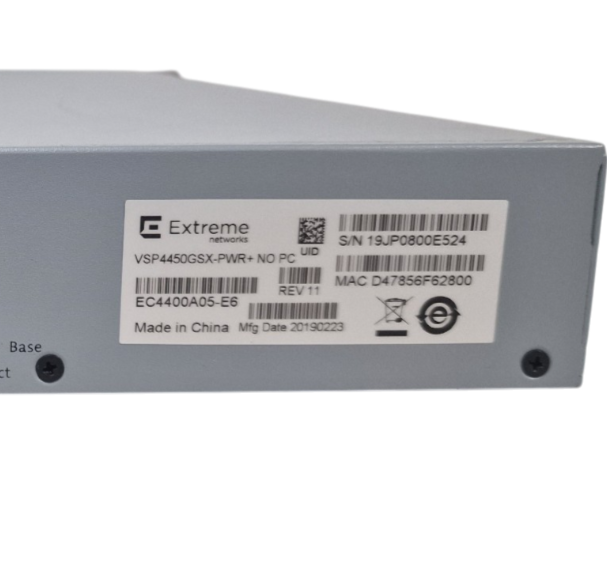

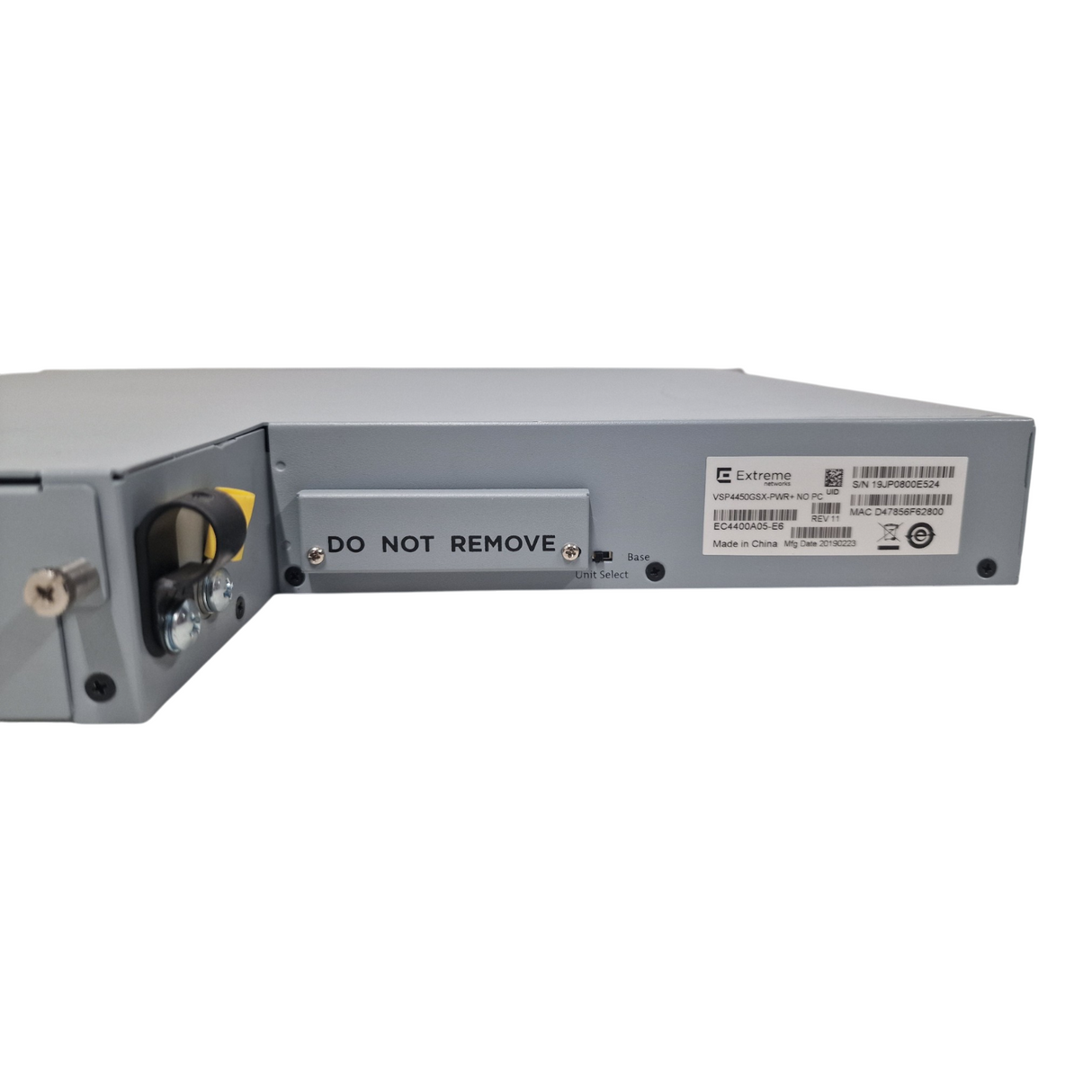

Extreme VSP 4450GSX-PWR+ 36-Port SFP 2x 10GbE SFP+ 12x RJ-45 PoE+ Managed Switch

Condition : Refurbished – tested and working grade A refurbished part

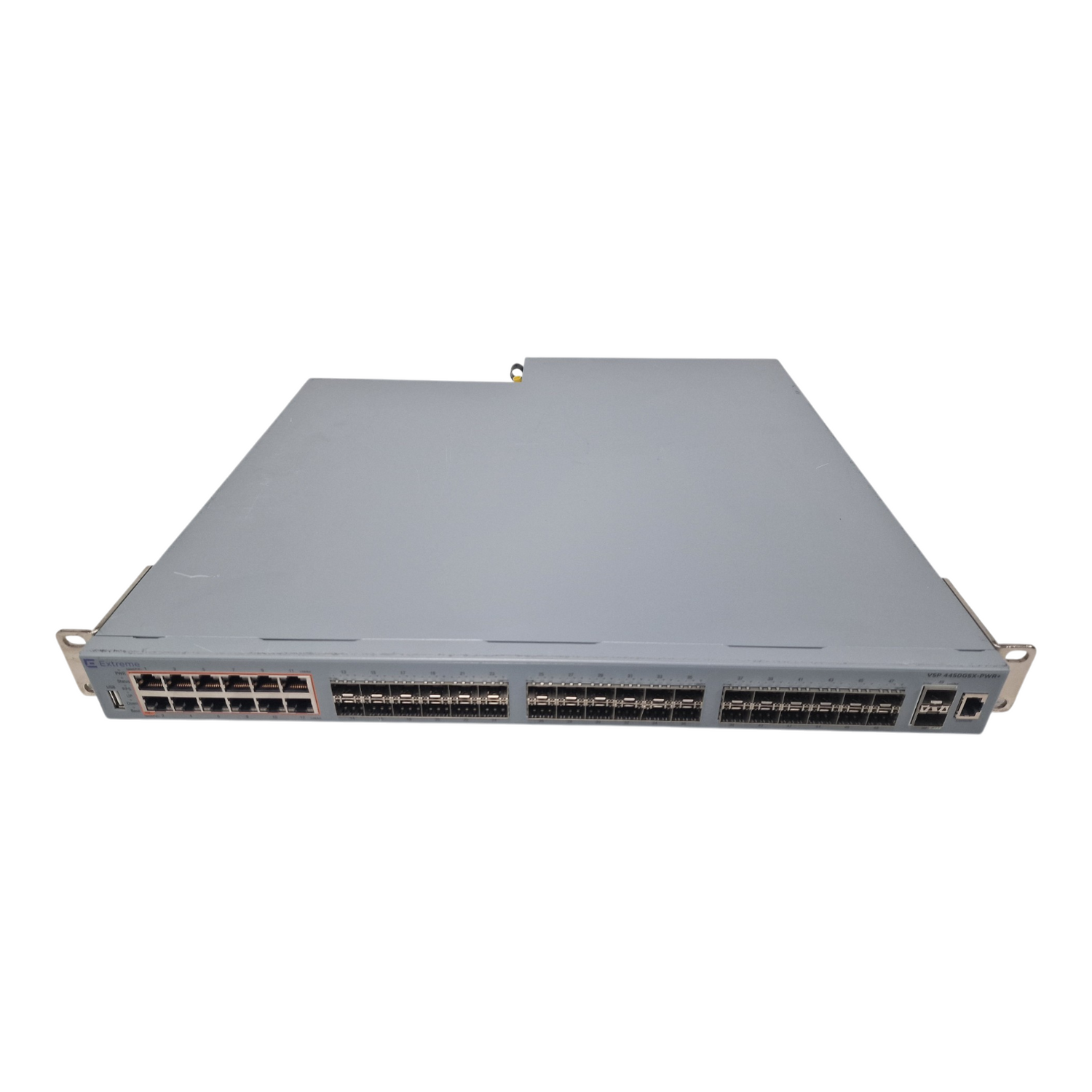

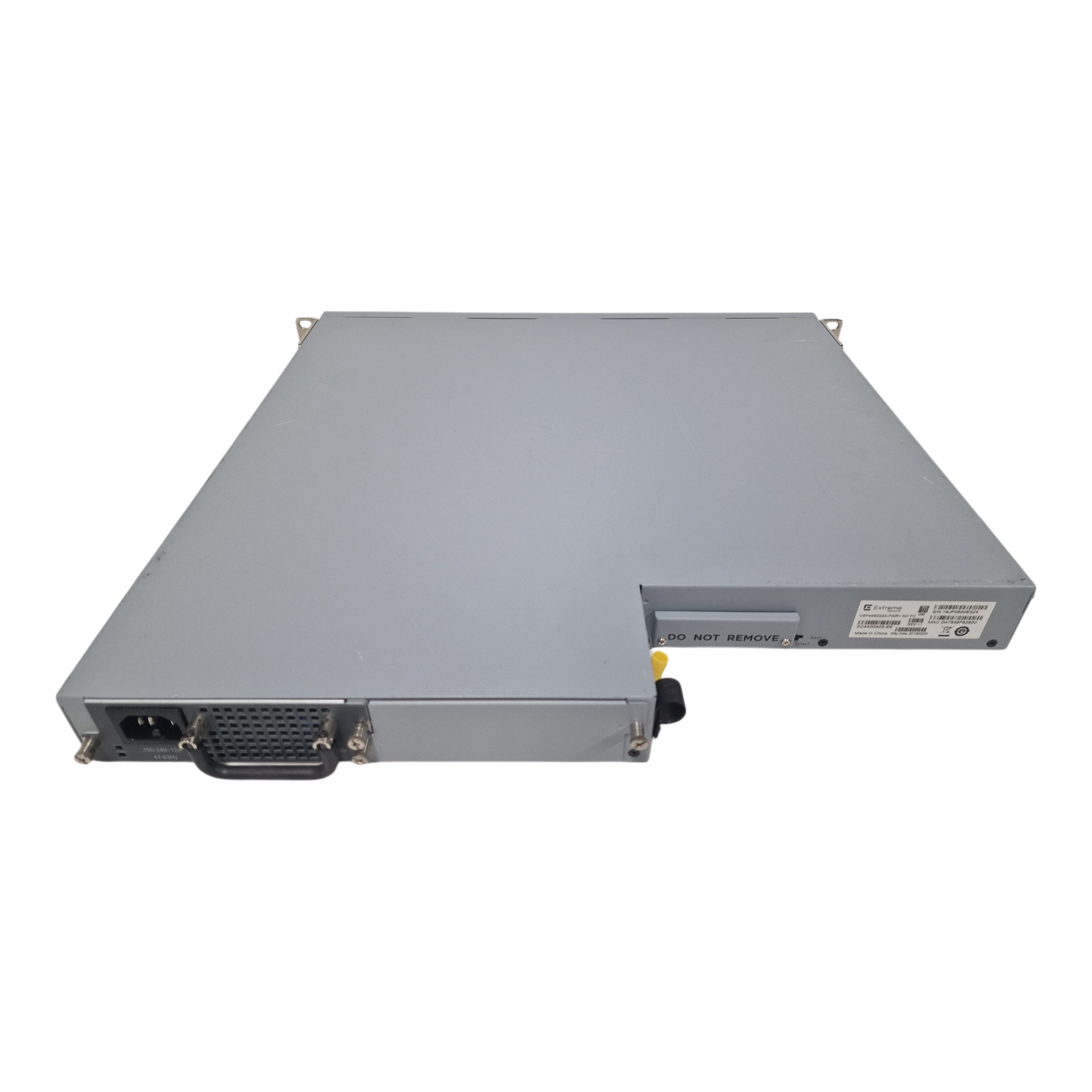

Extreme VSP 4450GSX-PWR+ Managed Switch

Key Specifications:

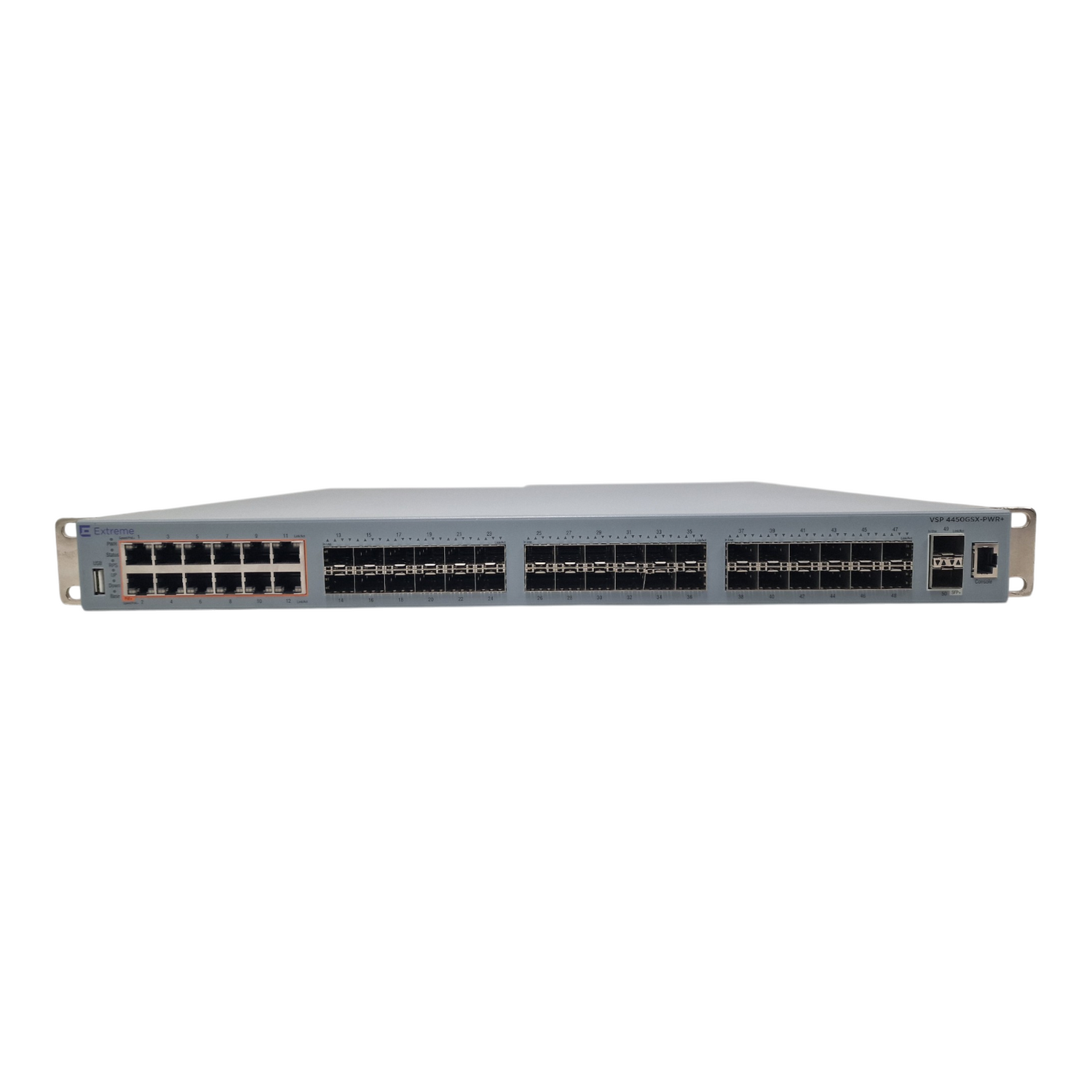

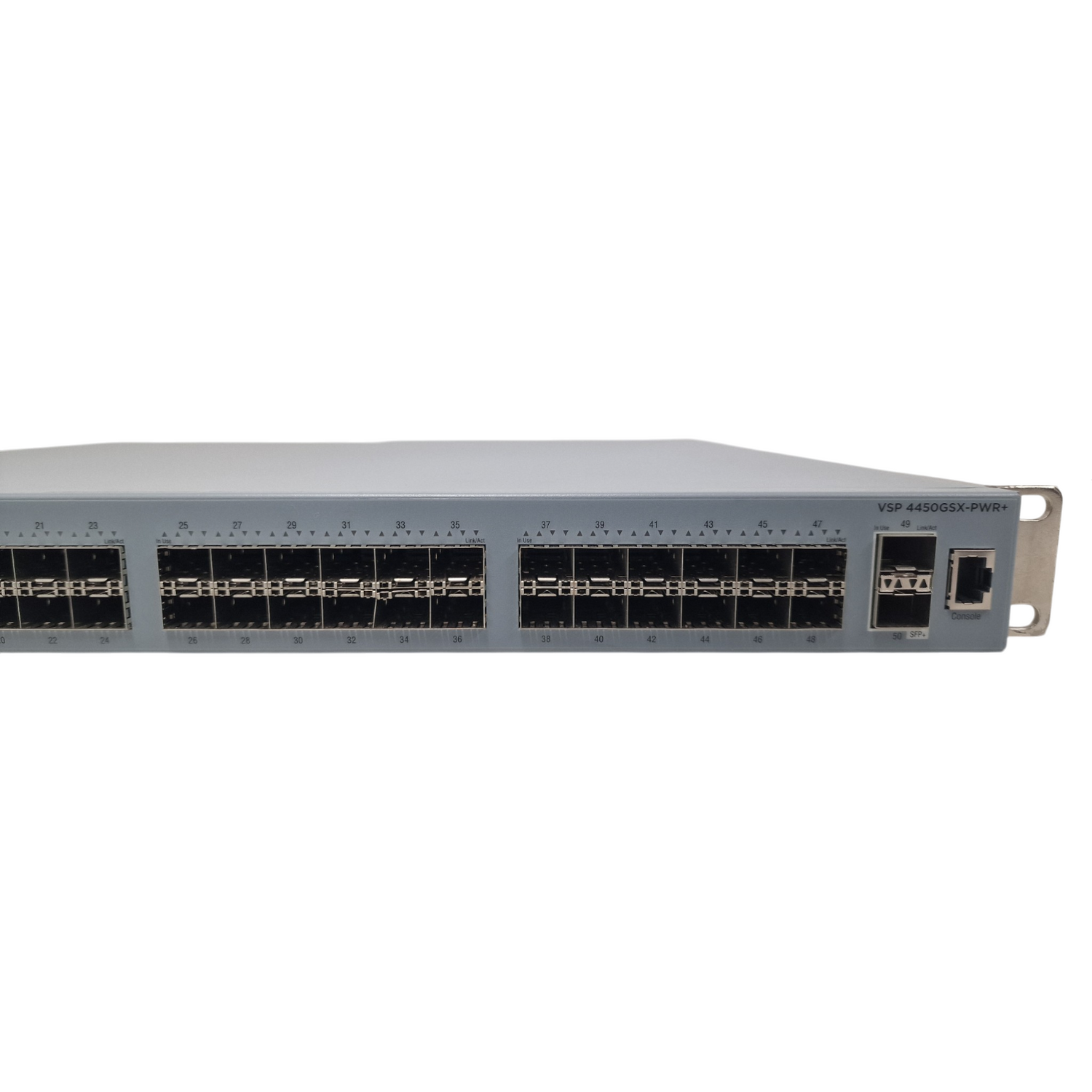

- 36 x 1000BASE-X SFP Gigabit Ethernet ports

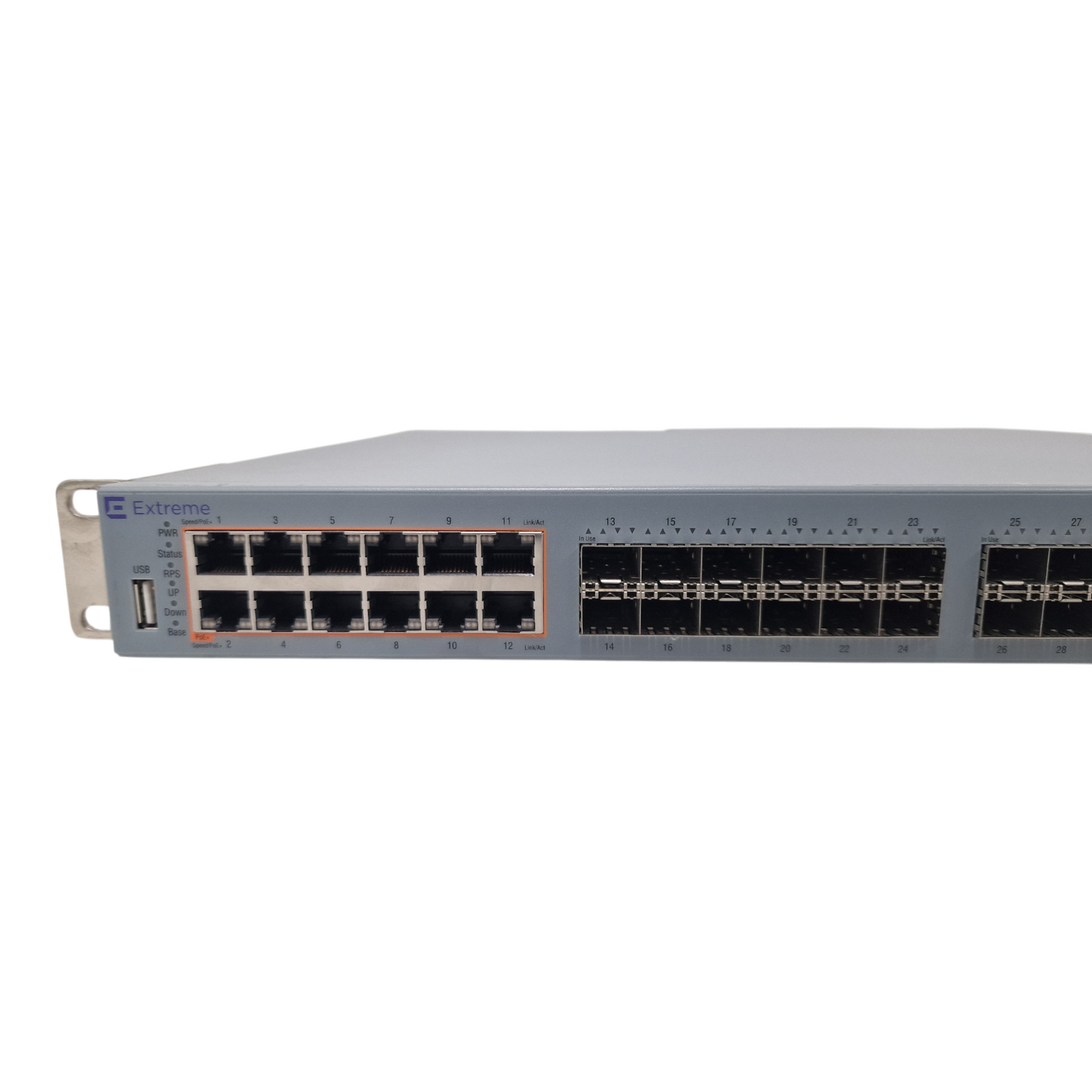

- 12 x 10/100/1000BASE-T RJ45 Gigabit Ethernet PoE+ ports
- 2 x 10 Gigabit SFP+ uplink ports
- 1U rack-mount form factor
- Runs VOSS 7.1.2.0 operating system
- Switch fabric capacity up to 176 Gbps
- Forwarding rate up to 130 Mpps
- Non-blocking architecture with jumbo frame support up to 9,600 bytes

Layer 2 Features:
- IEEE 802.1Q VLAN support
- Spanning Tree (RSTP/MSTP)
- Link aggregation (LACP/MLT)
- IGMP snooping
- Shortest Path Bridging (SPB/Fabric Connect)
- MAC address learning and filtering
- QoS with multiple queues per port

Layer 3 Features:
- IPv4 and IPv6 routing
- Static routing, RIP, OSPF, VRRP, ECMP
- Policy-based routing
- Multicast routing support

Management & Security:
- CLI and web management interface
- SNMP v1/v2c/v3
- SSH secure access
- RADIUS/TACACS+ authentication
- 802.1X port security
- ACL support
- DHCP snooping
- Dynamic ARP inspection

Power:
- IEEE 802.3af/at (PoE+) compliant

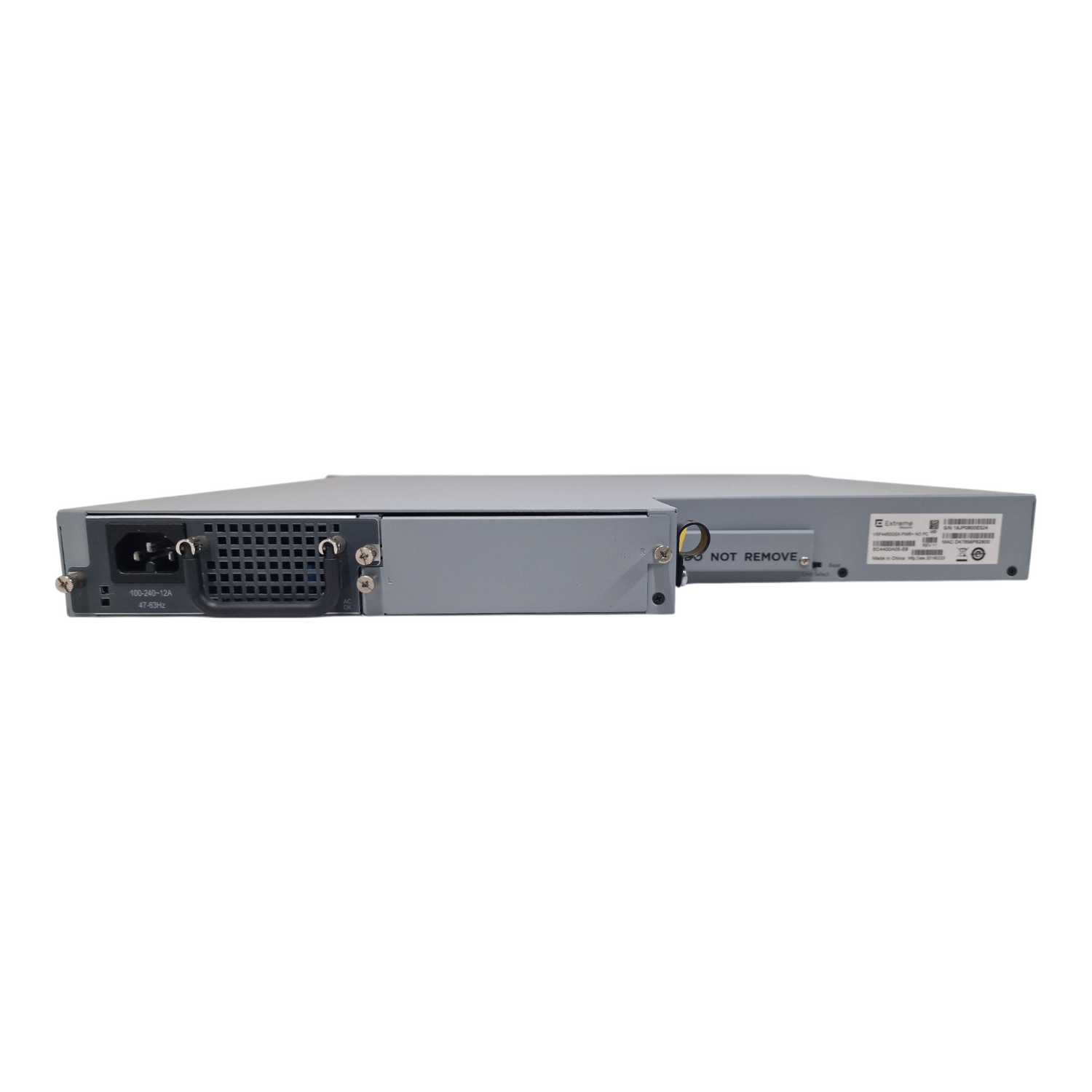

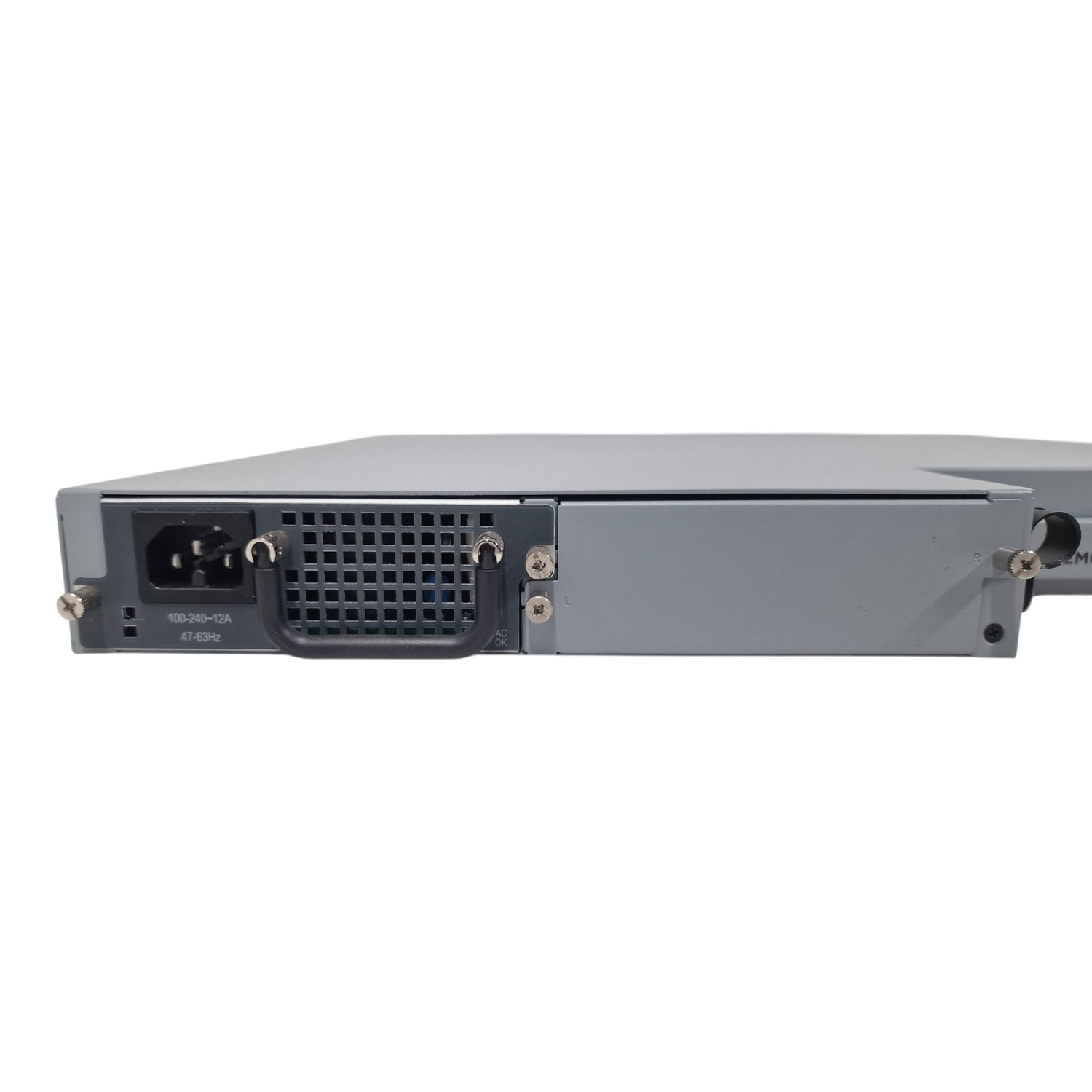

- 1000W AC-DC power supply with redundant PSU support

Physical:
- Height: 44mm (1U), Width: 440mm, Depth: 389mm
- Weight: Approx. 7.5 kg
- Cooling via 3 fan modules with front-to-back airflow
