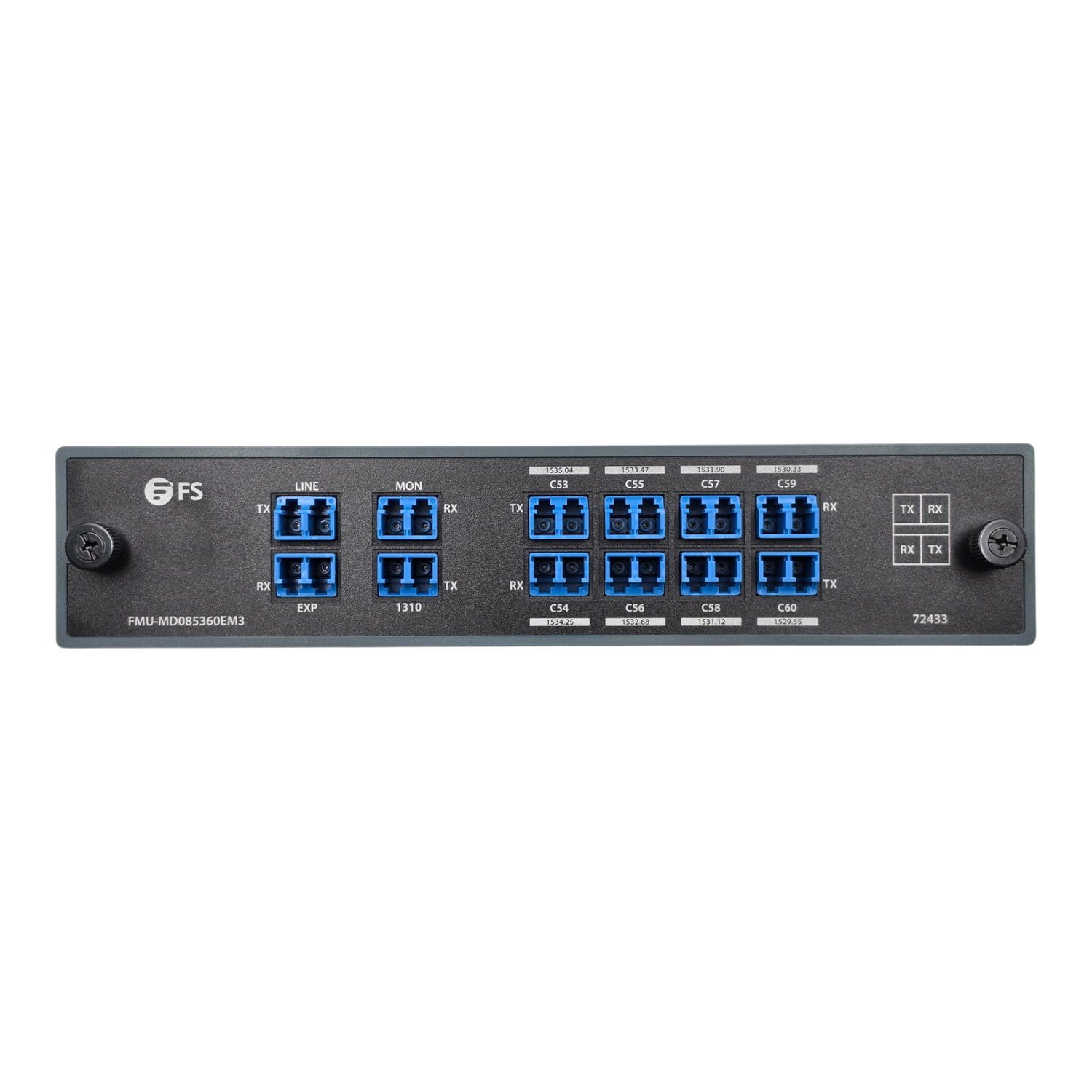

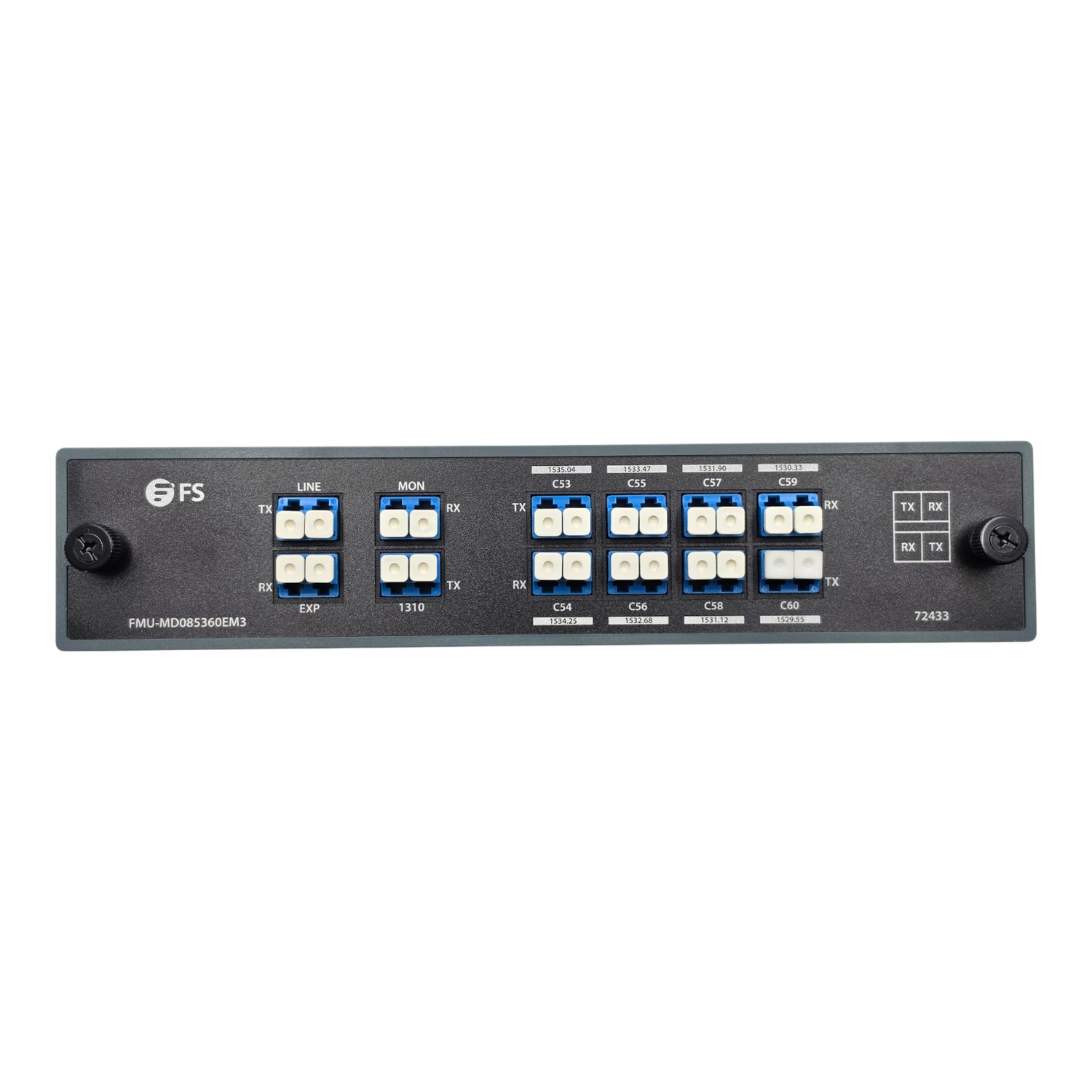

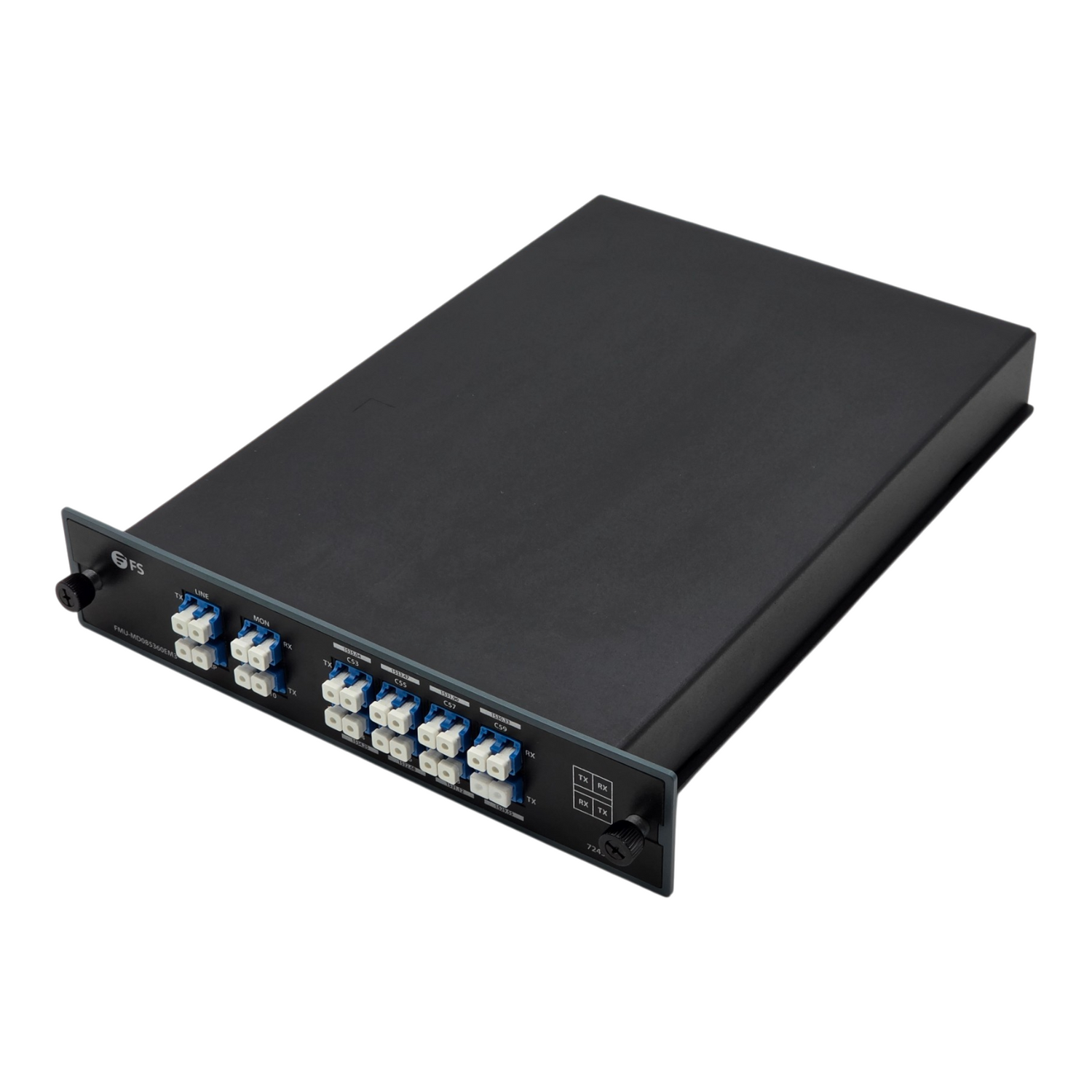

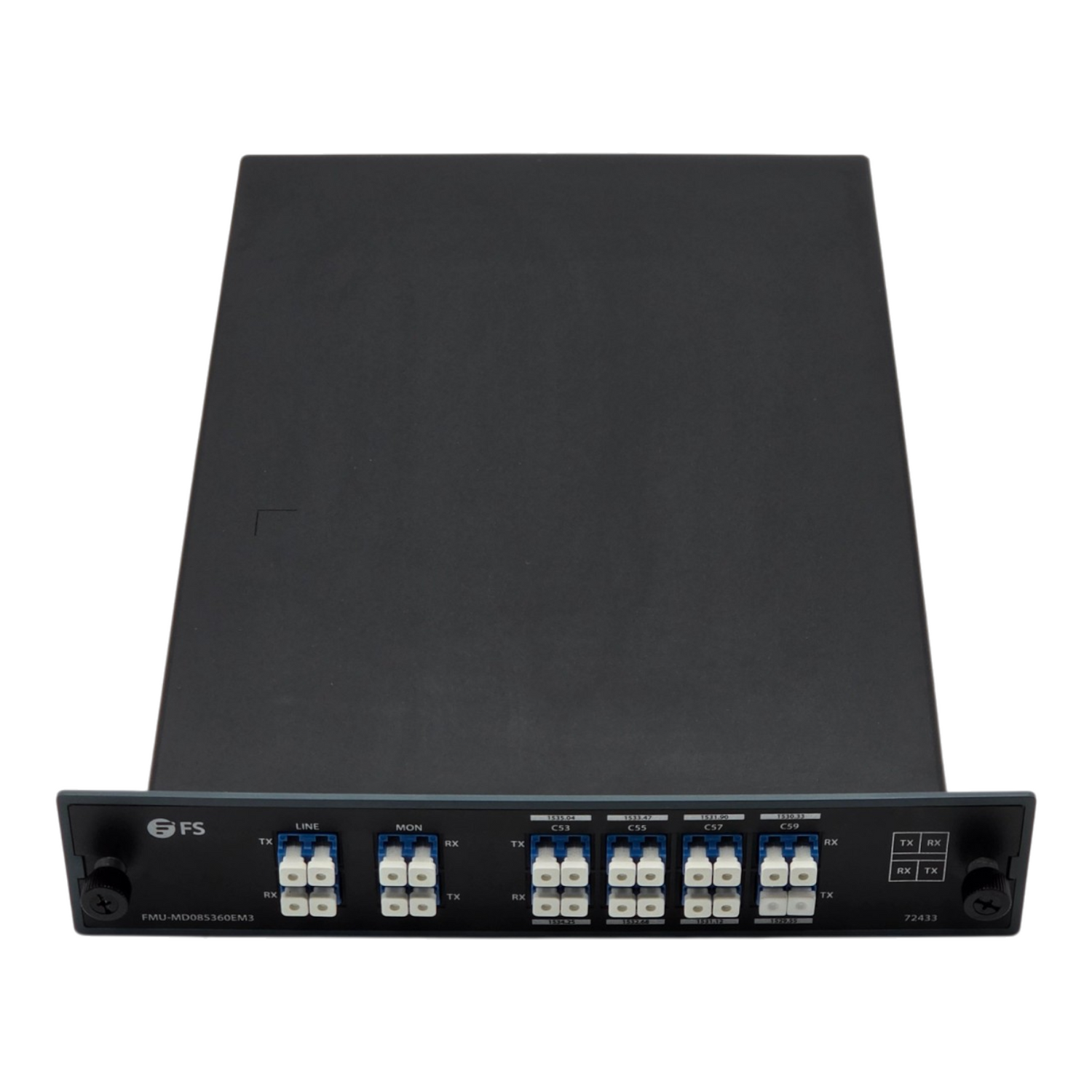

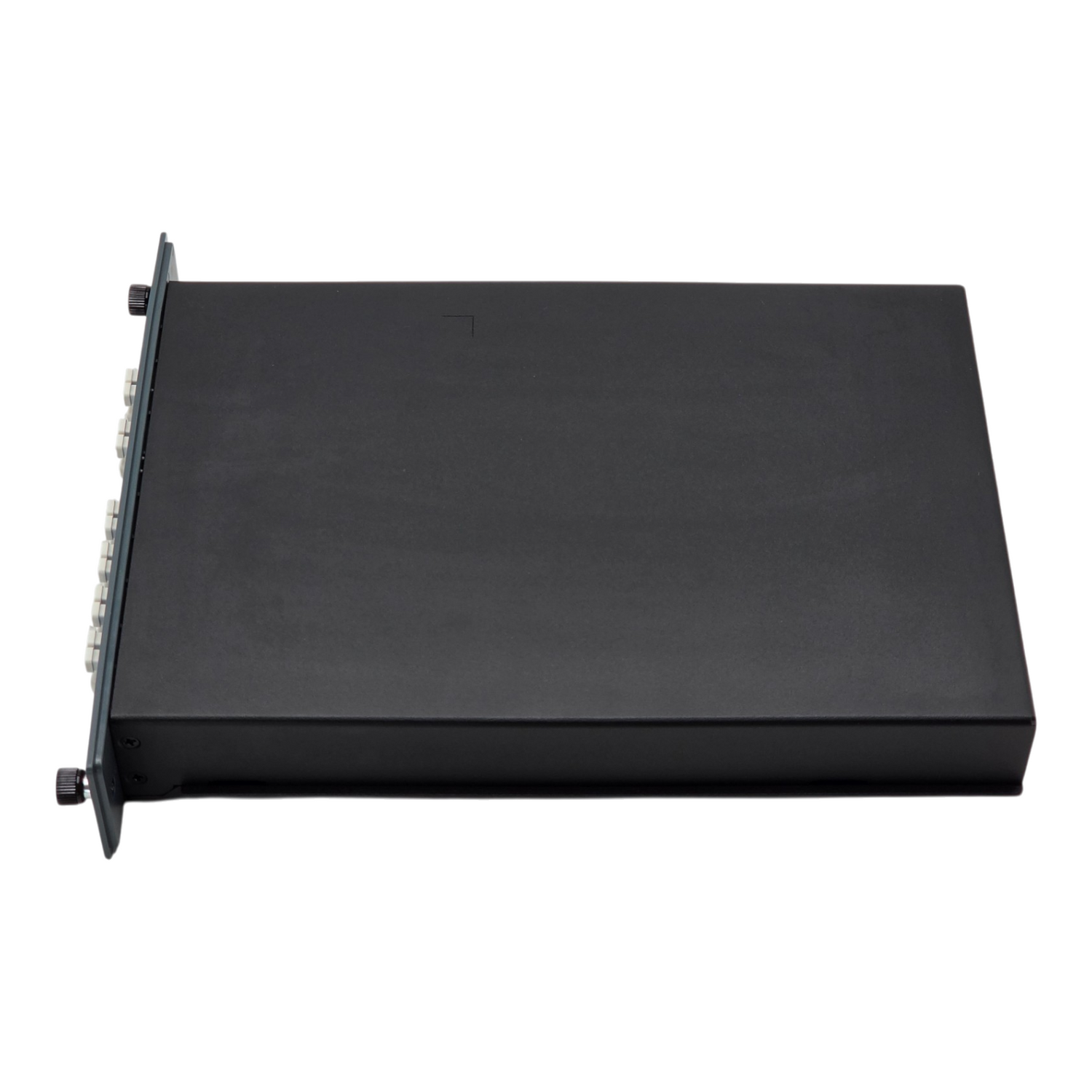

FS FMU-MD085360EM3 8-Ch 100G C53-C60 DWDM MUX DMX Dual Fiber FMU Plug-In Module

Condition : Refurbished – tested and working grade A refurbished part

FS FMU-MD085360EM3 8-Ch 100G C53-C60 DWDM MUX DMX Dual Fiber FMU Plug-In Module

Key Specifications:
- ITU Channels: 8 (C53 to C60)
- Operating Wavelength Range: 1529.55nm to 1535.04nm (ITU C-Band)
- Channel Spacing: 100GHz Grid (0.8nm spacing)
- Channel Passband: ±0.11 nm
- Centre Wavelength Accuracy: ±0.05 nm
- Fiber Configuration: Dual Fiber (Tx/Rx pair for line run)
- Physical Connectors: LC/UPC Duplex (front panel)
- Typical Main Channel Insertion Loss: 3.0dB
- Monitor Port Insertion Loss: ≤25.2dB (1% Tap Power Split)
- Adjacent Channel Isolation: ≥30dB
- Non-Adjacent Channel Isolation: ≥40dB
- Polarization Dependent Loss: ≤0.3dB
- Operating Temperature: -40°C to 85°C
- Dimensions: 44mm x 212mm x 255mm (1U half-width module)

Features:
- Complies with ITU-T G.694.1 and Telcordia standards
- Passive glass filtering device, transparent to data rates and protocols
- Supports Ethernet speeds up to 100G, Fibre Channel, SDH/SONET, OTN, FTTH/FTTx, and CATV
- Includes multiple ports for line, channel, monitoring, expansion, and legacy wideband overlay

Ideal for scalable DWDM network deployments requiring reliable multiplexing and monitoring over dual fibre links.
