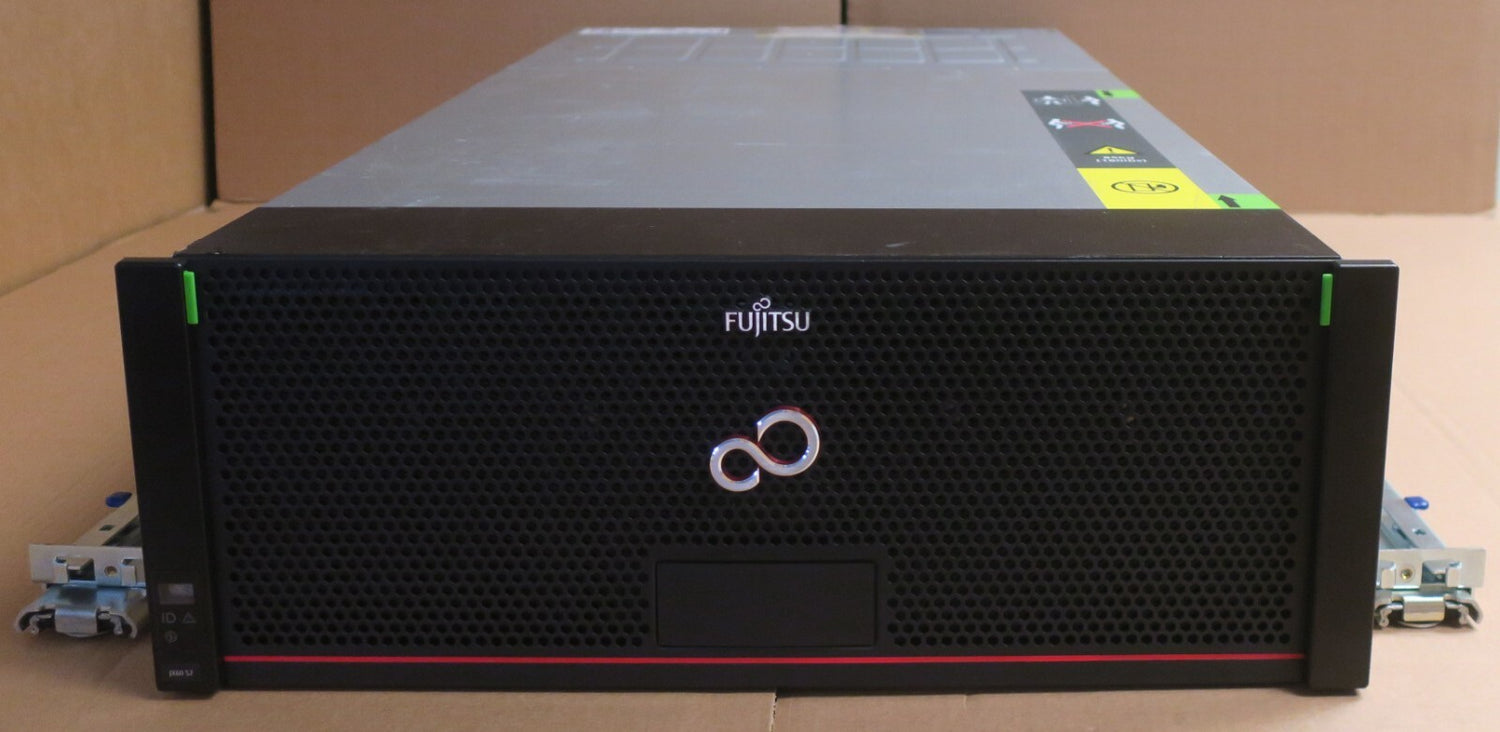

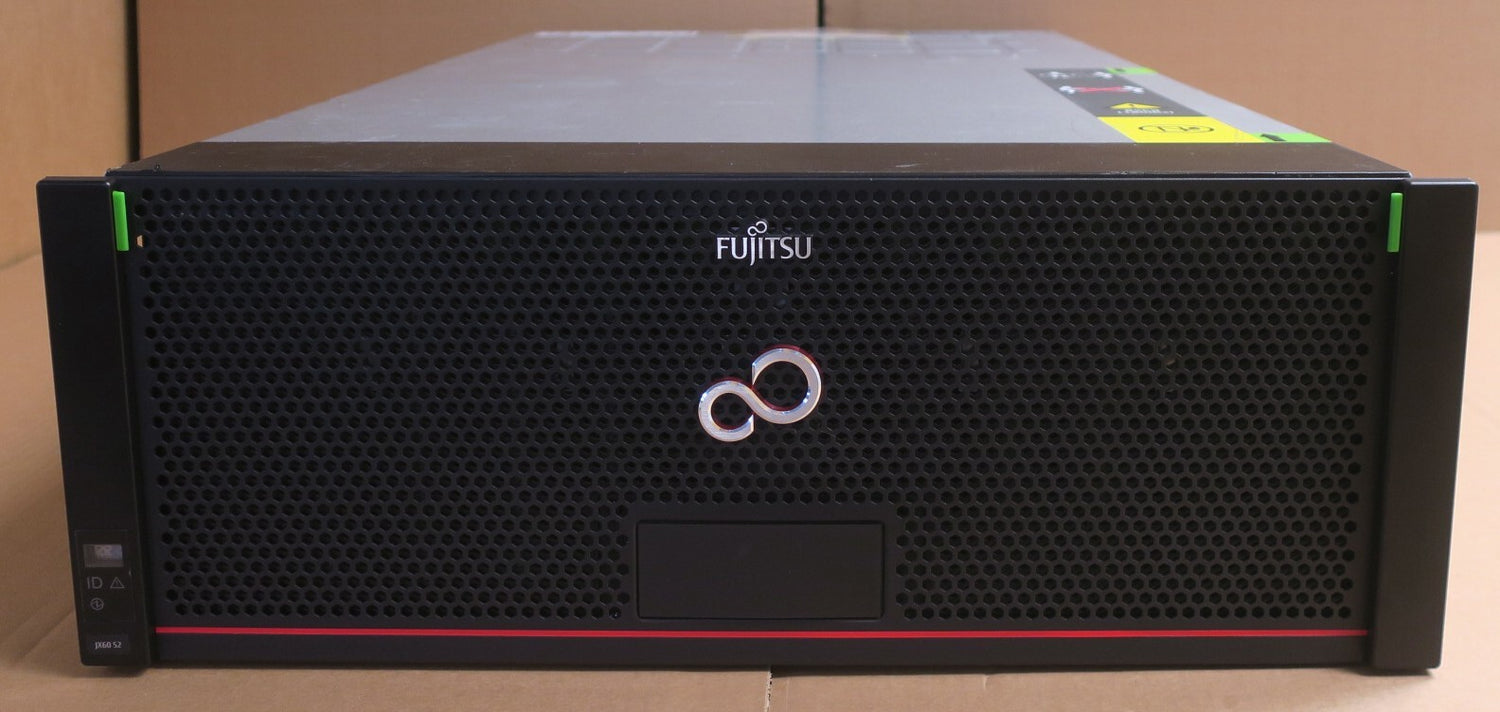

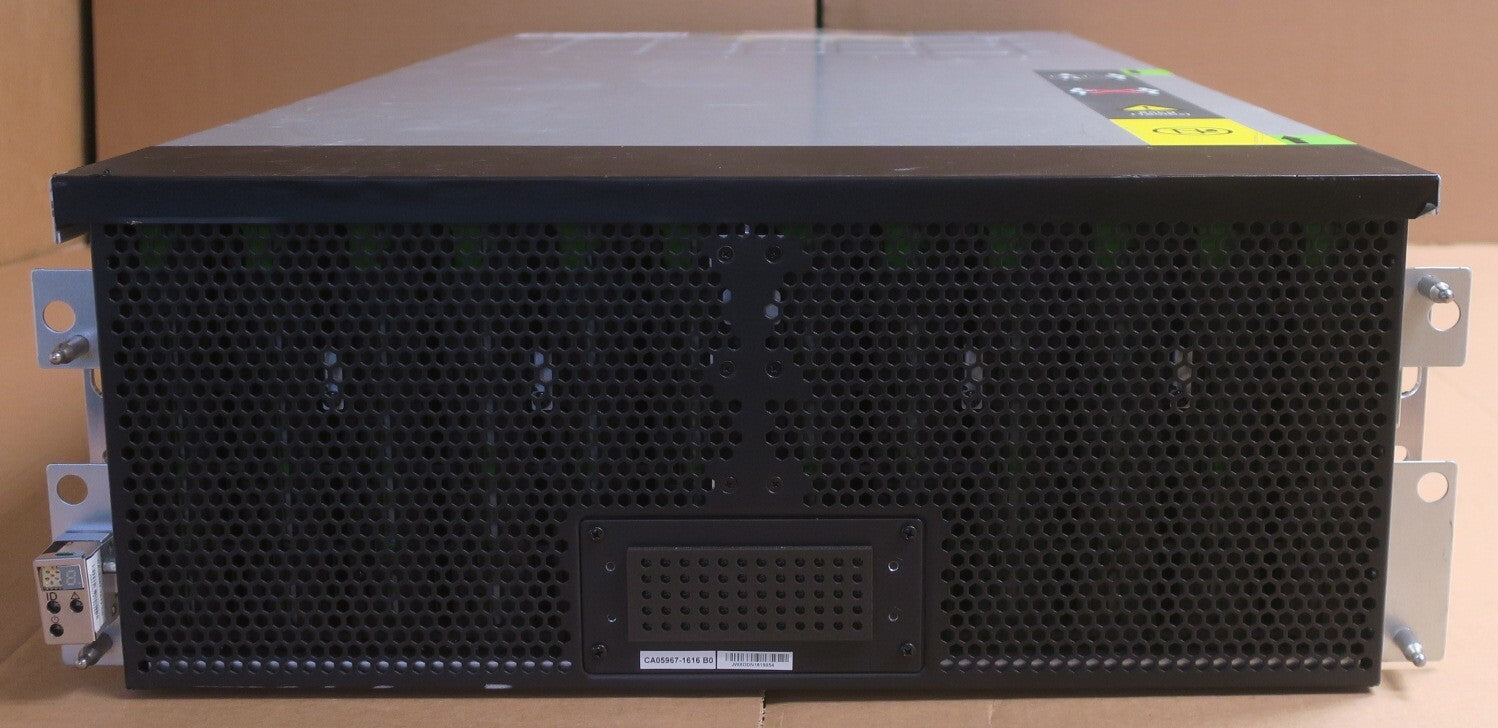

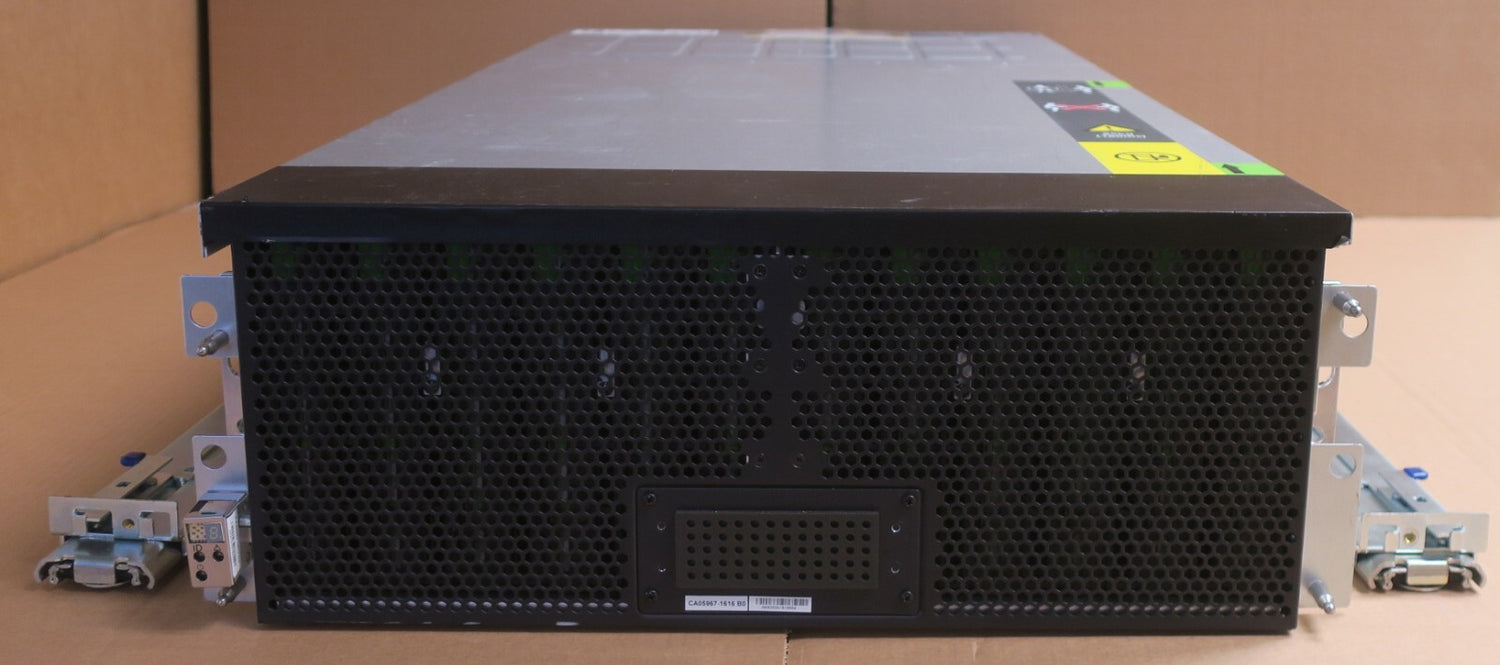

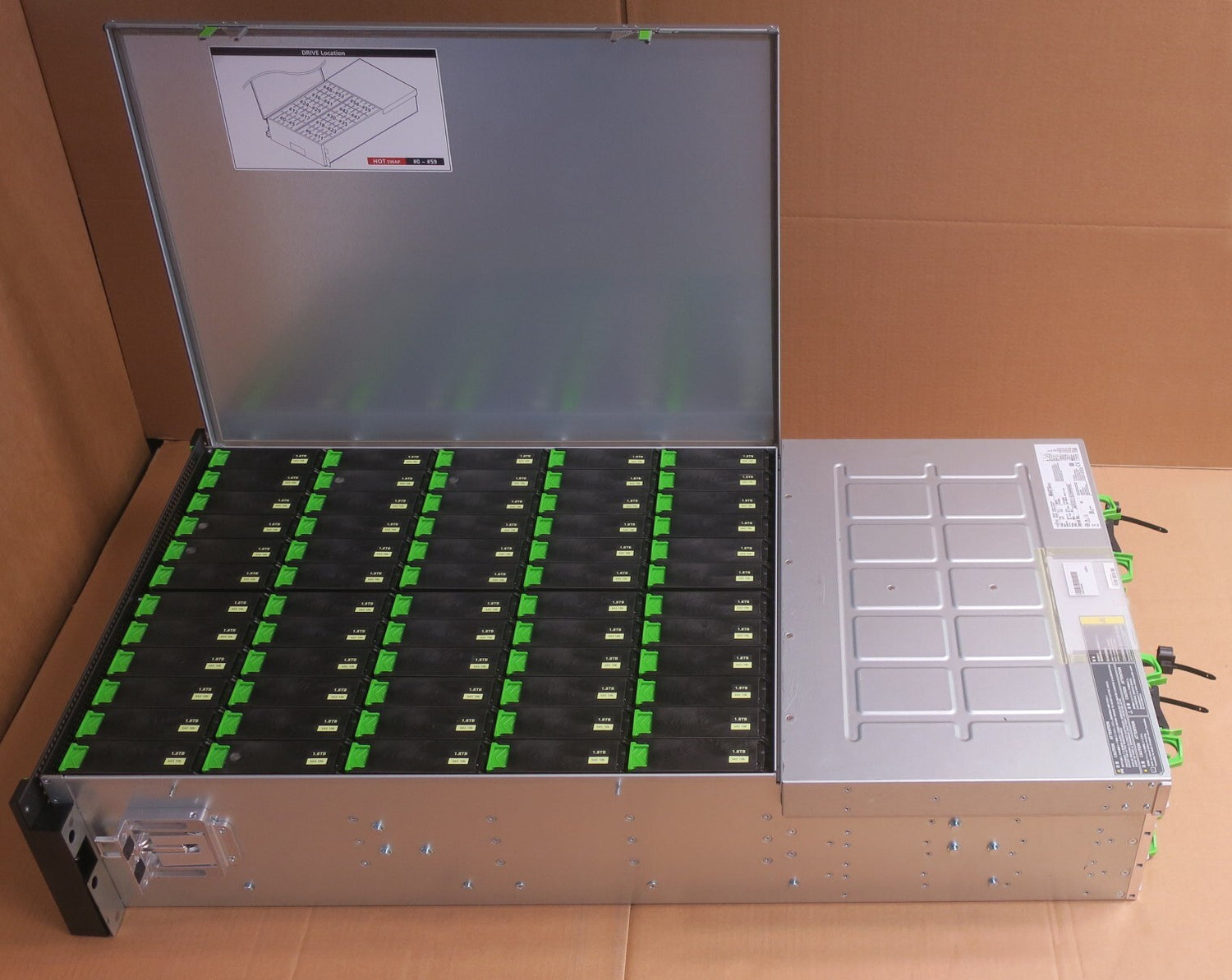

Fujitsu Eternus JX60 S2 Storage Array DAS Subsystem 60-Bay 60x 1.8TB 10K SAS HDD

Condition : Refurbished – tested and working grade A refurbished part

Fujitsu Eternus JX60 S2 DAS Storage Array - 60-Bay with 60x 1.8TB 10K SAS HDDs

Includes:
- Fujitsu Eternus JX60 S2 DAS Subsystem with 60 bays

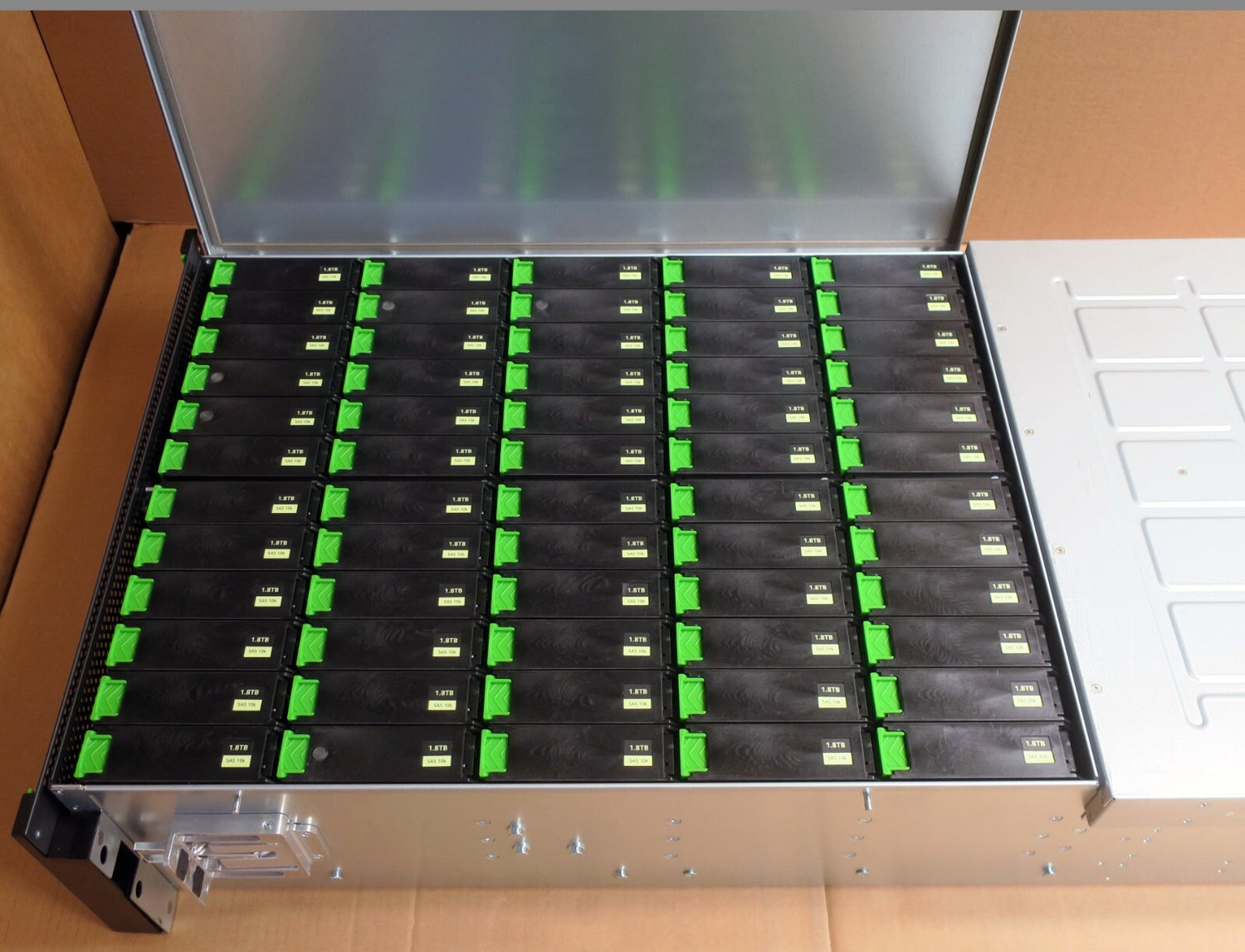

- 60x Fujitsu 1.8TB 10K SAS 12G 2.5" hard drives in 3.5" caddies

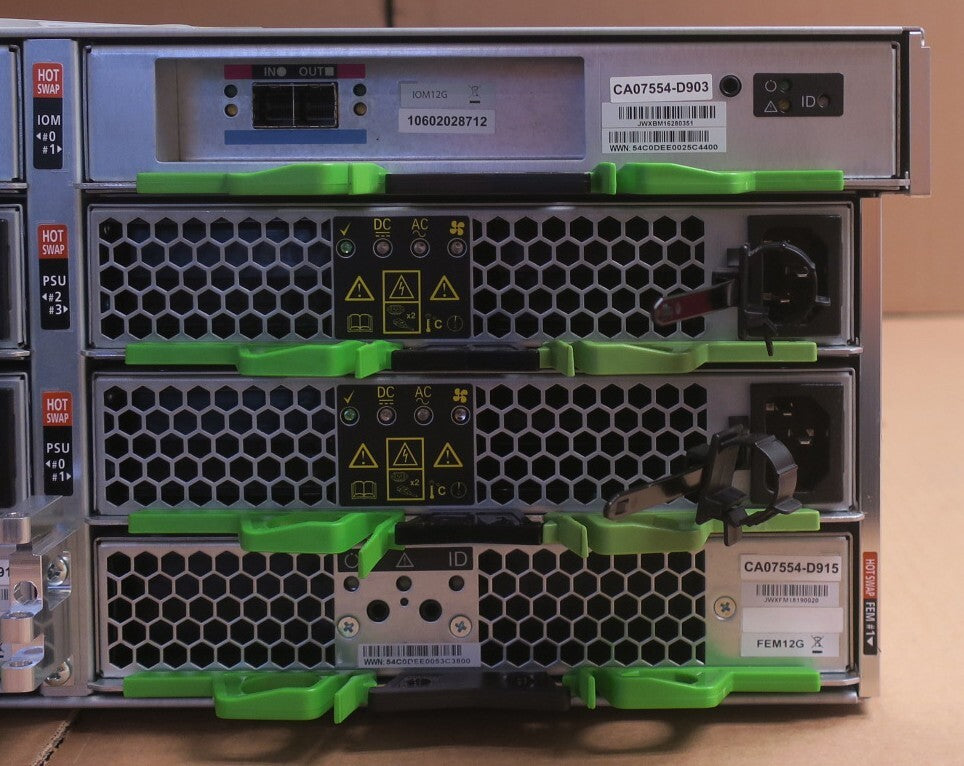

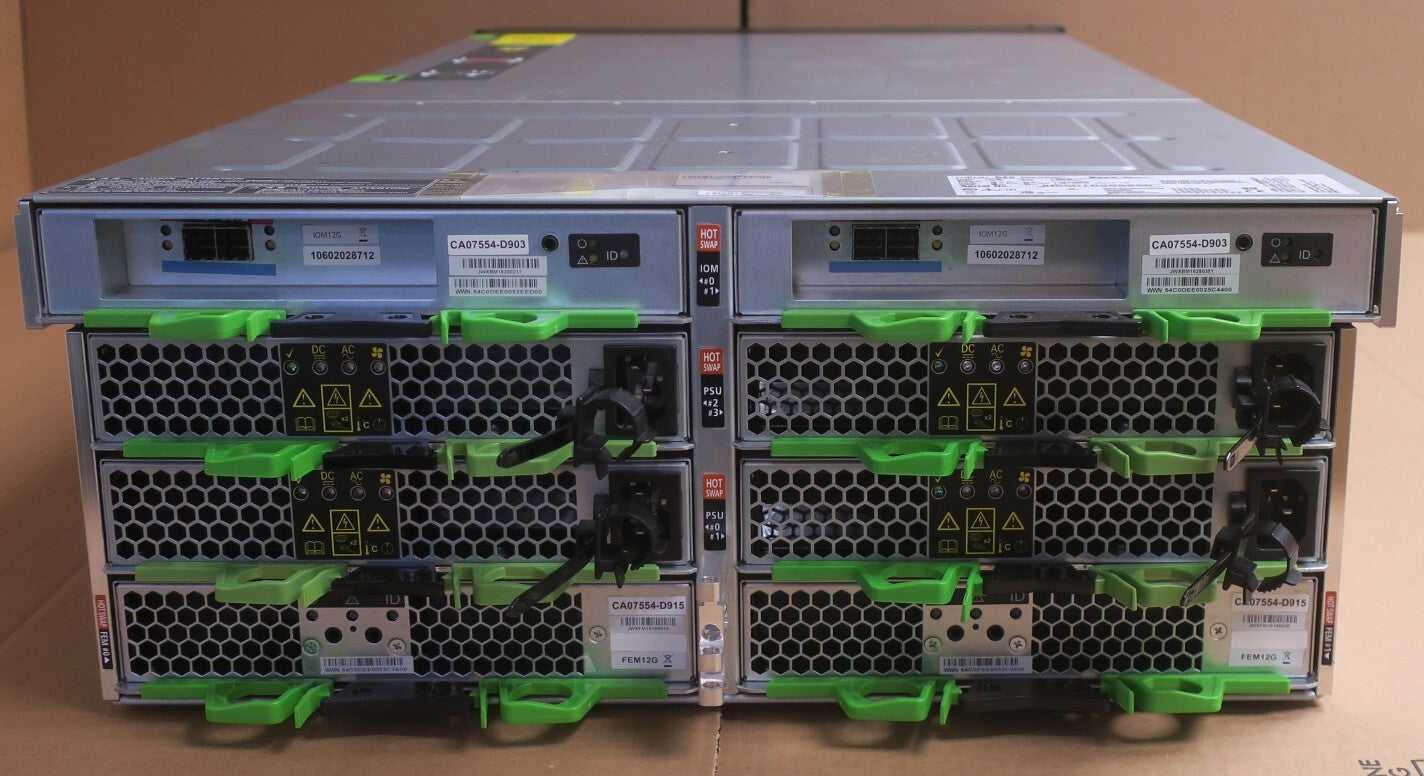

- 2x Fujitsu IOM12G SAS 12G I/O modules
- 2x Fujitsu FEM12G fan and expander modules
- 4x 950W power supplies
- Rails for rack installation

Specifications:
- Maximum disk drives: up to 120 disks via cascading two enclosures (max 60 disks per 4U enclosure)
- Supported RAID levels: 0, 1, 1+0, 5, 5+0, 6, 6+0
- Host interface: SAS 3.0, MiniSAS HD (SFF-8644) connector
- Compatible with Fujitsu PRIMERGY server controllers
- Drive types supported: SAS 12G HDDs (various capacities and speeds), Nearline SAS HDDs, and SSDs
- Maximum capacity: up to 1,440 TB with cascading

Physical:
- 19" rackmount, 4U height
- Dimensions (W x D x H): 482 x 980 x 176 mm
- Maximum weight: 100 kg depending on drives installed

Power and Environment:
- Power supply efficiency: 92% (80 PLUS Gold)
- Operating temperature: 10 - 40 °C
- Humidity: 20 - 80% non-condensing
- Sound pressure: 43.5 dB(A)

Designed for scalable, high-capacity storage expansion, this DAS subsystem offers robust performance and flexibility for data centre environments.
