Fujitsu FC 4G2P DX60 RAID Controller Module Unit For Eternus DX60 - CA07145-C621

Condition : Refurbished – tested and working grade A refurbished part

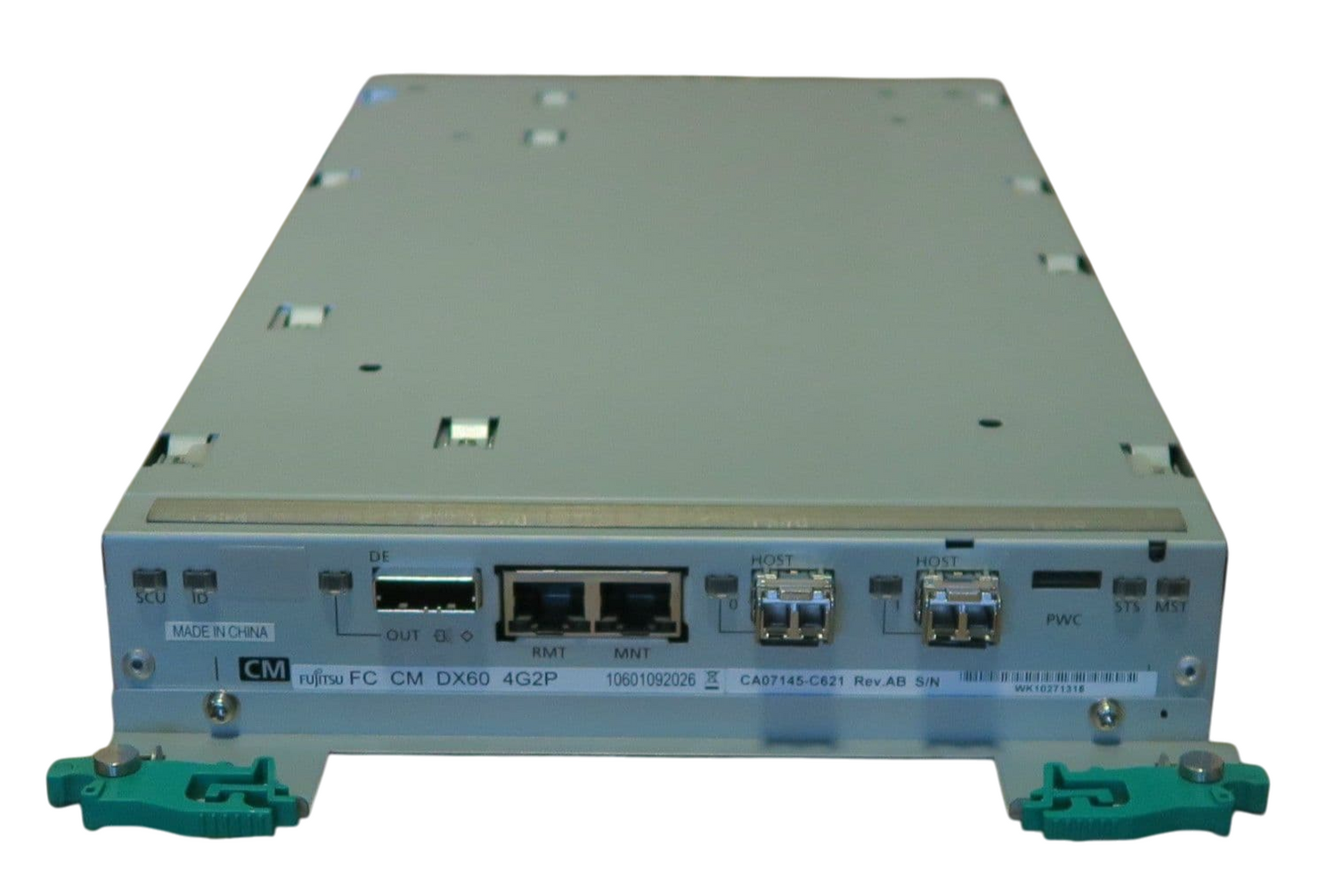

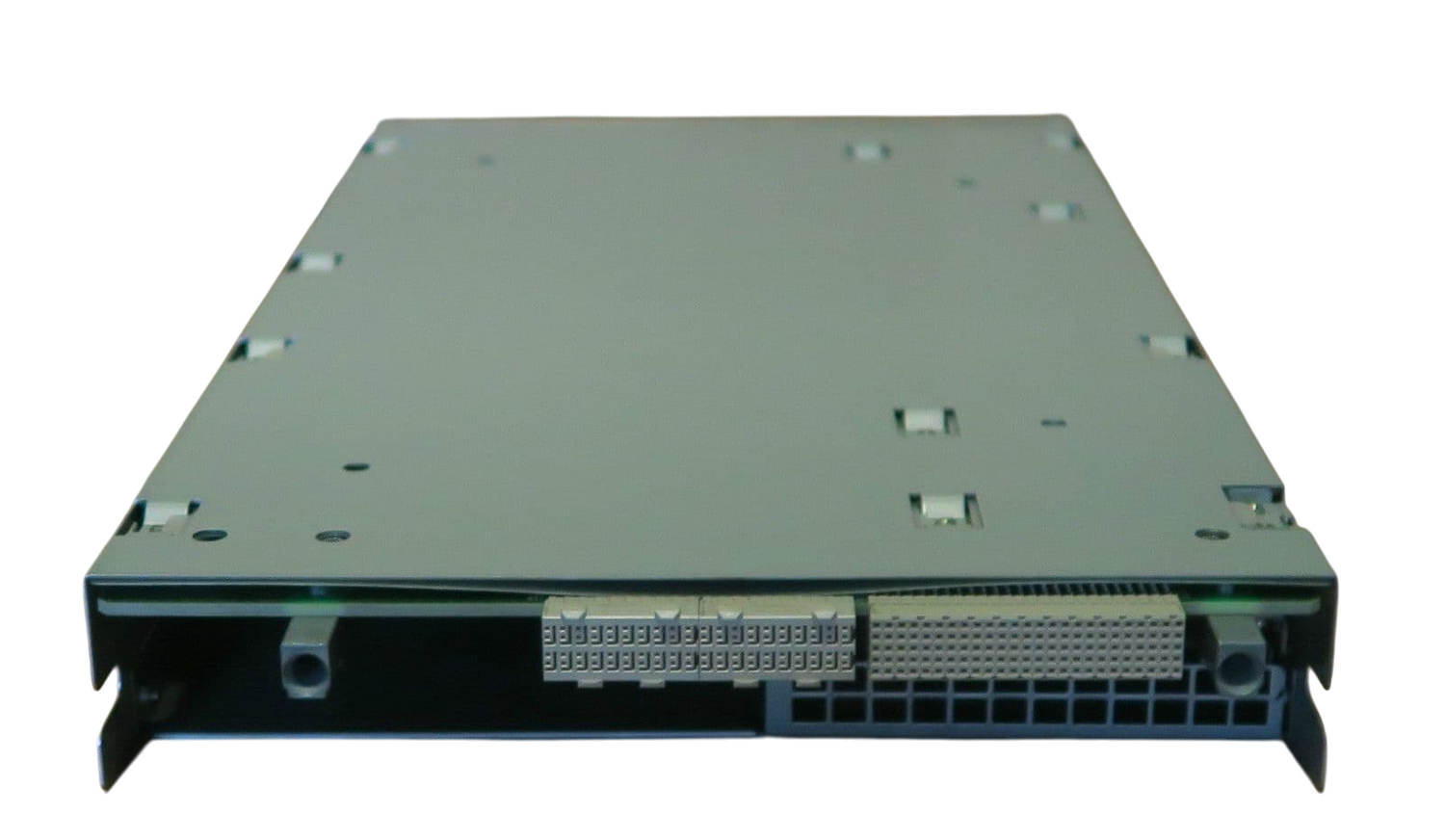

Fujitsu FC 4G2P DX60 RAID Controller Module Unit for Eternus DX60 (Part Number CA07145-C621).

Specifications:
- Controller Type: Fibre Channel Host Interface Module
- Form Factor: Plug-in module
- Memory: 1 GB cache per controller
- Housing: 2U rackmount
- Minimum Drives Supported: 2
- Maximum Drives Supported: 60 SAS and/or SATA-II
- Frontend Host Ports: 2x 4Gbps Fibre Channel SFP, 2x RJ-45, 1x SAS/SATA (SFF-8088) with 4x external 26-pin connectors
- Maximum Logical Drives: 128
- Supported RAID Levels: 0, 1, 1+0, 5, 5+0, 6

Compatible with Fujitsu Eternus DX60 storage systems, providing robust RAID capabilities for enterprise storage environments.
