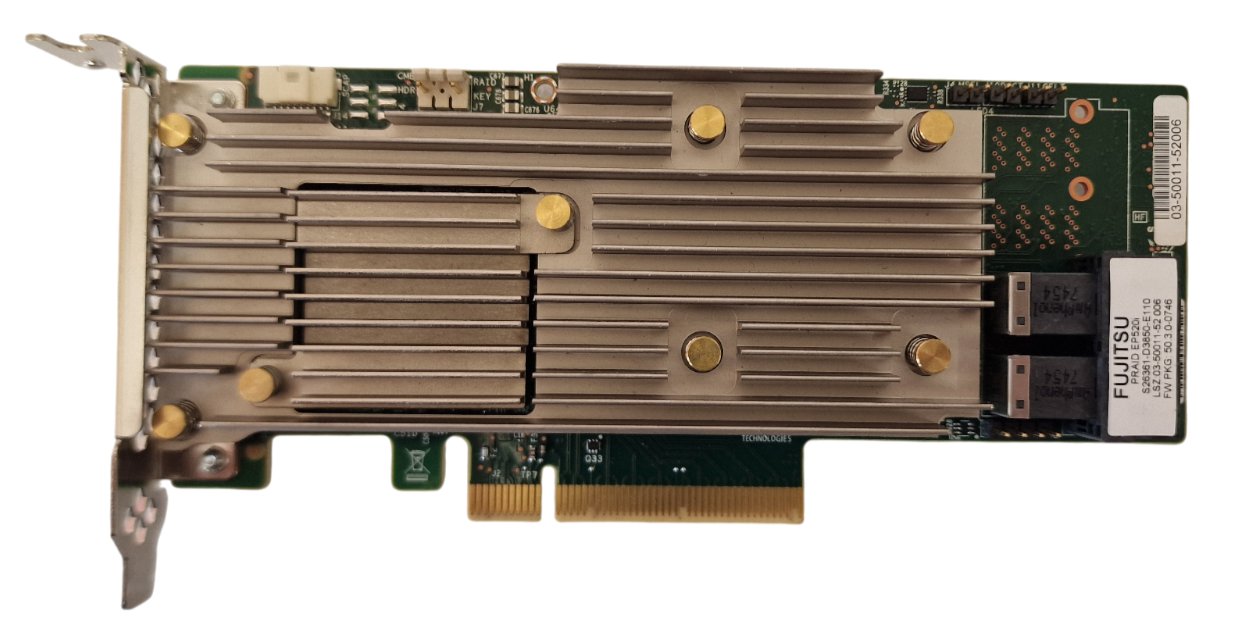

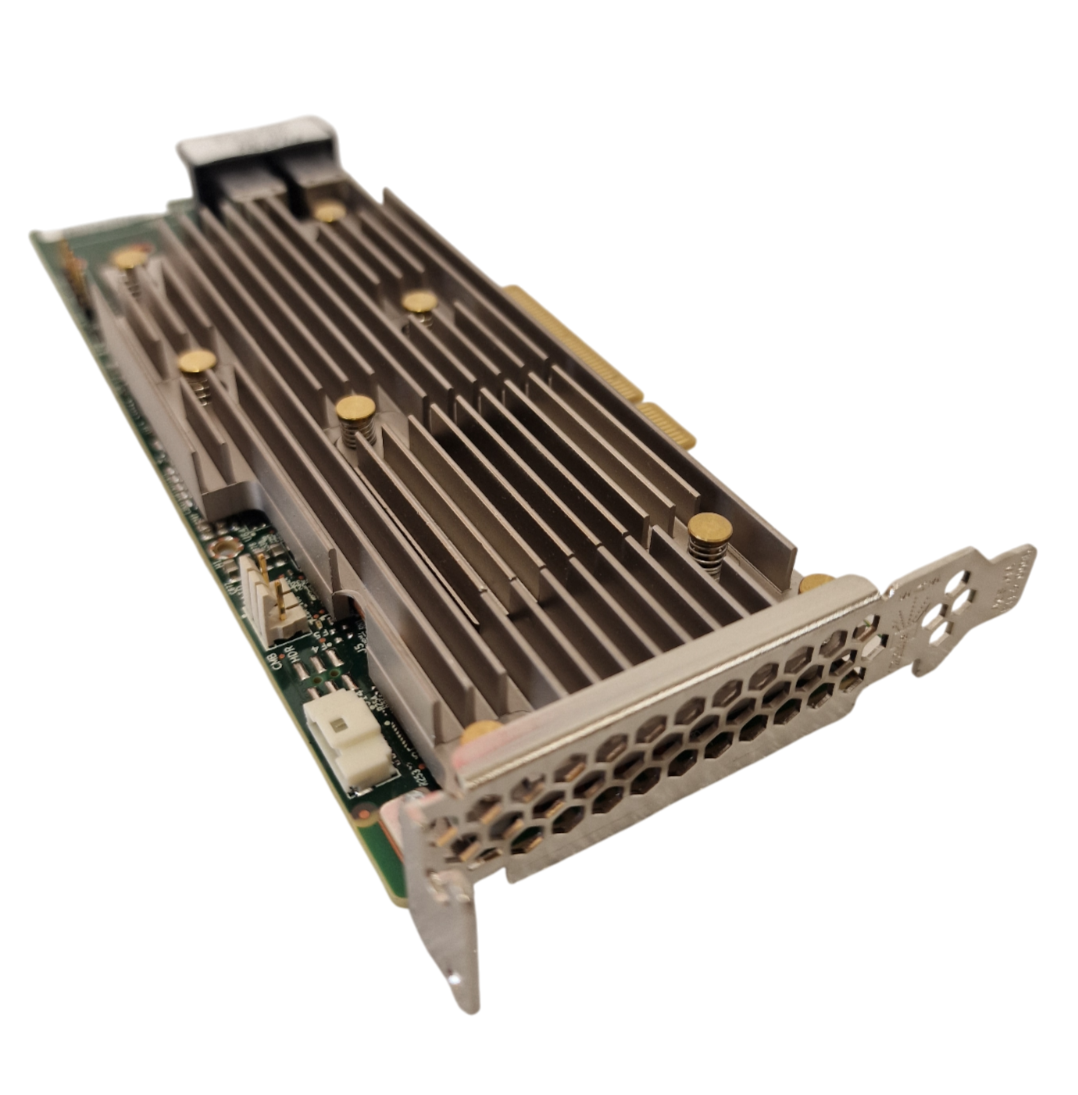

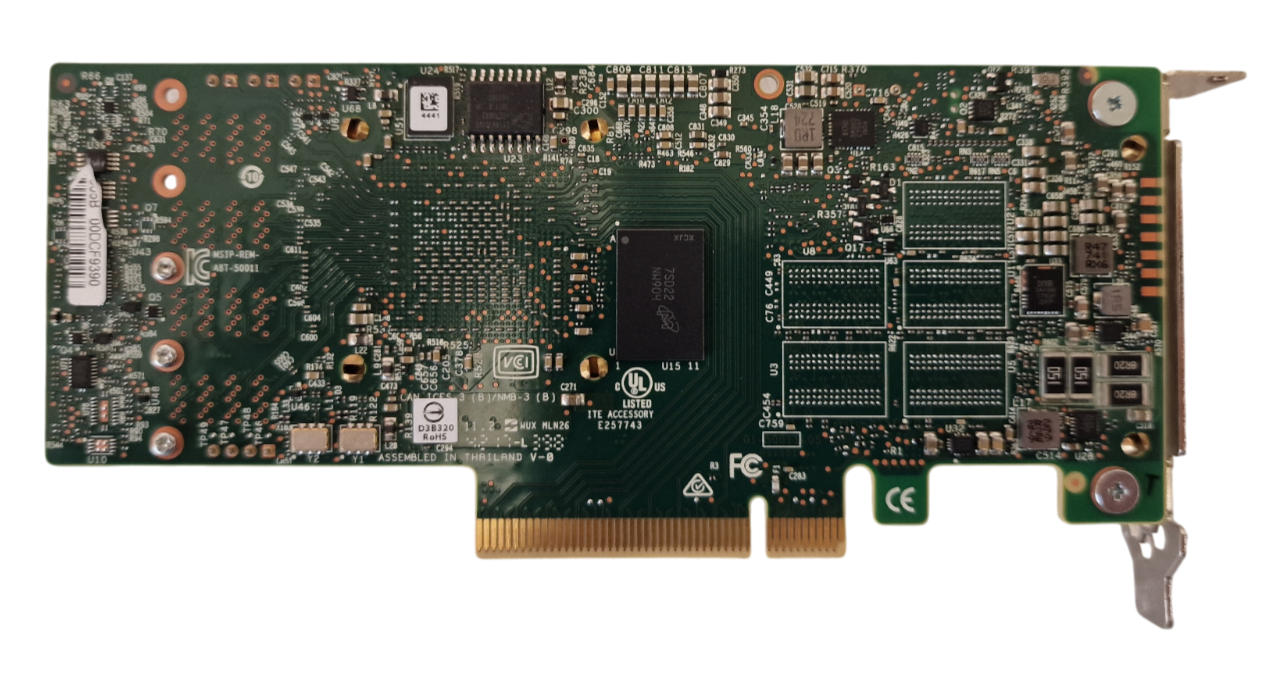

Fujitsu PRAID EP520i 12G 8Port SAS Modular RAID Controller S26361-D3850-E110

Condition : Refurbished – tested and working grade A refurbished part

Fujitsu PRAID EP520i 12G 2GB Cache 8-Port SAS Modular RAID Controller S26361-D3850-E110

High-performance modular RAID controller designed for Fujitsu PRIMERGY servers. Features 2 GB onboard cache and 8 internal 12 Gb/s SAS/SATA ports. Supports RAID levels 0, 1, 5, 6, 10, 50, and 60 with advanced functionalities including online capacity expansion, RAID level migration, patrol read, and fast initialization. Compatible with SAS, SATA, and NVMe drives (via supported adapters), managing up to 64 logical drives. Simplified administration via BIOS, CLI, and GUI tools.

Specification:
- Form Factor & Interface: Low-profile PCIe 3.0 x8 card
- Controller: Broadcom/LSI SAS3508 RAID-on-Chip (RoC)
- Cache: 2 GB onboard
- Ports: 8 internal SAS/SATA (12 Gb/s) via 2× SFF-8643 Mini-SAS HD
- Supported Media: SAS 12 Gb/s, SATA 6 Gb/s, NVMe (via adapters)
- RAID Levels: 0, 1, 5, 6, 10, 50, 60
- Advanced Features: Online capacity expansion, RAID migration, auto-resume after power loss, fast initialization, patrol read
- Management: BIOS utility, CLI (StorCLI), GUI (ServerView RAID Manager)
