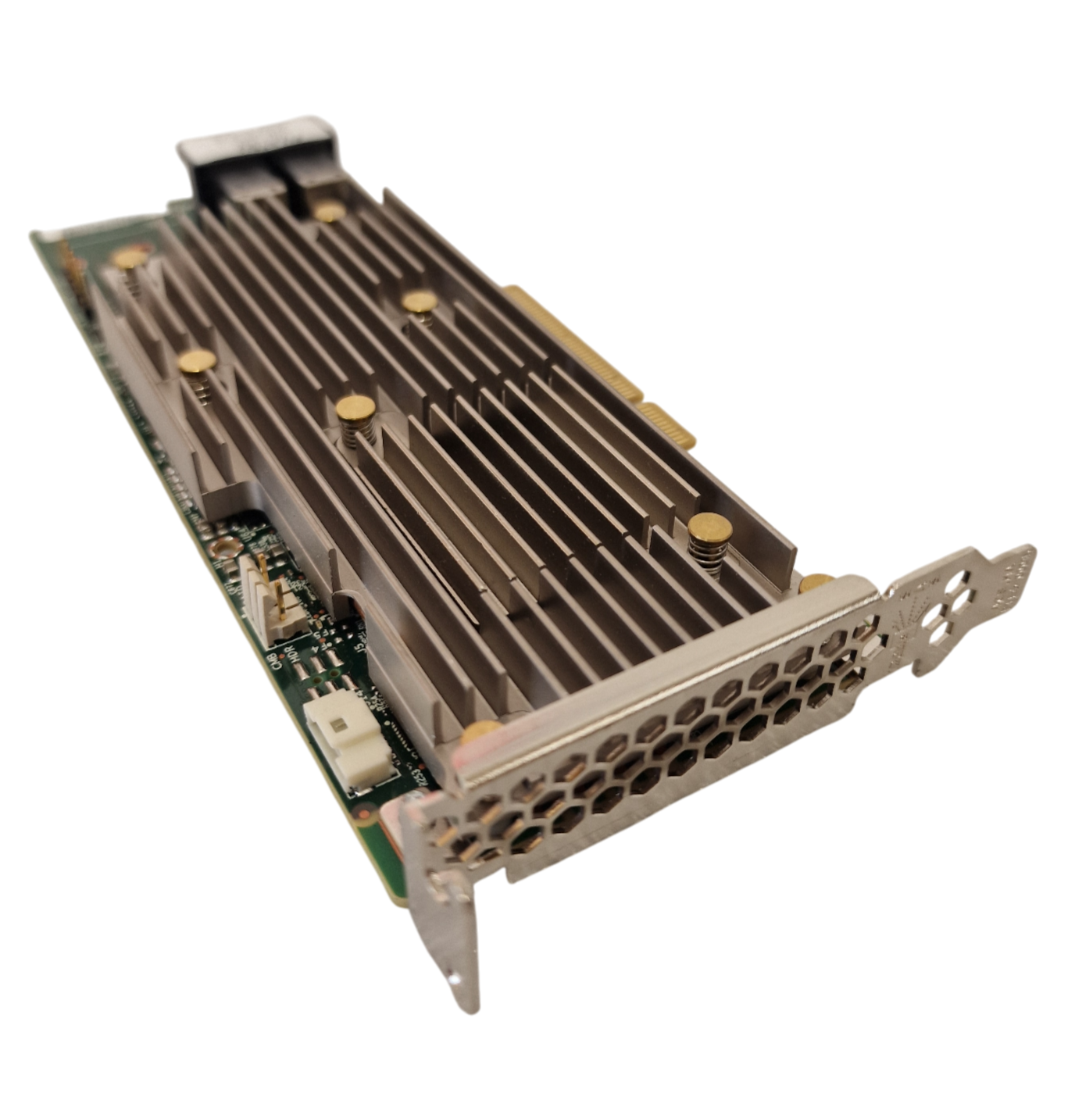

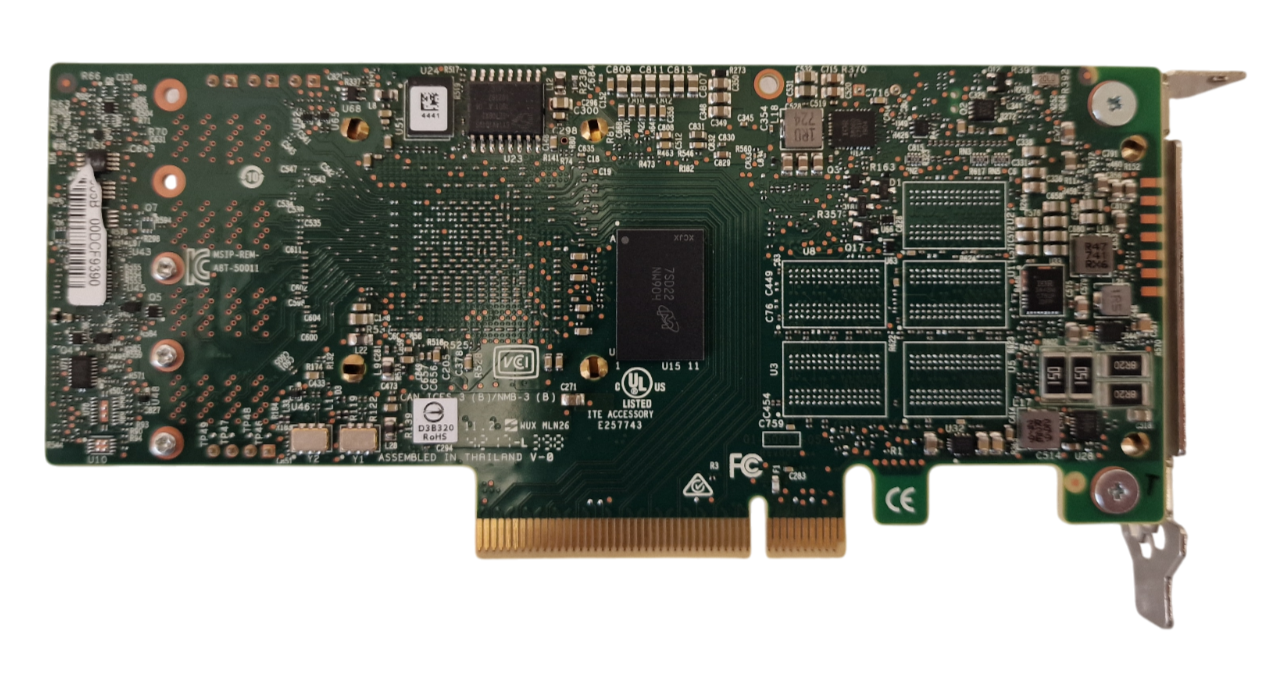

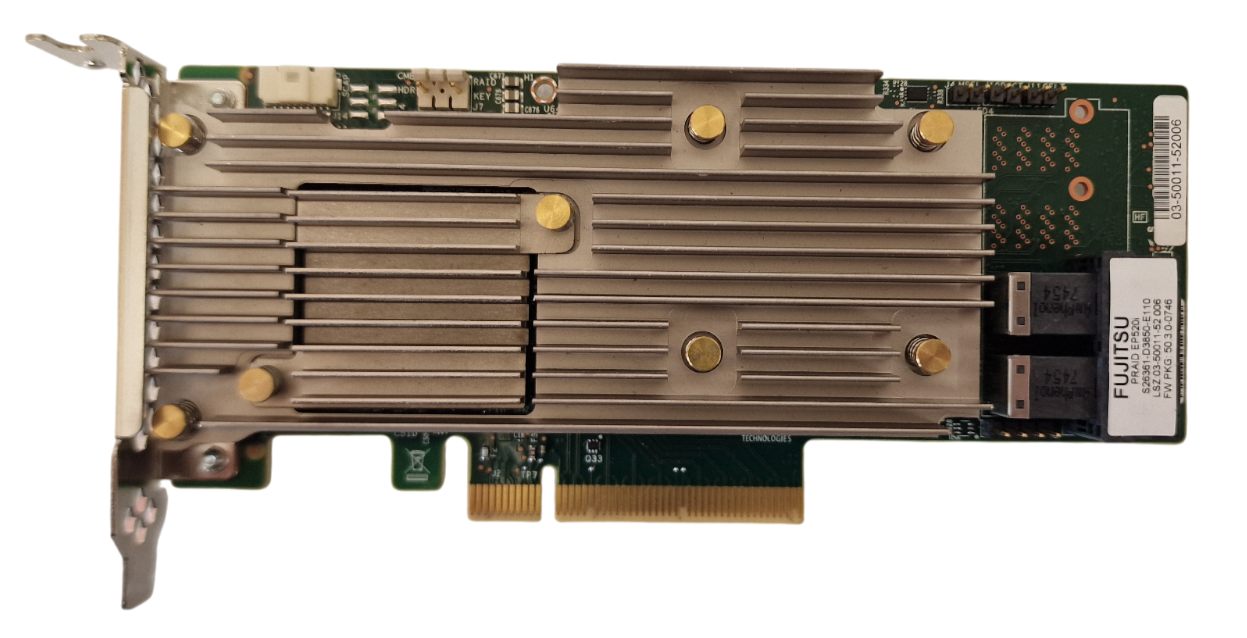

Fujitsu PRAID EP520i 12G 8Port SAS Modular RAID Controller S26361-D3850-E110

Condition : Refurbished – tested and working grade A refurbished part

Fujitsu PRAID EP520i 12G 8Port SAS Modular RAID Controller S26361-D3850-E110

What's Included:
1 x Fujitsu PRAID EP520i 12G 2GB Cache 8Port SAS Modular RAID Controller S26361-D3850-E110

Specification:
- Form Factor & Interface: Low-profile PCIe 3.0 x8 card
- Controller: Broadcom/LSI SAS3508 RAID-on-Chip (RoC)
- Cache: 2 GB on-board
- Ports: 8 internal SAS/SATA (12 Gb/s) via 2x SFF-8643 Mini-SAS HD
- Supported Media: SAS 12 Gb/s, SATA 6 Gb/s, NVMe drives (via SAS-to-NVMe adapters or compatible server backplanes)
- RAID Levels: 0, 1, 5, 6, 10, 50, 60

Advanced Features:
- RAID spans 10, 50, 60
- Online Capacity Expansion & RAID Level Migration
- Auto-resume after power loss during rebuild
- Fast initialization with configurable stripe size up to 1 MB
- Patrol read and data consistency checking
- Supports up to 64 logical drives

Management:
- BIOS utility
- CLI (StorCLI)
- GUI (ServerView RAID Manager)

Designed for enterprise storage environments requiring robust RAID management and high performance.
