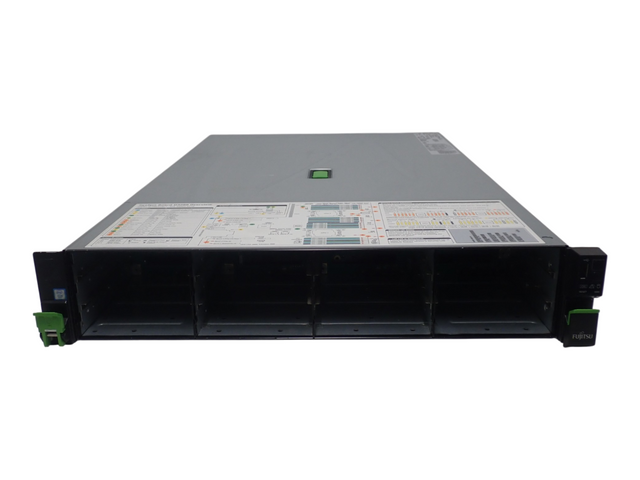

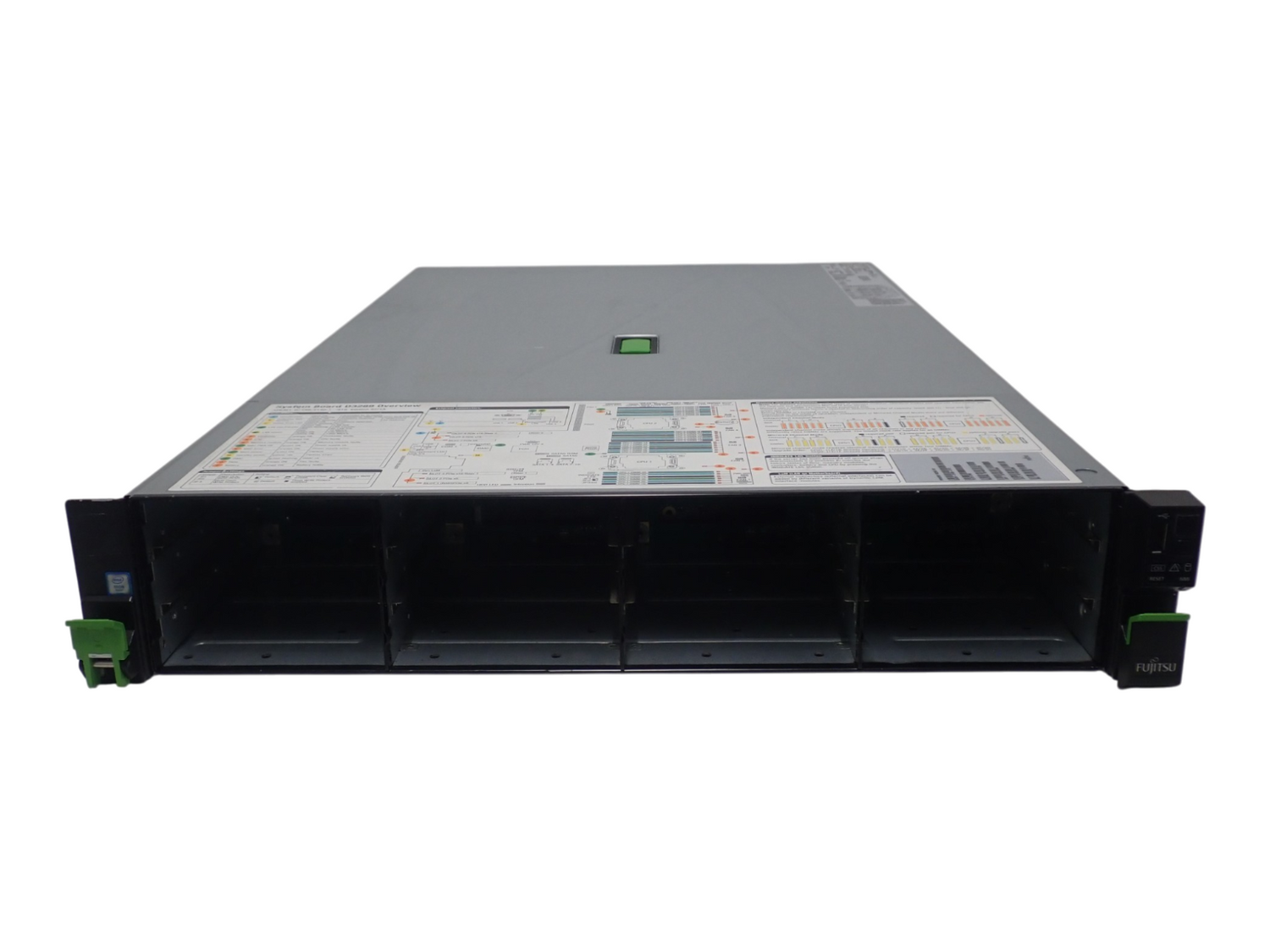

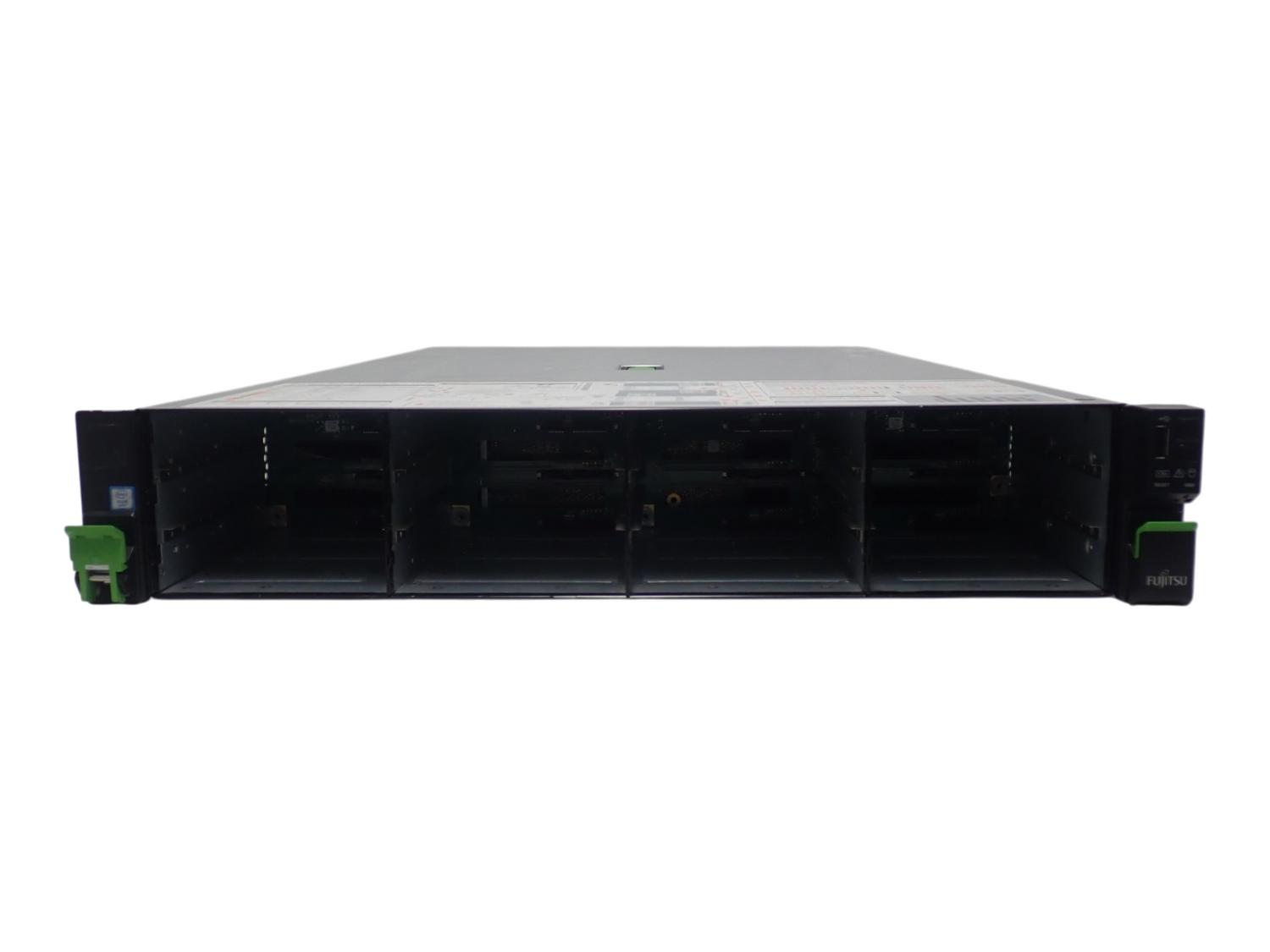

Fujitsu Primergy RX2540 M1 12-Bay 3.5" 2x Xeon E5-2600v3 24x DDR4 2U CTO Server

Condition : Refurbished – tested and working grade A refurbished part

Fujitsu Primergy RX2540 M1 12-Bay 3.5" 2x Xeon E5-2600v3 24x DDR4 2U CTO Server

Overview:
- Configure-to-Order (CTO) server allowing customised specifications including memory, storage, and network options

Processor:
- Supports Intel® Xeon® E5-2600 v3 series processors (2 CPUs)

Memory:
- 24 DIMM slots (12 per CPU)
- Supports DDR4 memory
- Maximum capacity up to 1536 GB

Storage:
- 12 x 3.5" hot-plug SAS/SATA drive bays

Interfaces:
- USB 2.0 ports: 5 (2 rear, 1 front external, 1 USB stick, 1 uSSD)
- USB 3.0 ports: 5 (2 front, 2 rear, 1 internal for backup device)
- Graphics: 2 x VGA ports
- Serial: Optional RS-232-C serial port
- Management LAN: Dedicated RJ45 port for iRMC S4

Expansion:
- PCIe 3.0: Three x8 and three x16 low profile slots (some require second processor)

Power:
- Dual hot-plug redundant power supplies depending on model

Designed for robust enterprise applications requiring scalable performance and storage.
