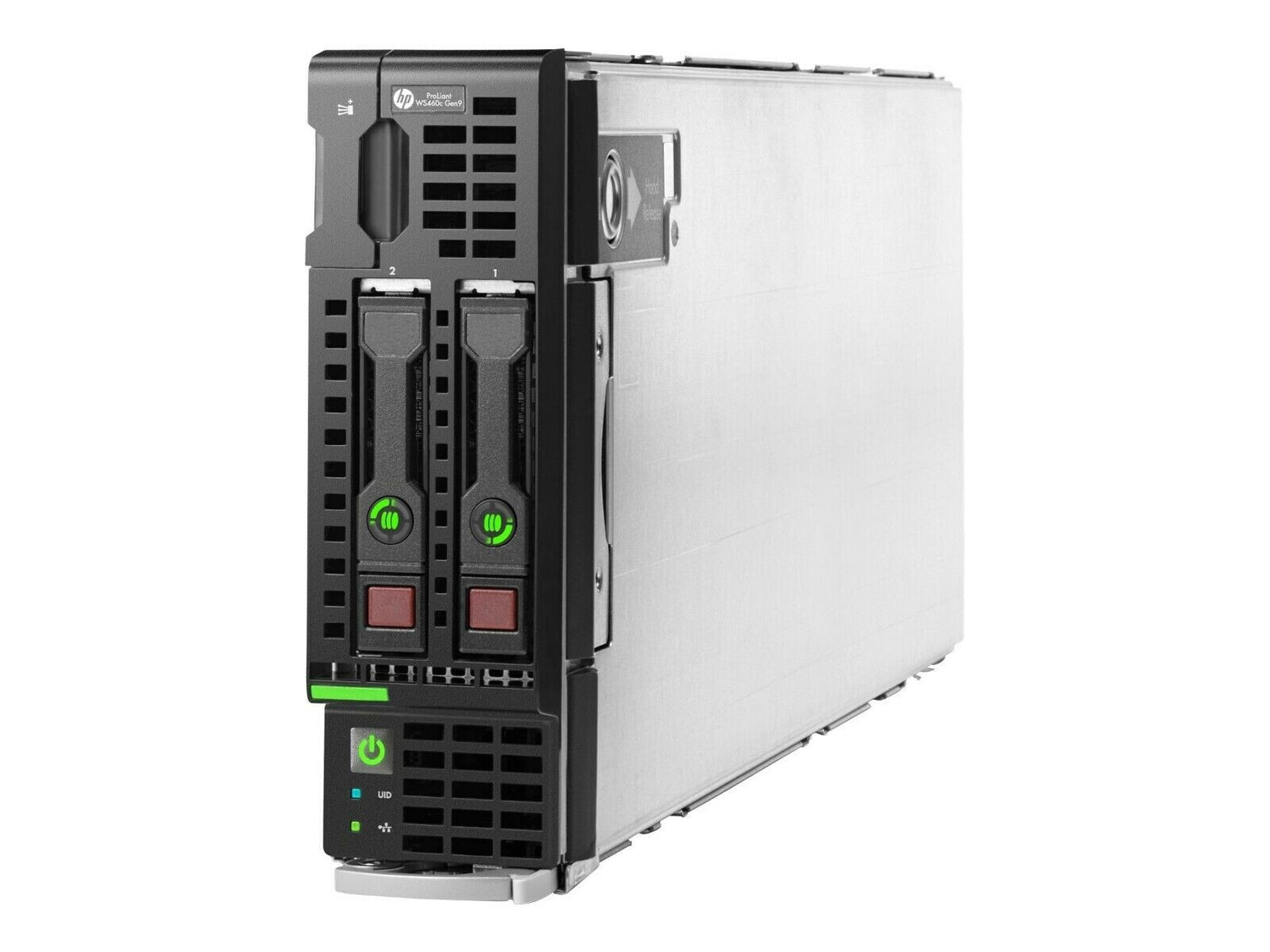

HP ProLiant WS460c G9 Gen9 CTO Graphics Server Blade 2x CPU 16x DIMM 752427-B21

Condition : Refurbished – tested and working grade A refurbished part

HP ProLiant WS460c Gen9 CTO Graphics Server Blade with 2x CPU and 16x DIMM slots, model 752427-B21. This half-height, full-width blade supports up to two MXM graphics cards or, with a Multi-GPU Carrier card, up to six MXM GPUs. With the Graphics Expansion blade, it becomes double-width and supports full-size high-end graphics cards. Ideal for CAD, financial analysis, web design, and digital content creation, this blade server offers a secure, manageable workstation environment that supports virtual desktop infrastructure (VDI) for multiple remote users.

Compatible with HPE BladeSystem c7000 and c3000 enclosures, it features shared interconnect modules, power supplies, fans, and redundant Onboard Administrator modules. Powered by Intel C610 chipset supporting dual Intel Xeon E5-2600 v3 or v4 processors (up to 22 cores), it supports up to 1TB DDR4 Load Reduced DIMMs or 512GB Registered DIMMs with speeds up to 2400MHz.

Storage options include two hot-plug small form factor drives supporting SAS, SATA, SSD, and NVMe SSDs with multiple RAID controller options. Network connectivity offers dual-port 20Gb or 10Gb FlexFabric and Ethernet options. Expansion includes mezzanine slots supporting NVIDIA and AMD GPUs, Fibre Channel HBA, InfiniBand, and Ethernet cards.

Management is via HPE Integrated Lights Out (iLO 2.0) with 4GB NAND and 1GB USB user space, supporting remote access and administration through HPE OneView. The blade system ensures reduced operational costs, enhanced security, and high availability with multiple redundancy layers.

Supports a wide range of operating systems including Windows Server editions, Red Hat Enterprise Linux, VMware Horizon, and Citrix environments. Designed for optimal performance and virtualised GPU solutions, it enables up to 16 users per GPU depending on workload.
