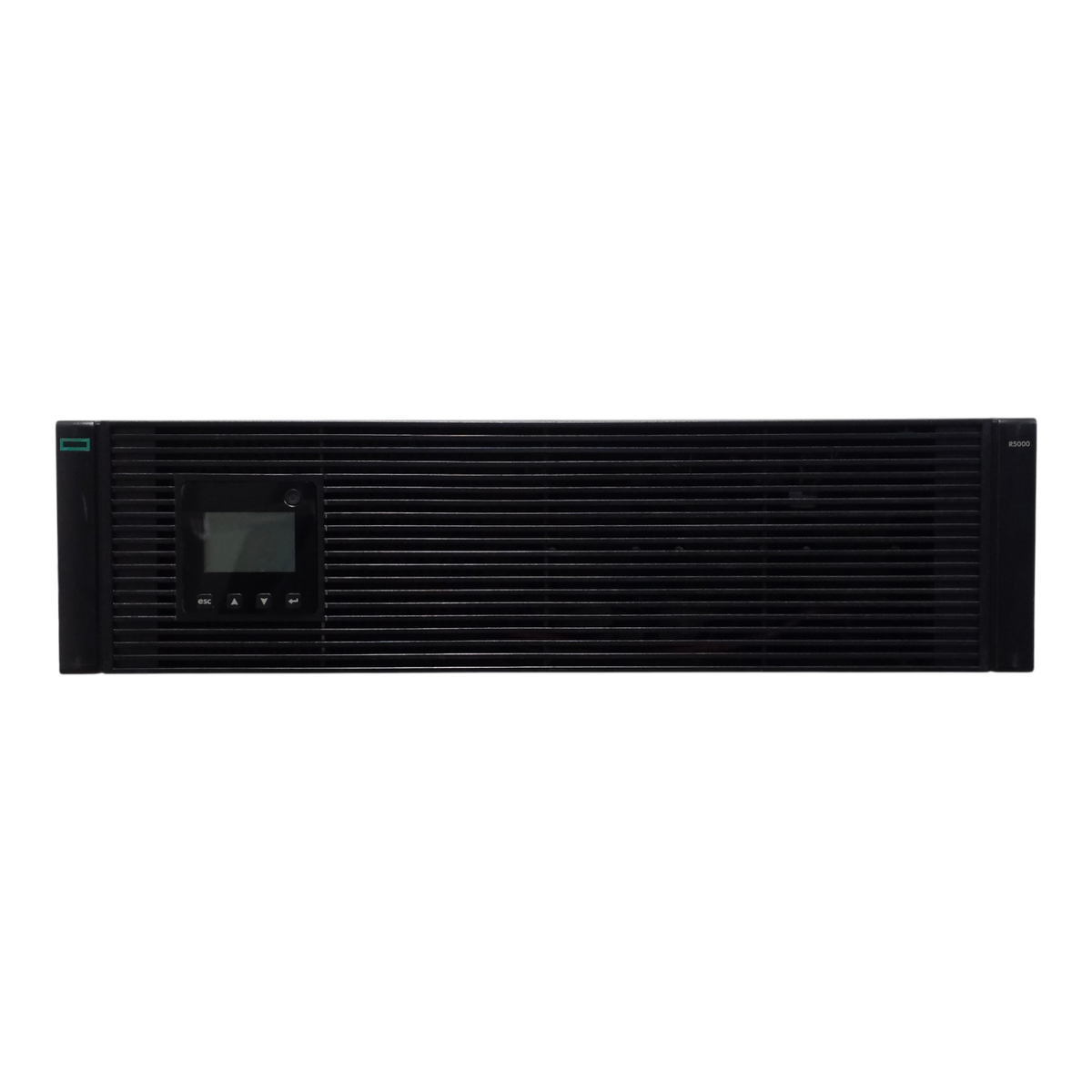

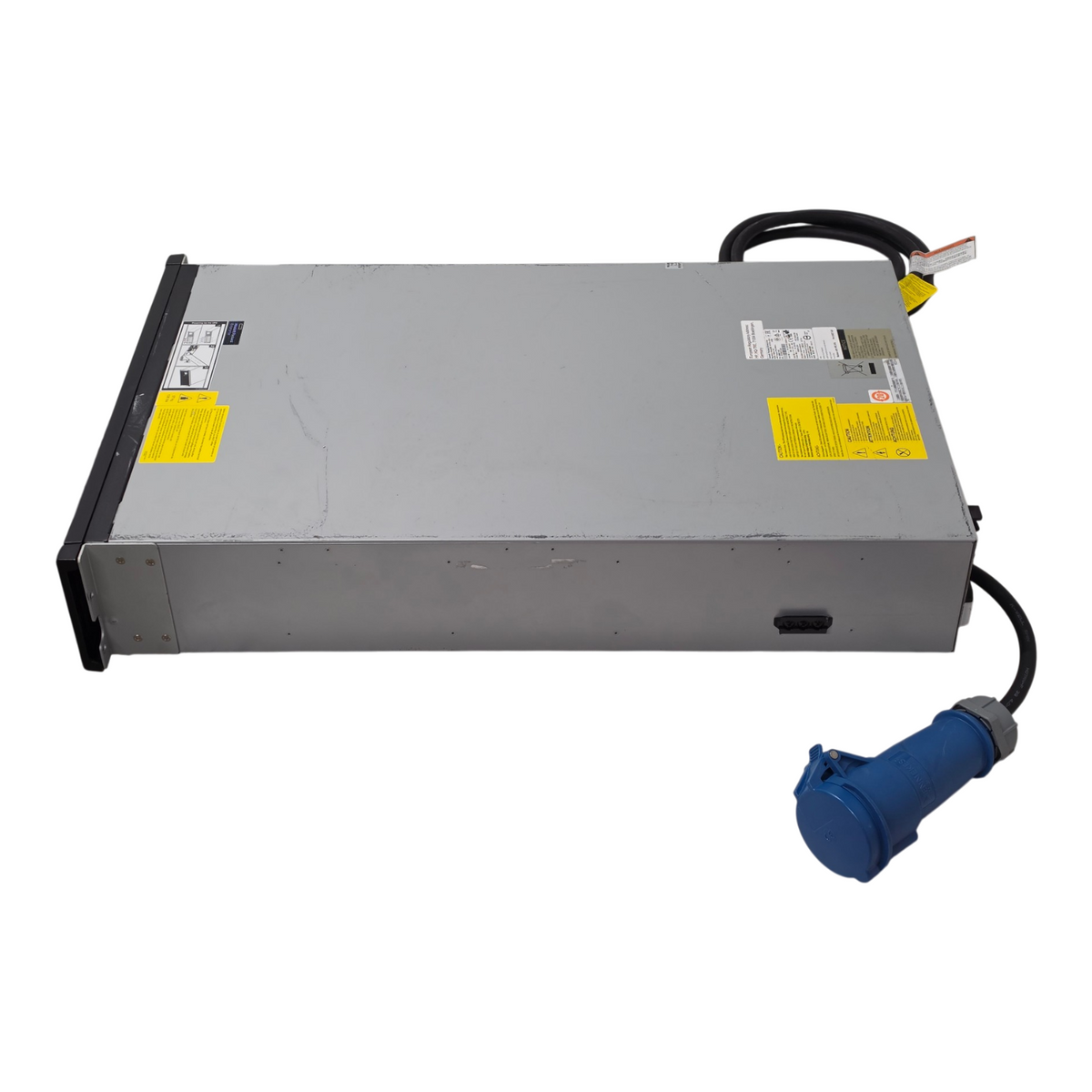

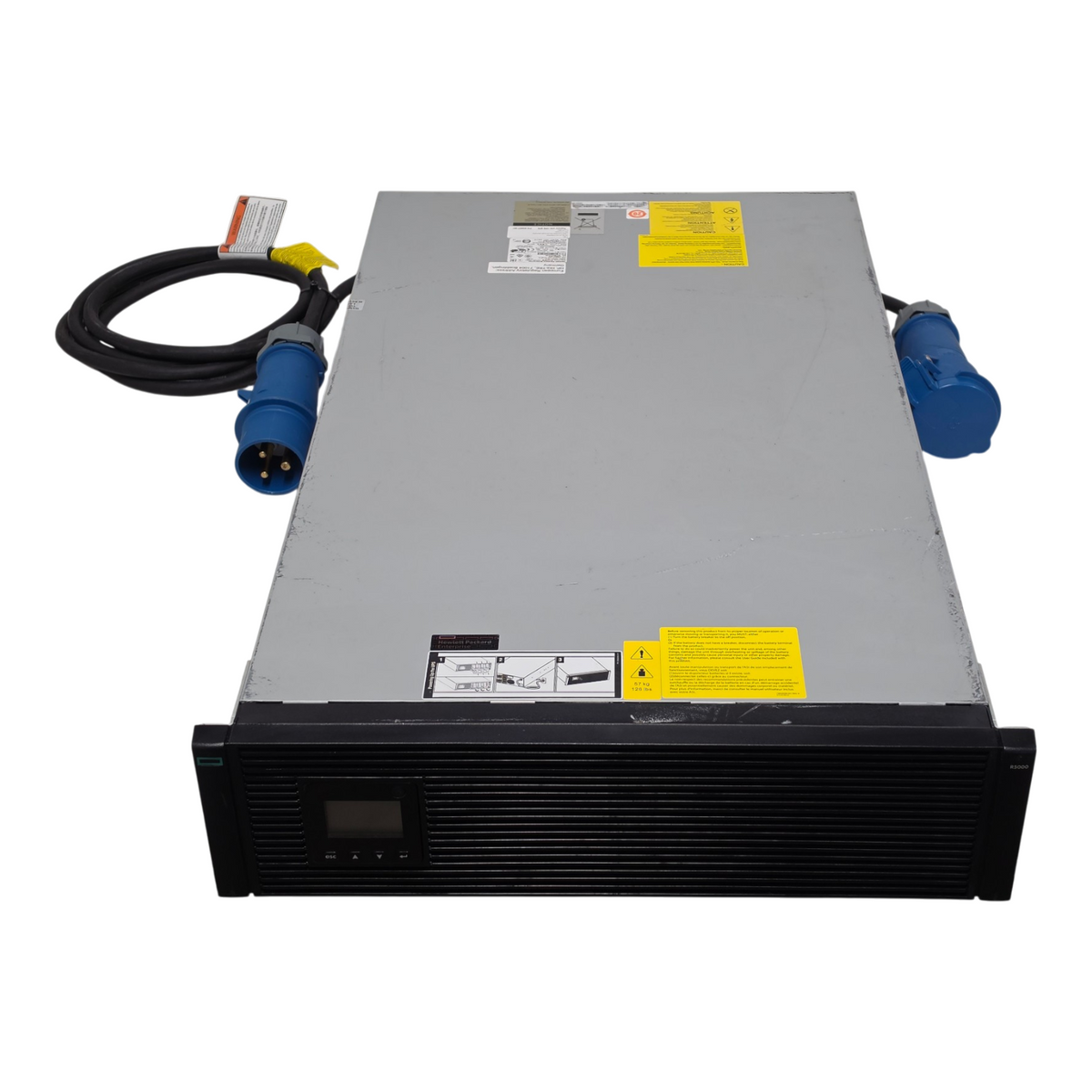

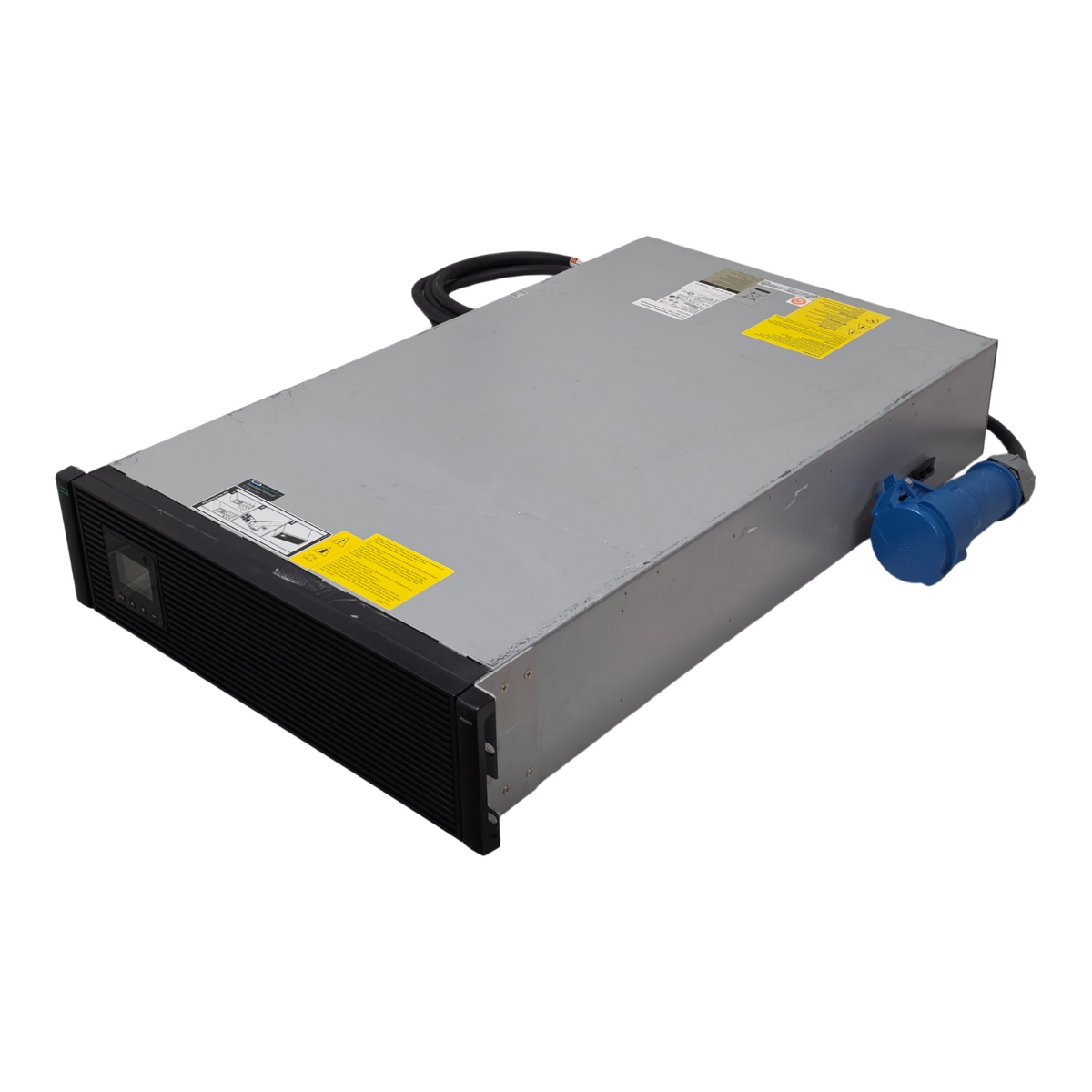

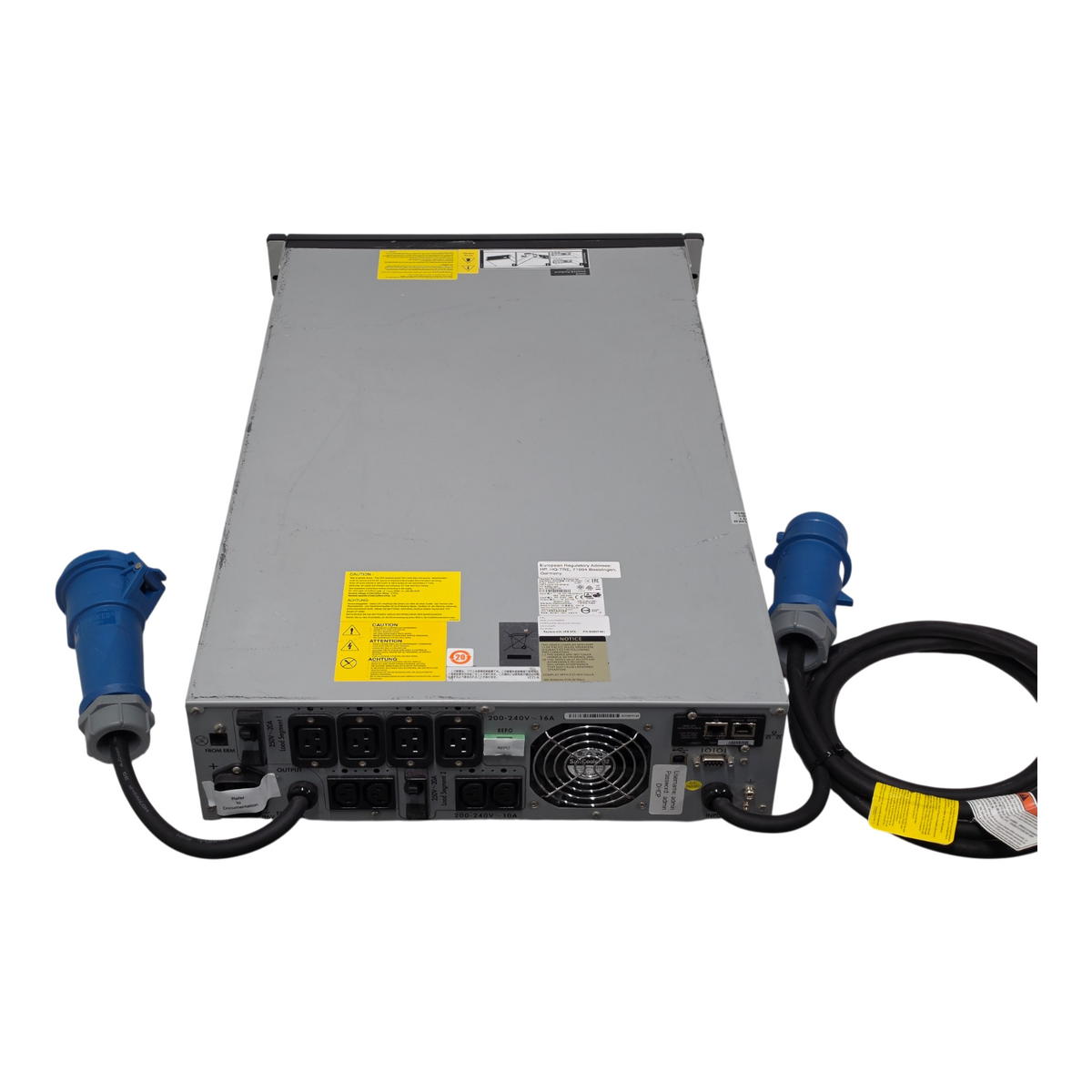

HPE AF461A R5000 3U IEC309-32A 5000VA 4500W High Voltage INTL UPS 628821-002

Condition : Refurbished – tested and working grade A refurbished part

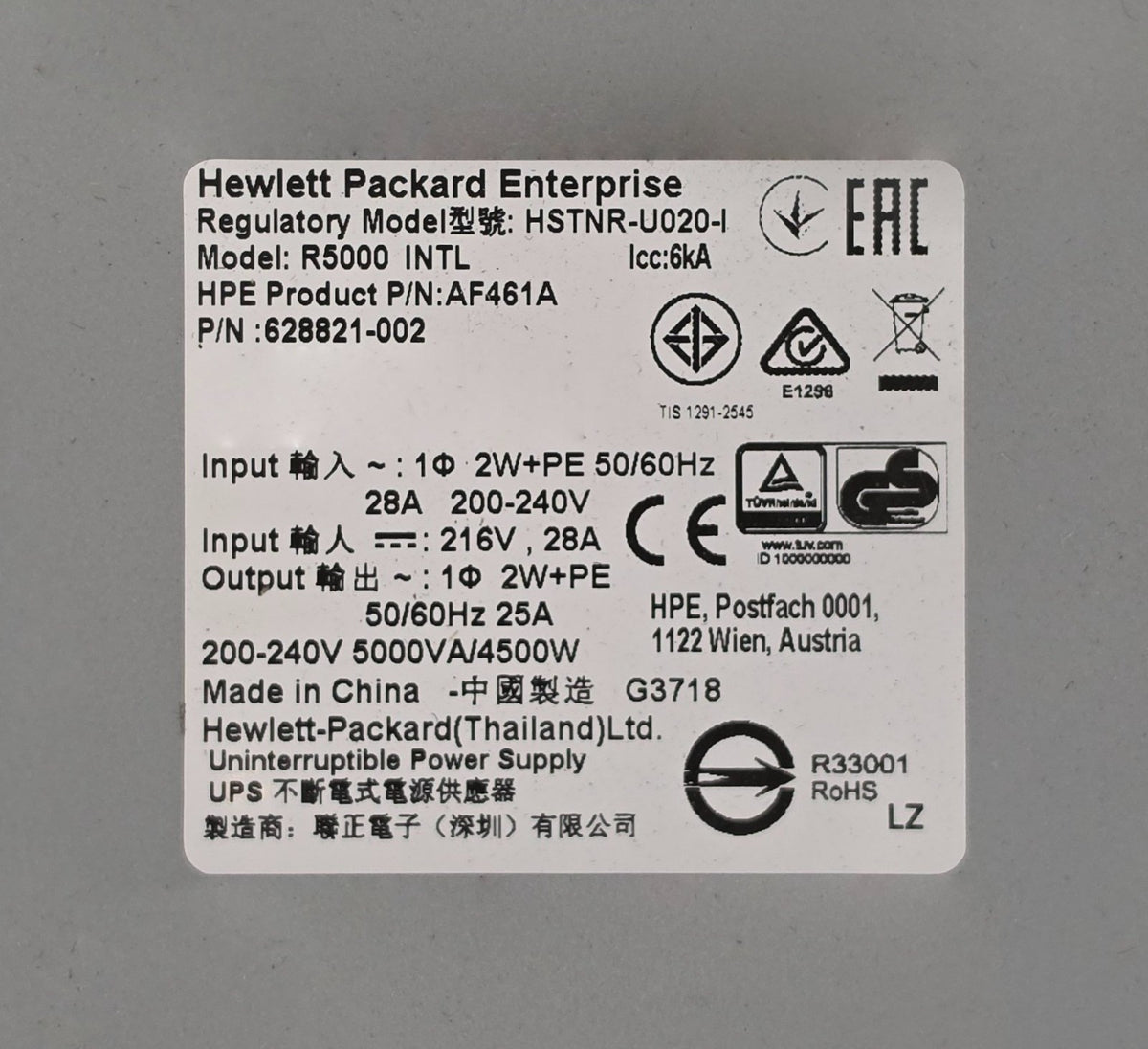

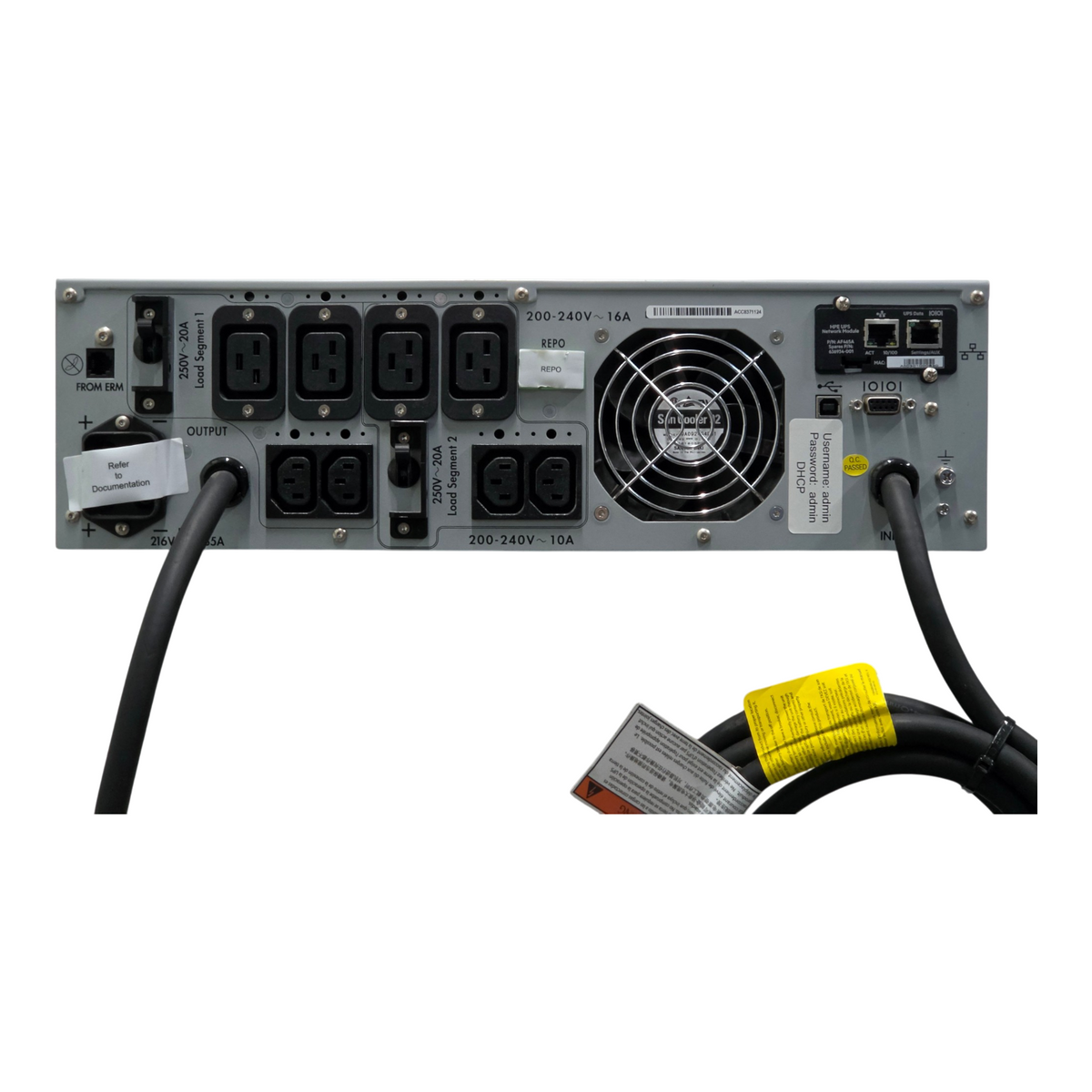

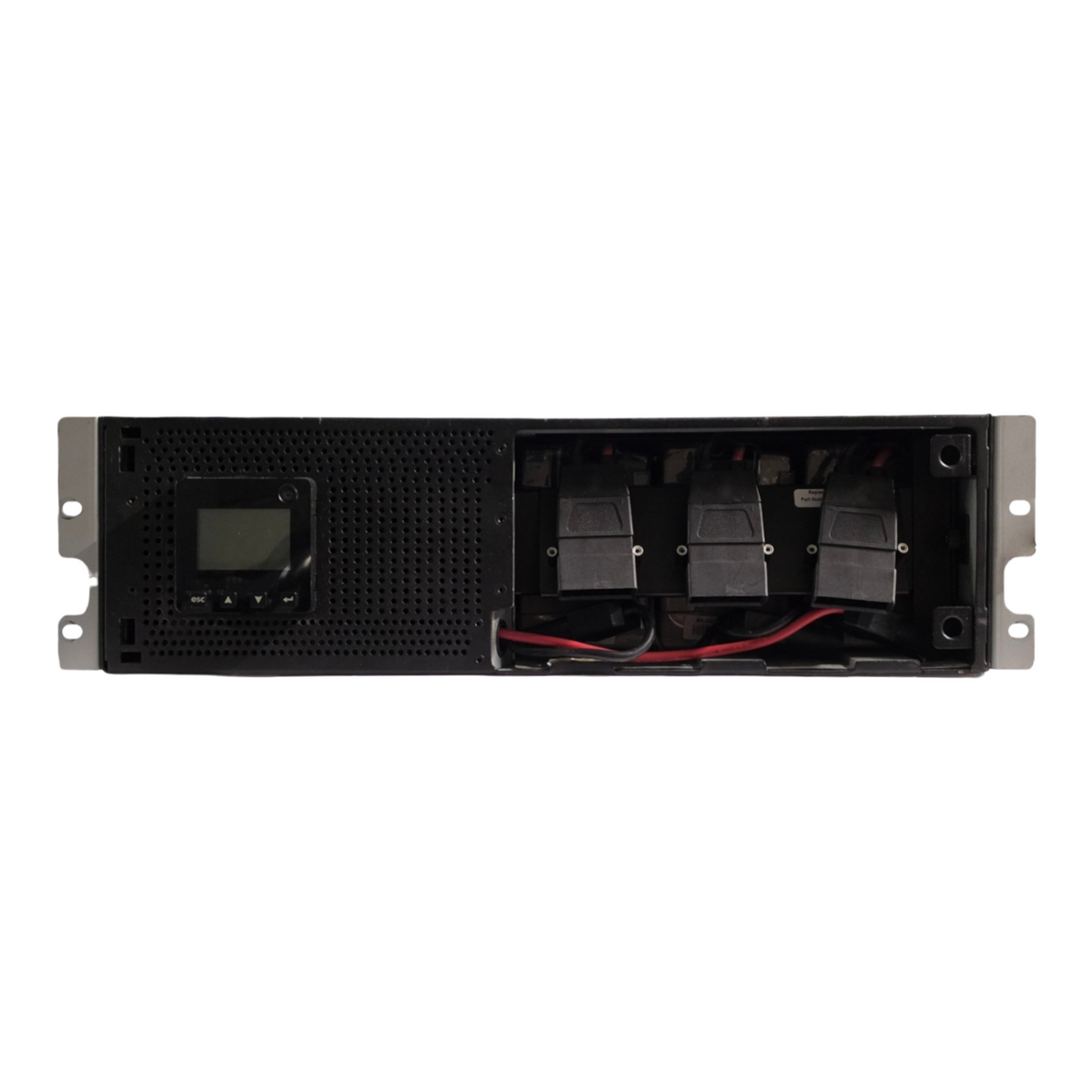

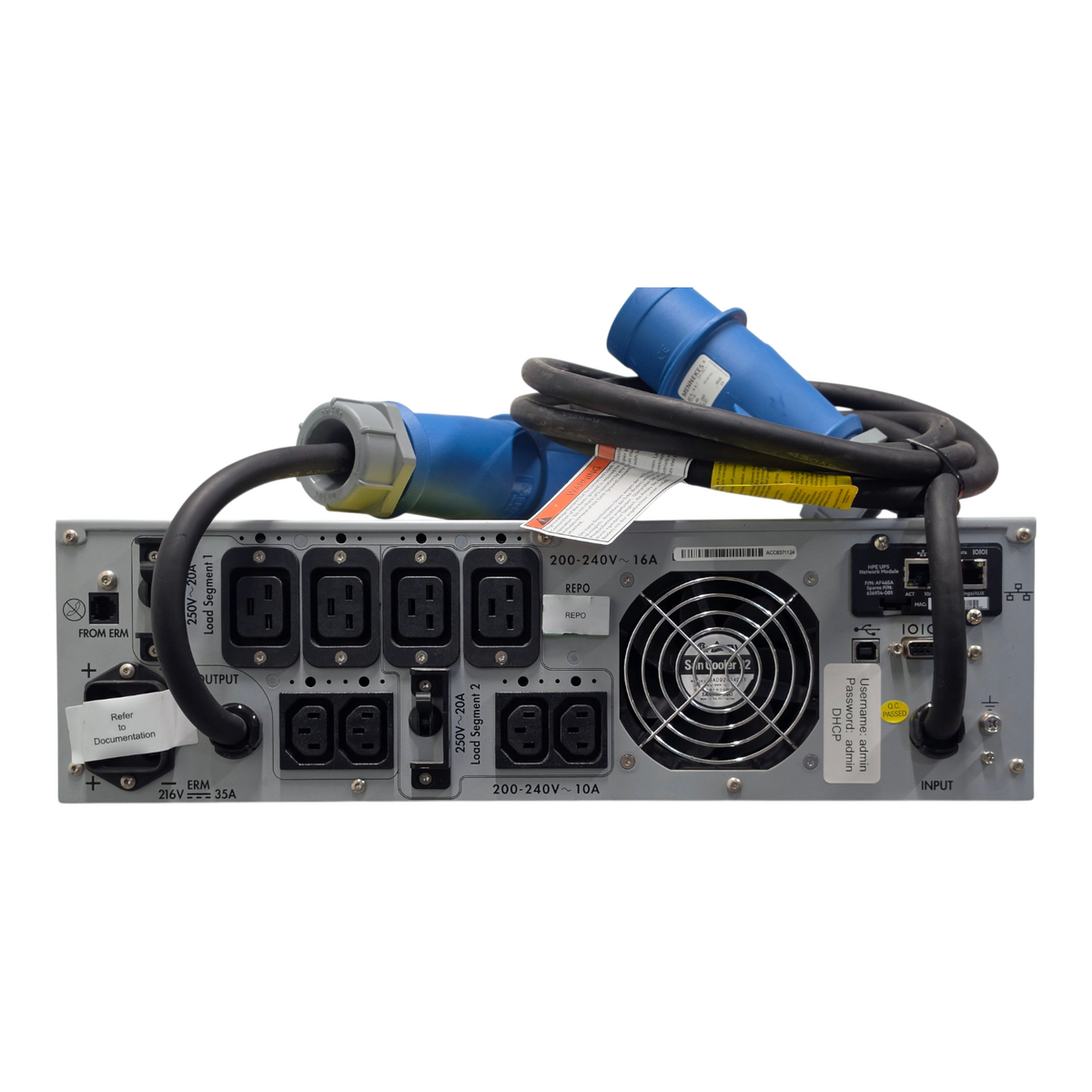

HPE AF461A R5000 3U IEC309-32A 5000VA 4500W High Voltage International UPS 628821-002 Includes: - HPE AF461A R5000 UPS - HPE UPS Network Module (AF465A / 636934-001) - Depth Adjustable Fixed Rail Kit Specifications: - Manufacturer: Hewlett Packard Enterprise - Model: R5000 INTL - Input Rating: Single-phase 2W+PE, 50/60Hz, 28A, 200-240V - Input Voltage Range: 176-253V AC - Output Delivery: Single-phase 2W+PE, 50/60Hz, 25A, 200-240V, 5000VA/4500W - Output Receptacles: 1 x IEC309 32A, 4 x IEC320 C19, 4 x IEC320 C13 - Load Segments: 2 independently controllable (15A circuit breakers each) - Online Efficiency: 94% - Voltage Regulation: -10% to +6% nominal (online), ±5% on battery - Waveform: Sine wave - Battery: Maintenance-free sealed VRLA, 216V DC string voltage, 18 x 12V internal cells - Recharge Time: <3 hours to 80%, <48 hours full recharge - Backup Time: 5.7 minutes at full load, 16 minutes at half load - Extended Runtime: Supports up to 4 extended runtime modules - Communications: DB9 serial port, USB port, option slot for communication card - Control Panel: Front LCD display with five-button control - Remote Access: Remote Emergency Power-Off (REPO) connector - Operating Temperature: 0°C to 40°C - Dimensions: 647mm (D) x 441mm (W) x 86.2mm (H) - Form Factor: 3U standard 19-inch rackmount - Weight: 49.2kg (without cells), 57kg (with cells) Ideal for protecting critical infrastructure requiring high-capacity, reliable power backup in enterprise environments.
