IBM LSI Quad-Port 9206-16e 4x Mini-SAS HD 6Gb/s SAS Host Bus Adapter HBA 00Y7062

Condition : Refurbished – tested and working grade A refurbished part

IBM LSI Quad-Port 9206-16e 4x Mini-SAS HD 6Gb/s SAS Host Bus Adapter HBA 00Y7062

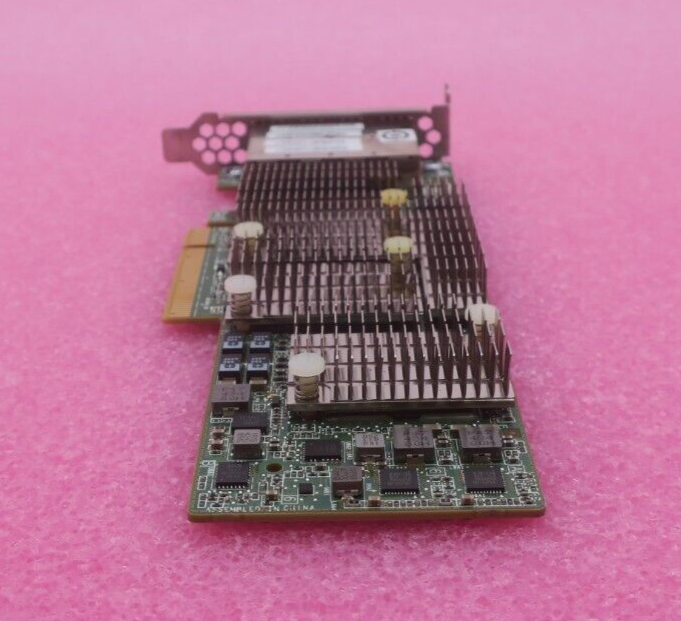

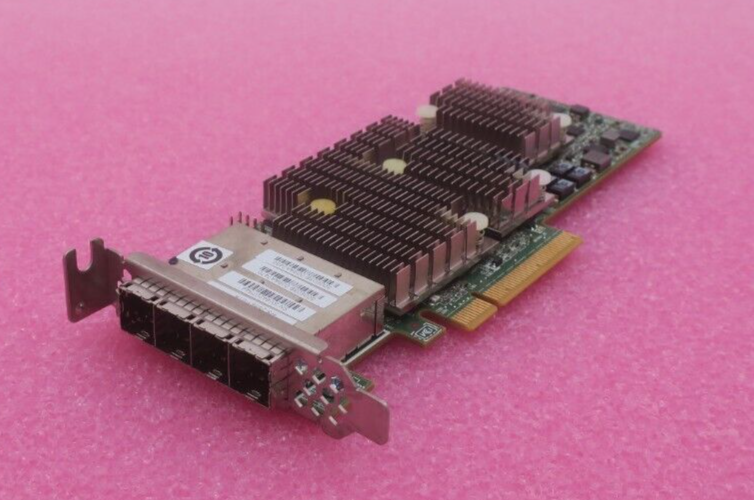

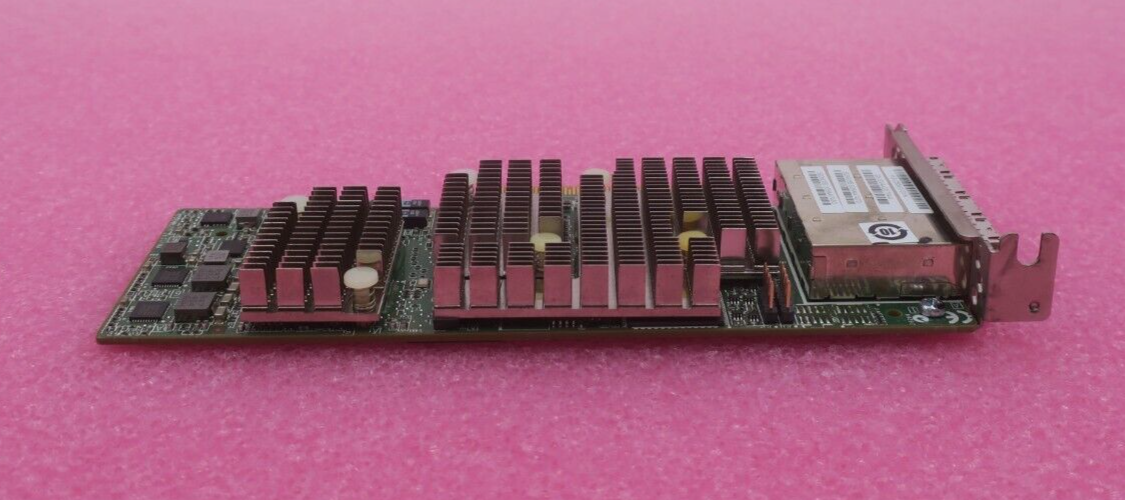

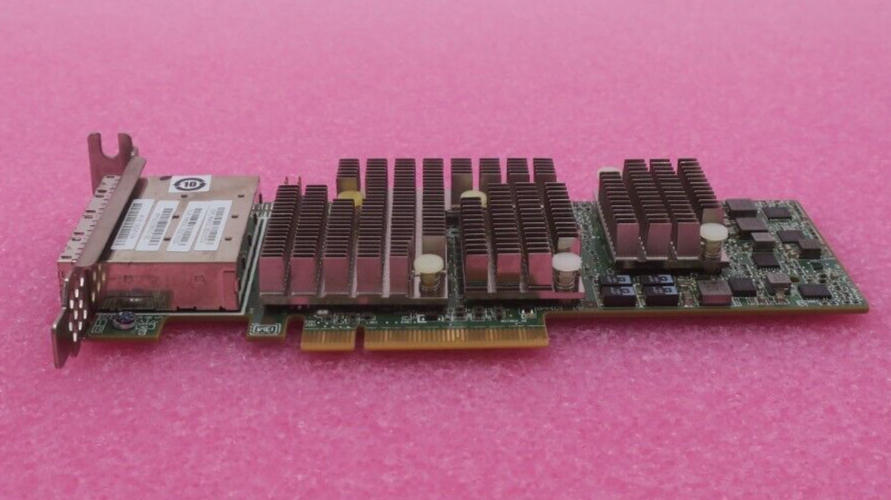

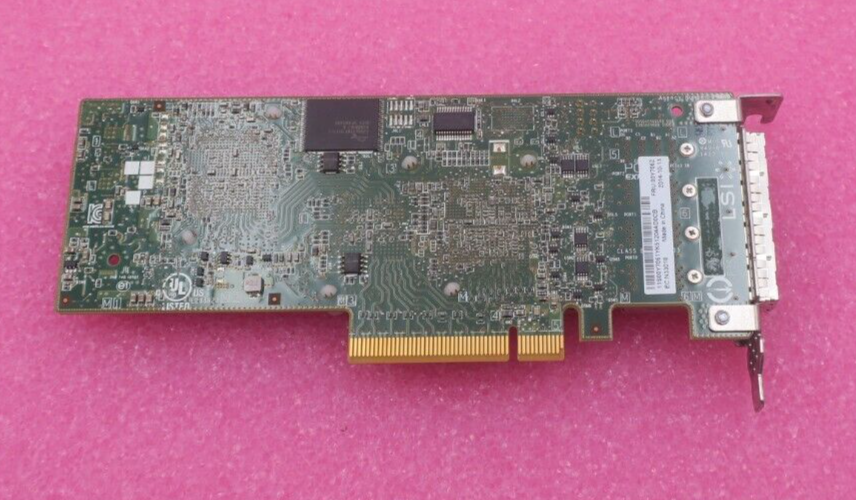

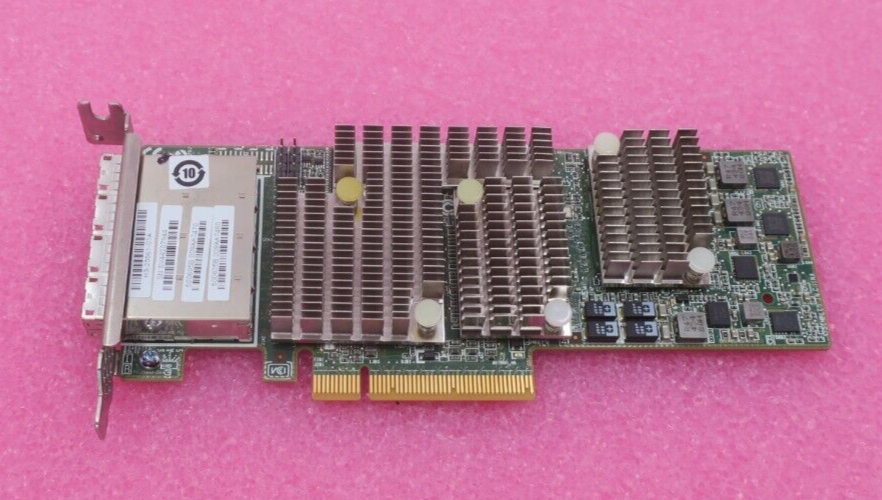

This IBM LSI 9206-16e SAS Host Bus Adapter (HBA) features four Mini-SAS HD external connectors (SFF8644) supporting 16 ports with 6Gb/s SAS 2.1 compliance. It utilises dual LSISAS2308/Fusion MPT 2.0 controllers and offers a PCI Express 3.0 x8 lane host bus interface with data burst transfer rates up to 8000MB/s. The adapter supports up to 1024 SAS/SATA devices and is designed with a low profile card and half-height bracket for versatile installation.

Key Features:

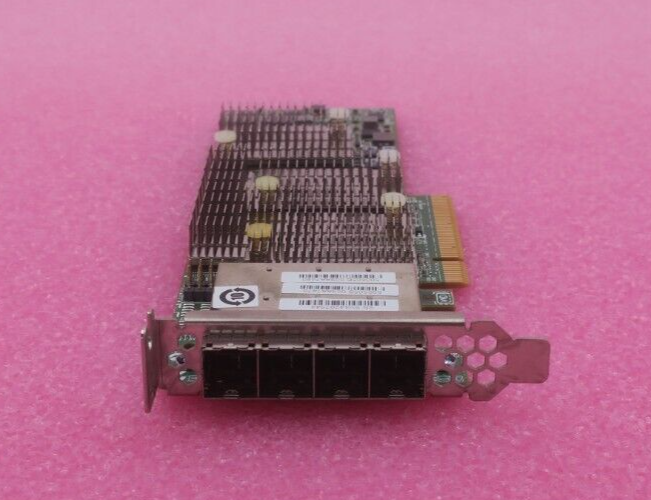

- Four x4 Mini-SAS HD external connectors
- 16 SAS ports with 6Gb/s transfer rate
- PCI Express 3.0 x8 interface
- Supports passive copper, active copper, and active optical cables
- Compact dimensions: 68.9 x 167.65 mm

Ideal for expanding storage connectivity in servers and workstations requiring high-performance SAS interfaces.
