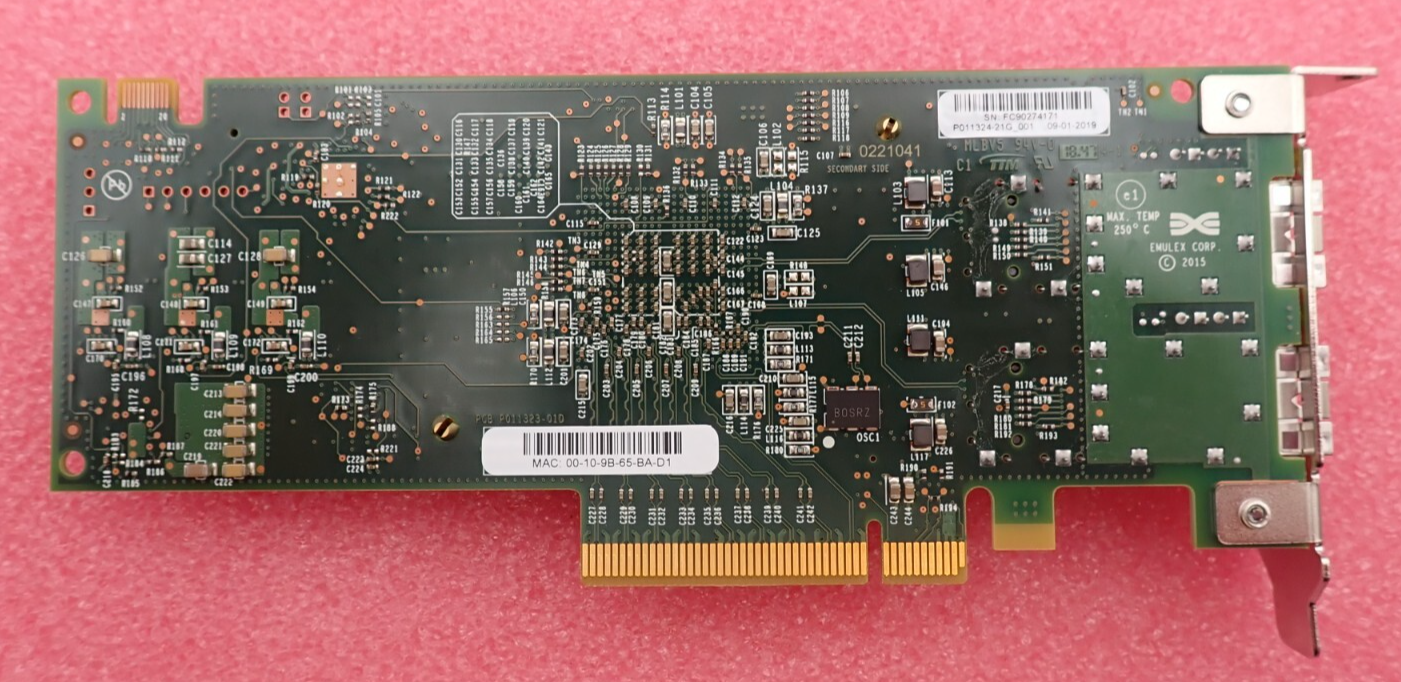

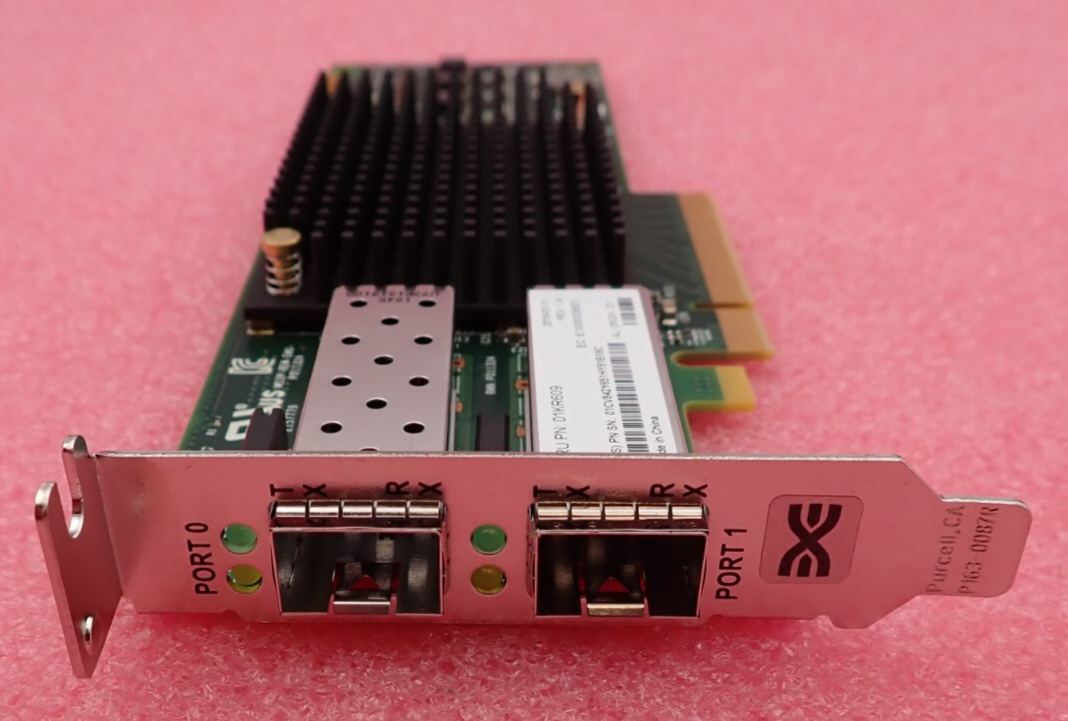

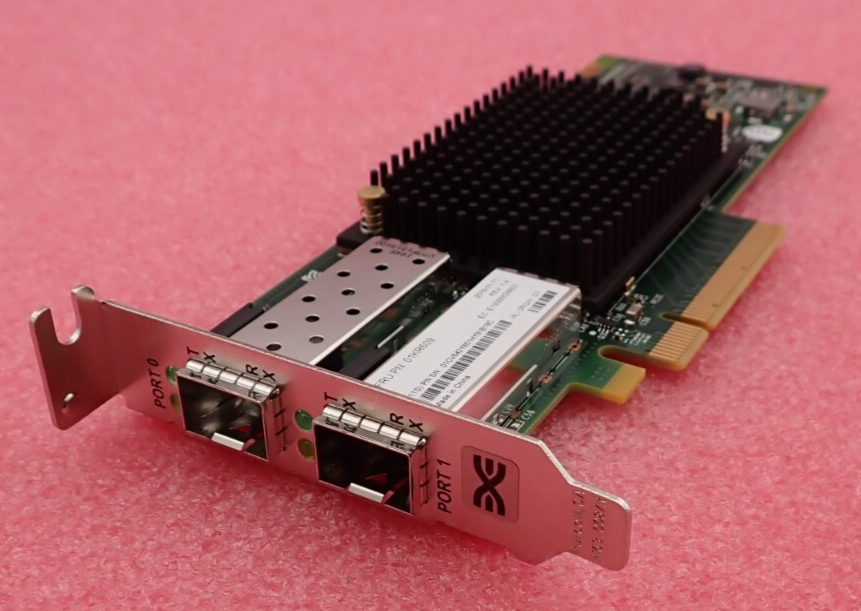

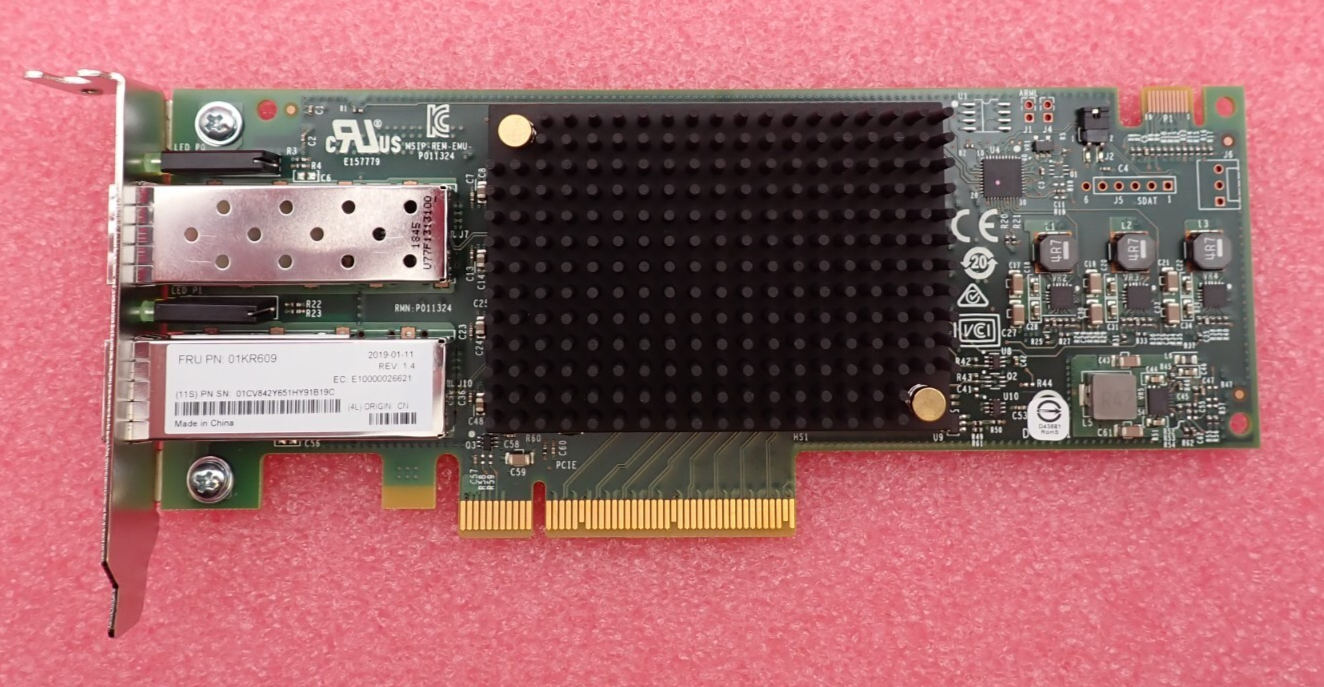

Lenovo Emulex LPe31002 Dual Port 16Gb FC Host Bus Adapter HBA HH 01KR609

Condition : Refurbished – tested and working grade A refurbished part

Lenovo Emulex LPe31002 Dual Port 16Gb Fibre Channel Host Bus Adapter (HBA) Half Height

Specifications:
- Model: LPe31002

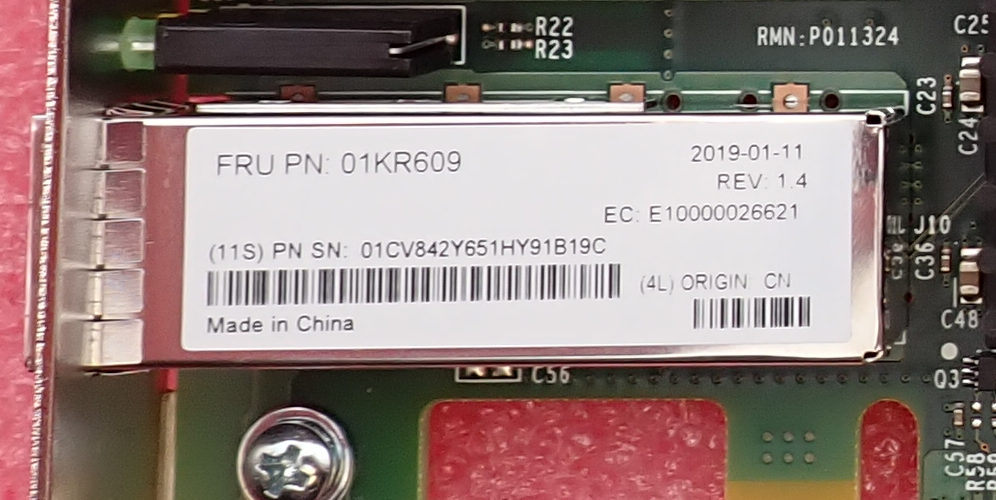

- Lenovo FRU: 01KR609
- Connector Type: LC-style
- Number of Ports: 2
- Controller Silicon: Emulex XE501
- Bus Interface: PCIe 3.0 x8
- Bus Transfer Rate: 8GT/s
- Standards Supported: FC-PI-4, FC-PI-5, FC-PI-6, FC-FS-3, FC-LS-2, FC-GS-6, FC-DA, FC-DA2, FCP-4, SPC-4, SBC-3, SSC-3, SSC-4, and legacy ANSI/IETF FC standards
- Fibre Channel Data Rates: 16Gb/s, 8Gb/s, 4Gb/s auto-negotiated
- Supported Cable Lengths:
• 16Gb OM4: 125m
• 16Gb OM3: 100m
• 16Gb OM2: 35m
• 8Gb OM4: 190m
• 8Gb OM3: 150m
• 8Gb OM2: 50m
- LEDs: 2 per port (yellow and green)
- Features: Hot plug-hot swap capability

Includes 1 x Lenovo Emulex LPe31002 Dual Port 16Gb FC Host Bus Adapter with Half Height bracket.
