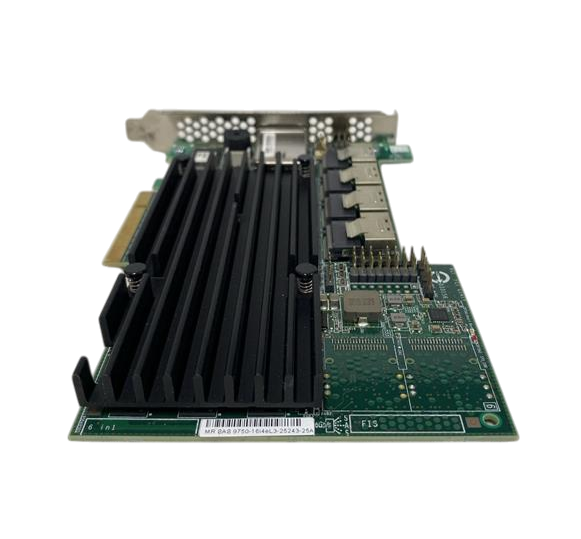

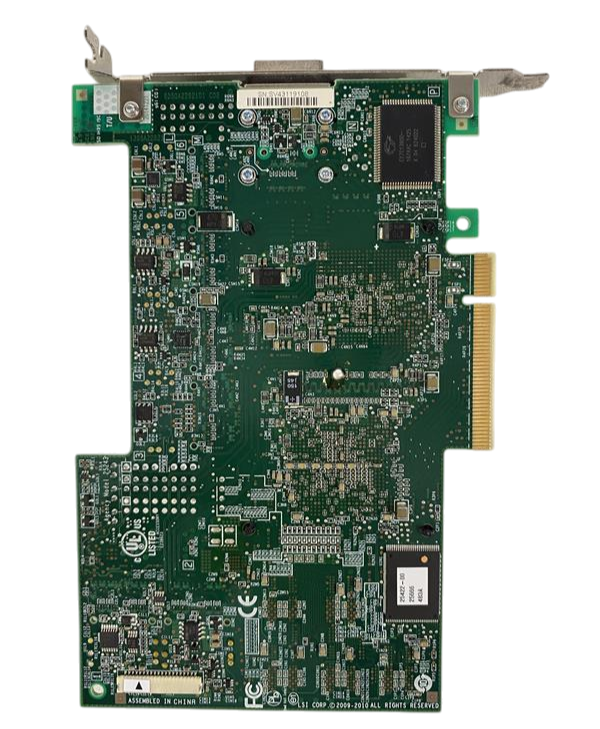

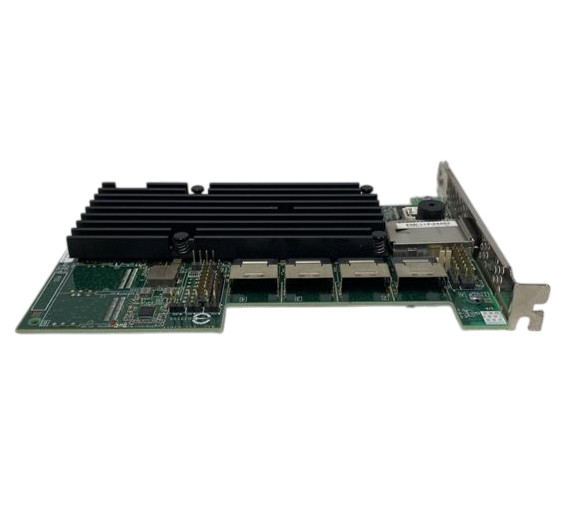

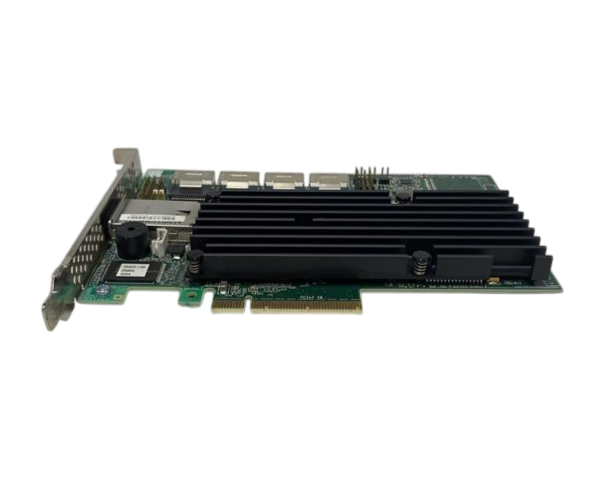

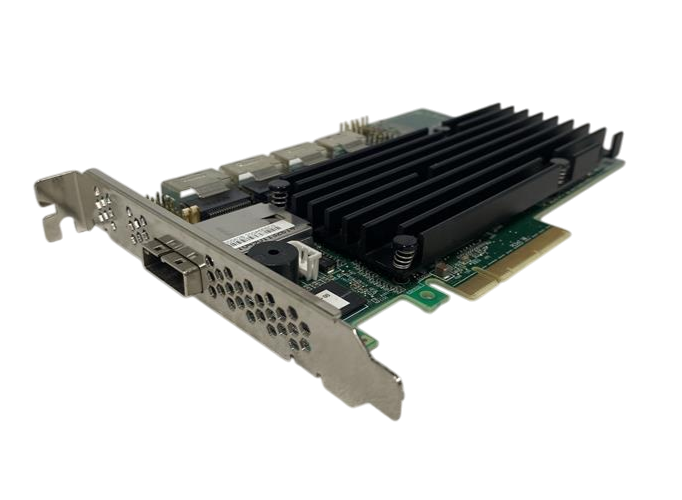

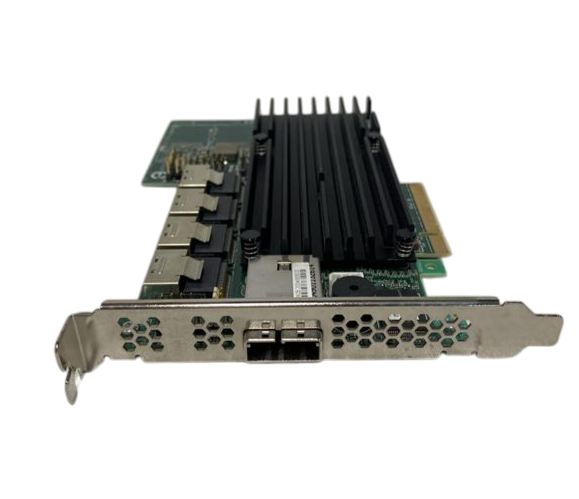

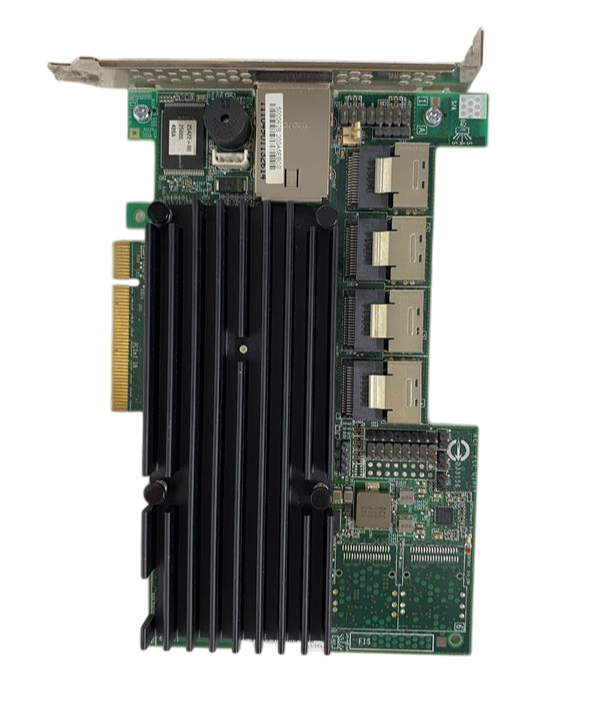

LSI 9750-16I4E 3Ware 16x Port Internal 4x External 6Gbs PcIe Raid Controller

Condition : Refurbished – tested and working grade A refurbished part

LSI 3Ware 9750-16I4E RAID Controller – 16 Internal Ports, 4 External Ports, 6Gb/s PCIe

Features:
- Powered by LSISAS2108 6Gb/s RAID-on-Chip with 800MHz PowerPC processor
- 512MB 800MHz DDR2 cache memory for enhanced performance
- PCI Express 2.0 x8 interface for high bandwidth
- Supports 16 internal 6Gb/s SATA+SAS ports via four Mini-SAS internal connectors (SFF-8087)
- 4 external 6Gb/s SATA+SAS ports on one Mini-SAS external connector (SFF-8088)
- Expandable to support up to 127 SATA or SAS devices with SAS expanders
- Compatible with 3Gb/s and 6Gb/s SAS and SATA HDDs and SSDs
- Supports RAID levels 0, 1, 5, 6, 10, 50, and single disk configurations
- Includes StreamFusion™+ firmware to optimise sequential read/write for multi-stream applications
- Maintains stable storage performance during degraded or rebuilding RAID modes

Designed for enterprise storage solutions requiring robust data protection and high throughput.
