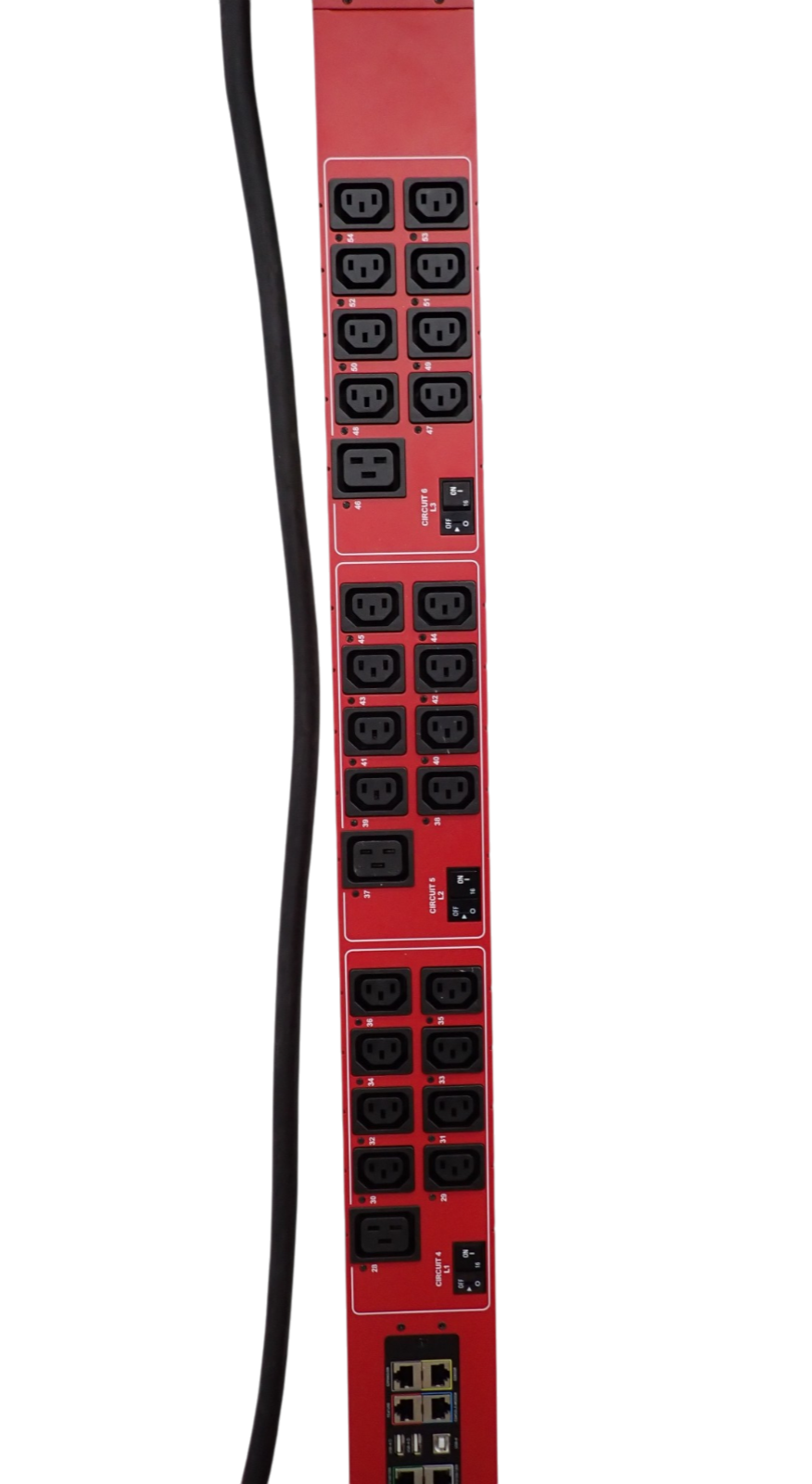

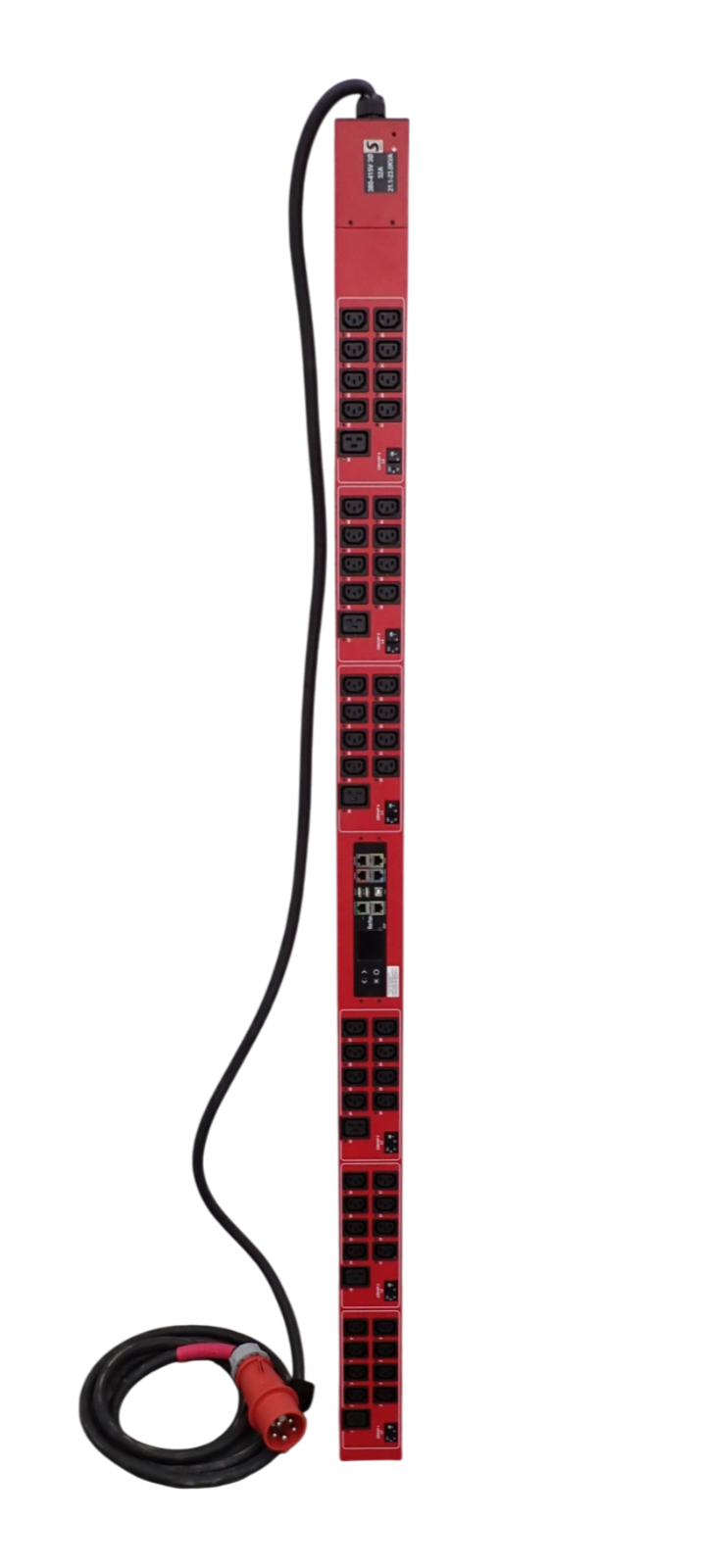

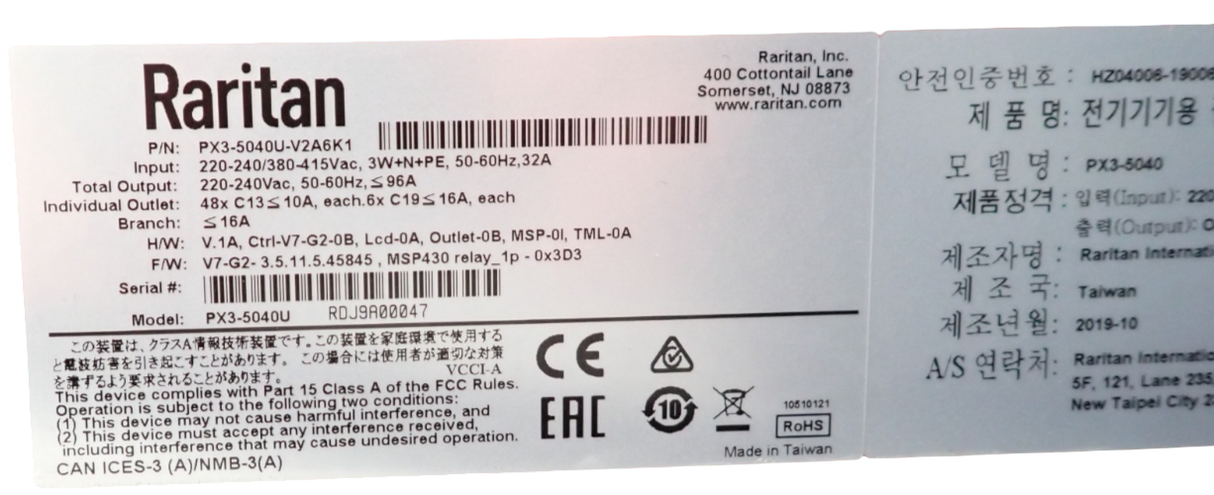

Raritan PX3-5040U-V2A6K1 3PH 430V 32A 48x C13 6x C19 0U Metered Switched PDU

Condition : Refurbished – tested and working grade A refurbished part

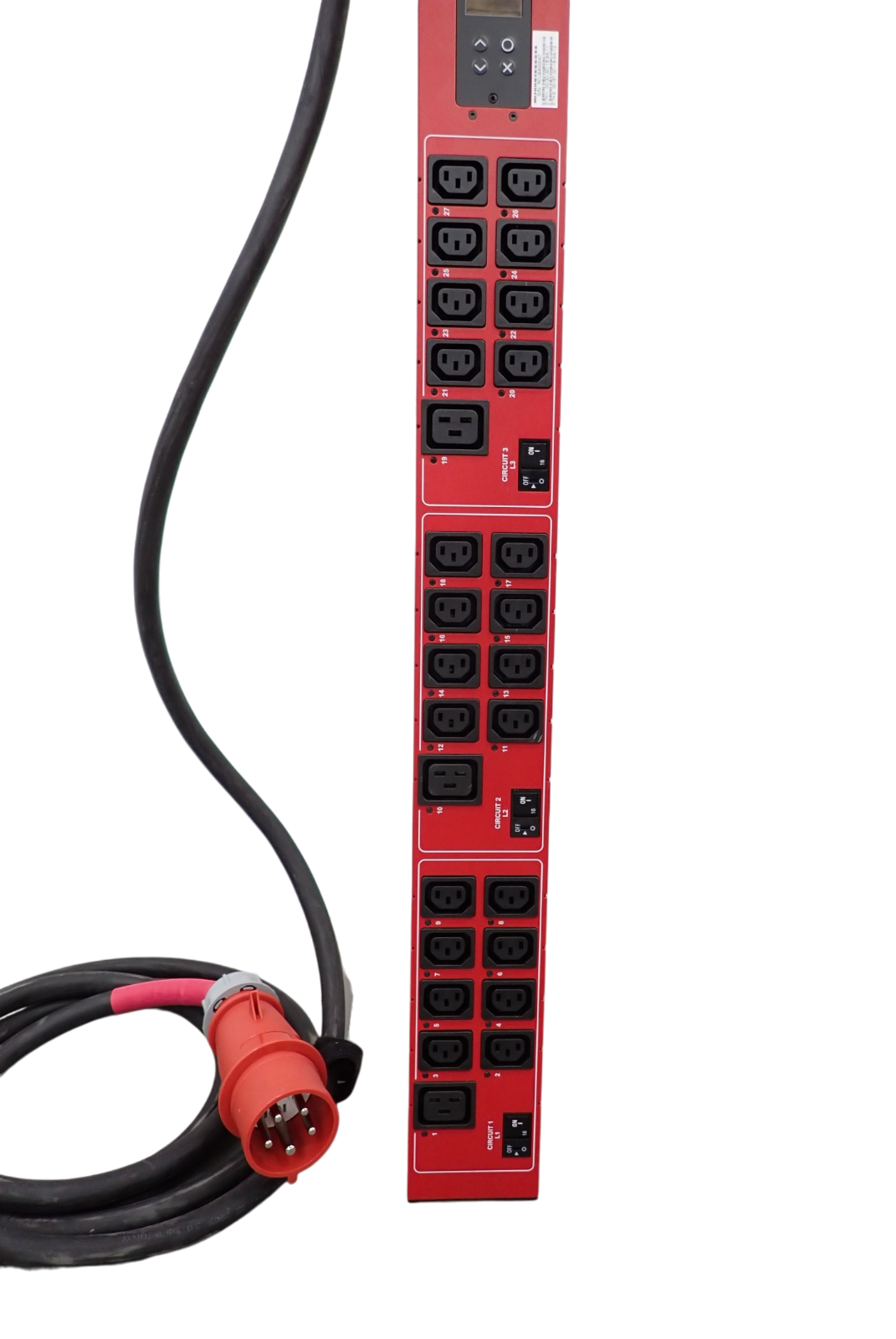

Raritan PX3-5040U-V2A6K1 3-Phase 430V 32A Metered Switched PDU

The Raritan PX3-5040U-V2A6K1 is an intelligent rack power distribution unit designed for high-density data centre environments. It supports three-phase 430V input at 32A and delivers 48 IEC 60320 C13 and 6 IEC 60320 C19 outlets. This 0U vertical mount PDU provides advanced real-time power monitoring including current, voltage, power (kVA, kW), and energy consumption with ISO/IEC billing-grade accuracy.

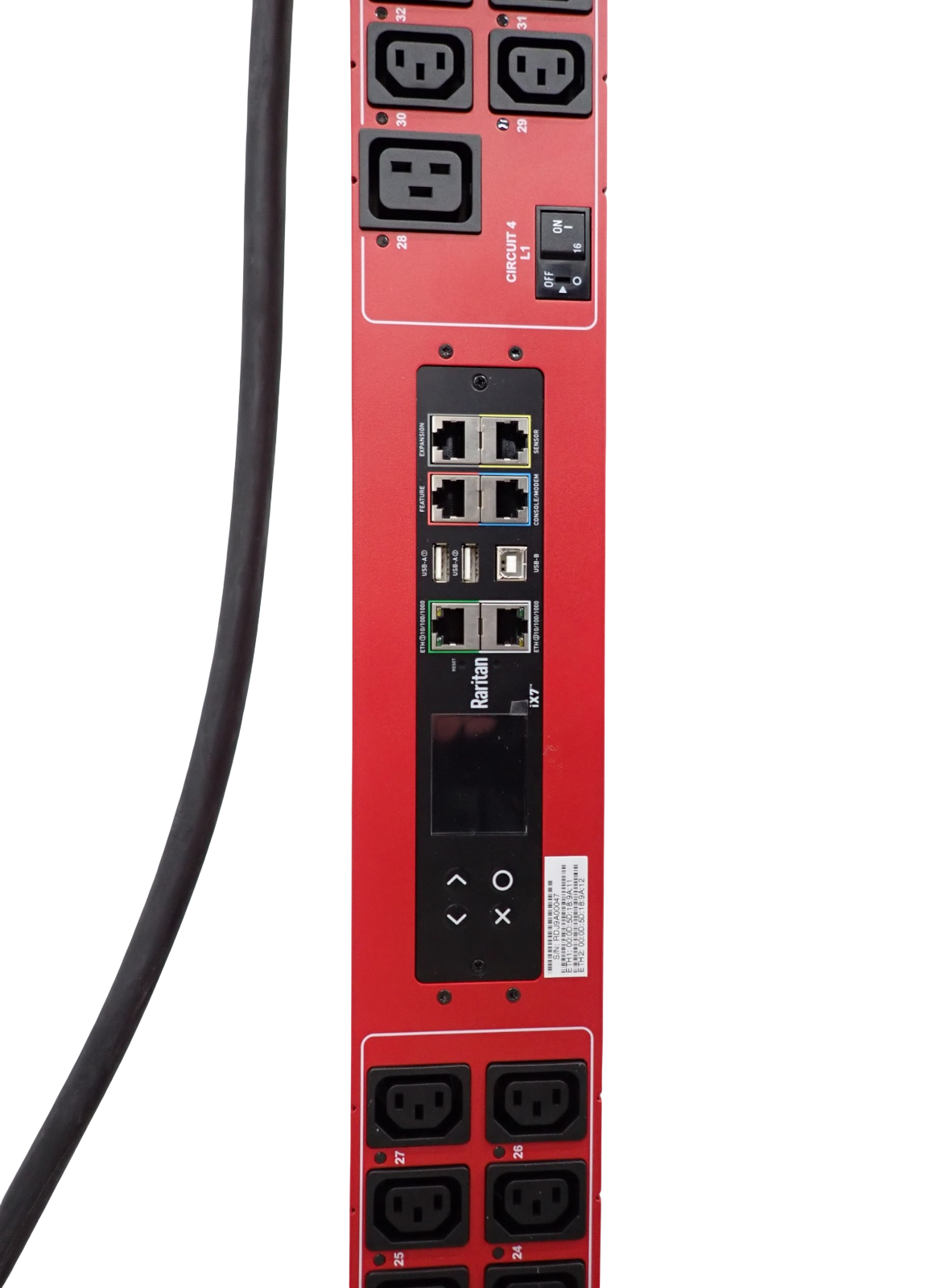

Features include user-configurable thresholds with SNMP, email, and syslog alerts, remote management via web GUI, CLI, SSH, and Telnet, and support for optional environmental sensors. Security is enhanced with LDAP/S and Active Directory integration. The robust design includes UL489 circuit breaker protection.

Specifications:

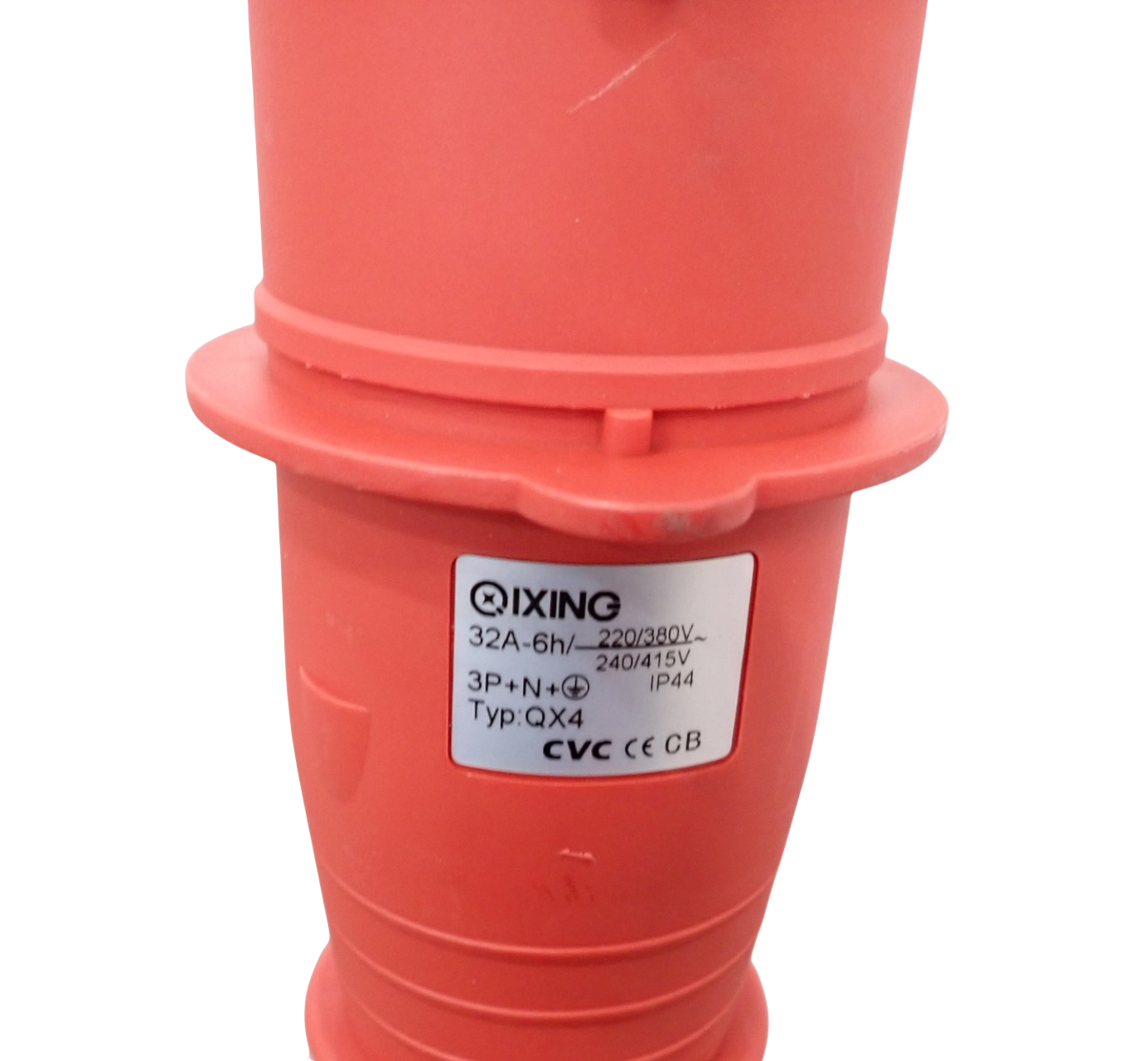

- Input Voltage: 430 V AC 3-phase (Wye)
- Input Current: 32 A
- Output Voltage: 230 V AC

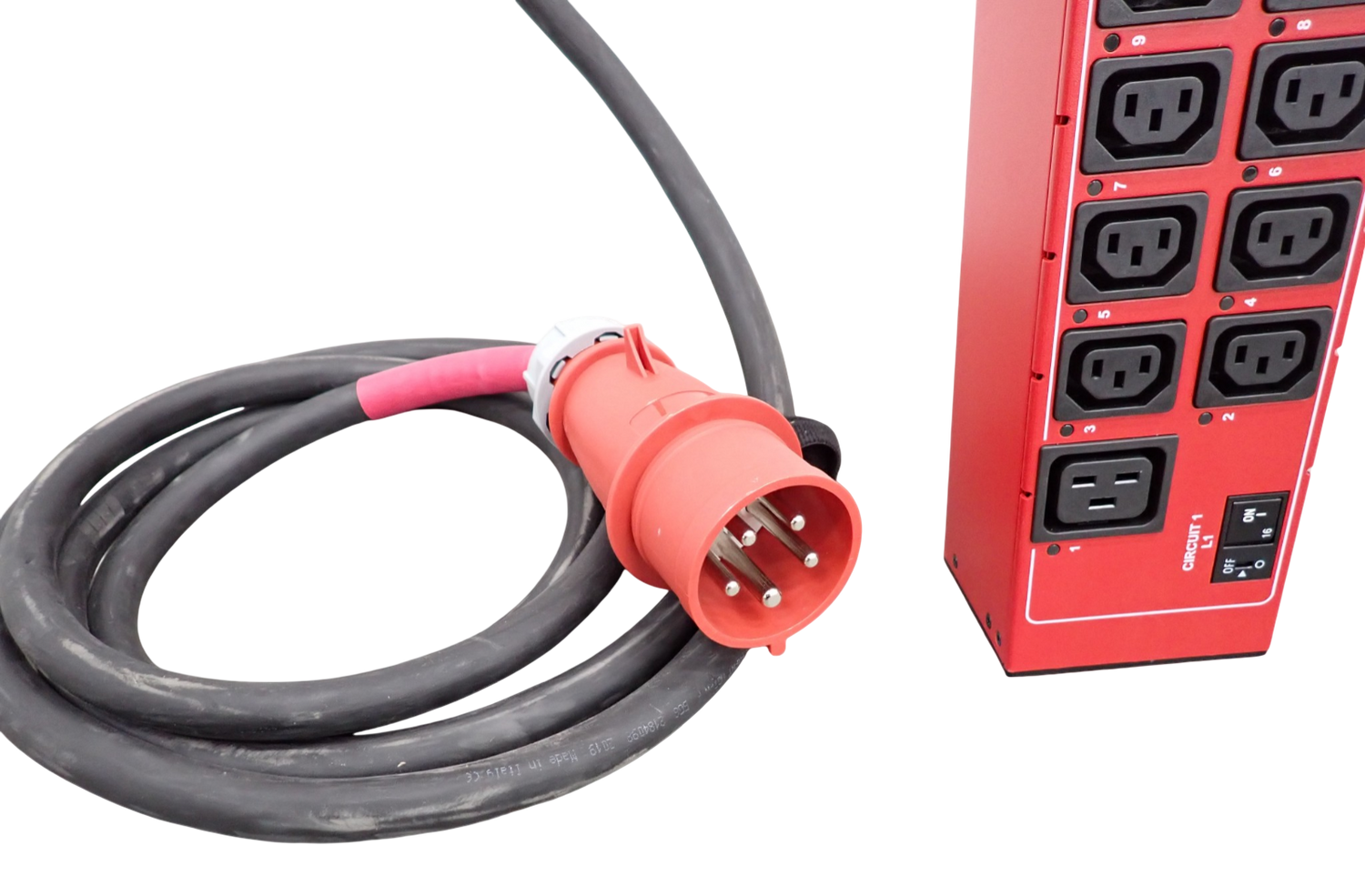

- Outlets: 48 x C13, 6 x C19
- Total Capacity: 23 kVA
- Dimensions: 1780 x 89 x 80 mm
- Weight: Approx. 9.5 kg

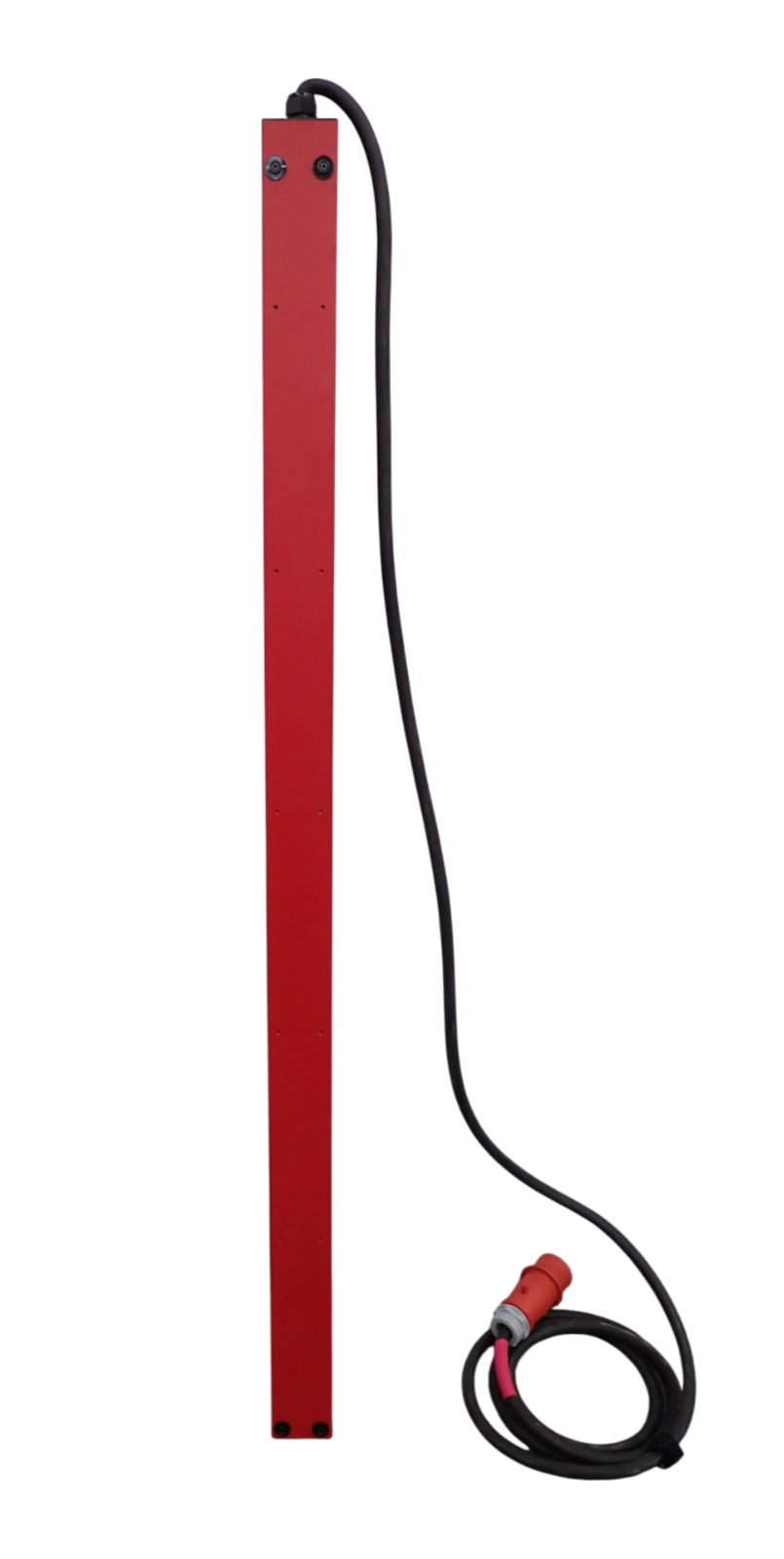

- Mounting: Vertical 0U rack mount
- Operating Temperature: Standard data centre range

Ideal for managing power distribution and monitoring in critical IT infrastructure.
