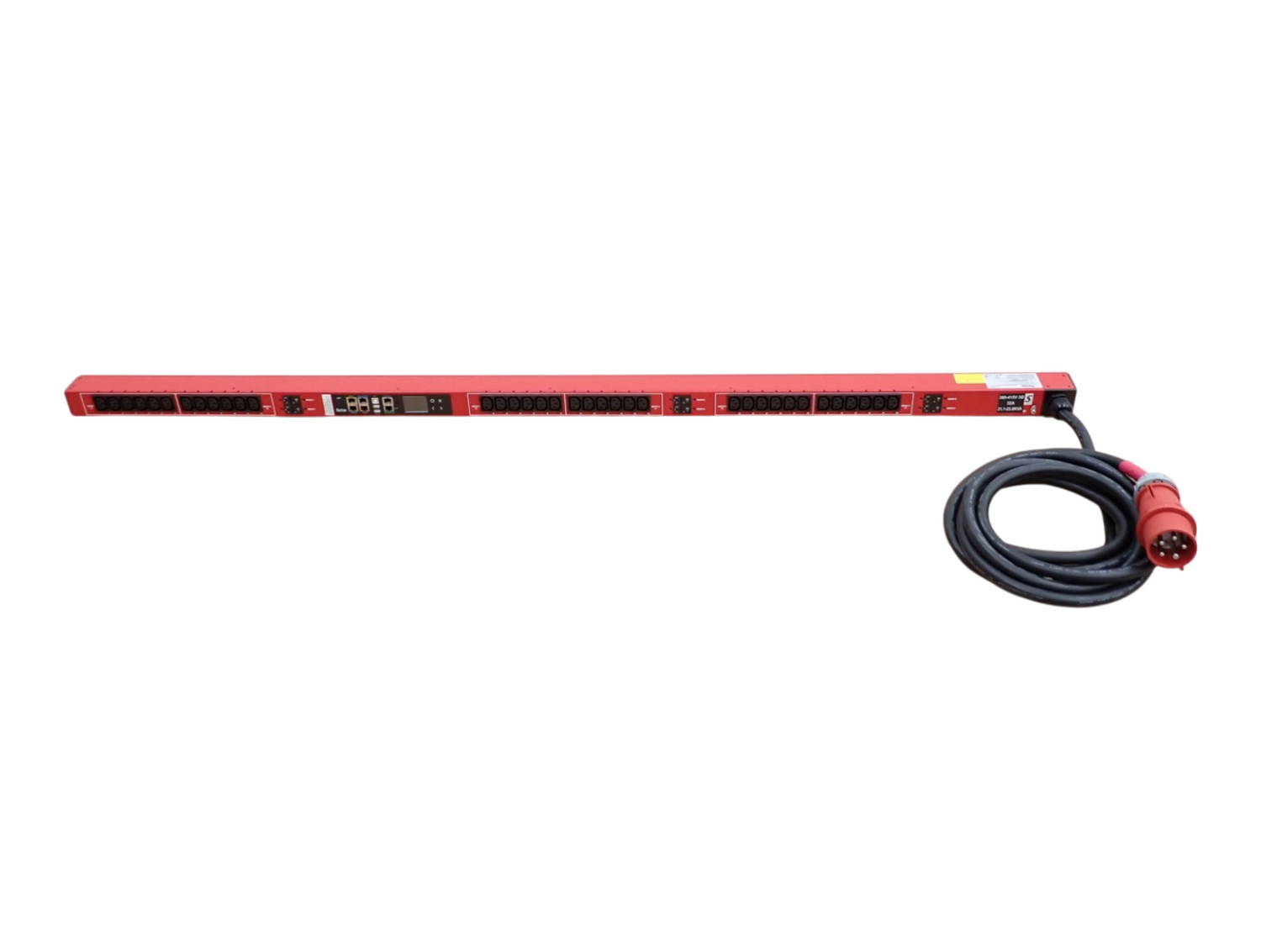

Raritan PX3-5703-V2A6K1 Three-phase 400V 32A 36x C13 0U Metered Switched PDU

Condition : Refurbished – tested and working grade A refurbished part

Raritan PX3-5703-V2A6K1 Three-phase 400V 32A 36x C13 0U Metered Switched PDU

The Raritan PX3 series intelligent rack power distribution units (iPDUs) deliver precise real-time power monitoring and management for critical data centre infrastructure. This model supports metering of current (amps), voltage, power (kVA, kW), and energy consumption (kWh) with ISO/IEC billing-grade accuracy. Designed for high-density racks, it features environmental sensor support, user-configurable thresholds with alerts, and remote management via web GUI or CLI. Compatible with Raritan Power IQ energy management software.

Features:
- Real-time monitoring of current, voltage, power, and energy
- User-adjustable thresholds with SNMP, email, and syslog alerts
- ISO/IEC billing-grade metering accuracy (±1%)

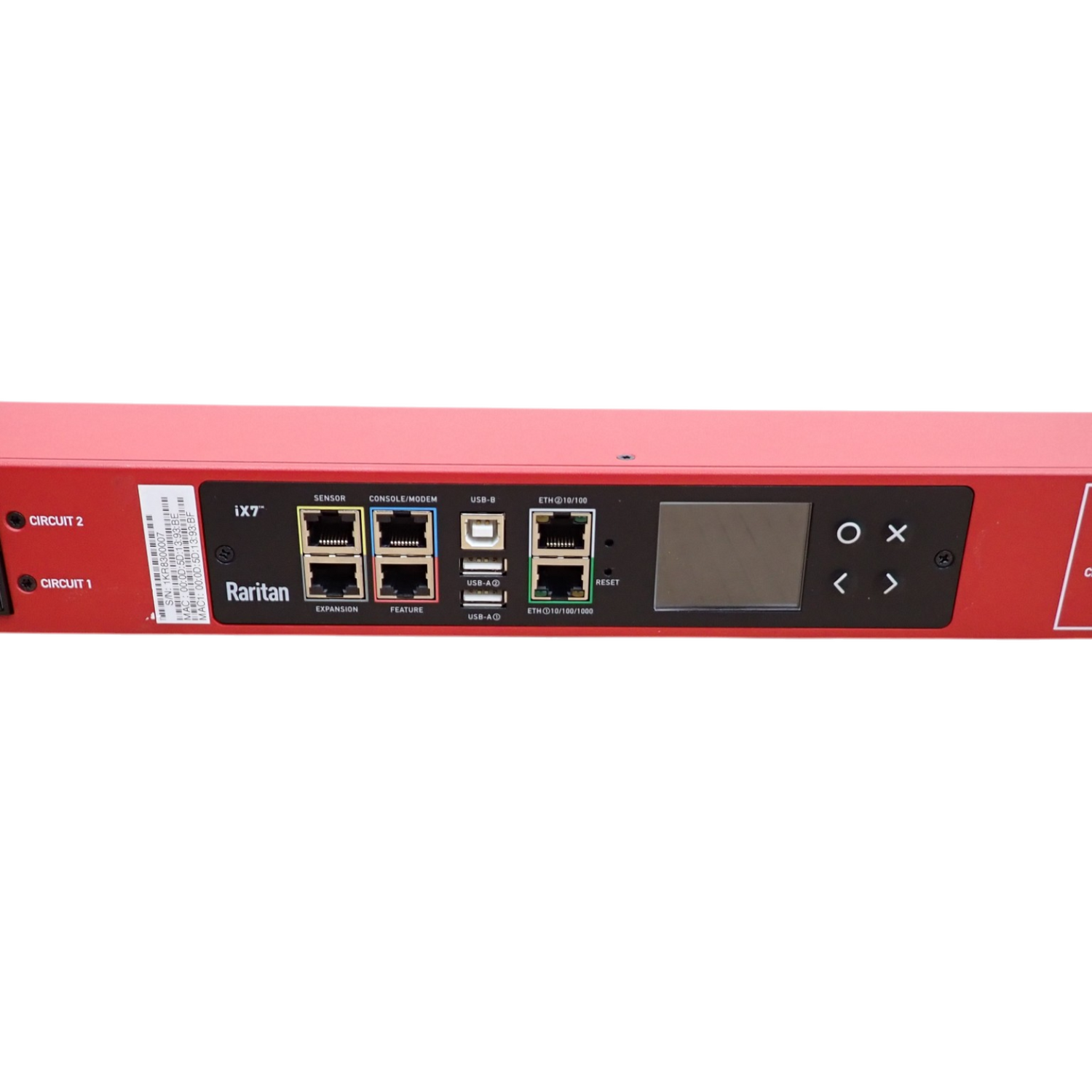

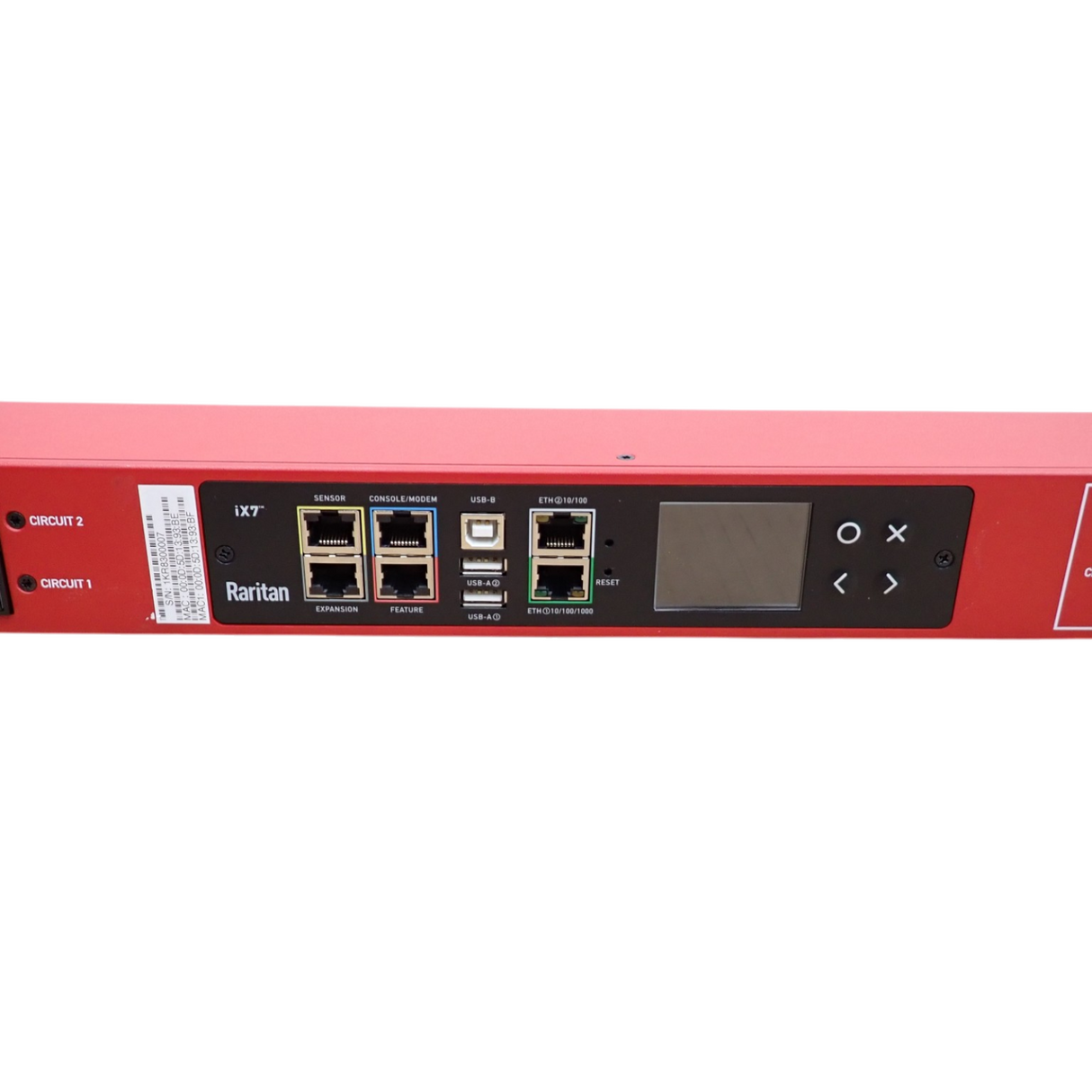

- Ethernet, serial, and USB management interfaces
- Dual Gigabit Ethernet ports for redundancy
- Remote outlet switching and per-outlet metering
- Vertical 0U mounting for space efficiency
- Three-phase power distribution for high-density loads

Specifications:

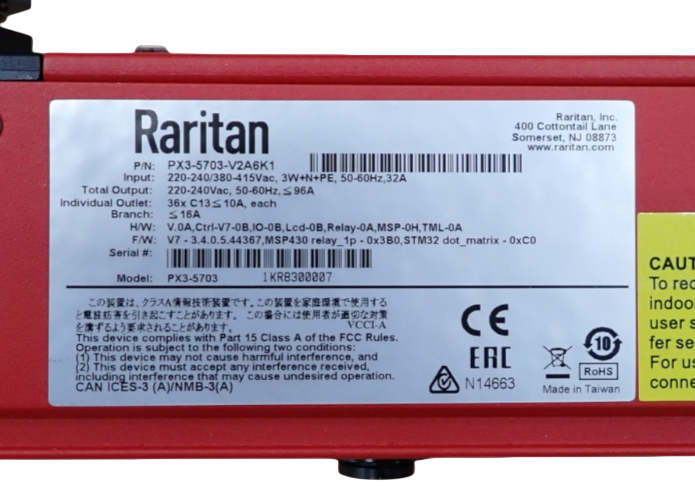

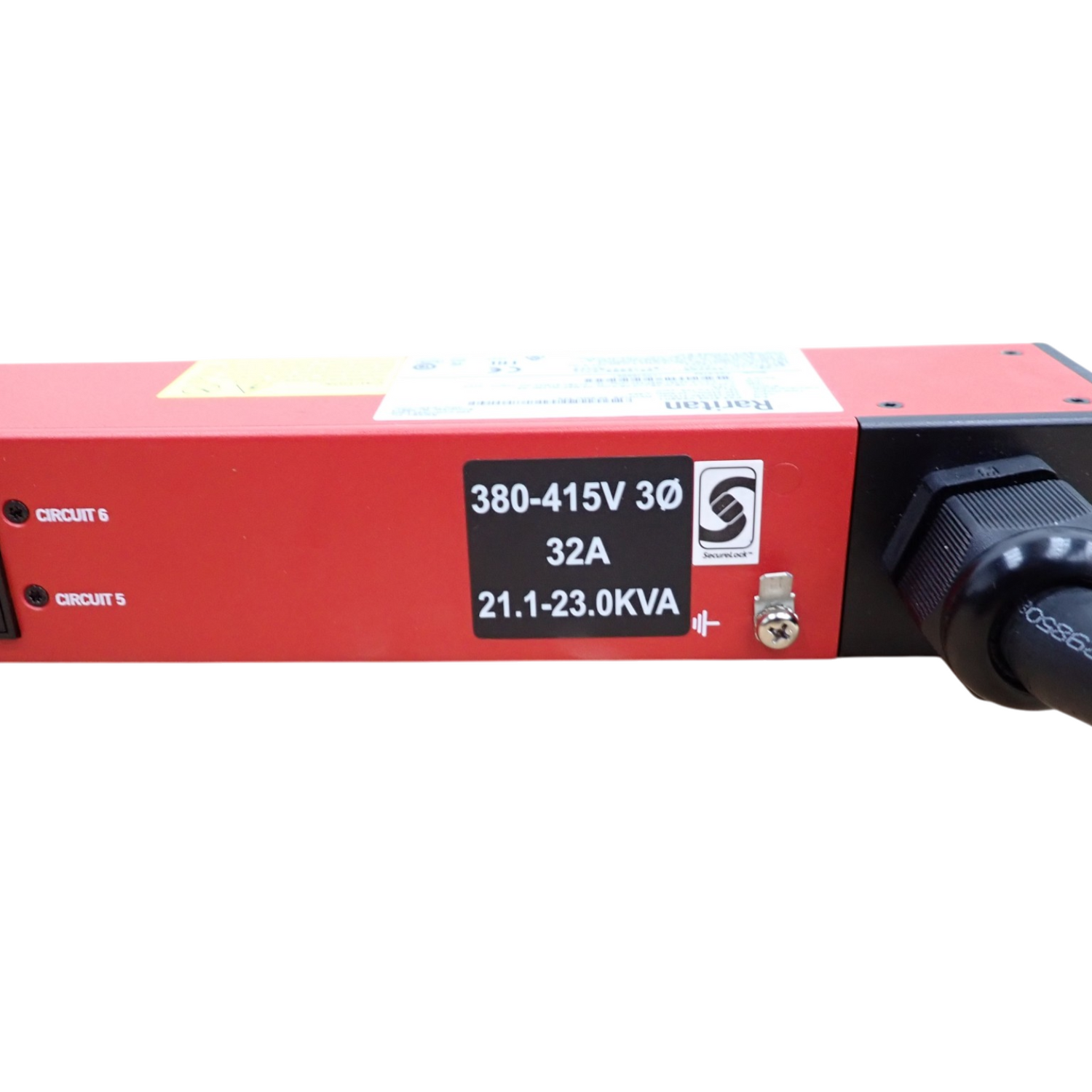

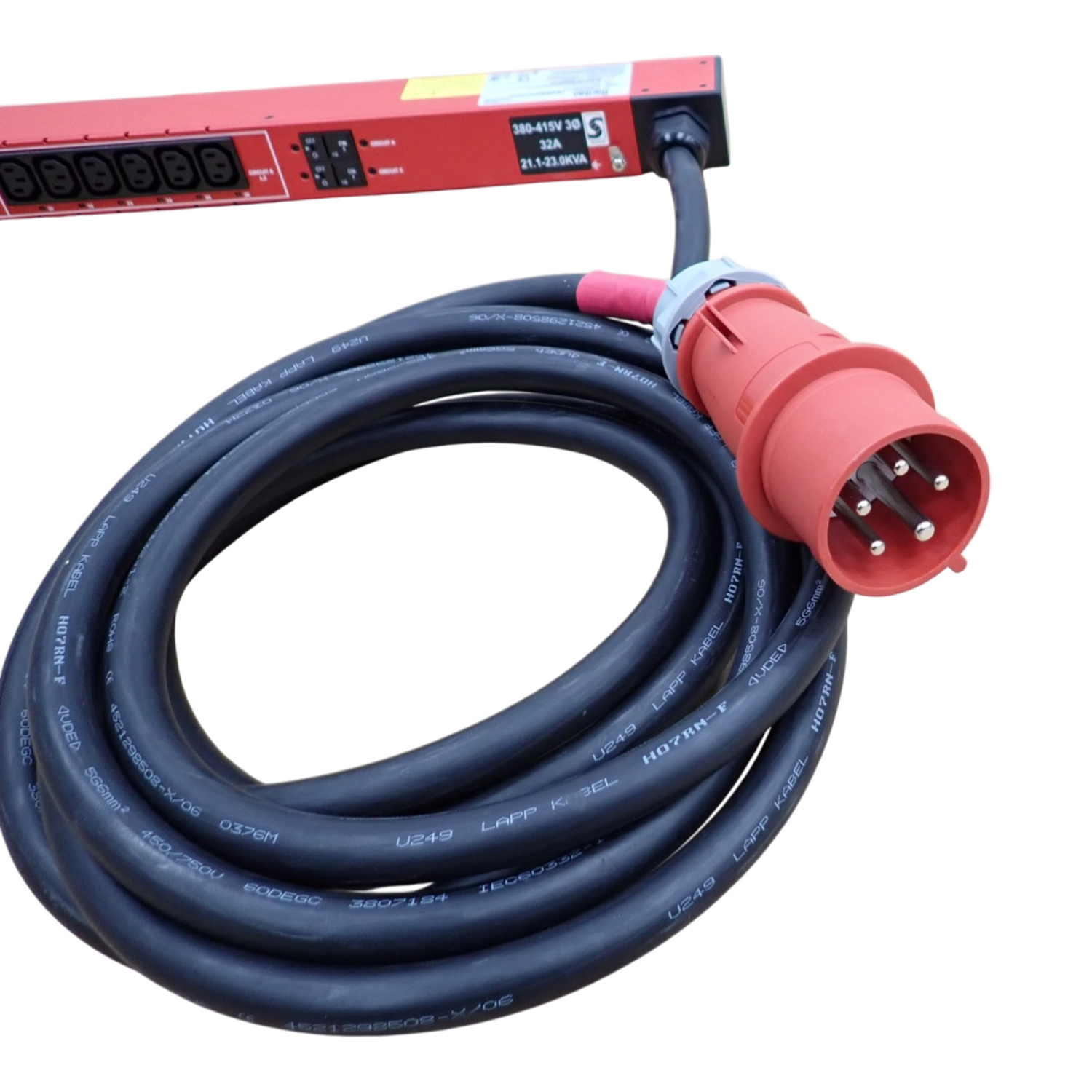

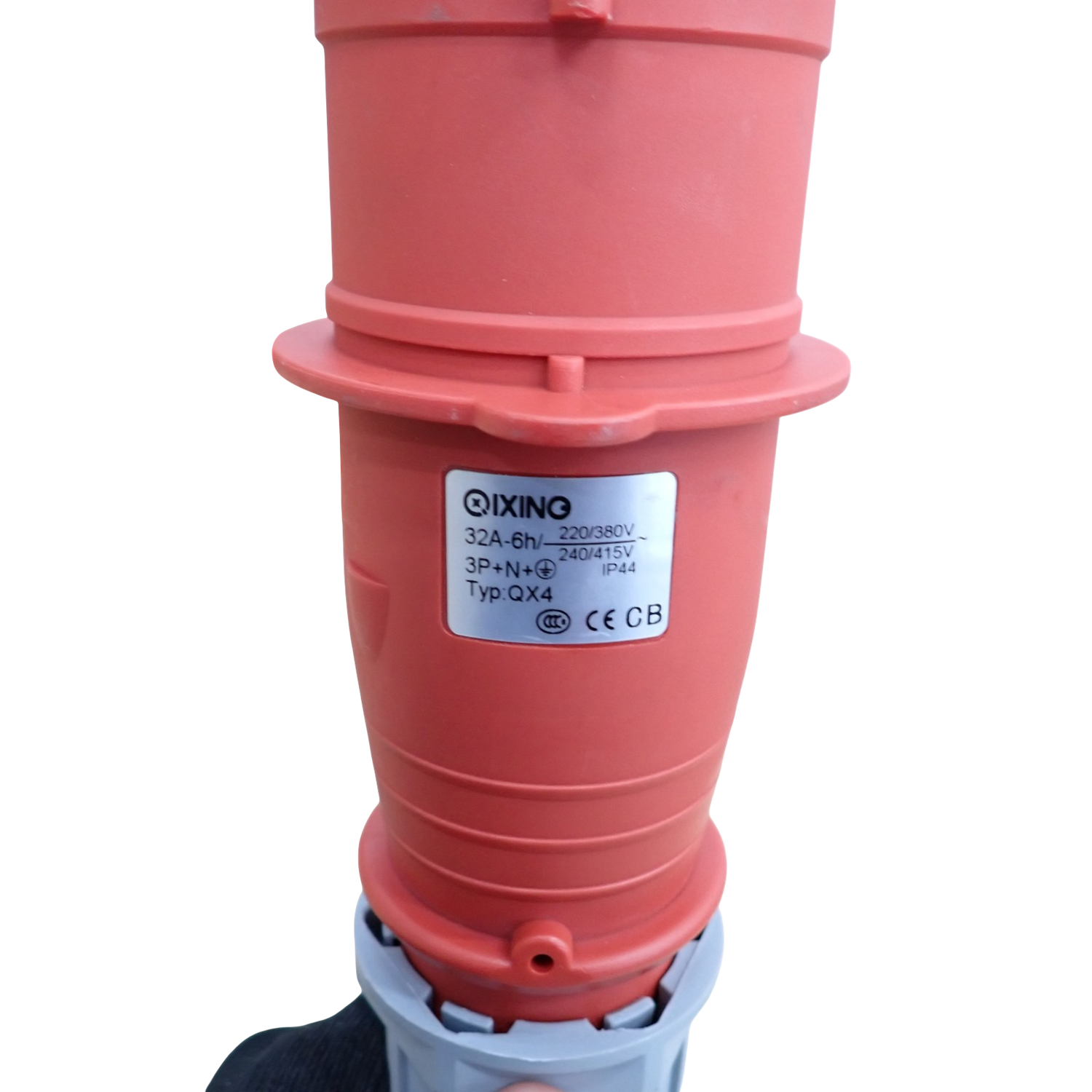

- Input: 400 V AC 3-phase (Wye), 32 A, IEC 60309 32A 3P+N+E plug, 50/60 Hz

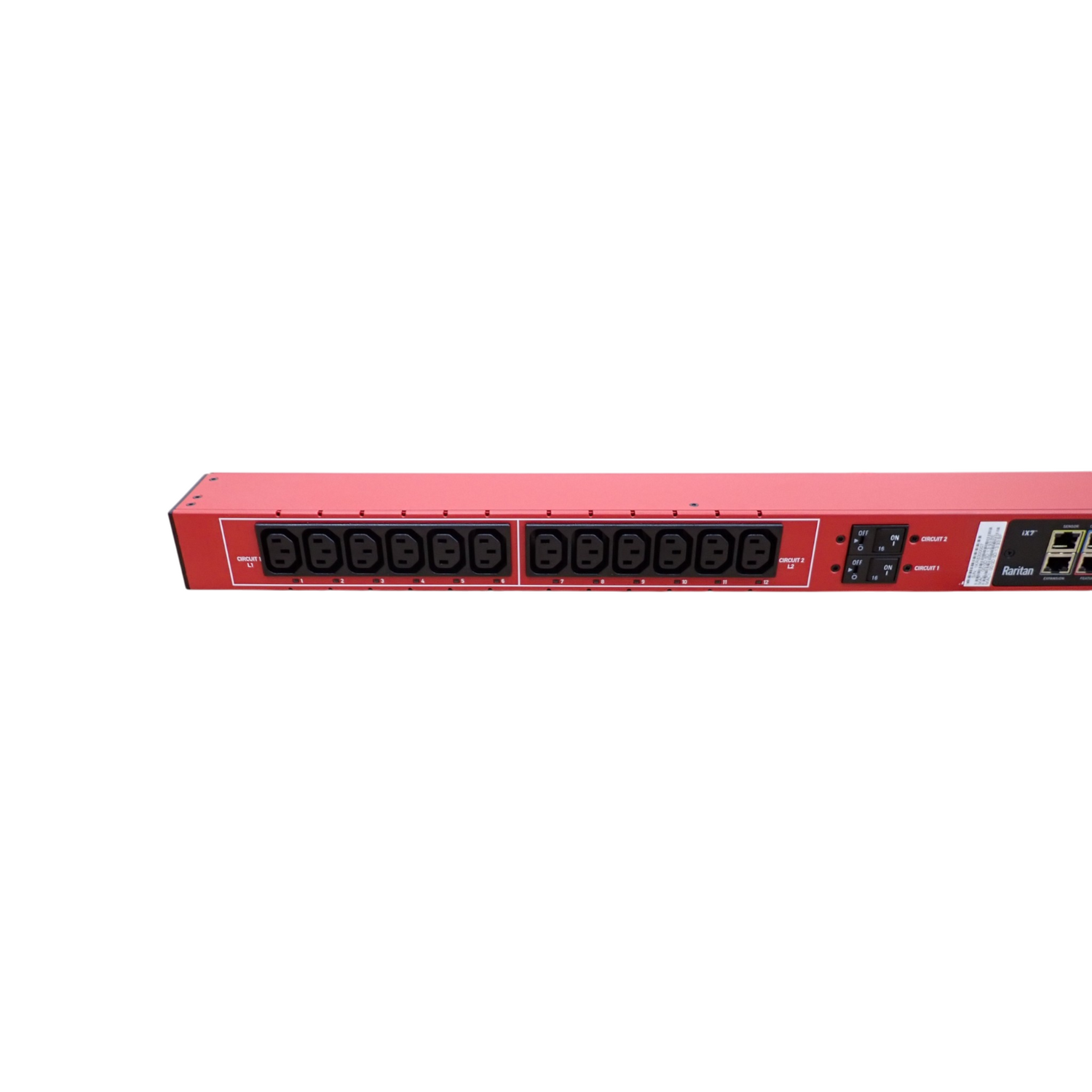

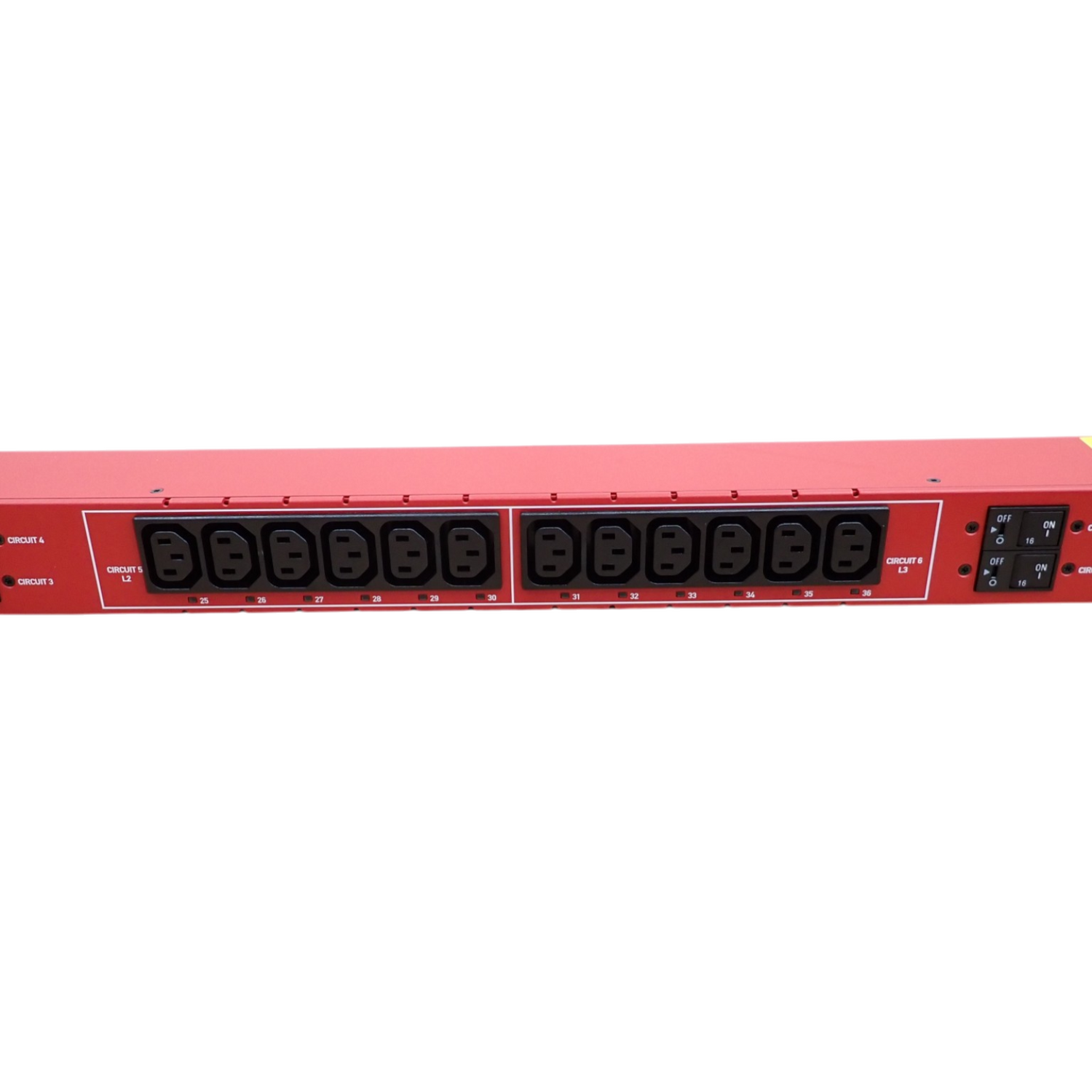

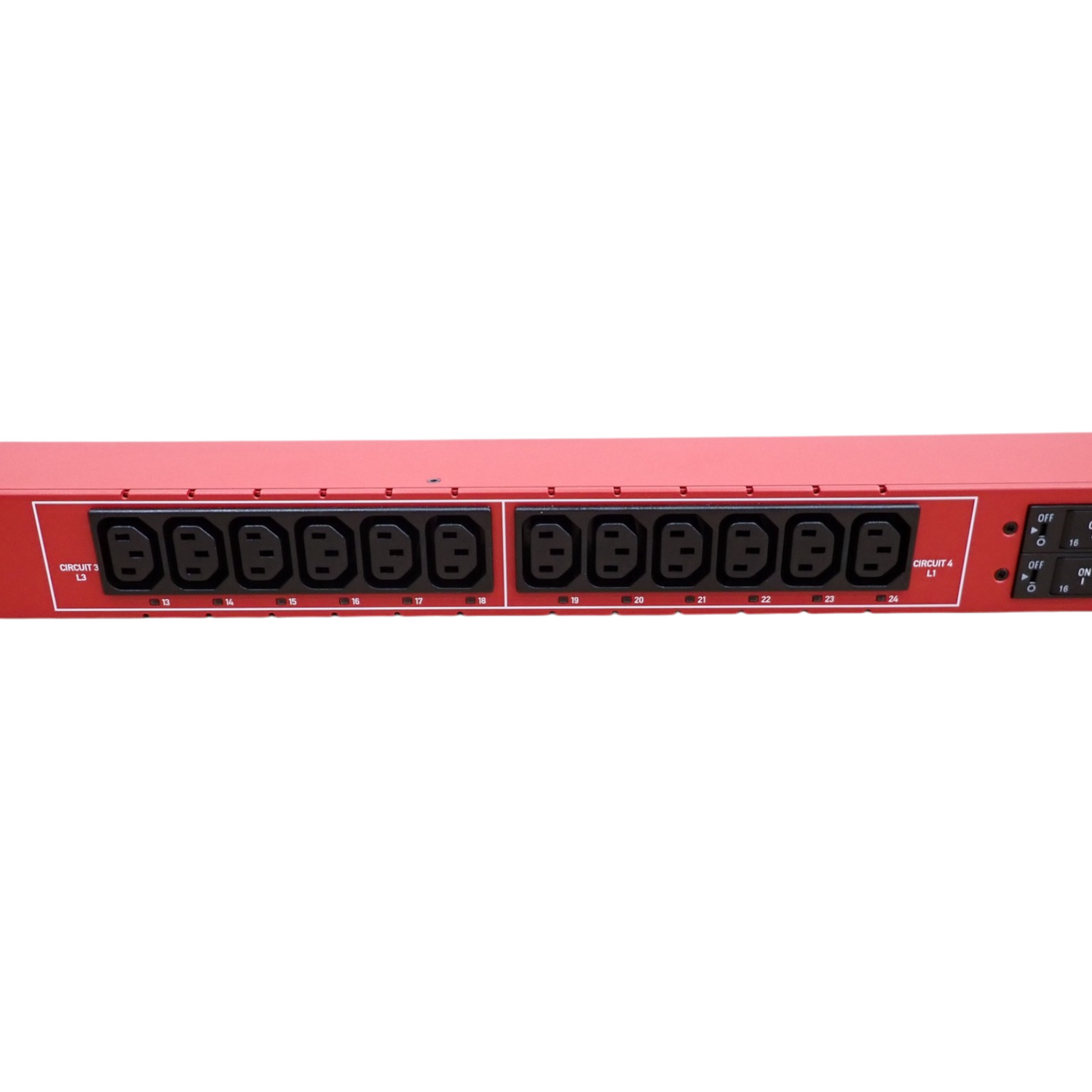

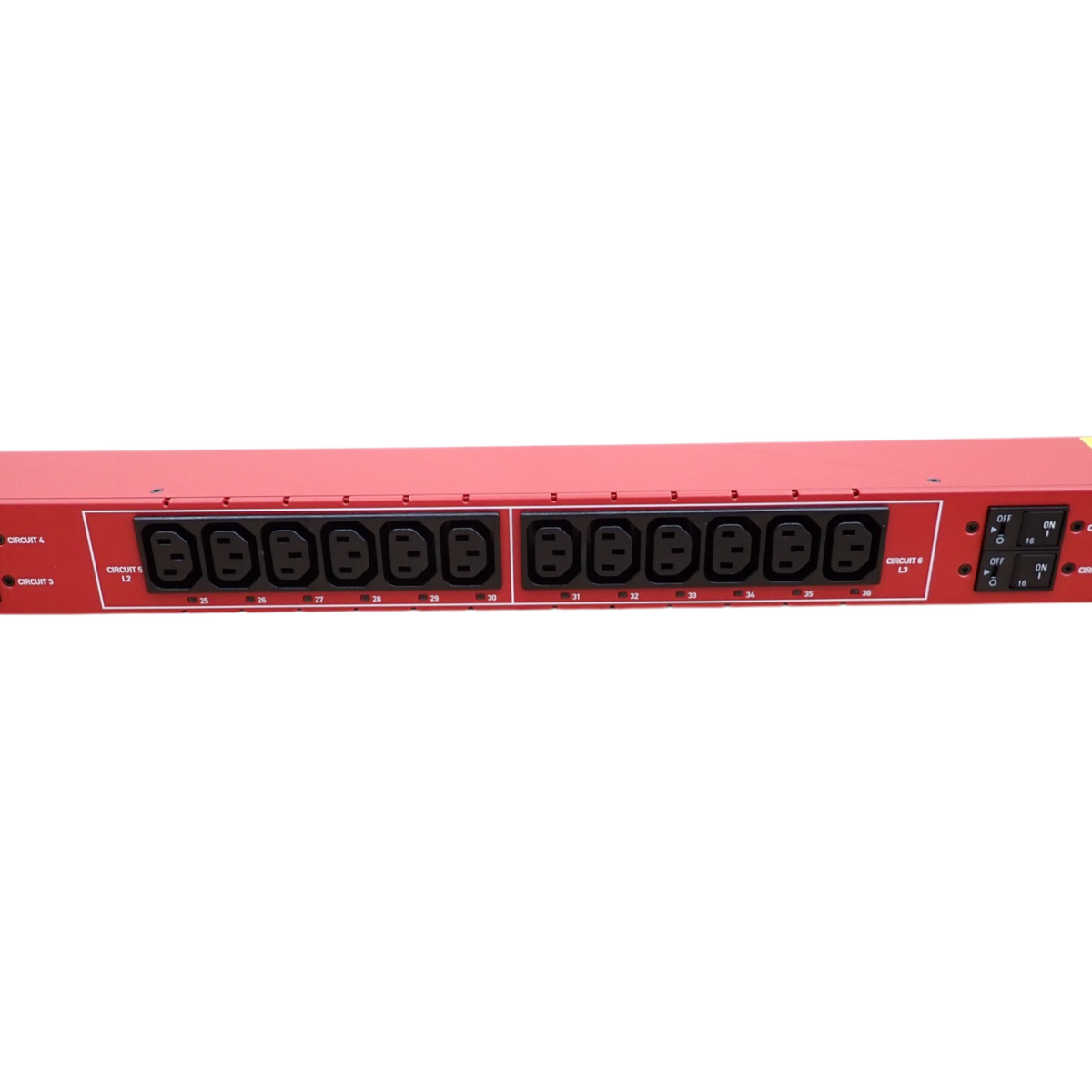

- Output: 230–240 V AC, 36 x IEC 60320 C13 receptacles
- Total capacity: 22.2 kVA
- Remote management: SNMP v2/v3, web UI, CLI, SSH, Telnet, JSON-RPC, Modbus TCP
- Environmental monitoring support with optional sensors
- Dimensions: approx. 1780 mm height
- Weight: approx. 16 kg
- Operating temperature up to 60°C, humidity up to 85% non-condensing
- CE and RoHS compliant
