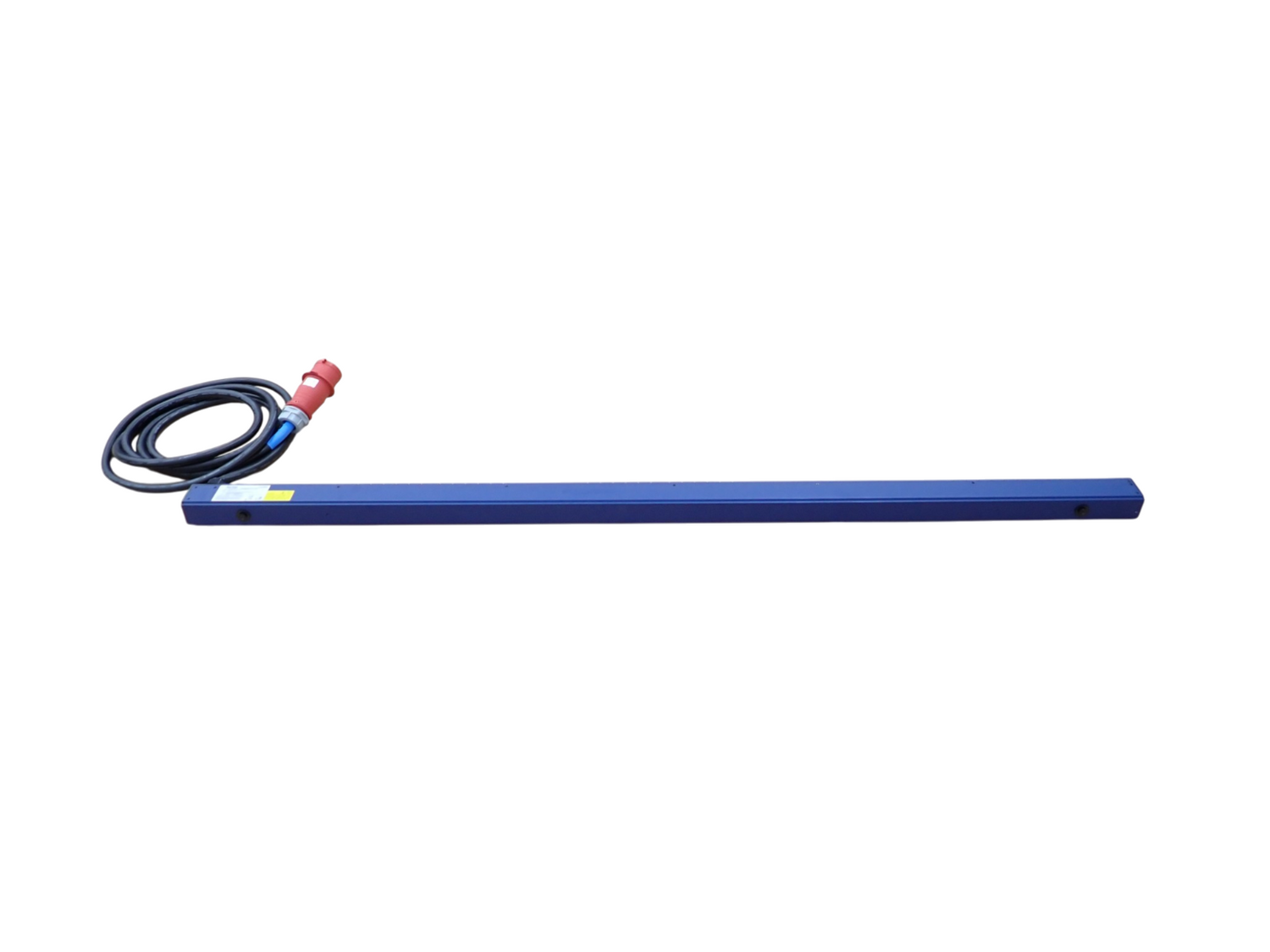

Raritan PX3-5703-V2A6K2 Three-phase 400V 32A 36x C13 0U Metered Switched PDU

Condition : Refurbished – tested and working grade A refurbished part

Raritan PX3-5703-V2A6K2 Three-phase 400V 32A 36x C13 0U Metered Switched PDU

The Raritan PX3-5703-V2A6K2 is an intelligent rack PDU offering advanced real-time power monitoring and management. It measures current, voltage, power, and energy consumption with ISO/IEC billing-grade accuracy suitable for critical infrastructure. Designed for high-density rack environments, it supports environmental sensors, configurable alerts, and remote management through web GUI or CLI. Fully compatible with Raritan Power IQ energy management software.

Features:
- Real-time current, voltage, power, and energy monitoring
- User-defined thresholds with SNMP, email, and syslog alerts
- ISO/IEC billing-grade metering accuracy (±1%)

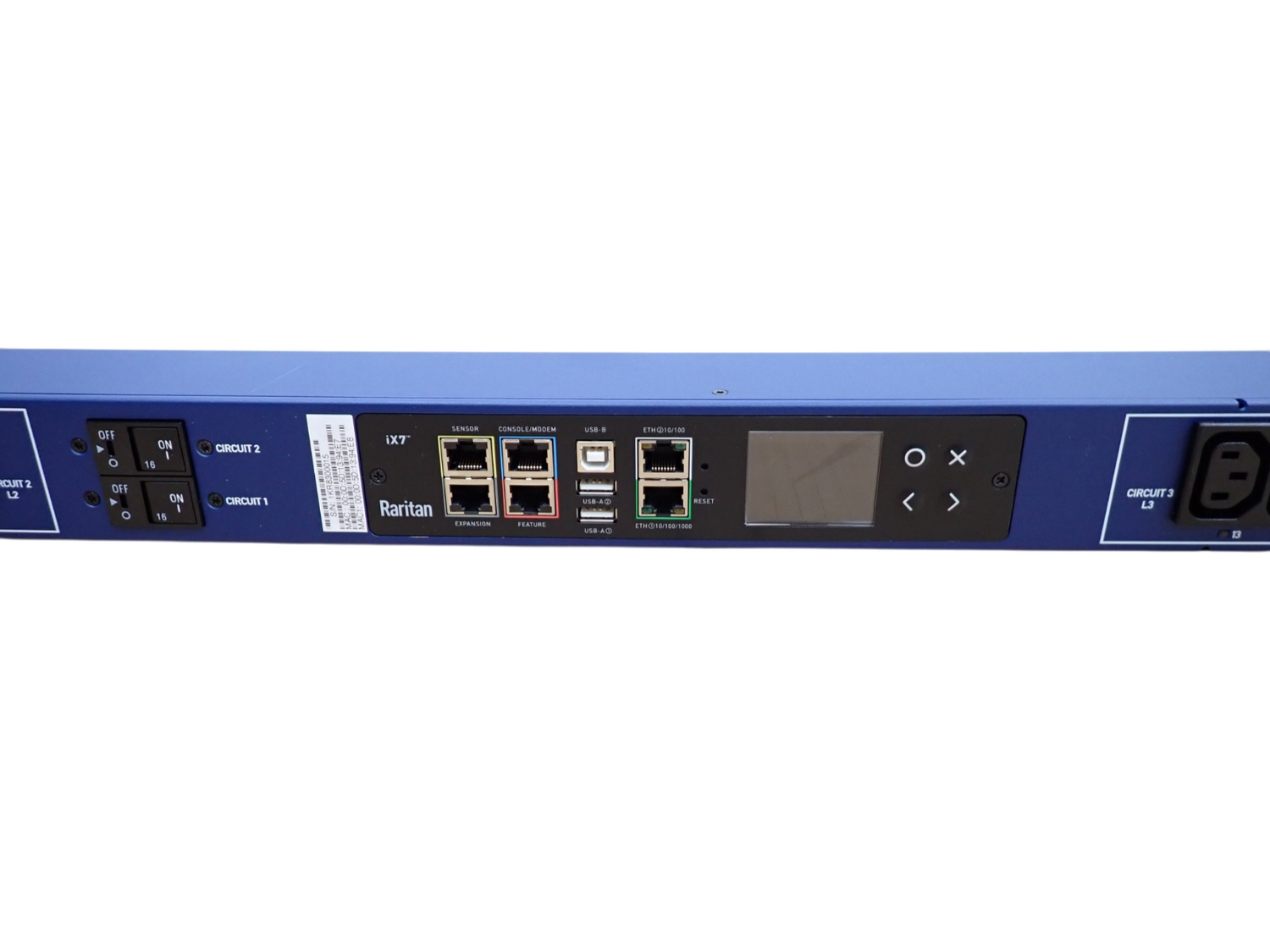

- Ethernet, serial, and USB management interfaces
- Dual Gigabit Ethernet ports (primary and redundant)
- Remote outlet switching and per-outlet metering

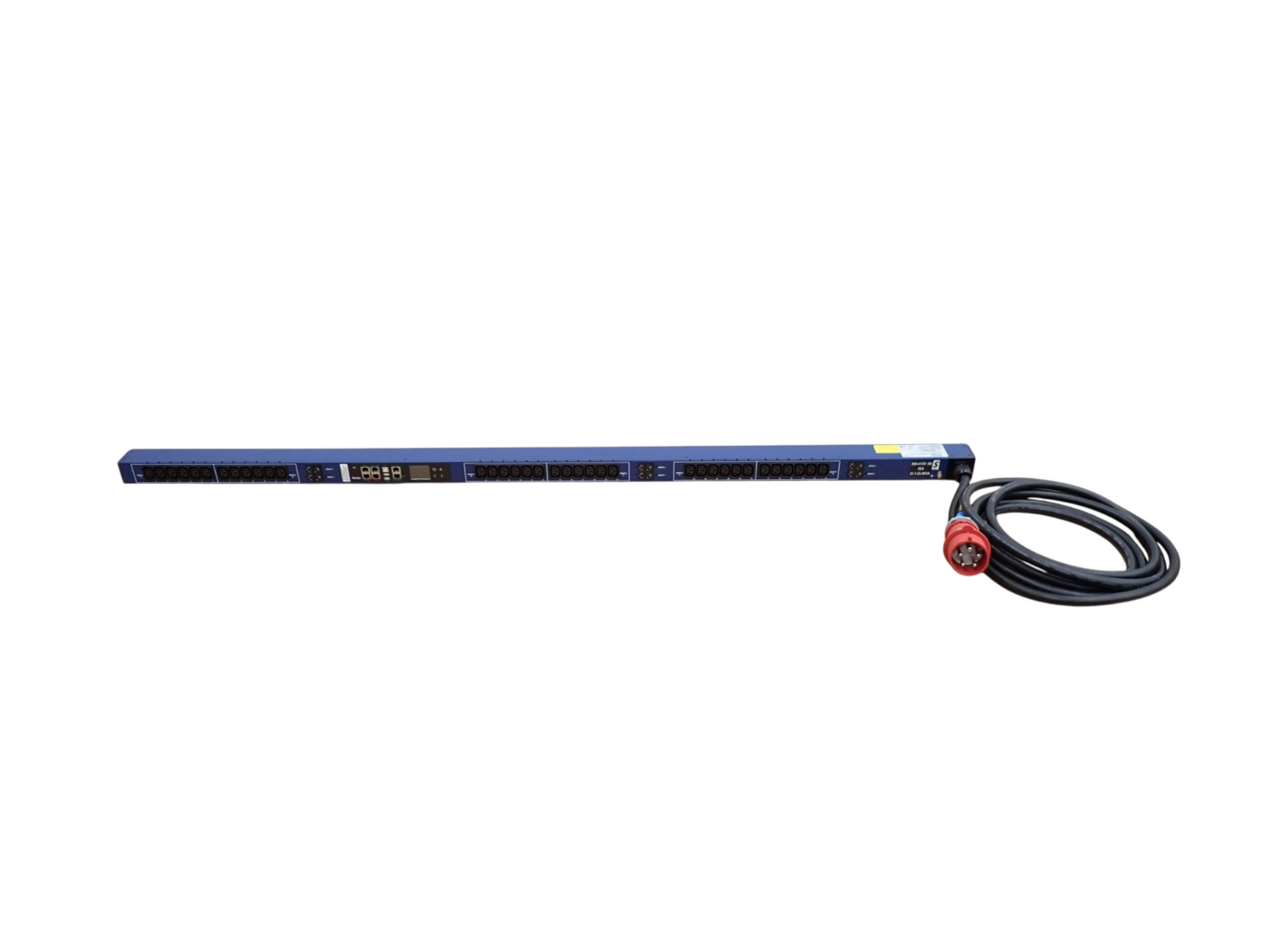

- Vertical 0U mounting for efficient space utilisation
- Three-phase power distribution for demanding loads

Specifications:

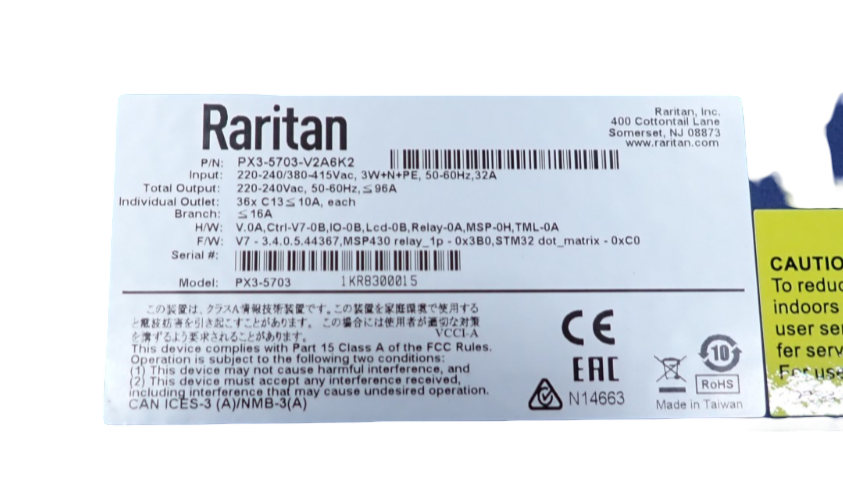

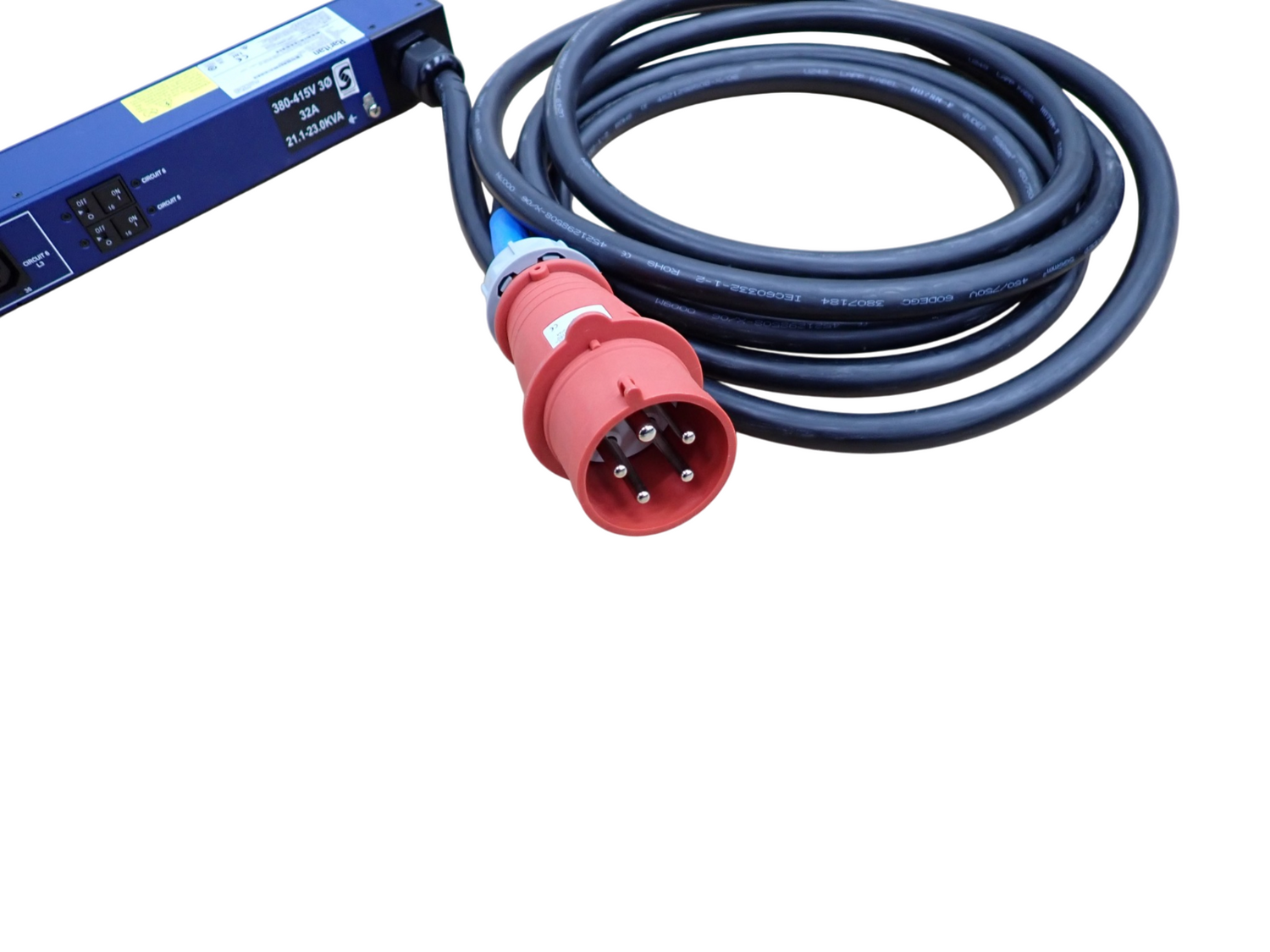

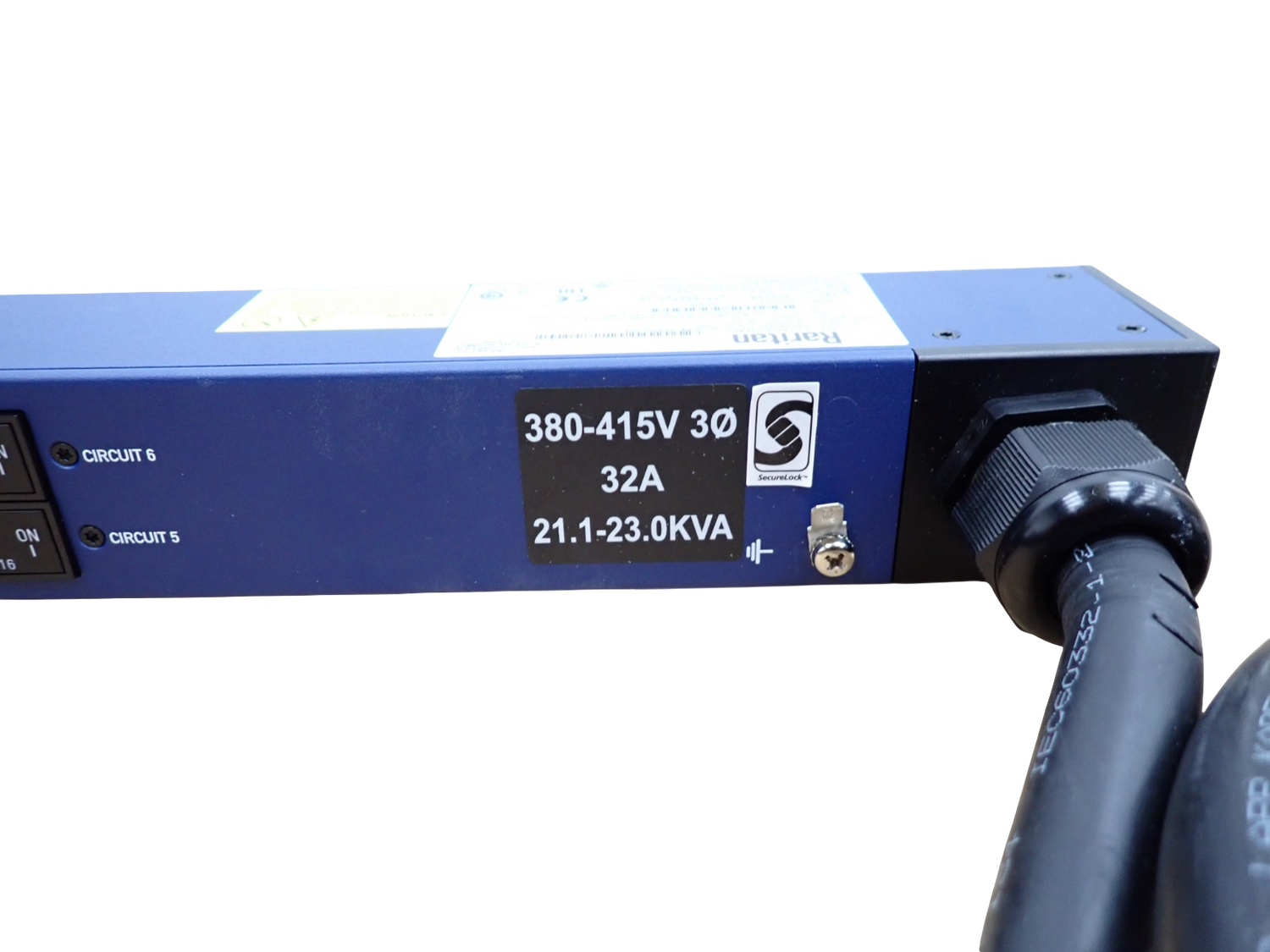

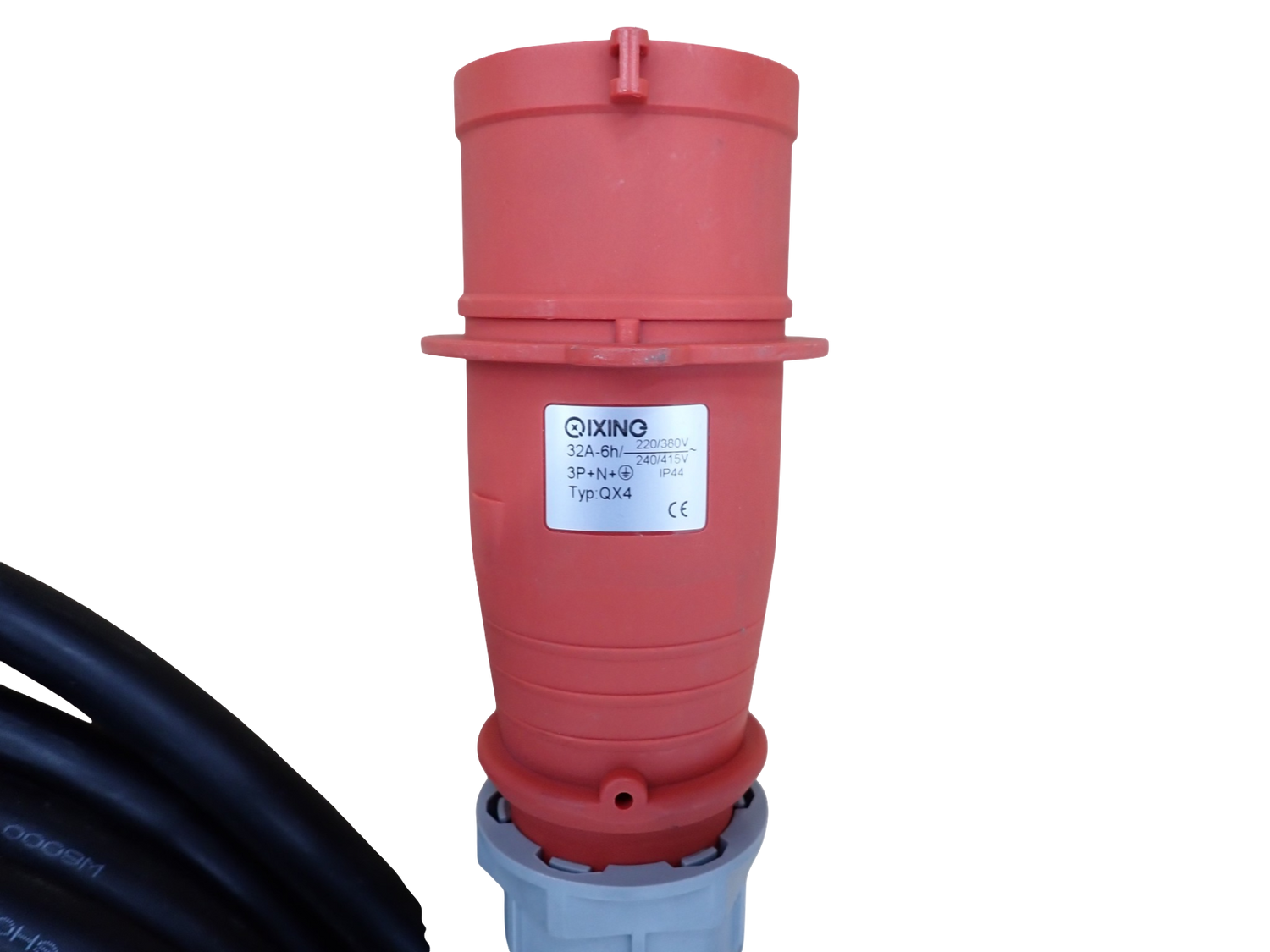

- Input: 400 V AC 3-phase (Wye), 32 A, IEC 60309 32A 3P+N+E plug, 50/60 Hz

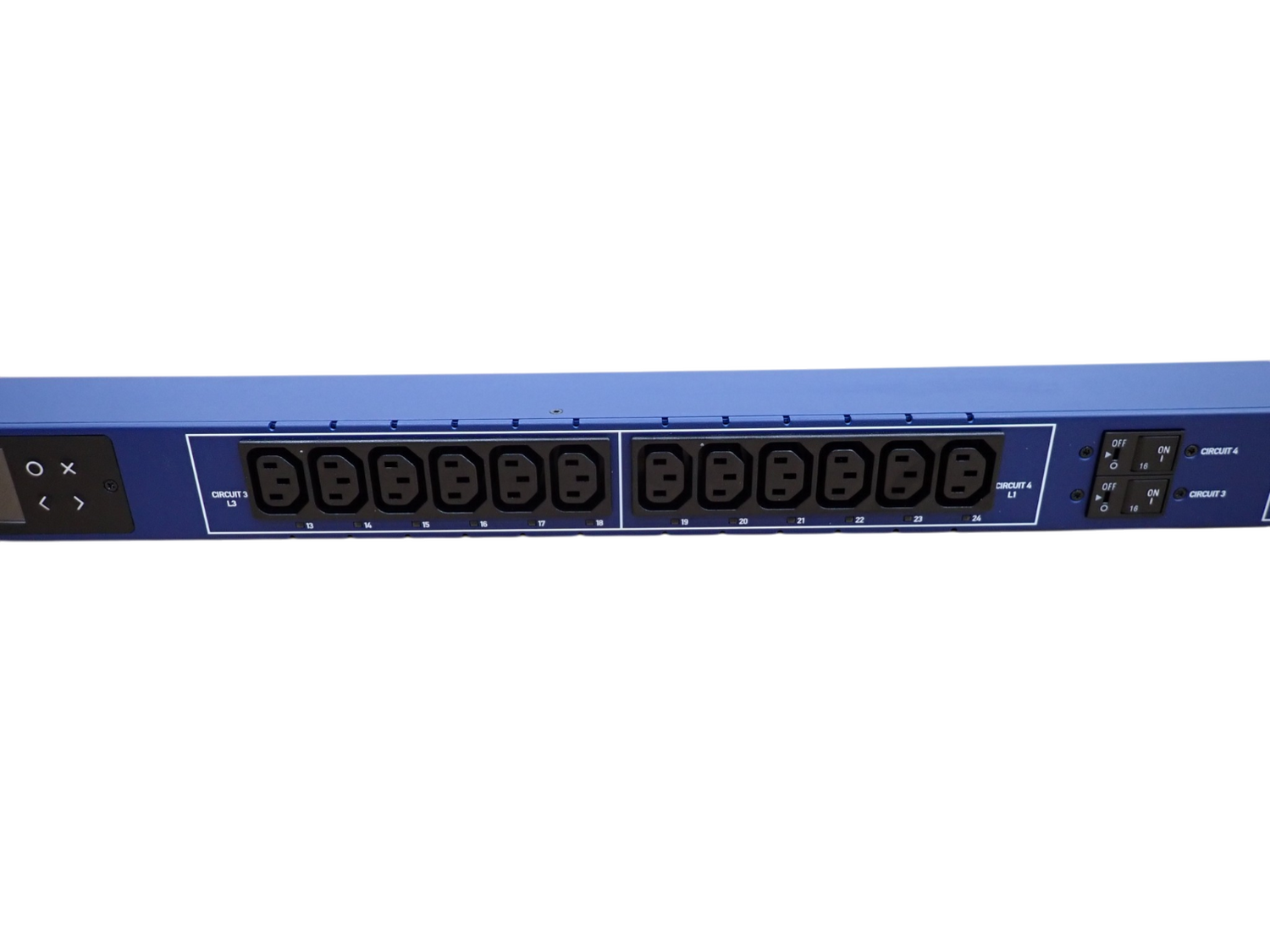

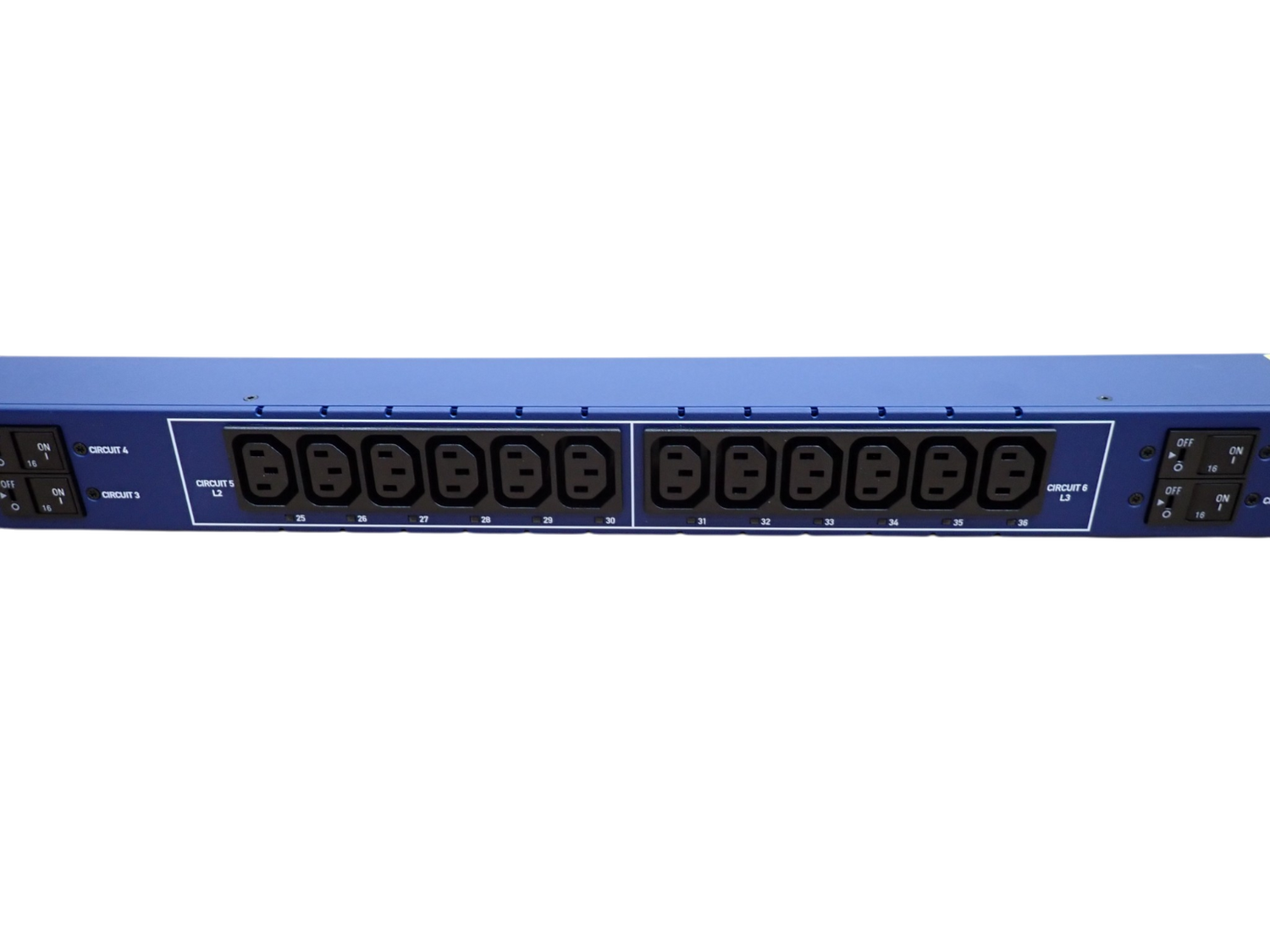

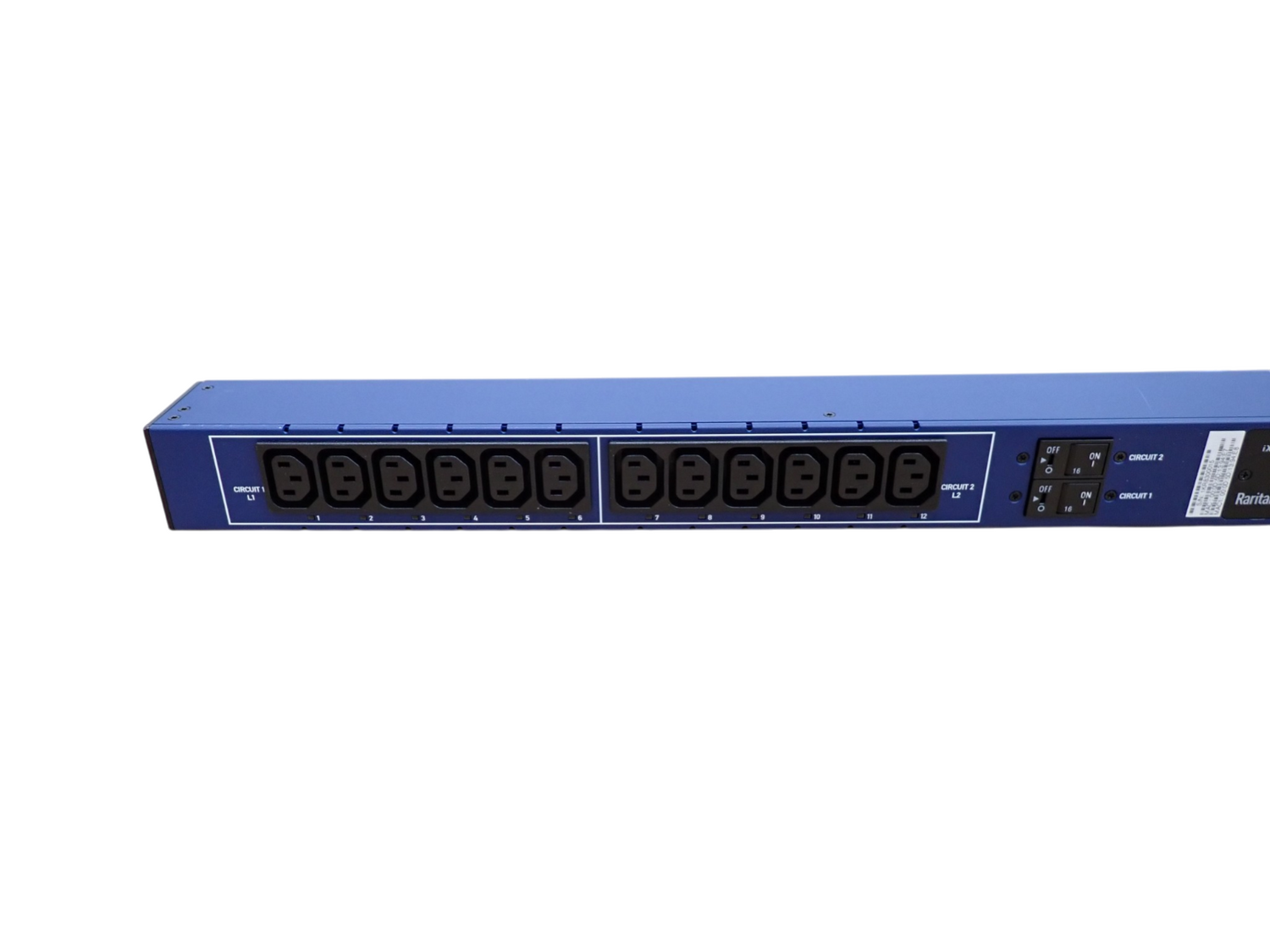

- Output: 230–240 V AC, 36 x IEC 60320 C13 outlets
- Power capacity: 22.2 kVA
- Remote management protocols: SNMP v2/v3, web UI, CLI, SSH, Telnet, JSON-RPC, Modbus TCP
- Optional environmental sensor support
- Dimensions approx. 1780 mm height
- Weight approx. 16 kg
- Operating temperature max 60°C, humidity max 85% non-condensing
- CE and RoHS compliant
