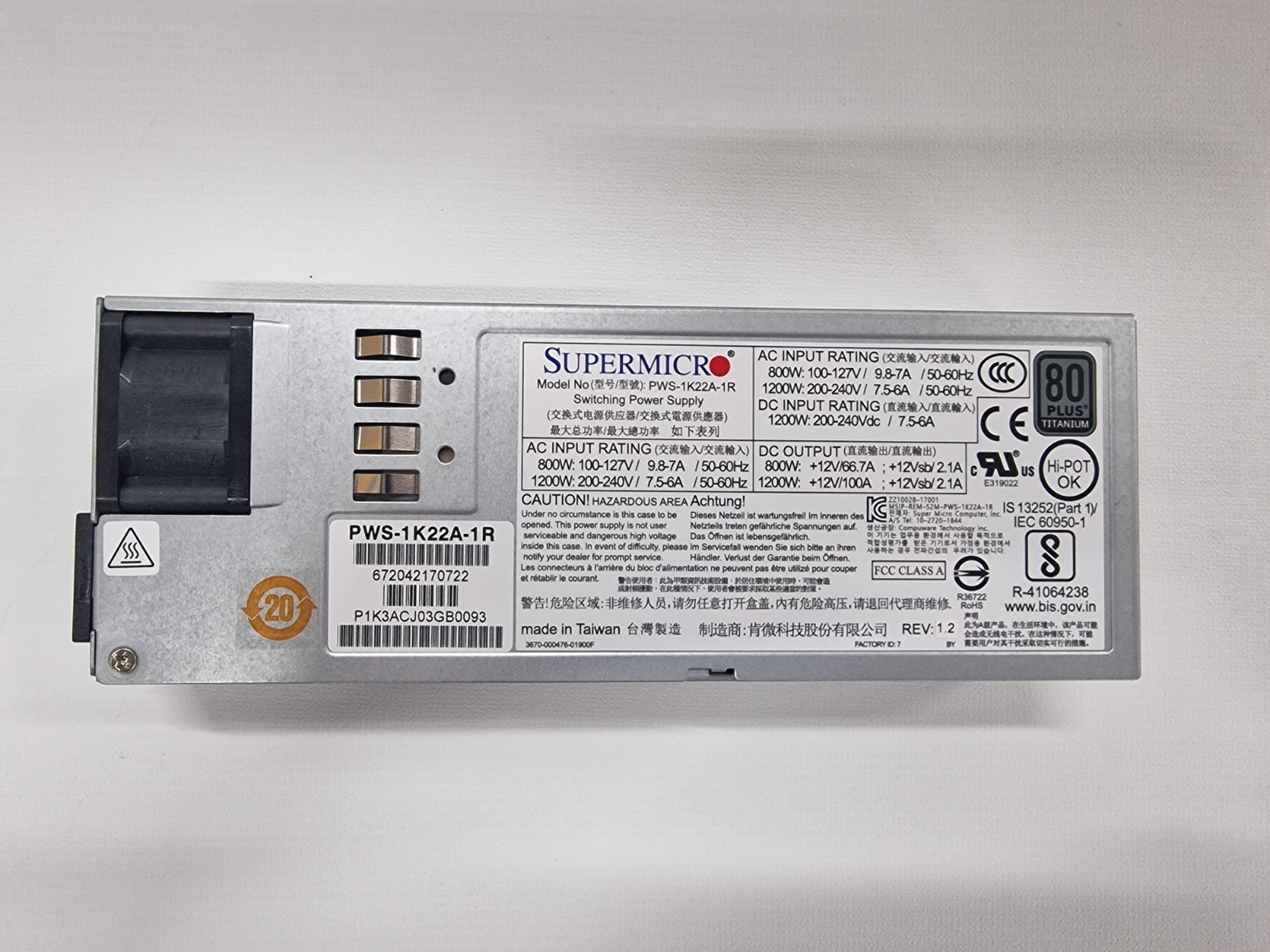

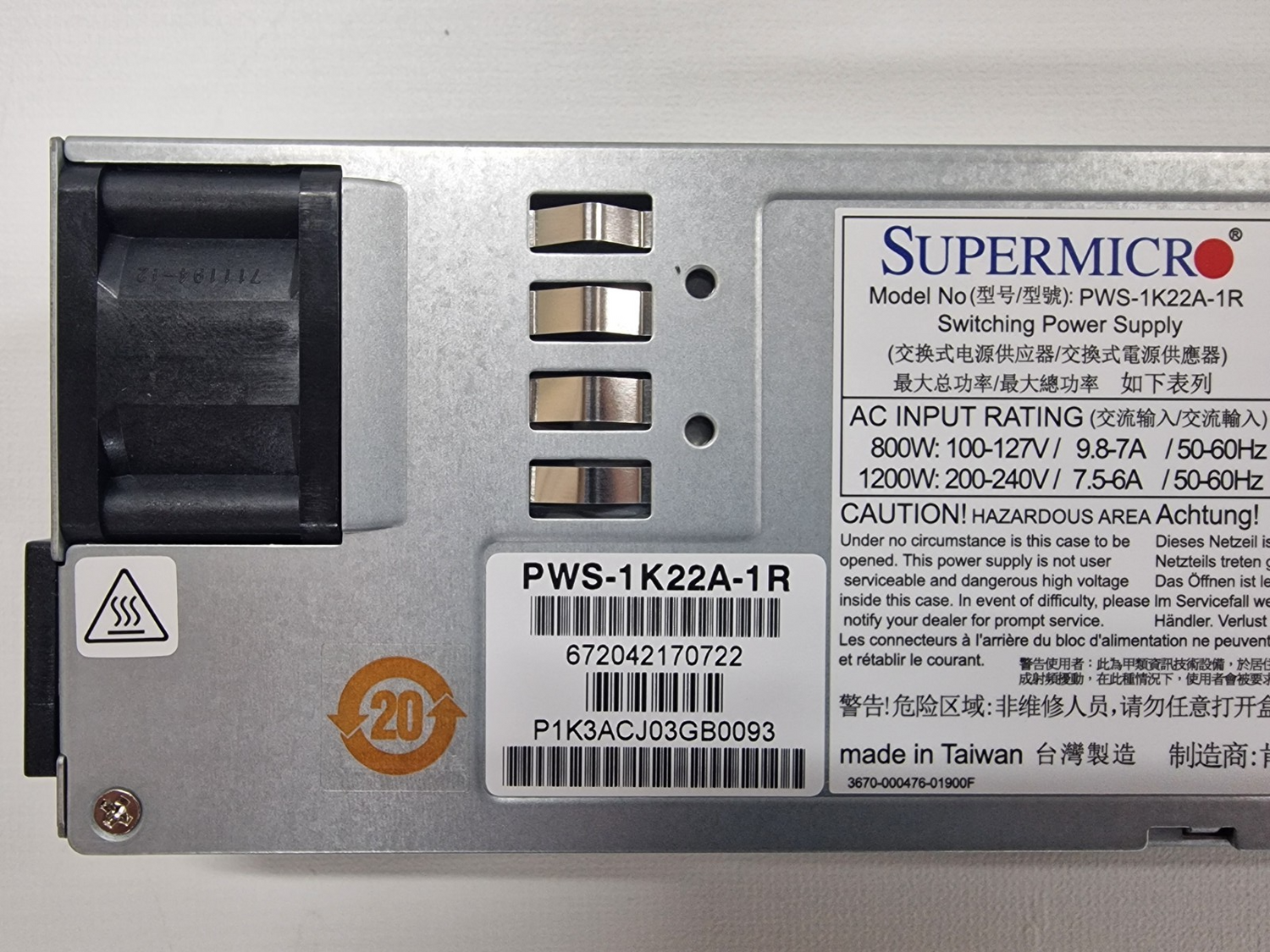

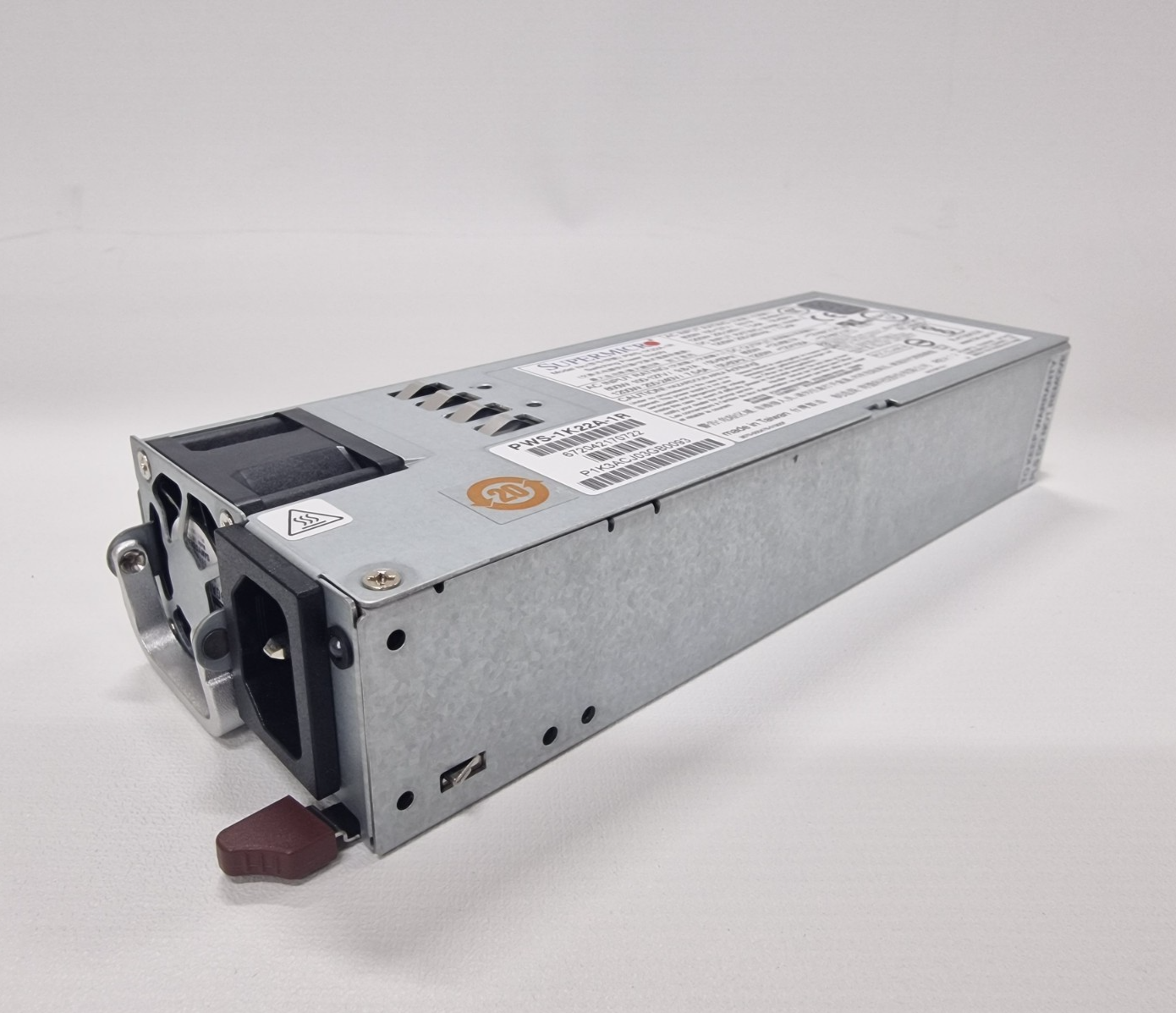

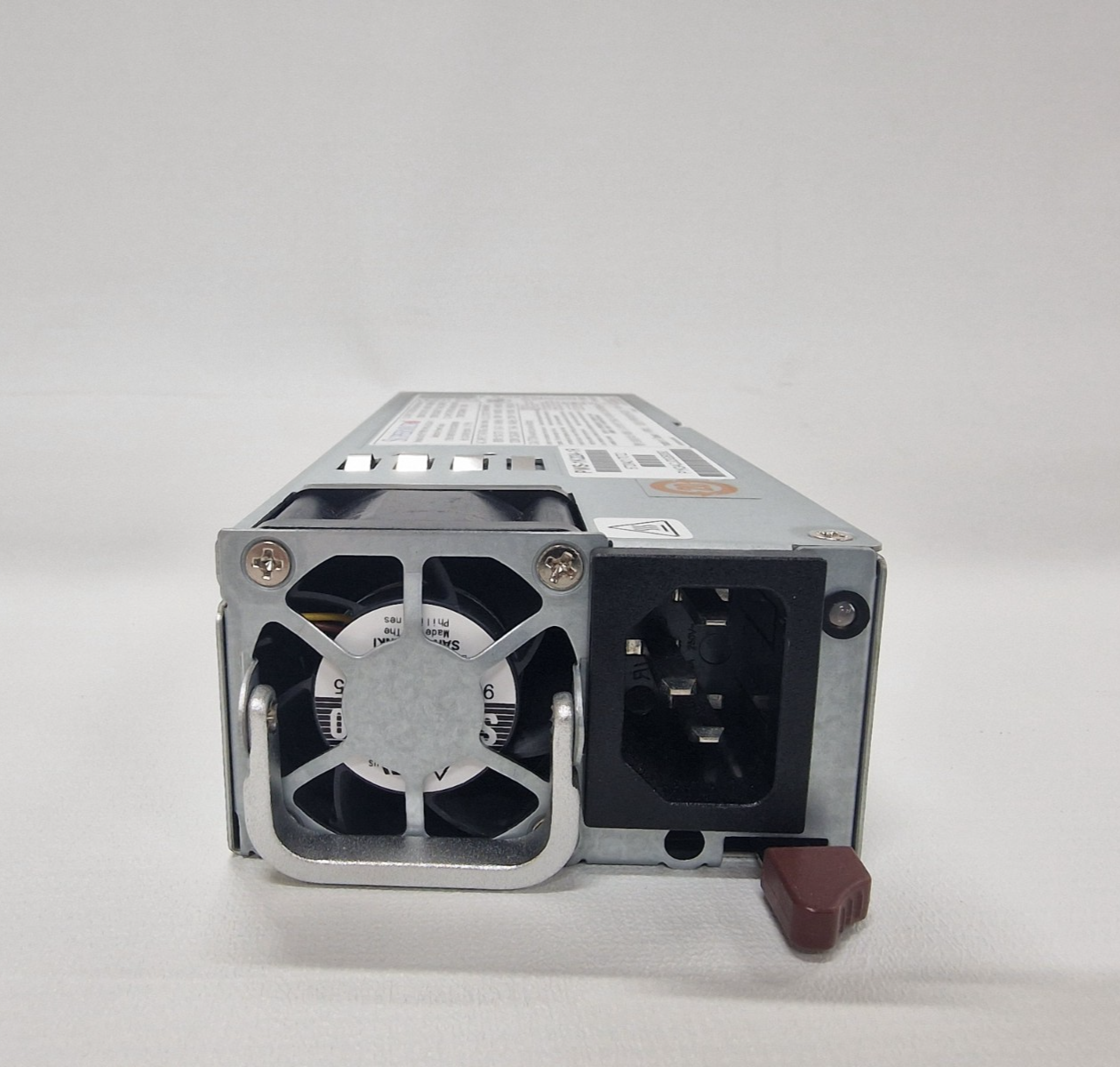

Supermicro PWS-1K22A-1R 1200W Titanium Hot-Swap Server Power Supply

Condition : Refurbished – tested and working grade A refurbished part

Supermicro PWS-1K22A-1R 1200W Titanium Hot-Swap Server Power Supply

Overview:
The Supermicro PWS-1K22A-1R is a high-efficiency, hot-swappable power supply module designed for 1U rack-mount servers. It features an 80 Plus Titanium certification with up to 96% efficiency. The unit delivers 800 W at lower input voltage (100–127 VAC) and 1,200 W at higher input voltage (200–240 VAC). It includes active PFC and offers protection against over-voltage, over-current, short circuits, and overheating. Compatible with PMBus 1.2, it supports remote monitoring and redundancy control. Compact size and card-edge backplane connector ensure seamless integration into Supermicro systems, enabling hot-swap redundancy.

Specifications:
- Power Output: 800 W (100–127 VAC), 1,200 W (200–240 VAC)
- Efficiency: ≥ 96% (80 Plus Titanium)
- Input: 100–127 VAC: 9.8–7 A; 200–240 VAC: 7.5–6 A; 50–60 Hz (200–240 VDC accepted)
- Power Factor: Typically 99%
- Output Voltage/Current: +12 V: 66.7 A (800 W) / 100 A (1,200 W); +12 Vsb: 2.1 A
- Voltage Regulation: ±5%
- Ripple & Noise: 120 mV
- Hold-Up Time: PWOK: 10 ms at 70% load; 12 V: 11 ms at 70% load

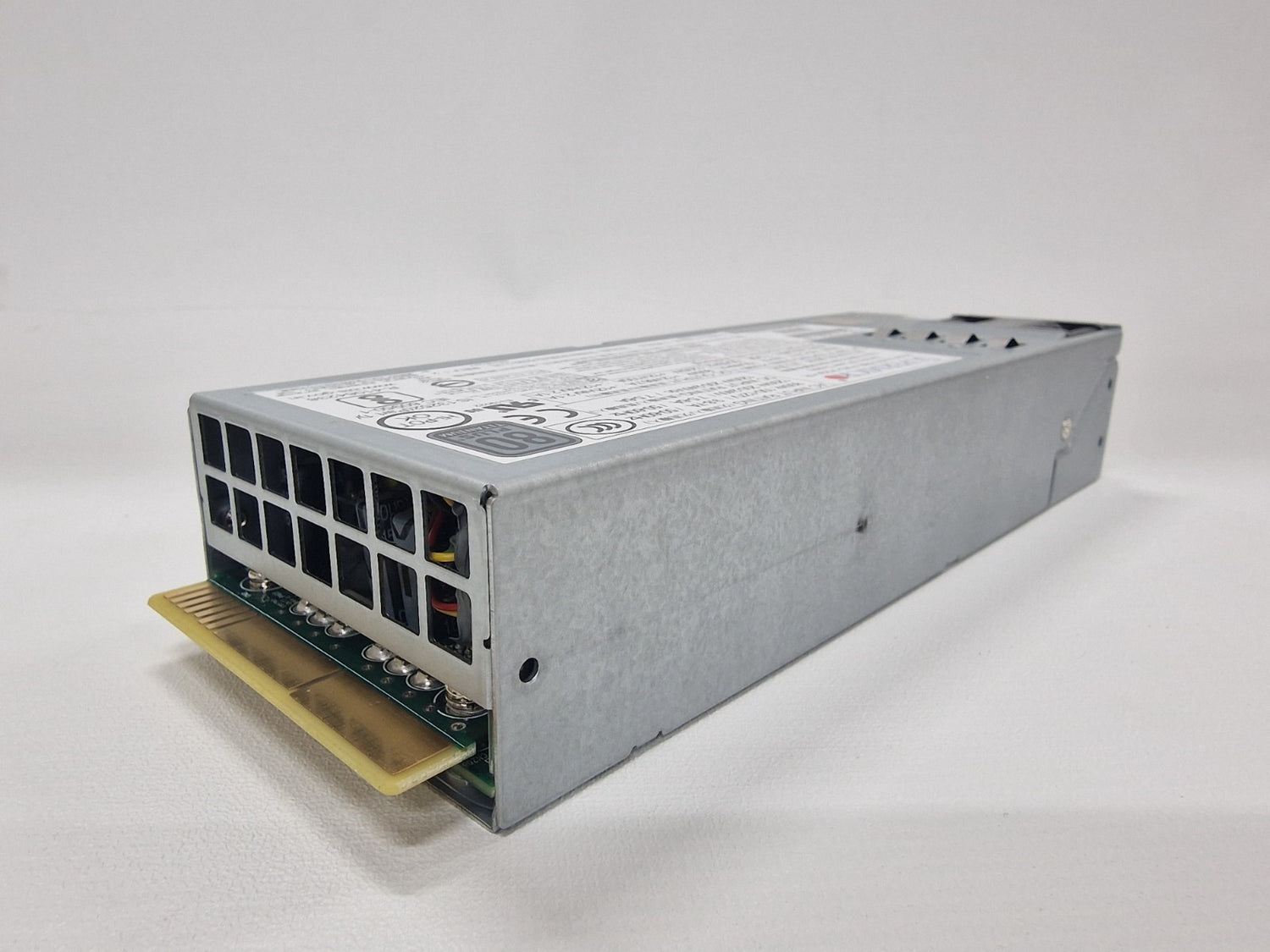

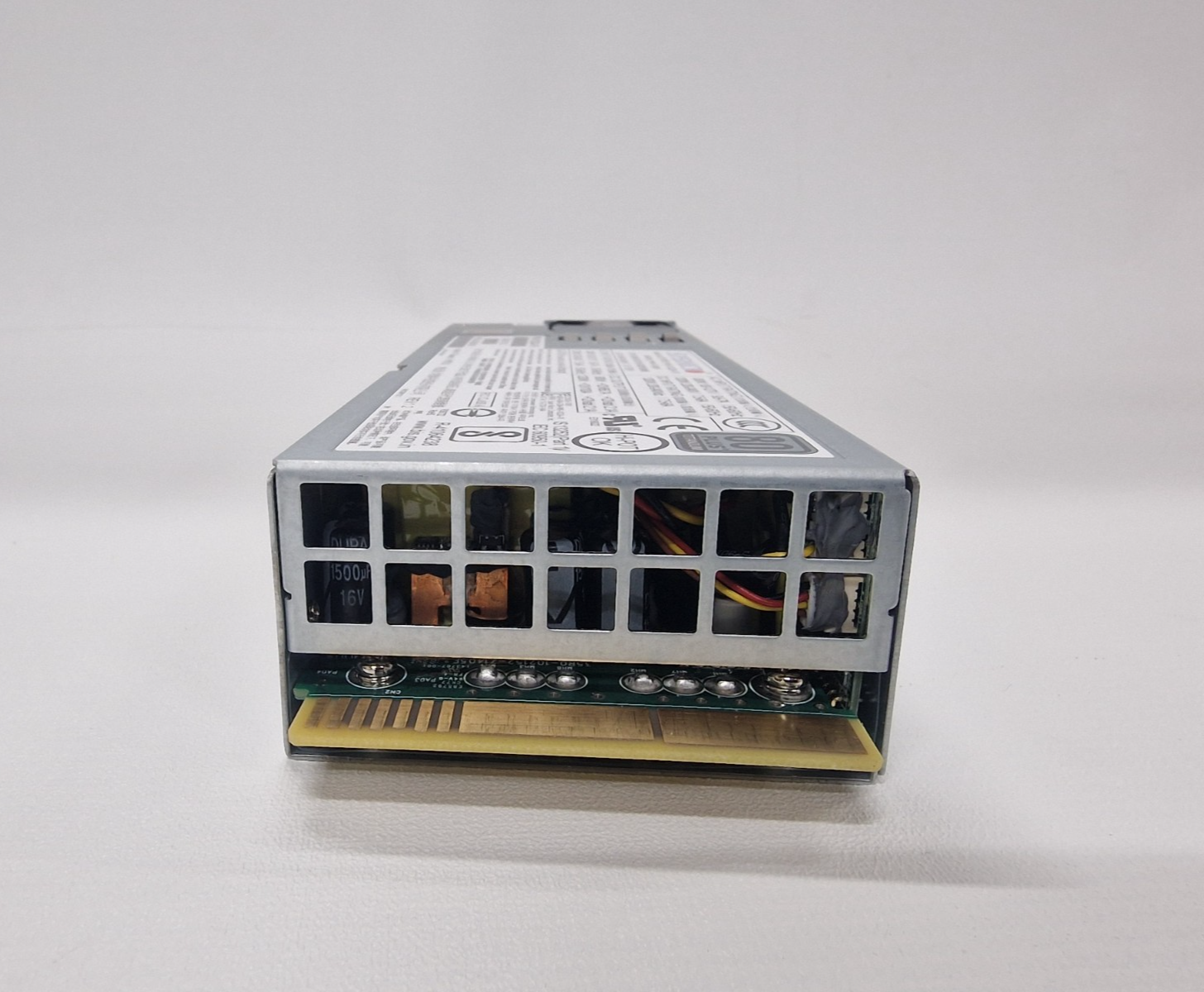

- Connector Type: 25-pair gold-finger backplane interface
- Remote Management: PMBus 1.2 compatible
- Cooling & Redundancy: Hot-swappable with N+1 support
- Protections: Over-current, over-voltage, short circuit, over-temperature, input undervoltage

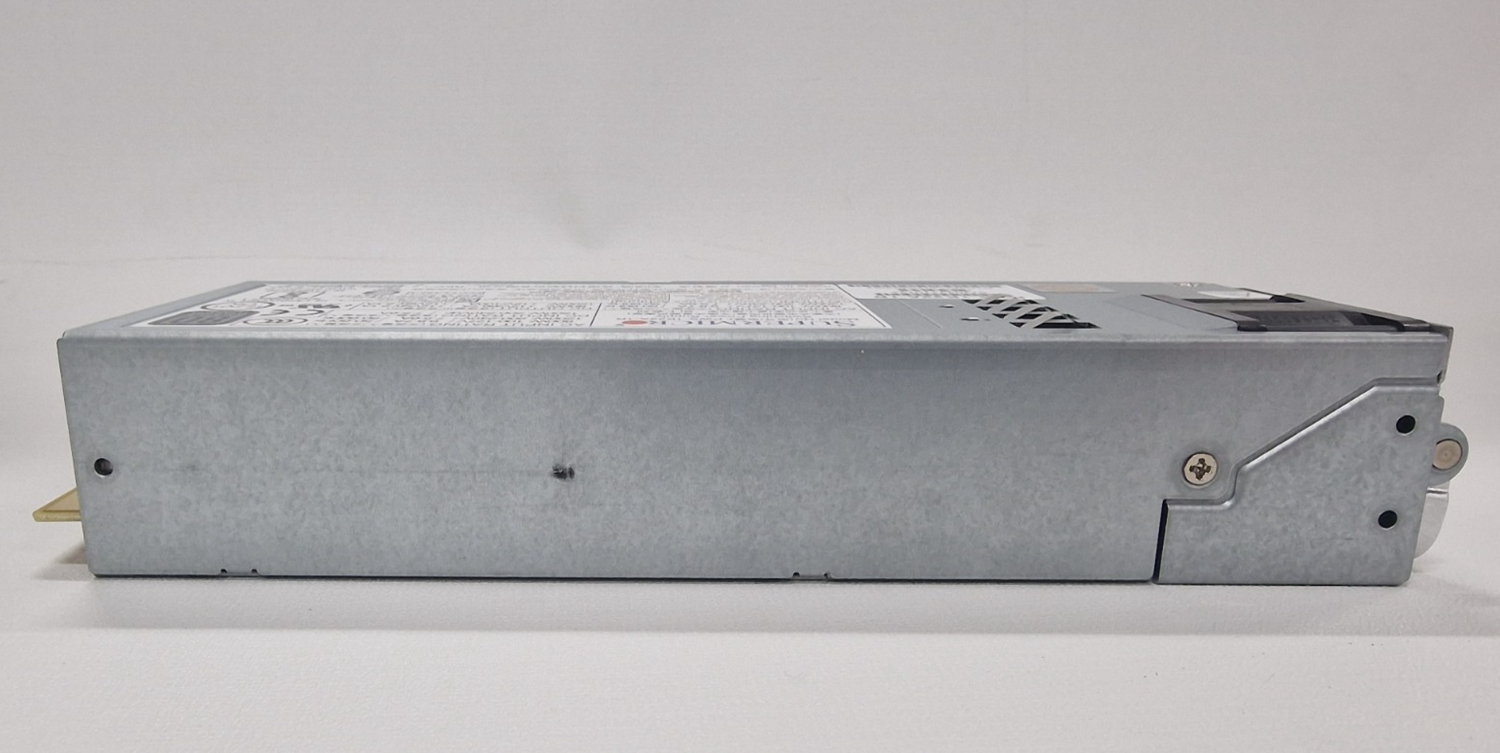

- Dimensions: 73.5 × 203 × 40 mm (W × D × H)

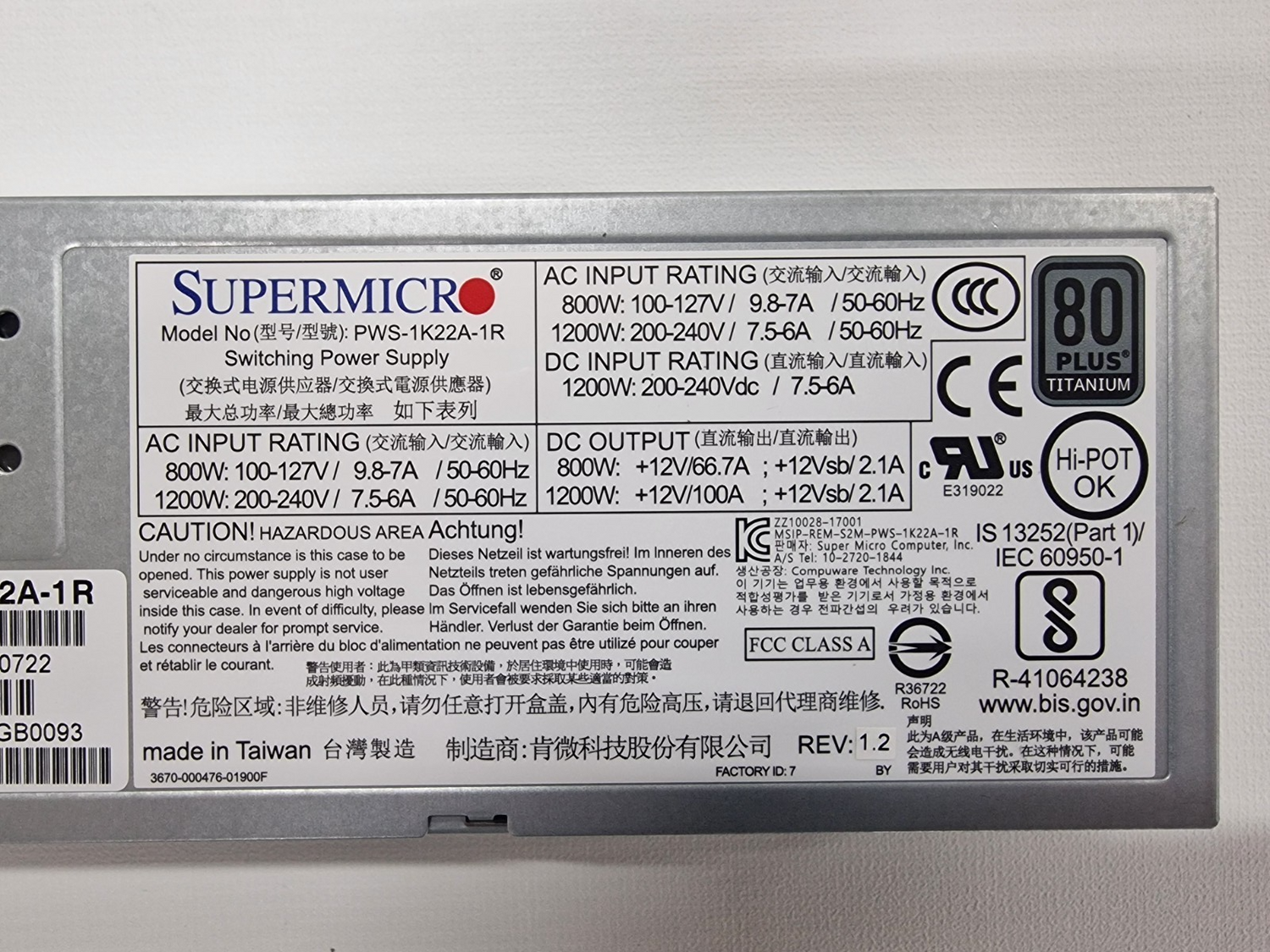

- Safety & EMC Certifications: UL60950-1, EN60950-1, IEC60950-1, CB, CE LVD, BSMI, CCC GB4943; EMI Class A
- Operating Environment: 0–50 °C, up to 5,000 m altitude; Storage: -40–70 °C, up to 15,200 m; 85% operating humidity, 95% non-condensing
- Environmental Compliance: RoHS and REACH compliant
