SuperMicro X10SRM-TF ESingle-Socket LGA 2011-3/Socket R3 Server Motherboard

Condition : Refurbished – tested and working grade A refurbished part

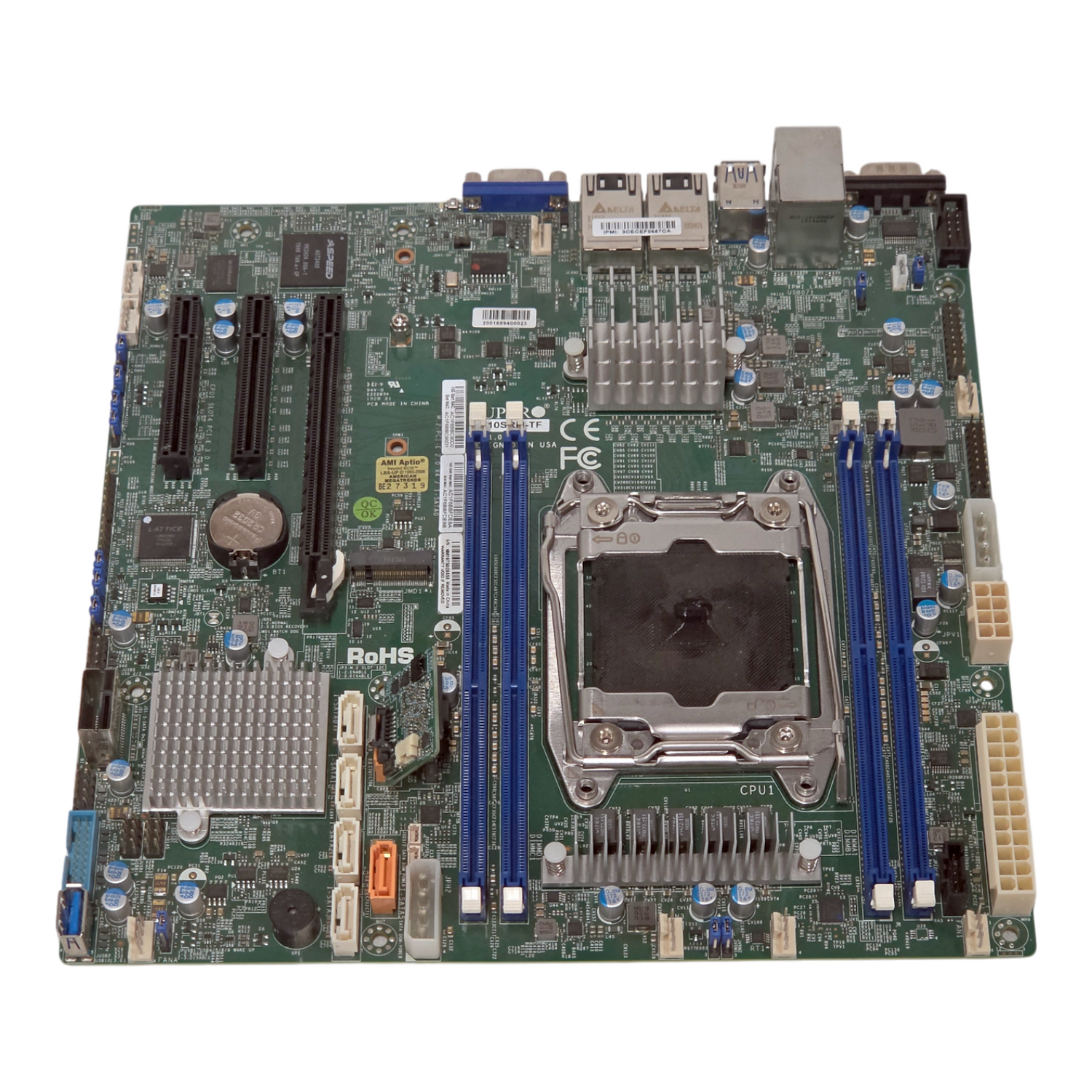

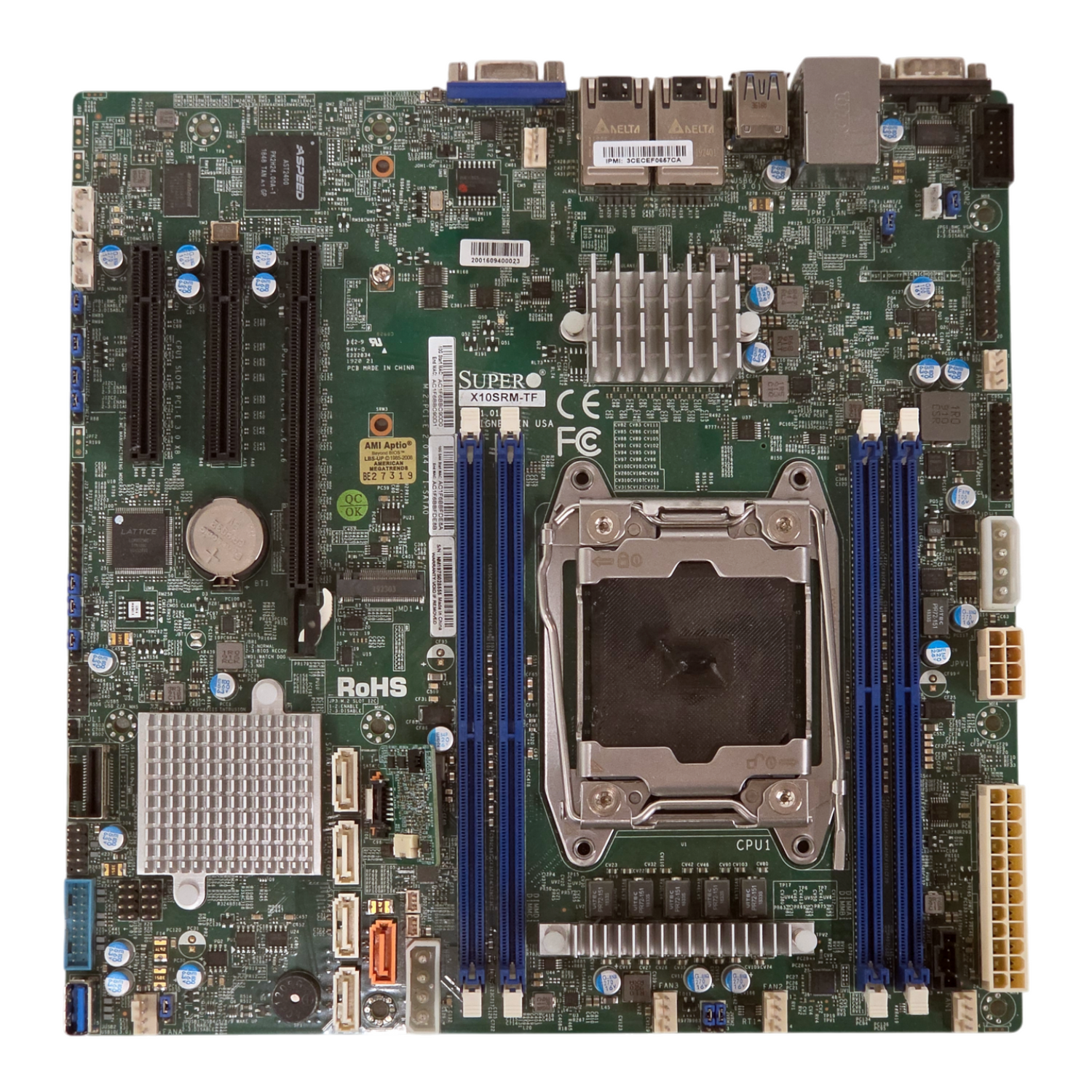

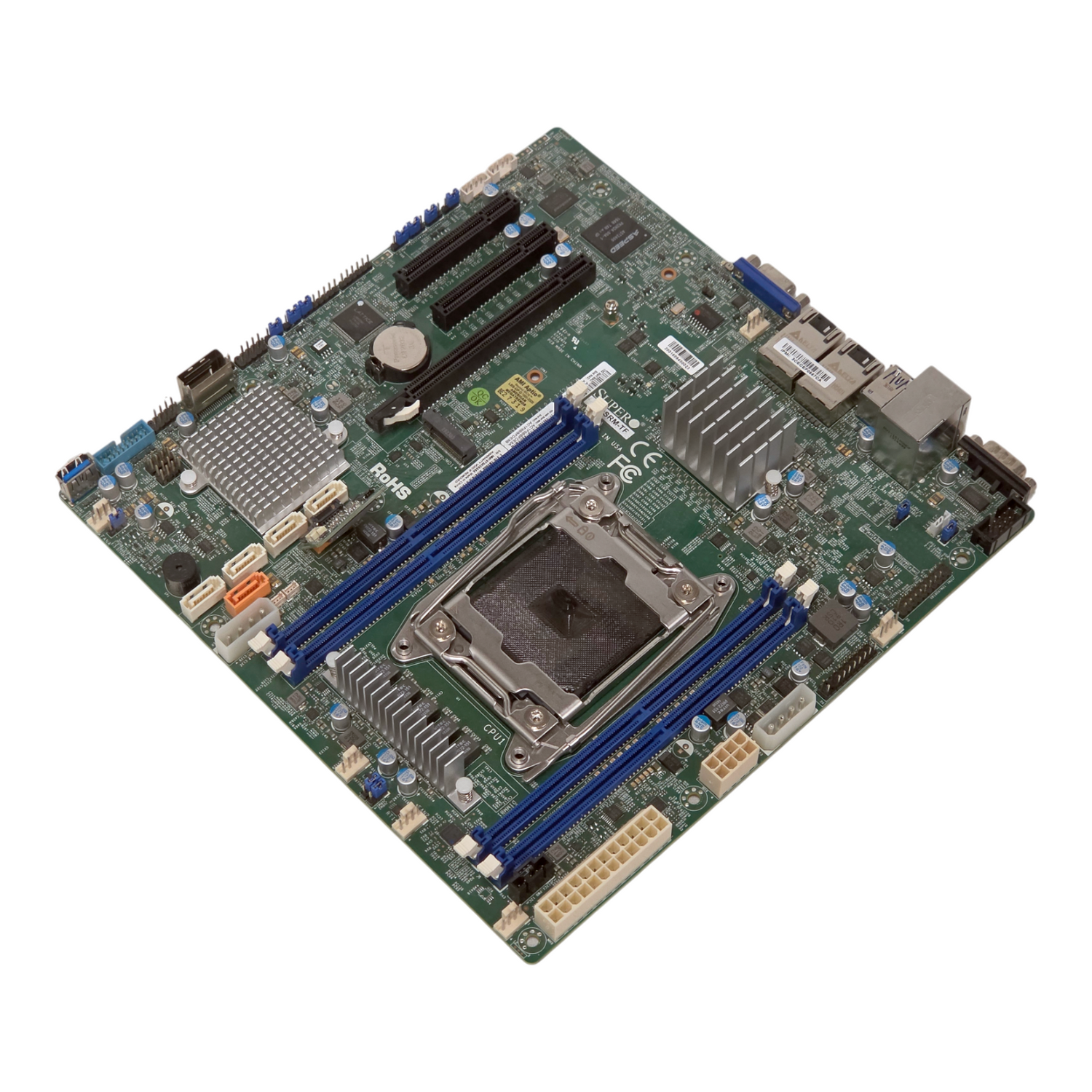

SuperMicro X10SRM-TF Single-Socket LGA 2011-3 Server Motherboard

Supports Intel Xeon Processor E5-1600 v3/v4 and E5-2600 v3/v4 series with up to 22 cores and 55MB cache. Single socket LGA-2011-3 (Socket R3) supporting CPUs with TDP up to 145W.

Memory:
- Up to 128GB DDR4 Registered ECC RDIMM or up to 256GB ECC LRDIMM at 2400MHz across 4 DIMM slots
- Supports 3DS LRDIMM up to 512GB
- 72-bit ECC DDR4 SDRAM with single-bit error correction and double-bit error detection

Storage & Expansion:
- Intel C612 chipset with 10 SATA3 (6 Gbps) ports supporting RAID 0,1,10
- PCI-E slots: 1 x PCI-E 3.0 x16, 2 x PCI-E 3.0 x8
- M.2 interface supporting SATA/PCI-E 2.0 x4 (2242, 2280, 22110 form factors)

Networking & Management:
- Dual Intel X550 10GBase-T LAN ports
- Dedicated IPMI LAN port with IPMI 2.0 support including KVM over LAN
- ASPEED AST2400 BMC graphics controller

I/O Ports:
- 6 USB 2.0 ports (2 rear, 4 headers)
- 5 USB 3.2 Gen1 ports (2 rear, 2 headers, 1 Type A)
- 2 COM ports (1 rear, 1 header)
- 1 VGA port

System BIOS:
- AMI BIOS with UEFI support
- Supports Plug and Play, ACPI, SMBIOS, and multiple power management features

Additional Features:
- CPU/system thermal monitoring, chassis intrusion detection
- Supports Node Manager and Intel Smart Response Technology
- RoHS compliant

Ideal for high-performance server applications requiring robust processing and networking capabilities.
